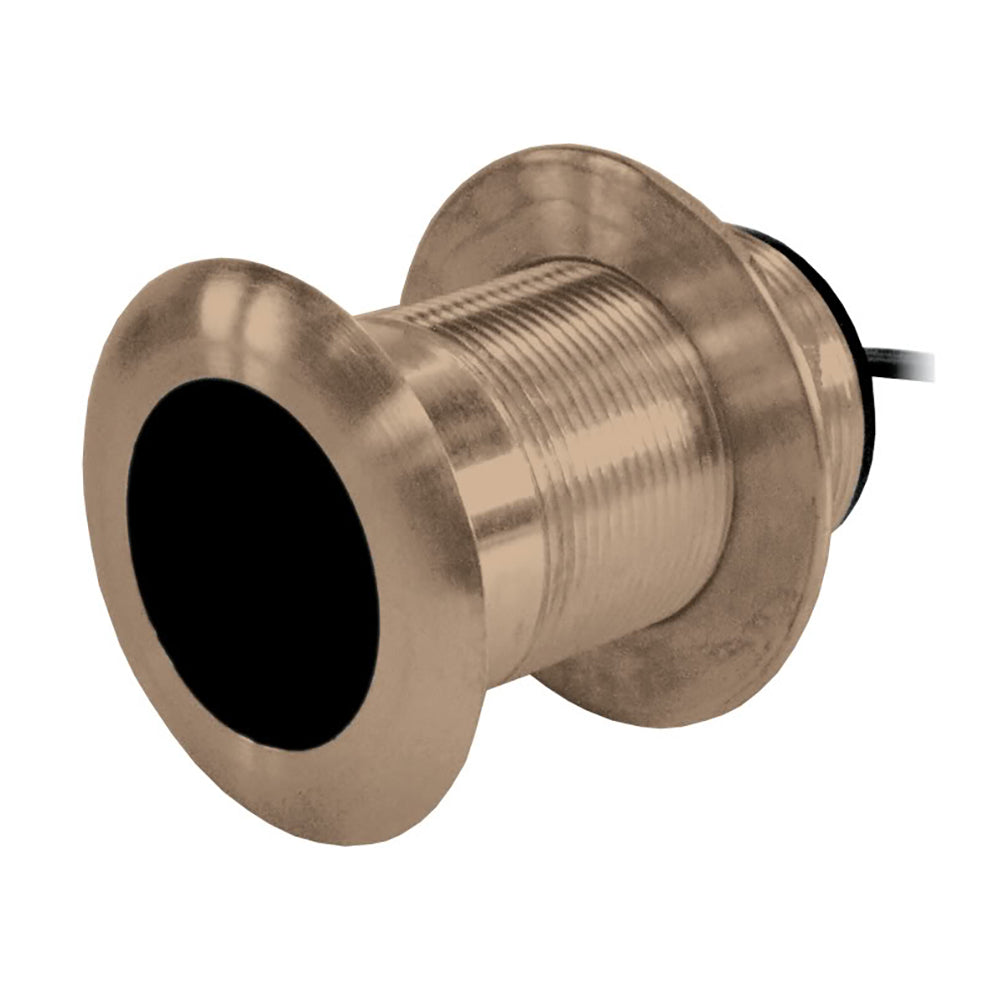

B117 Bronze 0° Depth & Temp with Ray Connector for CP370 & DSM300
The B117 features our 50/200 kHz, dual-frequency, single ceramic element in a low-profile housing. The nearly-flush design minimizes drag with only 5 mm (3/16") extending outside of the hull. The plastic P319 and stainless steel SS60 models are also available to accommodate all hull materials.
Features:
- Bronze Housing
- Depth and Temperature Only
- Replacement nut—405
- 10 m (33’) cable length
- Ideal for center-console and trailered boats
Specifications
Specifications
Identification
| MPN | B117-DT-RAY |
|---|
General
| Transducer Type | Thru-Hull |
|---|---|
| Mounting Style | Low Profile Thru-Hull |
| Housing Material | Bronze |
| Tilt Angle | 0° (up to 12°) |
| Functions | Depth, Temperature |
| Common Use | Leisure/Yachting, Fishing |
Sonar
| Sonar Type | Conventional Dual Frequency |
|---|---|
| Power Rating | 600 W |
| Frequency | 50/200 kHz |
| Beam Angle | 50 kHz: 45° / 200 kHz: 12° |
| Max Depth | 50 kHz: 1,200' (366 m) / 200 kHz: 700' (206 m) |
| Elements | - |
Dimensions
| Weight | 2 lb (0.9 kg) |
|---|---|
| Hole Size | 2" (51 mm) |
| Usable Shaft Length | 2.62" (66.5 mm) |
| Housing Diameter | - |
| Overall Height | - |
Connectivity
| Connector | Raymarine |
|---|---|
| Display Connector | Direct Connect |
| Cable Length | - |
| Compatible With | Raymarine CP370, DSM300 |
Additional
| Hull Material | Fiberglass or wood |
|---|---|
| Max Vessel Length | Up to 26' (8 m) |
| Retractable | No |
| Country of Origin | - |
