Boss Audio Elite 380W 4 Channel Class D Amplifier
Regular price
$36499
Total:
Unit price
SKU:
BOS/MPD380.4
Regular price
$36499
Total:
Unit price
Description
Description

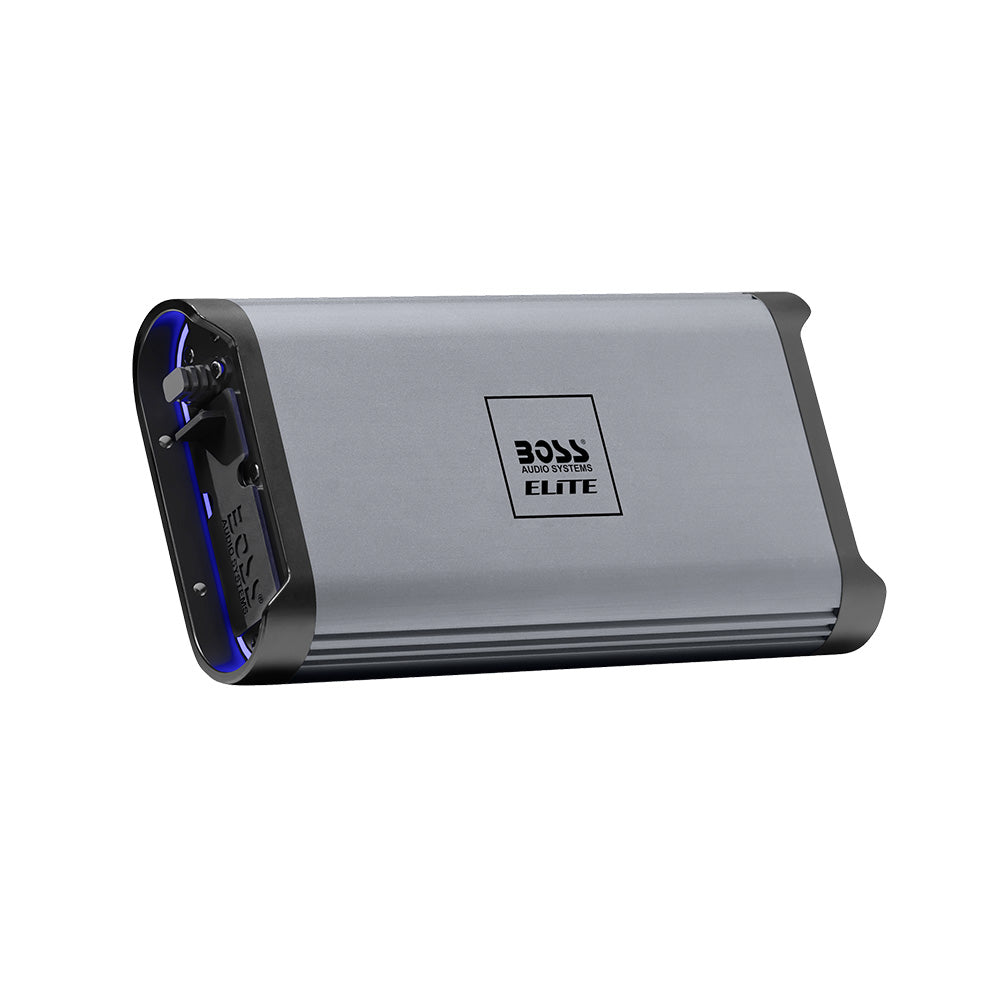

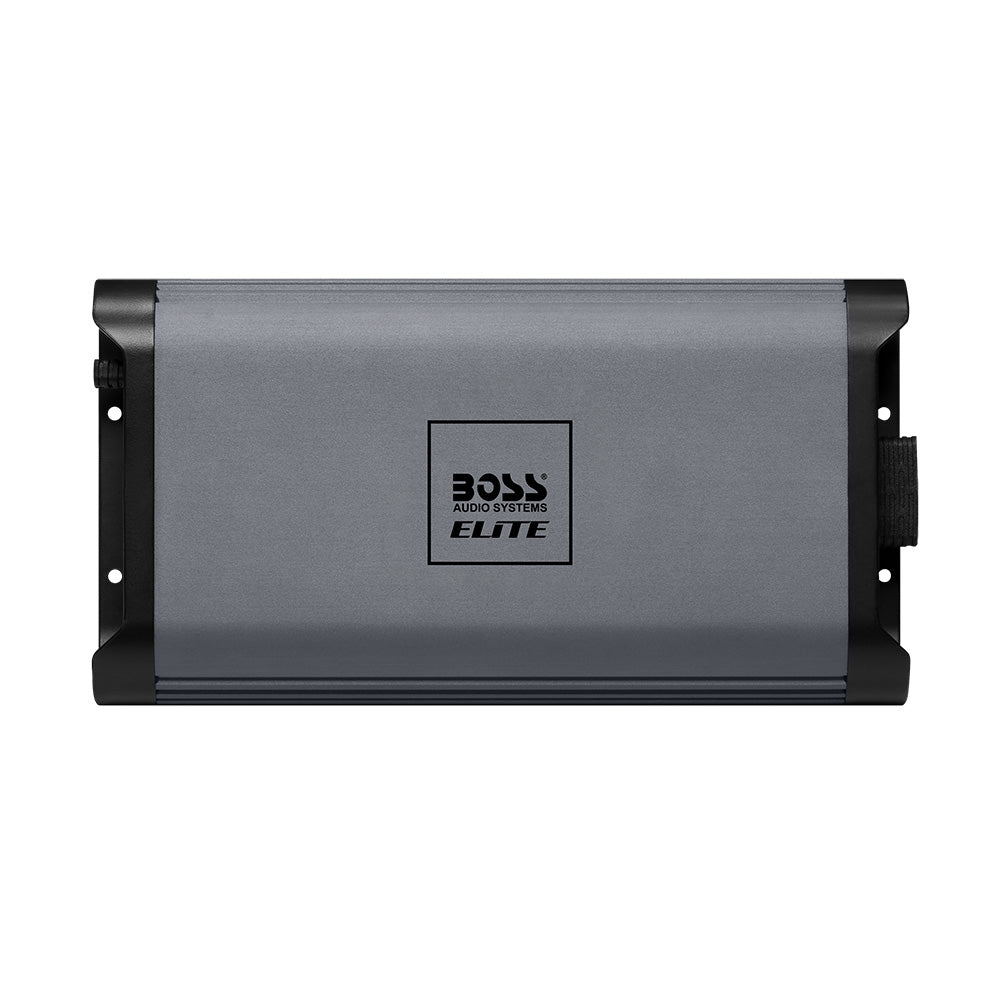

Elite 380W 4 Channel Class D Amplifier
Boss Audio Systems MPD380.4 4 Channel Marine Amplifier - Class D, 380 High Output, IP66 Rated, 2 Ohm Stable, Low-Level Inputs, High/Low Pass Crossover.
Features:
- 4/3/2 Channel
- Full-Range, Class D
- PWM MOSFET Power Supply
- RCA Level Inputs
- HP & LP Filters
- Bass Boost
- Input Sensitivity
- Bridgeable
- LED Illuminated End Panels
- IP66-Rated (Dustproof/Weatherproof)
- Thermal, Short, and Overload Protection Circuits
Specifications
Specifications
Identification
| MPN | MPD380.4 |
|---|---|
| Barcode | 791489133531 |
Dimensions
| Dimensions (H x W x D) | 1.97" x 9.76" x 5.12" (50 x 248 x 130 mm) |
|---|---|
| Weight | - |
Amplifier
| Amplifier Class | Class D |
|---|---|
| Channels | 4 |
Amplifier Power
| Rated Continuous (RMS) Power (Manufacturer Rating @ 4 Ohm) | 70 W x 4/200 W x 2 (Bridged) |
|---|---|
| Rated Continuous (RMS) Power (Manufacturer Rating @ 2 Ohm) | 95 W x 4 |
Amplifier Processing
| Signal-to-Noise Ratio, referred to highest rated power (A-weighted, 20 Hz-20 kHz noise bandwidth): Analog inputs | - |
|---|---|
| Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz-20 kHz noise bandwidth): Analog inputs | - |
| Signal-to-Noise Ratio (Manufacturer Rating) | - |
| Damping Factor @ 4 Ω | - |
| Damping Factor @ 2 Ω | - |
| THD+N @ rated power | 0.01% |
| Frequency Response (+0, -1dB) | - |
| Input Voltage Range @ RCA Inputs | - |
| Input Impedance | - |
| Remote Level Control | - |
| Remote Level Modes | - |
| Channel Input Mode Switch | - |
| Pass-through Preamp Output | - |
| Source Channel Selection for PreOuts | - |
Amplifier Filters
| Bass Boost EQ | 0 to +12 dB |
|---|---|
| Output Polarity Switch | - |
| Filter Mode(s): Channels 1 & 2 | High-Pass, Full Range or Low-Pass |
| Filter Slope(s): Channels 1 & 2 | - |
| Filter Frequency Range: Channels 1 & 2 | 50 Hz-250 Hz |
| Filter Mode(s): Channels 3 & 4 | High-Pass, Full Range or Low-Pass |
| Filter Slope(s): Channels 3 & 4 | - |
| Filter Frequency Range: Channels 3 & 4 | 50 Hz-250 Hz |
| High-Pass/Low-Pass Full Range Filter | - |
| HP Variable Crossover Frequency Range | - |
| LP Variable Crossover Frequency Range | - |
| Infrasonic Filter | - |
| Detented, Calibrated Filter Potentiometers | - |
Electrical
| Operating Voltage | - |
|---|---|
| Current Consumption (idle) | - |
| Current Consumption (standby) | - |
| Fuse Rating | - |
| Recommended Fuse Type(s) | - |
| Minimum Copper Power/Ground Wire Gauge | 4 AWG |
General
| Water/Dust Protection Rating | IP66 |
|---|---|
| Operating Temperature Range | - |
| Protection Circuits | Thermal, overload, speaker short-circuit |
Warranty/Certifications
| Certifications | - |
|---|---|
| Warranty | 2 Years |
