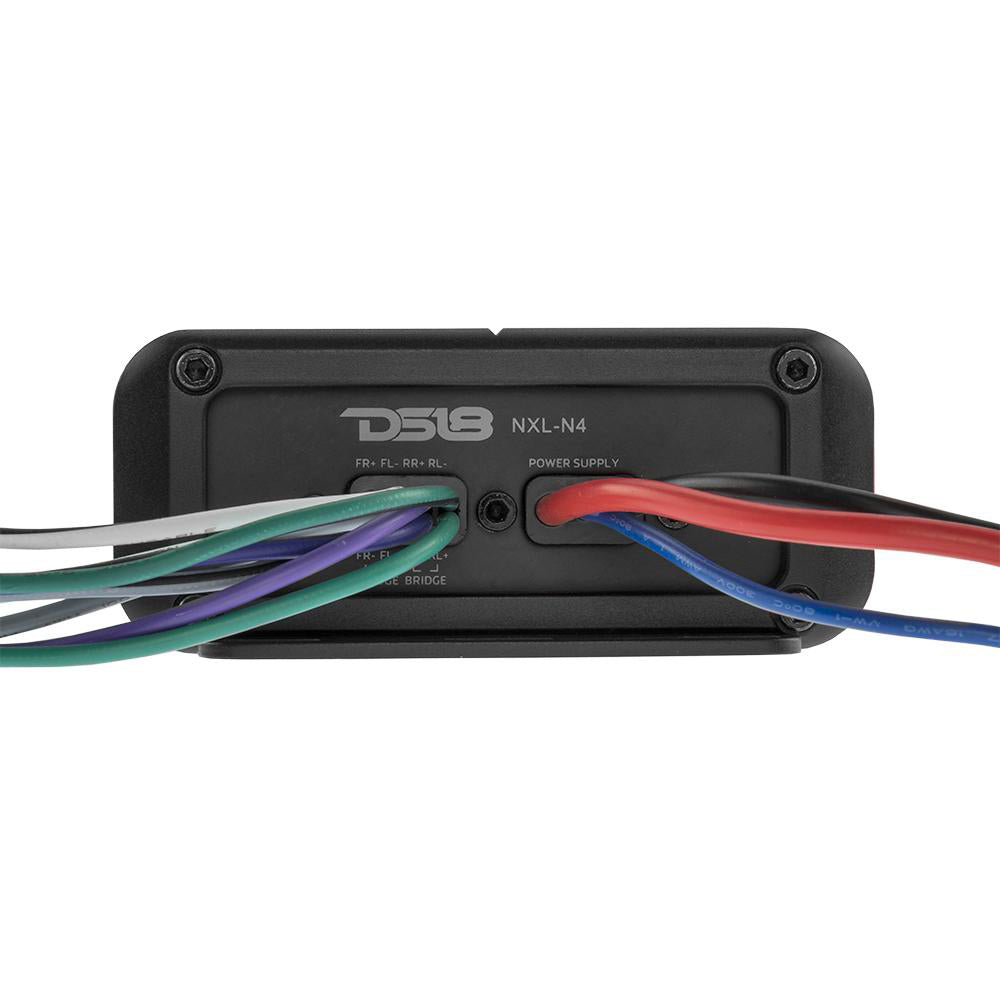

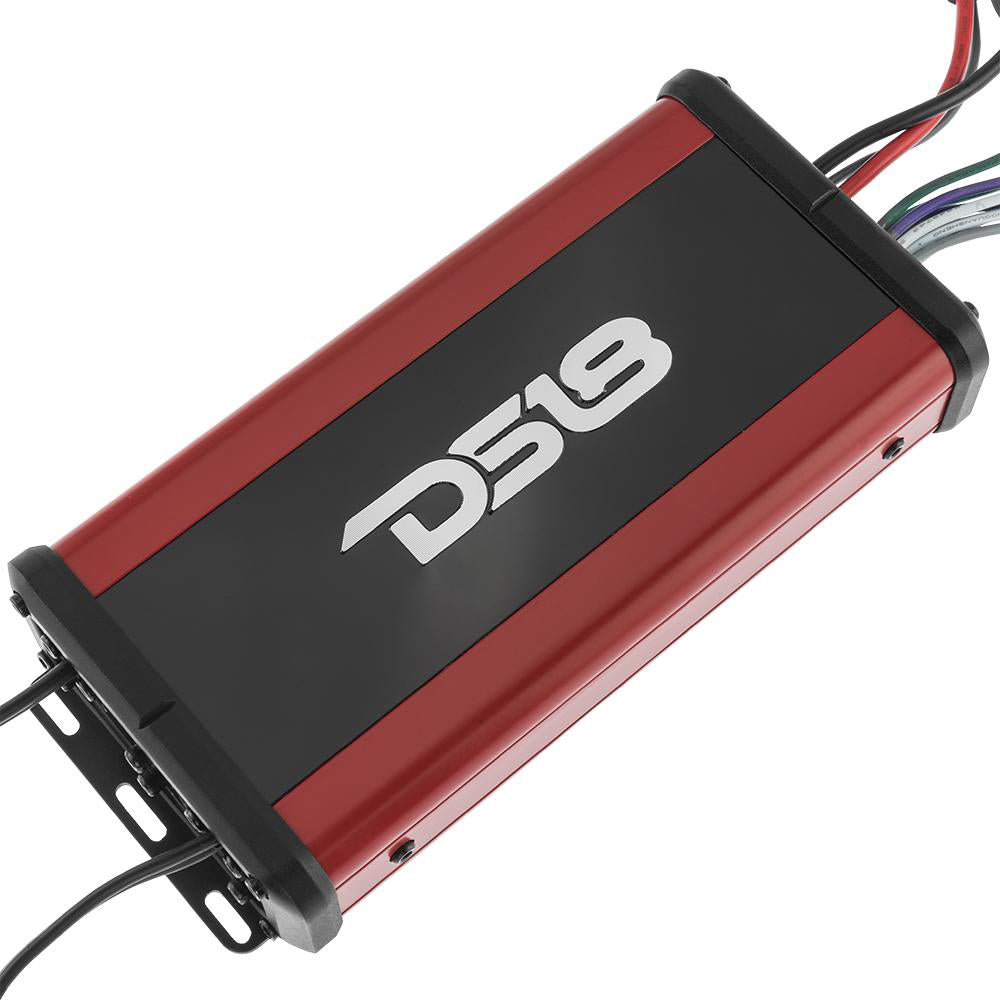

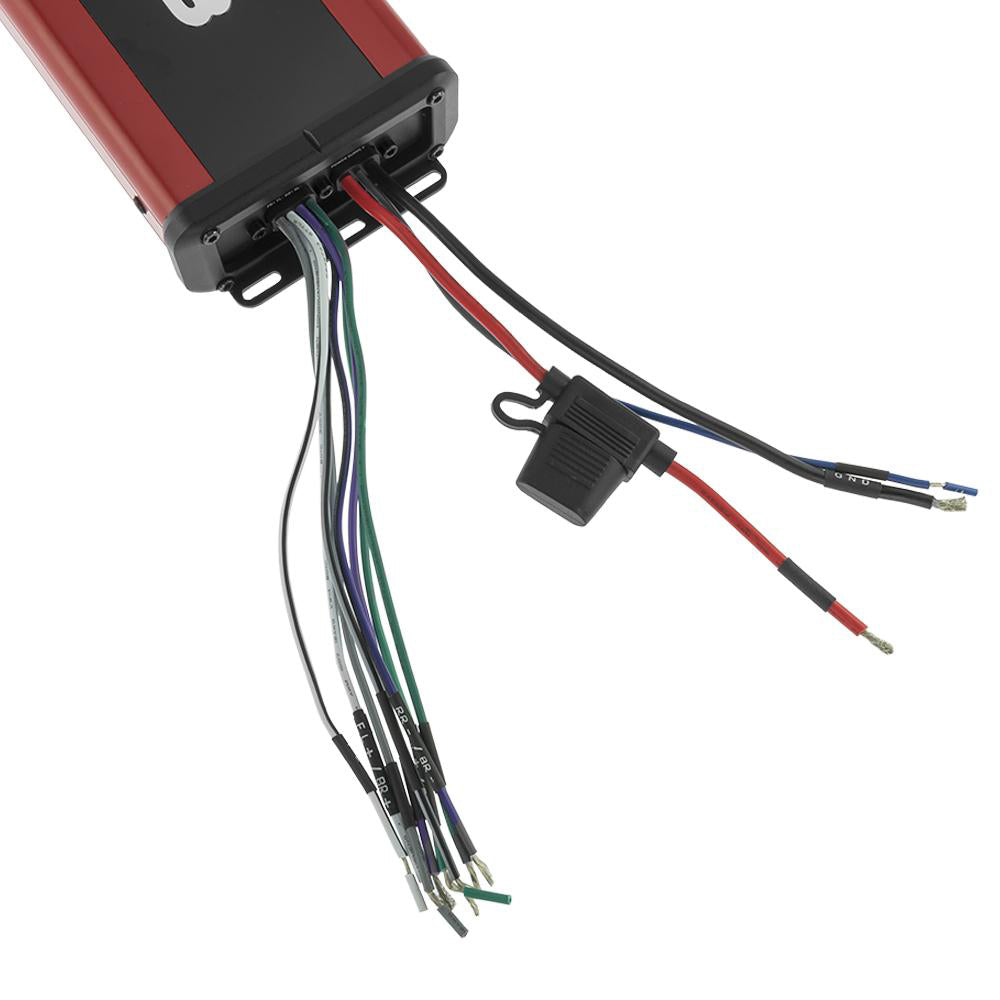

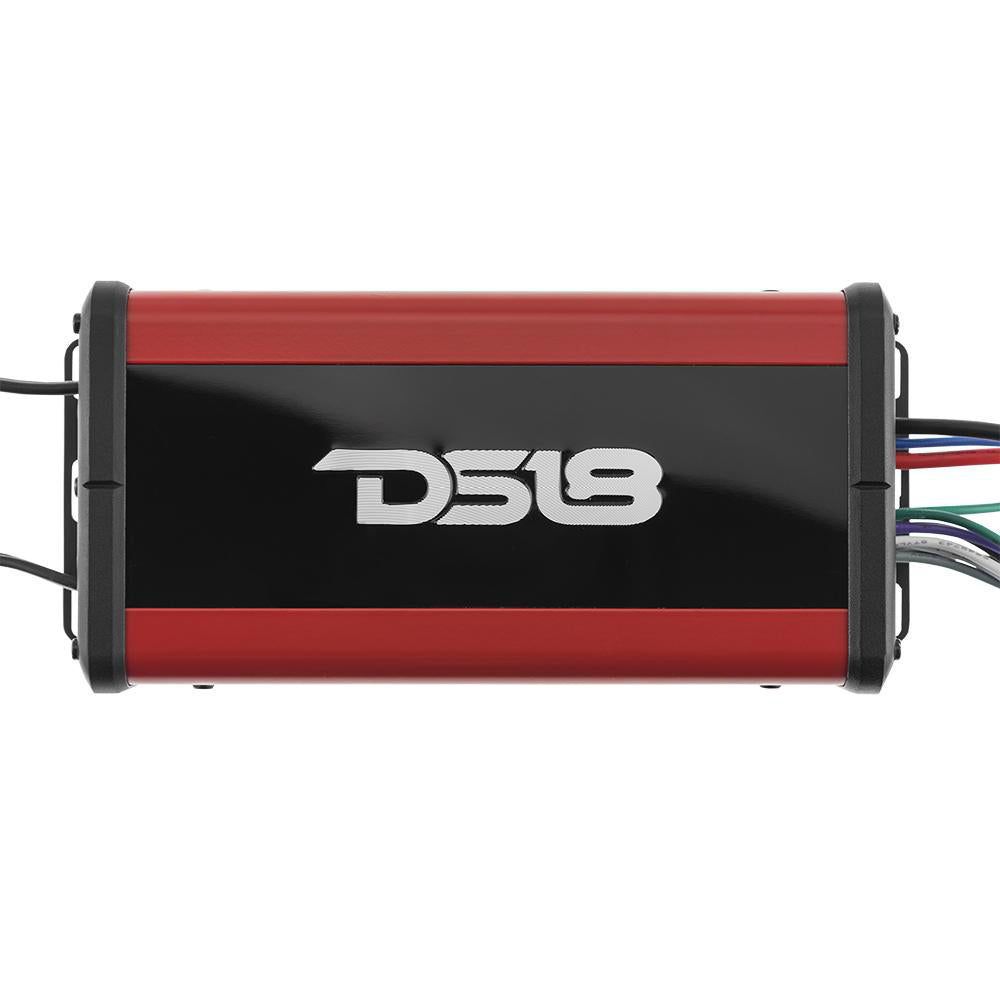

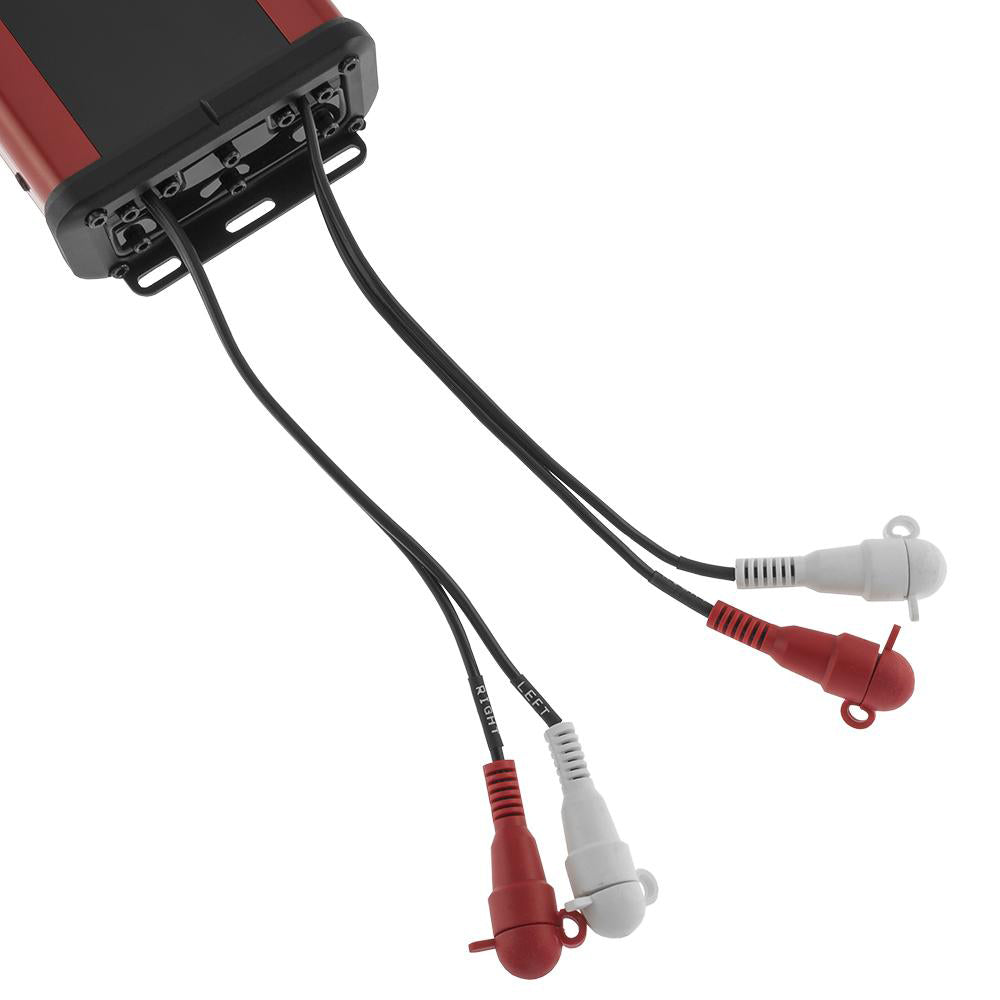

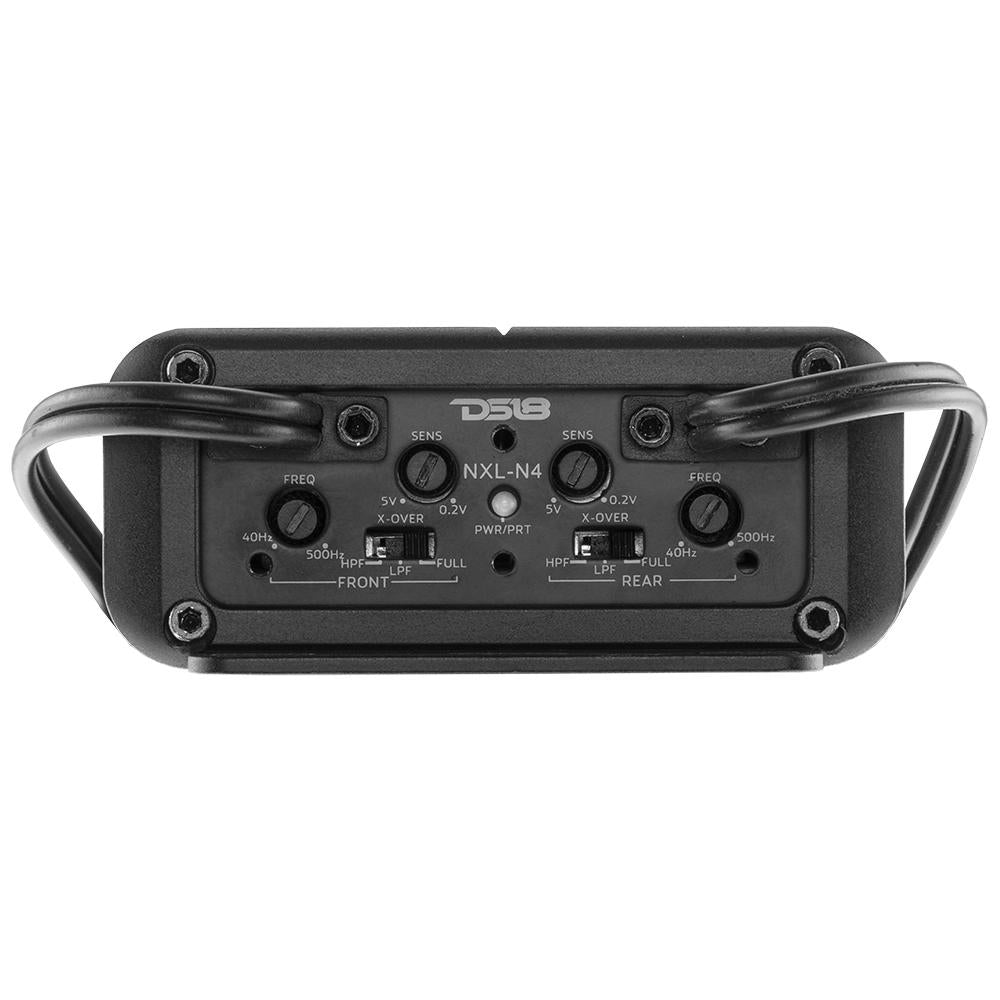

HYDRO Full Range Digital Marine 4-Channel Amplifier - 720W
Whether you are the type of audio enthusiast that likes to hit the open road on his bike, ride the rough trails on your side by side, or cruise the open waters, you are going to need a powerful and waterproof rated amp that has a small footprint and also make great power.
DS18 has a line just for the job with the NXL series of amplifiers to power your whole system. This 4 channel amplifier helps you accommodate for all your different speaker setups without having to look further. Being a full range amps, these can be run on subs, mids, or tweeters because of the internal design of the amp.
All units have stable and reliable 4-layer PCB layouts, IPX67 rated for power sports, has an ultra-compact size for easy installation, and has audio precision quality control verification.
Features:
- Stable and reliable 4 layers PCB layout design

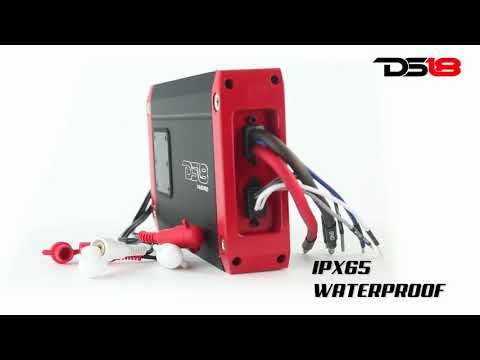

- IPX67 Waterproof for Powersports applications
- Ultra compact size for easy installation
- Audio precision quality control verification
Specifications
Specifications
Identification
| MPN | NXL-N4 |
|---|---|
| Barcode | 810005180603 |
Dimensions
| Dimensions (H x W x D) | 1.57" x 7.87" x 3.68" (40 x 200 x 93 mm) |
|---|---|
| Weight | - |
Amplifier
| Amplifier Class | Class D |
|---|---|
| Channels | 4 |
Amplifier Power
| Rated Continuous (RMS) Power (Manufacturer Rating @ 4 Ohm) | 100 W x 4/260 W x 2 (Bridged) |
|---|---|
| Rated Continuous (RMS) Power (Manufacturer Rating @ 2 Ohm) | 150 W x 4 |
Amplifier Processing
| Signal-to-Noise Ratio, referred to highest rated power (A-weighted, 20 Hz-20 kHz noise bandwidth): Analog inputs | - |
|---|---|
| Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz-20 kHz noise bandwidth): Analog inputs | - |
| Signal-to-Noise Ratio (Manufacturer Rating) | 90 dB |
| Damping Factor @ 4 Ω | - |
| Damping Factor @ 2 Ω | - |
| THD+N @ rated power | - |
| Frequency Response (+0, -1dB) | 20 Hz-20 kHz |
| Input Voltage Range @ RCA Inputs | - |
| Input Impedance | - |
| Remote Level Control | - |
| Remote Level Modes | - |
| Channel Input Mode Switch | - |
| Pass-through Preamp Output | - |
| Source Channel Selection for PreOuts | - |
Amplifier Filters
| Bass Boost EQ | None |
|---|---|
| Output Polarity Switch | - |
| Filter Mode(s): Channels 1 & 2 | - |
| Filter Slope(s): Channels 1 & 2 | - |
| Filter Frequency Range: Channels 1 & 2 | - |
| Filter Mode(s): Channels 3 & 4 | - |
| Filter Slope(s): Channels 3 & 4 | - |
| Filter Frequency Range: Channels 3 & 4 | - |
| High-Pass/Low-Pass Full Range Filter | - |
| HP Variable Crossover Frequency Range | - |
| LP Variable Crossover Frequency Range | - |
| Infrasonic Filter | - |
| Detented, Calibrated Filter Potentiometers | - |
Electrical
| Operating Voltage | - |
|---|---|
| Current Consumption (idle) | - |
| Current Consumption (standby) | - |
| Fuse Rating | - |
| Recommended Fuse Type(s) | - |
| Minimum Copper Power/Ground Wire Gauge | - |
General
| Water/Dust Protection Rating | IPX67 |
|---|---|
| Operating Temperature Range | - |
| Protection Circuits | - |
Warranty/Certifications
| Certifications | - |
|---|---|
| Warranty | - |
