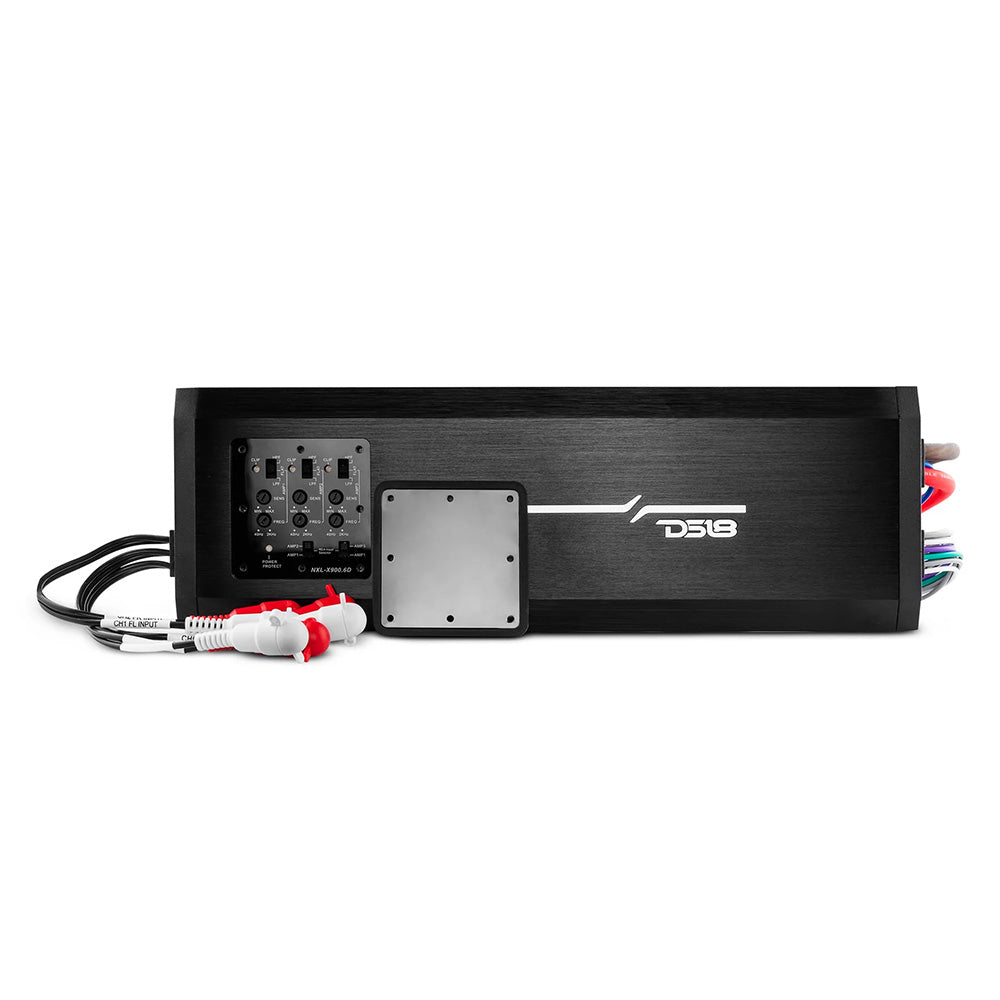

HYDRO 6 Channel Full-Range Class D Waterproof Marine Amplifier - 3000W
DS18 designed the NXL-X900.6D for customers looking for a compact and waterproof amplifier with exceptional power output and prioritizing boosting sound.
The NXL series' impressive power output is supplemented by its outstanding efficiency, and its durability in harsh conditions makes it a favorite among customers in need of a waterproof amplifier to be the powerhouse of their system.
The NXL-X900.6D comes in a 6-channel configuration making it great for powering more complicated active setups. The high pass and low pass filters will help you tune your speaker choice accurately so you can obtain crystal clarity from low volume levels all the way to the maximum for the ultimate audio experience.
All NXL units have stable and reliable 4-layer PCB layouts, IP67 waterproof rating for power sports an ultra-compact size for easy installation, and audio precision quality control verification.
The NXL Marine Amplifier series is perfect for outdoor enthusiasts looking for a durable, waterproof amplifier with intense power for their marine vehicle's audio system. This series is best used in various rugged and wet environments, such as on trails or at the lake.
Features:
- Included a marine grade fuse and fuse holder that is connected inline with your main power wire will help with ultimate protection against the elements.
- IP67 Waterproof Rating
- UV, Salt, and Fog Protection
- Direct Power Harness Design with Marine Grade OFC Tinned Wires
- Latest Digital Amplifier Design With SMC Technology
Specifications
Specifications
Identification
| MPN | NXL-X900.6D |
|---|---|
| Barcode | 810097261716 |
Dimensions
| Dimensions (H x W x D) | 1.77" x 14.17" x 4.41" (45 x 360 x 112 mm) |
|---|---|
| Weight | - |
Amplifier
| Amplifier Class | Class D |
|---|---|
| Channels | 6 |
Amplifier Power
| Rated Continuous (RMS) Power (Manufacturer Rating @ 4 Ohm) | 150 W x 6/500 W x 3 (Bridged) |
|---|---|
| Rated Continuous (RMS) Power (Manufacturer Rating @ 2 Ohm) | 250 W x 6 |
Amplifier Processing
| Signal-to-Noise Ratio, referred to highest rated power (A-weighted, 20 Hz-20 kHz noise bandwidth): Analog inputs | - |
|---|---|
| Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz-20 kHz noise bandwidth): Analog inputs | > 84 dB |
| Signal-to-Noise Ratio (Manufacturer Rating) | - |
| Damping Factor @ 4 Ω | - |
| Damping Factor @ 2 Ω | - |
| THD+N @ rated power | < 0.03% |
| Frequency Response (+0, -1dB) | 10 Hz-20 kHz |
| Input Voltage Range @ RCA Inputs | 200 mV-5 V |
| Input Impedance | 20 kΩ |
| Remote Level Control | - |
| Remote Level Modes | - |
| Channel Input Mode Switch | Yes (2/4/6 Channels) |
| Pass-through Preamp Output | - |
| Source Channel Selection for PreOuts | - |
Amplifier Filters
| Bass Boost EQ | None |
|---|---|
| Output Polarity Switch | - |
| Filter Mode(s): Channels 1 & 2 | High-Pass, Full Range or Low-Pass |
| Filter Slope(s): Channels 1 & 2 | - |
| Filter Frequency Range: Channels 1 & 2 | 40 Hz-2 kHz |
| Filter Mode(s): Channels 3 & 4 | High-Pass, Full Range or Low-Pass |
| Filter Slope(s): Channels 3 & 4 | - |
| Filter Frequency Range: Channels 3 & 4 | 40 Hz-2 kHz |
| Filter Mode(s): Channels 5 & 6 | High-Pass, Full Range or Low-Pass |
| Filter Slope(s): Channels 5 & 6 | - |
| Filter Frequency Range: Channels 5 & 6 | 40 Hz-2 kHz |
| High-Pass/Low-Pass Full Range Filter | - |
| HP Variable Crossover Frequency Range | - |
| LP Variable Crossover Frequency Range | - |
| Infrasonic Filter | - |
| Detented, Calibrated Filter Potentiometers | - |
Electrical
| Operating Voltage | 7-16 VDC |
|---|---|
| Current Consumption (idle) | - |
| Current Consumption (standby) | - |
| Fuse Rating | 2 x 60 A (120 A total) |
| Recommended Fuse Type(s) | - |
| Minimum Copper Power/Ground Wire Gauge | 4 AWG wire |
General
| Water/Dust Protection Rating | IP67 |
|---|---|
| Operating Temperature Range | - |
| Protection Circuits | Thermal (75 °C), overload, short-circuit, input voltage (7-16 V) |
Warranty/Certifications
| Certifications | - |
|---|---|
| Warranty | 2 Years |
