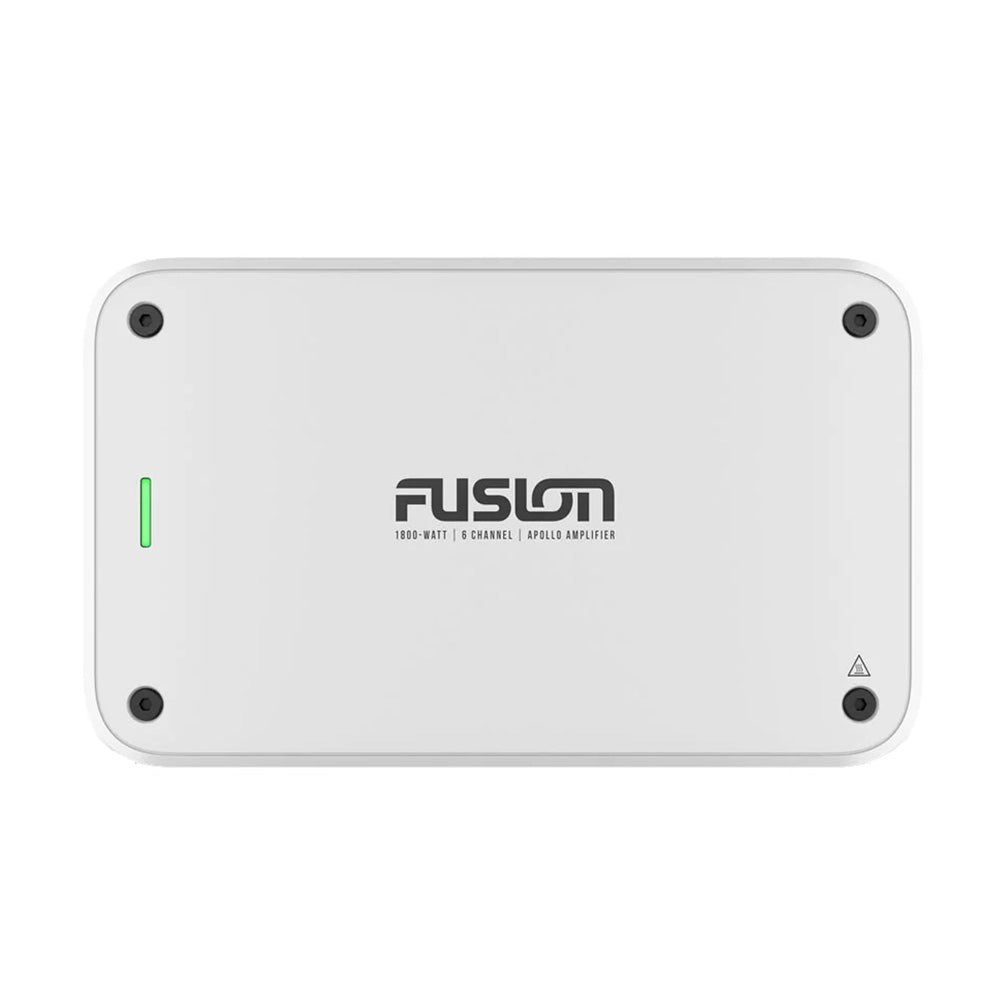

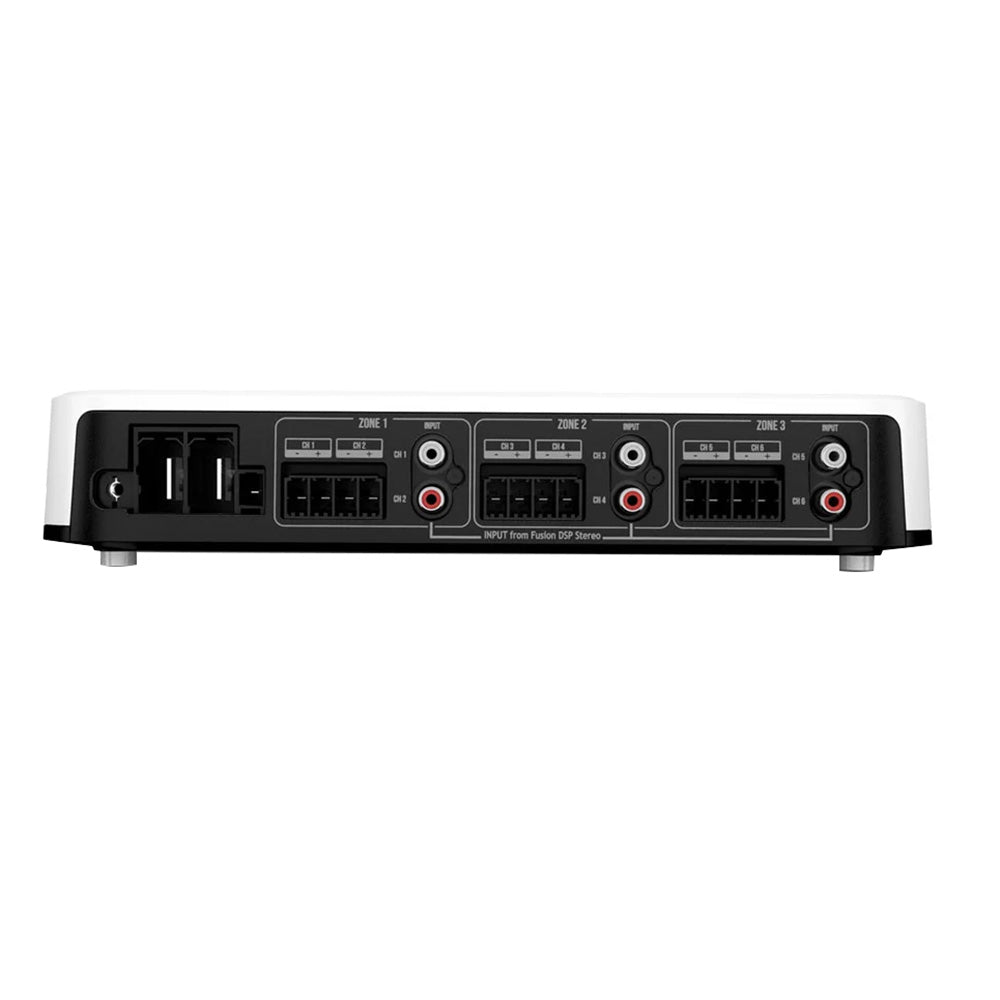

Fusion Apollo Marine 6 Channel 1800-Watt Amplifier

Name: Fusion Apollo Marine 6 Channel 1800-Watt Amplifier
Brand: Fusion
SKU: FUS/010-02284-65
Price: 899.99 USD
Availability: InStock

SKU: FUS/010-02284-65

$899⁹⁹

Same-Day Shipping Checking cutoff…

Description

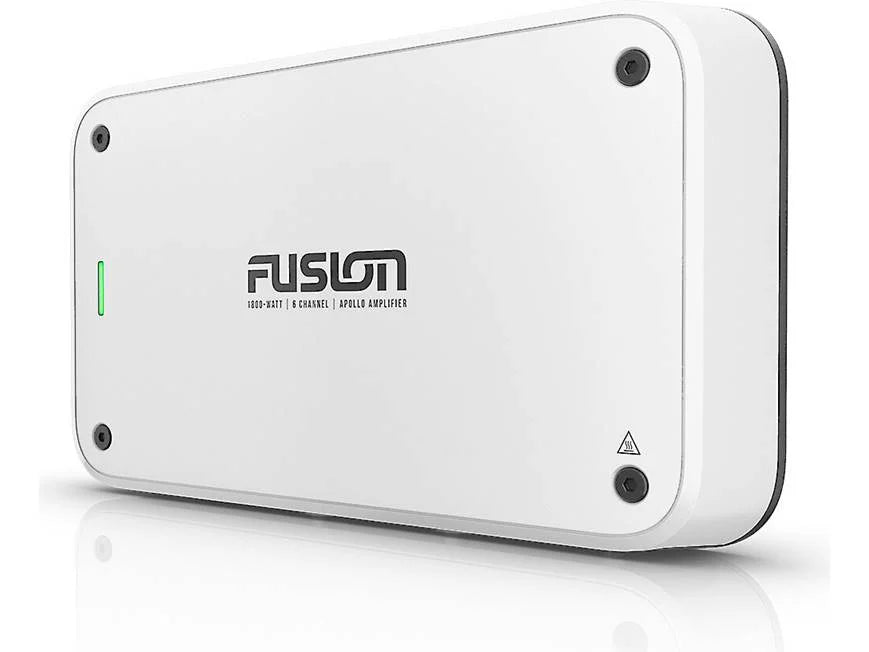

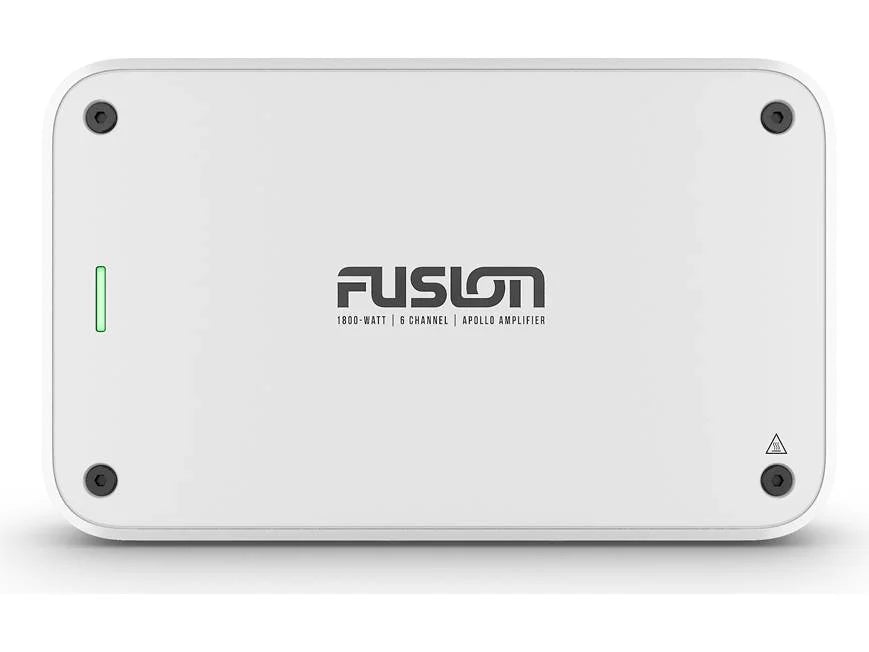

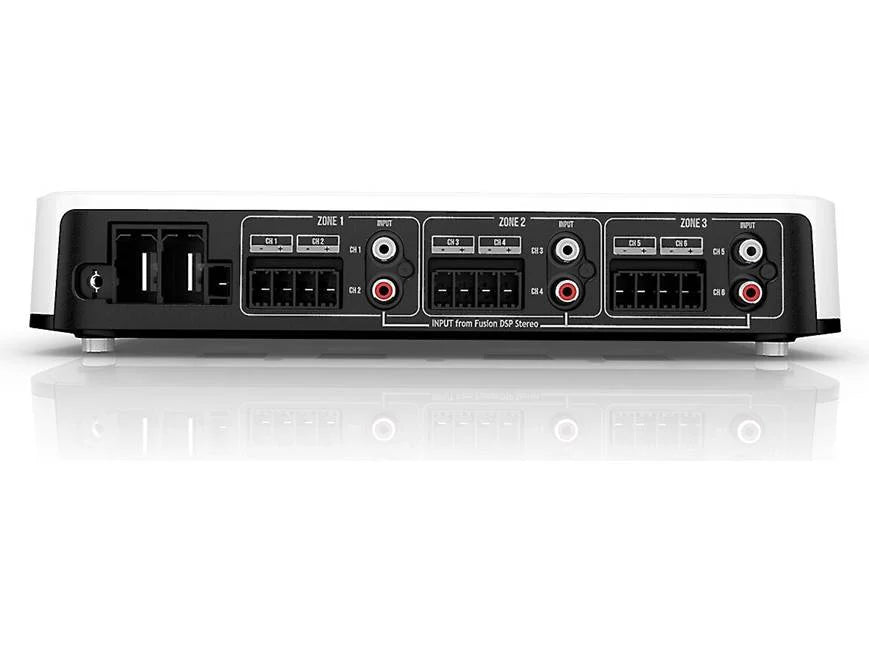

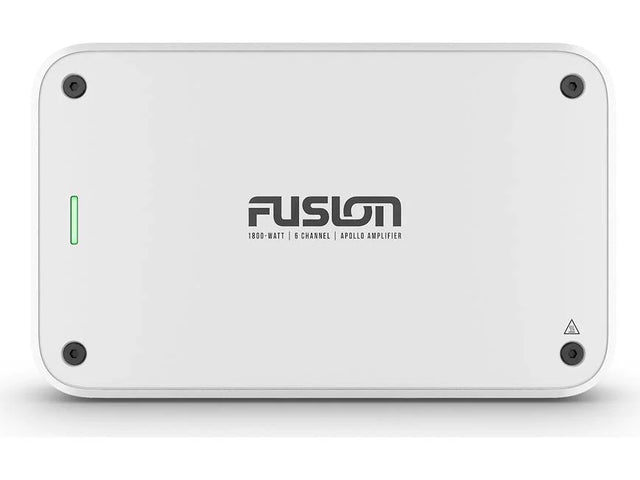

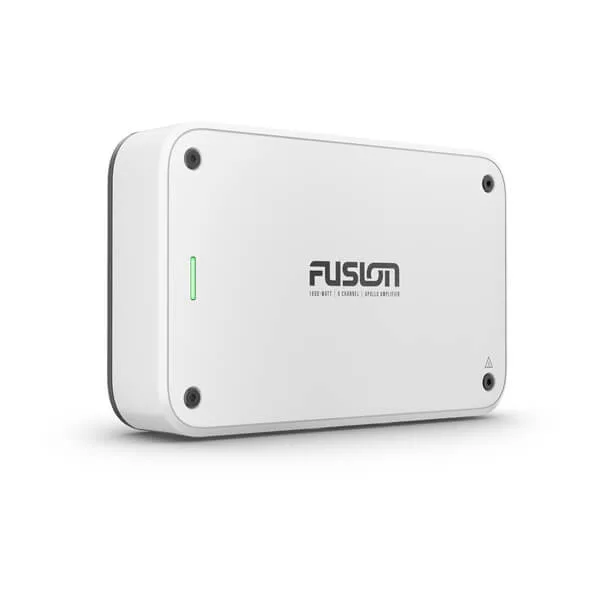

Apollo Marine 6 Channel 1800-Watt Amplifier

This 6-channel amplifier with 150-watt RMS per channel can power up to six pairs of speakers or four pairs of speakers and one subwoofer. It includes high-power mode adapters for simple bridging to increase power.

Features:

Keep the music going for longer without draining your battery as quickly
No more manual adjustments to your audio settings. The Easy Tune feature does it for you
A glance at the LED indicators lets you identify if the amplifiers have a short or if they’re overheating
Less distortion and noise, so you enjoy quality audio
Mounting brackets are included for simple installation
Don’t worry about potential overheating damage with our ignition protection design

Power & Efficiency

The Apollo amplifiers are designed to produce impressive power with less drain on your battery. This amp produces 150-watt RMS per channel.

Easy Tune Feature

These amplifiers use the Easy Tune feature, which automatically regulates audio settings. So, users can get the best quality sound without making manual adjustments.

Less Distortion

Some amplifiers distort audio when they add power. Fusions are specifically designed with minimal distortion and noise, so you can enjoy high-quality audio, even at higher volumes.

LED Indicators

Identify electrical issues at a glance. These indicator lights will show you issues with electrical currents and shorts, as well as temperature.

Mounting Brackets

Easily install the amplifiers on board with the included mounting brackets.

Ignition Protected

The ignition-protected design helps prevent potential damage from overheating.

Conformal-Coated PCBS

The amplifier’s circuit board has been specially coated to provide extra protection from the marine elements.

2 OHM Stable

Connect up to two speakers per channel, increasing setup options.

Fusion True-Marine Design

The amplifier is designed to last season after season. They have been tested to a high level of protection against salt fog, temperature, vibration, and UV.

Specifications

Identification

MPN	010-02284-65
Barcode	753759329624

Dimensions

Dimensions (H x W x D)	1.77" x 11.69" x 7.09" (45 x 297 x 180 mm)
Weight	5.95 lbs (2.7 kg)

Amplifier

Amplifier Class	Class D
Channels	6

Amplifier Power

Rated Continuous (RMS) Power (14.4 V input @ 4 Ohm < 1% THD)	150 W x 6/580 W x 3 (Bridged)
Rated Continuous (RMS) Power (14.4 V input @ 2 Ohm < 1% THD)	290 W x 6
Rated Continuous (RMS) Power (12.5 V input @ 4 Ohm < 1% THD)	-
Rated Continuous (RMS) Power (12.5 V input @ 2 Ohm < 1% THD)	-

Amplifier Processing

Signal-to-Noise Ratio, referred to highest rated power (A-weighted, 20 Hz-20 kHz noise bandwidth): Analog inputs	-
Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz-20 kHz noise bandwidth): Analog inputs	-
Signal-to-Noise Ratio (Manufacturer Rating)	-
Damping Factor @ 4 Ω	-
Damping Factor @ 2 Ω	-
THD+N @ rated power	-
Frequency Response (+0, -1dB)	20 Hz-20 kHz
Input Voltage Range @ RCA Inputs	1.3 V RMS
Input Impedance	22 kΩ
Remote Level Control	-
Remote Level Modes	-
Channel Input Mode Switch	-
Pass-through Preamp Output	-
Source Channel Selection for PreOuts	-

Amplifier Filters

Bass Boost EQ	None
Output Polarity Switch	-
Filter Mode(s): Channels 1 & 2	-
Filter Slope(s): Channels 1 & 2	-
Filter Frequency Range: Channels 1 & 2	-
Filter Mode(s): Channels 3 & 4	-
Filter Slope(s): Channels 3 & 4	-
Filter Frequency Range: Channels 3 & 4	-
Filter Mode(s): Channels 5 & 6	-
Filter Slope(s): Channels 5 & 6	-
Filter Frequency Range: Channels 5 & 6	-
High-Pass/Low-Pass Full Range Filter	-
HP Variable Crossover Frequency Range	-
LP Variable Crossover Frequency Range	-
Infrasonic Filter	-
Detented, Calibrated Filter Potentiometers	-

Electrical

Operating Voltage	-
Current Consumption (idle)	< 1.32 A @ 14.4 V input
Current Consumption (standby)	< 5 mA @ 14.4 V input
Fuse Rating	125 A electronic fuse (no replacement necessary)
Recommended Fuse Type(s)	Bussmann™ BK/AMI-030 30 A fast-acting
Minimum Copper Power/Ground Wire Gauge	-

General

Water/Dust Protection Rating	IPX2
Operating Temperature Range	32° to 122° F (0° to 50° C)
Protection Circuits	Reverse voltage, input under/over voltage, over temperature, output short circuit

Warranty/Certifications

Certifications	Ignition Safety Protected (SAE J1171)
Warranty	3 Years

Reviews (1)

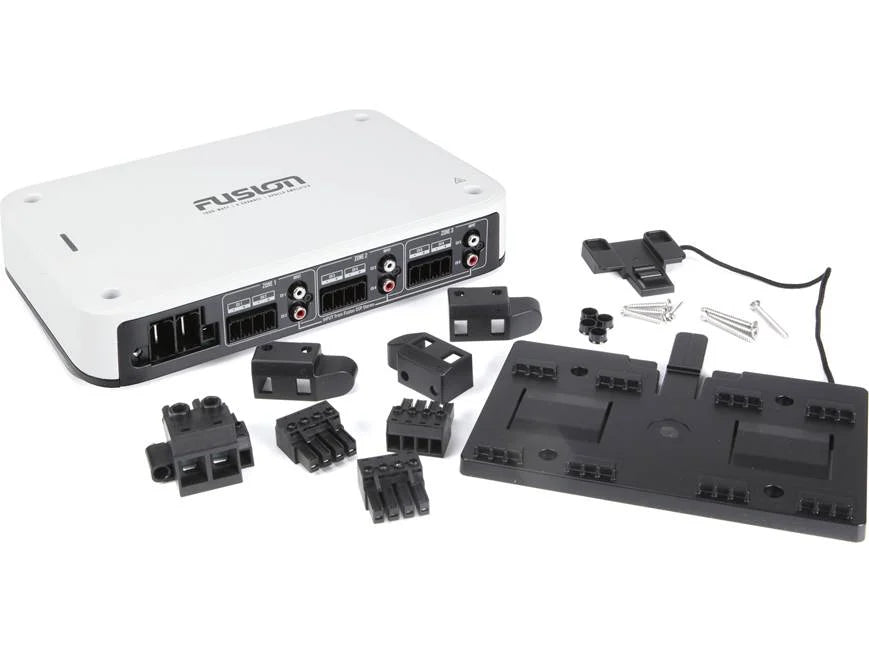

In The Box

In The Box:

One Apollo 6-channel amplifier
One mounting bracket
One power connector
Three speaker connectors with high-power mode adapters
Four 8-gauge, flat-head self-tapping screws
Four 8-gauge, pan-head self-tapping screws (for mounting bracket)
Four screw covers
Fuse holder
Mounting template
Installation instructions
ISPI

Package Dimensions:

15" x 10" x 5"
