Description
Description

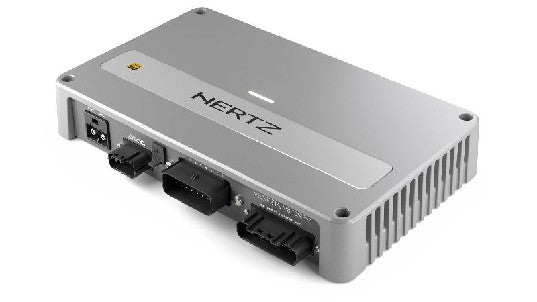

The VENEZIA V8 DSPx² 24V represents the most advanced expression of Hertz Marine audio engineering for vessels equipped with 24-volt electrical systems, designed to act as the intelligent heart of high-end and multi-zone onboard sound architectures. Combining exceptional power with advanced digital signal processing, it delivers precise control, immersive sound, and long-term reliability in real marine conditions. The integrated dual-core DSP and EVOCA® proprietary technology work together to optimize loudspeaker behavior in real time, enhancing dynamics, clarity, and listening comfort while protecting system components over time. Thanks to native A2B digital networking, VENEZIA V8 DSPx² 24V enables scalable system architectures with reduced wiring complexity, making it ideal for luxury yachts, OEM applications, and sophisticated installations where performance, efficiency, and integration matter. Certified for Hi-Res Audio and engineered with marine-grade materials, it ensures a refined, high-fidelity listening experience that remains consistent season after season, even in open-air environments.
Specifications
Specifications
Identification
| MPN | 78213025 |
|---|---|
| Barcode | 8018823139953 |
Dimensions
| Dimensions (H x W x D) | - x 13.00" x 7.87" (- x 330 x 200 mm) |
|---|---|
| Weight | 9.37 lbs (4.25 kg) |
Amplifier
| Amplifier Class | Class D |
|---|---|
| Channels | 8 |
Amplifier Power
| Rated Continuous (RMS) Power (28.8 V input @ 4 Ohm < 1% THD) | 160 W x 8/500 W x 4 (Bridged) |
|---|---|
| Rated Continuous (RMS) Power (28.8 V input @ 2 Ohm < 1% THD) | 250 W x 8 |
Amplifier Processing
| Signal-to-Noise Ratio, referred to highest rated power (A-weighted, 20 Hz-20 kHz noise bandwidth): Analog inputs | - |
|---|---|
| Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz-20 kHz noise bandwidth): Analog inputs | - |
| Signal-to-Noise Ratio (Manufacturer Rating) | 98 dBA analog / 106 dBA optical (1 V input) |
| Damping Factor @ 4 Ω | 125 @ 1 kHz |
| Damping Factor @ 2 Ω | - |
| THD+N @ rated power | < 0.04% @ 1 kHz, 4 Ω, 70% rated power |
| Frequency Response (+0, -1dB) | 10 Hz-42 kHz (-1.5 dB) |
| Input Voltage Range @ RCA Inputs | 0.6-6 V RMS |
| Input Impedance | 11 kΩ |
| Remote Level Control | - |
| Remote Level Modes | - |
| Channel Input Mode Switch | - |
| Pass-through Preamp Output | Yes (6 channels, 6 V RMS) |
| Source Channel Selection for PreOuts | - |
Amplifier Filters
| Filter Parameters | Digital DSP: Full/High-Pass/Low-Pass/Band-Pass; Linkwitz-Riley, Butterworth, Bessel and Chebyshev; 6-48 dB/octave slopes; 20 Hz-20 kHz crossover range; 15-pole output EQ; 12-band input EQ |
|---|
Electrical
| Operating Voltage | 20-33 VDC |
|---|---|
| Current Consumption (idle) | - |
| Current Consumption (standby) | 1.70 mA |
| Fuse Rating | 100 A |
| Recommended Fuse Type(s) | - |
| Minimum Copper Power/Ground Wire Gauge | - |
General
| Water/Dust Protection Rating | IPX2 (vertical install, connections facing down) |
|---|---|
| Operating Temperature Range | - |
| Protection Circuits | - |
Warranty/Certifications
| Certifications | Hi-Res Audio Certified; ASTM-B117 salt fog compliant |
|---|---|
| Warranty | - |
