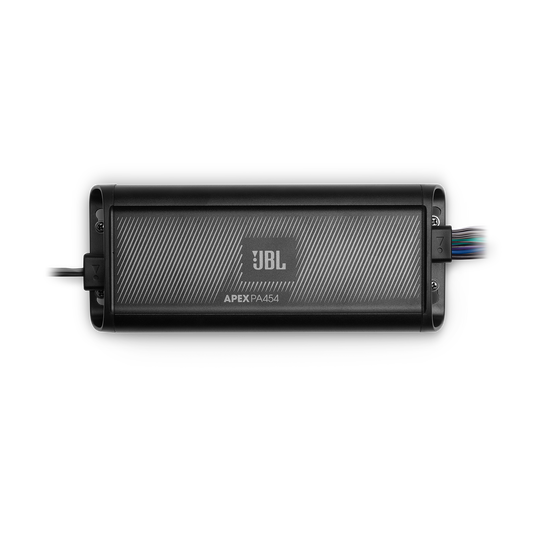

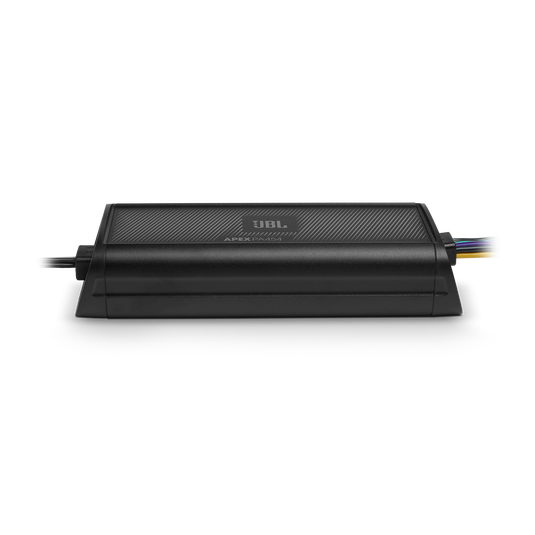

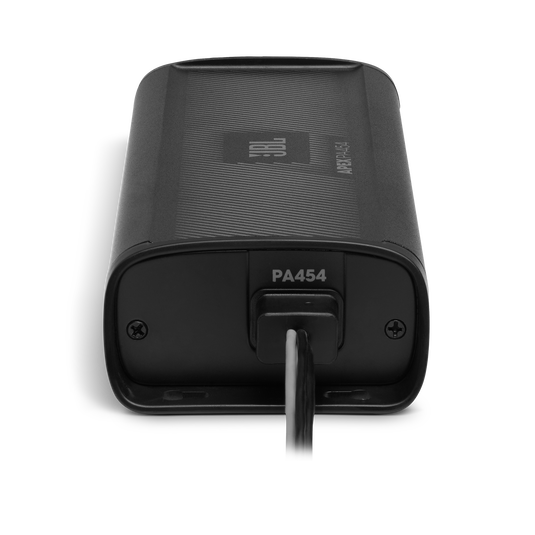

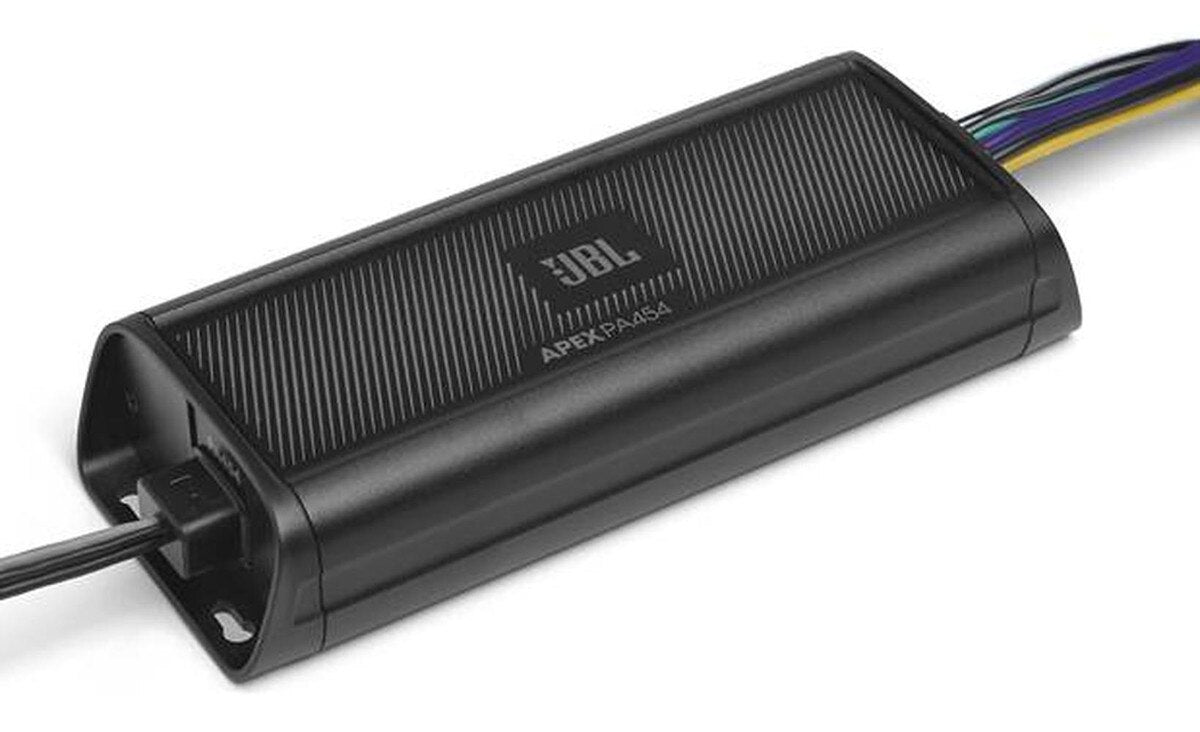

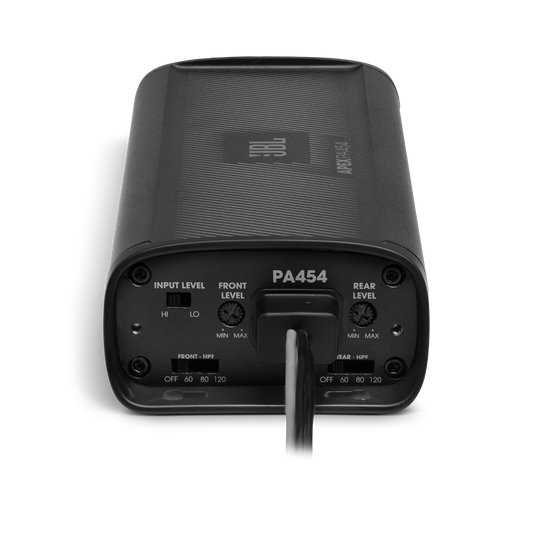

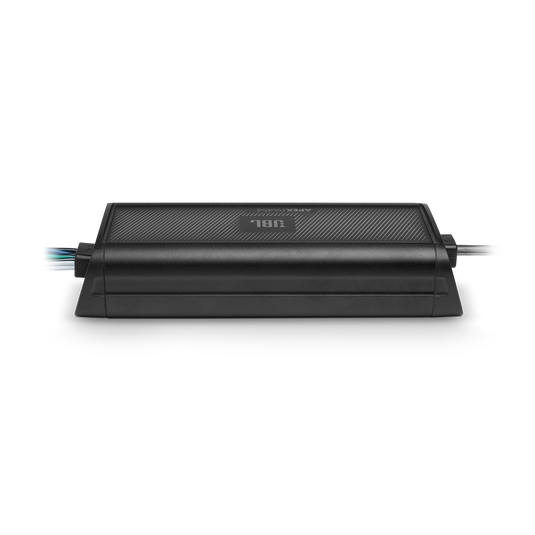

JBL Apex PA454 4ch Amplifier
Sale price
$27495
Regular price
$32995
Total:
Unit price
SKU:
JBL/JBLAPEXPA454
Sale price
$27495
Regular price
$32995
Total:
Unit price
Description
Description
The Apex Series PA454 powersports amplifiers deliver efficient Class D power, from an ultra-compact chassis, designed to fit into tight spaces and withstand outdoor environments without missing a beat. Available with 4-channels of output power, the Apex Series PA454 includes selectable front/rear electronic crossover frequency adjustment for quick and easy installation. Plus, it has been engineered for harsh conditions, with power and performance to meet the needs of most audio systems making it the perfect match for all of your JBL car, marine and powersports products.
- Speaker-level and low-level inputs let JBL Apex amplifiers integrate with just about any audio input.
- JBL Apex amplifiers have to go through environmental testing that would destroy other amplifiers. JBL freezes them, bakes them, shakes them, blasts them with ultraviolet lights & salt spray and drives them at full power for days at a time.
- JBL engineers every product with a high level of design. In applications where the APEX PA 1254 will be visible, it will enhance the vehicles asthetic not take away from it.
- JBL Apex powersports amplifiers feature an ultra-compact aluminm chassis and smal footprint design to allow for installation almost anywhere.
- JBL Apex powersports amplifiers are engineered to withstand harsh conditions, with fully marinized" circuit boards to ensure flawless power delivery
Specifications
Specifications
Identification
| MPN | JBLAPEXPA454 |
|---|
Dimensions
| Dimensions (H x W x D) | 1.69" x 8.21" x 3.30" (43 x 208 x 84 mm) |
|---|---|
| Weight | 2.43 lbs (1.1 kg) |
Amplifier
| Amplifier Class | Class D |
|---|---|
| Channels | 4 |
Amplifier Power
| Rated Continuous (RMS) Power (Manufacturer Rating @ 4 Ohm) | 45 W x 4 |
|---|
Amplifier Processing
| Signal-to-Noise Ratio, referred to highest rated power (A-weighted, 20 Hz-20 kHz noise bandwidth): Analog inputs | - |
|---|---|
| Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz-20 kHz noise bandwidth): Analog inputs | > 75 dB |
| Signal-to-Noise Ratio (Manufacturer Rating) | - |
| Damping Factor @ 4 Ω | - |
| Damping Factor @ 2 Ω | - |
| THD+N @ rated power | < 1% |
| Frequency Response (+0, -1dB) | 20 Hz-20 kHz |
| Input Voltage Range @ RCA Inputs | 200 mV-6 V (line level); 500 mV-15 V (high level) |
| Input Impedance | - |
| Remote Level Control | - |
| Remote Level Modes | - |
| Channel Input Mode Switch | - |
| Pass-through Preamp Output | - |
| Source Channel Selection for PreOuts | - |
Amplifier Filters
| Bass Boost EQ | None |
|---|---|
| Output Polarity Switch | - |
| Filter Mode(s): Channels 1 & 2 | Off or High-Pass |
| Filter Slope(s): Channels 1 & 2 | 12 dB/octave |
| Filter Frequency Range: Channels 1 & 2 | 60 Hz, 80 Hz or 120 Hz |
| Filter Mode(s): Channels 3 & 4 | Off or High-Pass |
| Filter Slope(s): Channels 3 & 4 | 12 dB/octave |
| Filter Frequency Range: Channels 3 & 4 | 60 Hz, 80 Hz or 120 Hz |
| High-Pass/Low-Pass Full Range Filter | - |
| HP Variable Crossover Frequency Range | - |
| LP Variable Crossover Frequency Range | - |
| Infrasonic Filter | - |
| Detented, Calibrated Filter Potentiometers | - |
Electrical
| Operating Voltage | 9-16 VDC |
|---|---|
| Current Consumption (idle) | - |
| Current Consumption (standby) | - |
| Fuse Rating | 15 A |
| Recommended Fuse Type(s) | - |
| Minimum Copper Power/Ground Wire Gauge | 10 AWG |
General
| Water/Dust Protection Rating | - |
|---|---|
| Operating Temperature Range | - |
| Protection Circuits | Over/under voltage, short circuit, output circuit failure, over-temperature |
Warranty/Certifications
| Certifications | - |
|---|---|
| Warranty | - |
