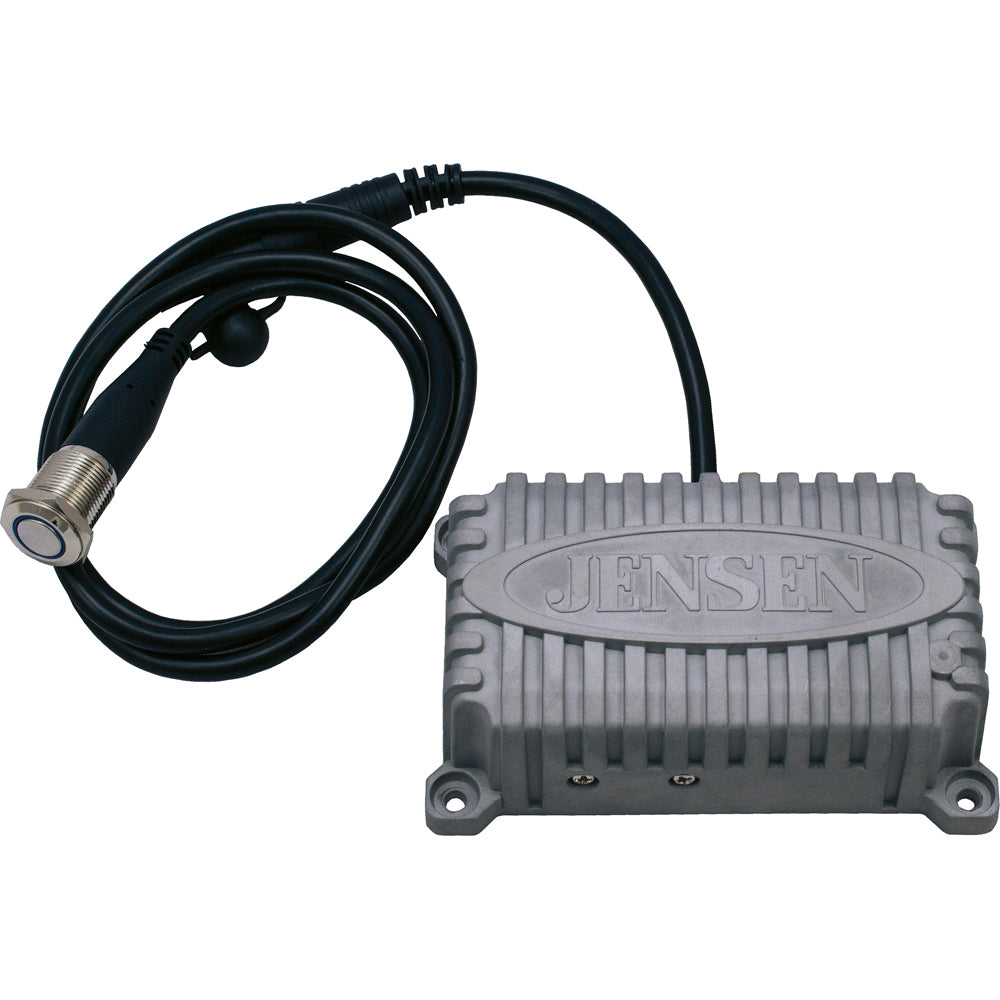

JAHD240BT 2-Channel Bluetooth Amplifier - 80W
The waterproof JAHD240BT is on the forefront of technology with integrated Bluetooth technology allowing users to stream their audio content using a Bluetooth enabled device. Now, users can take their personal music library with them on all of their adventures.
All playback and volume options are controlled by the users Bluetooth enabled device.
Features:
- Waterproof (IPX6)
- Red LED power indicator
- Epoxy potted enclosure
- Corrosion resistant (ASTM B117)
Specifications
Specifications
Identification
| MPN | JAHD240BT |
|---|---|
| Barcode | 681787019579 |
Dimensions
| Dimensions (H x W x D) | 2.32" x 4.13" x 1.47" (59 x 105 x 37 mm) |
|---|---|
| Weight | 1.00 lbs (0.45 kg) |
Amplifier
| Amplifier Class | Class D |
|---|---|
| Channels | 2 |
Amplifier Power
| Rated Continuous (RMS) Power (Manufacturer Rating @ 4 Ohm) | 20 W x 2 |
|---|
Amplifier Processing
| Signal-to-Noise Ratio, referred to highest rated power (A-weighted, 20 Hz-20 kHz noise bandwidth): Analog inputs | - |
|---|---|
| Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz-20 kHz noise bandwidth): Analog inputs | - |
| Signal-to-Noise Ratio (Manufacturer Rating) | > 95 dB |
| Damping Factor @ 4 Ω | - |
| Damping Factor @ 2 Ω | - |
| THD+N @ rated power | 0.5% |
| Frequency Response (+0, -1dB) | 20 Hz-20 kHz |
| Input Voltage Range @ RCA Inputs | - |
| Input Impedance | - |
| Remote Level Control | - |
| Remote Level Modes | - |
| Channel Input Mode Switch | - |
| Pass-through Preamp Output | - |
| Source Channel Selection for PreOuts | - |
Amplifier Filters
| Bass Boost EQ | - |
|---|---|
| Output Polarity Switch | - |
| Filter Mode(s): Channels 1 & 2 | - |
| Filter Slope(s): Channels 1 & 2 | - |
| Filter Frequency Range: Channels 1 & 2 | - |
| High-Pass/Low-Pass Full Range Filter | - |
| HP Variable Crossover Frequency Range | - |
| LP Variable Crossover Frequency Range | - |
| Infrasonic Filter | - |
| Detented, Calibrated Filter Potentiometers | - |
Electrical
| Operating Voltage | 10-16 VDC |
|---|---|
| Current Consumption (idle) | 2.5 A (nominal) |
| Current Consumption (standby) | 1 mA |
| Fuse Rating | 10 A (waterproof holder) |
| Recommended Fuse Type(s) | - |
| Minimum Copper Power/Ground Wire Gauge | - |
General
| Water/Dust Protection Rating | IPX6 |
|---|---|
| Operating Temperature Range | -30 °C to 45 °C |
| Protection Circuits | - |
Warranty/Certifications
| Certifications | ASTM B117 (corrosion resistance) |
|---|---|
| Warranty | - |
