JL Audio XDM Series 800w 8 Channel 24v Amplifier - XDM800/8-24V
Description
Description

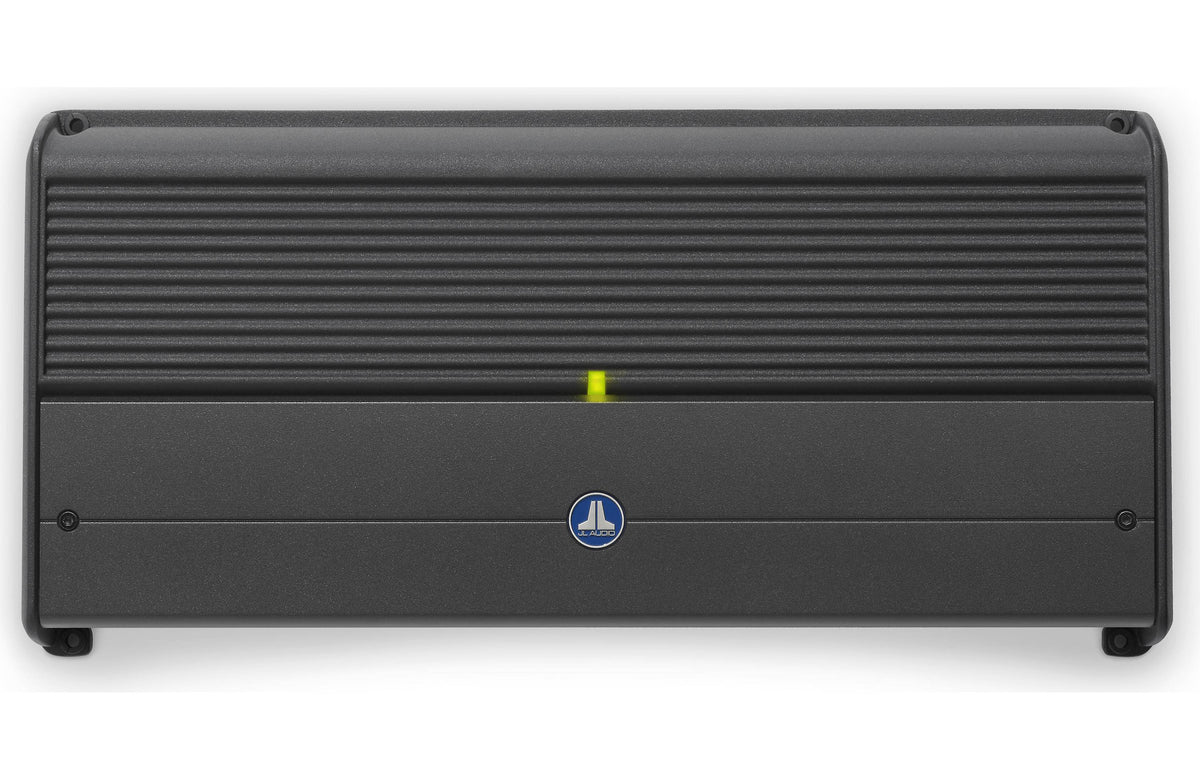

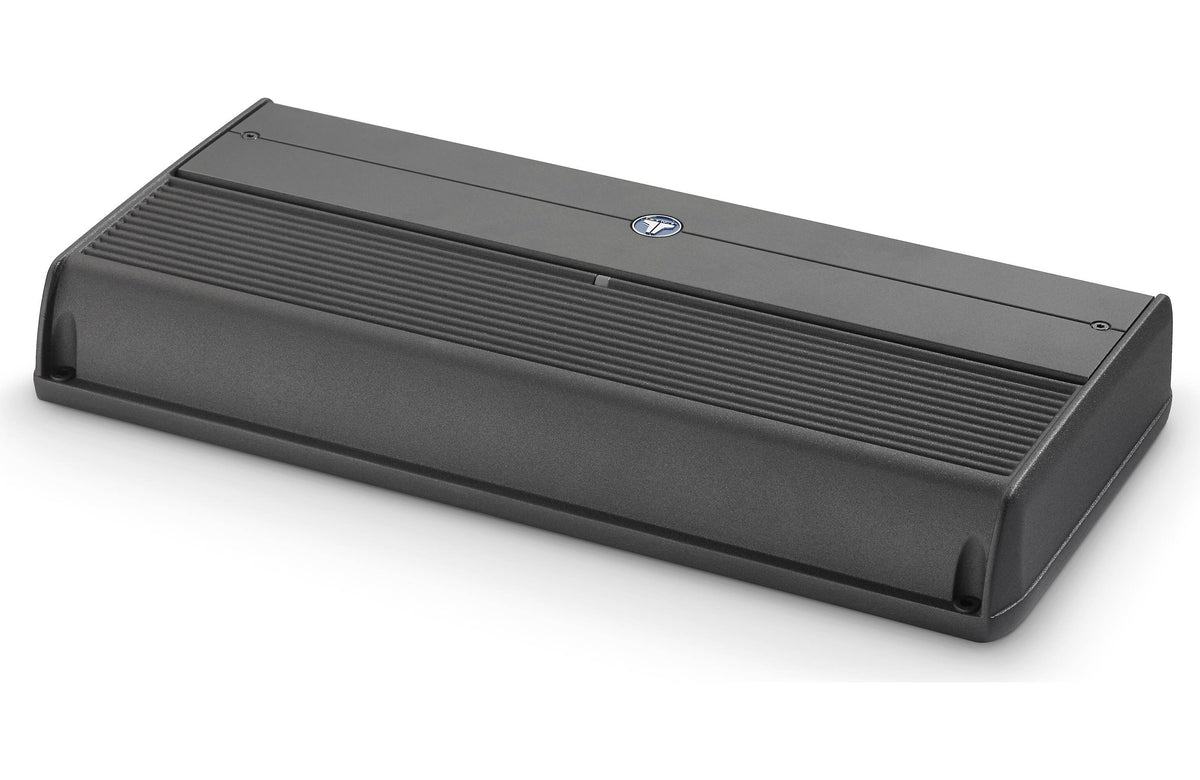

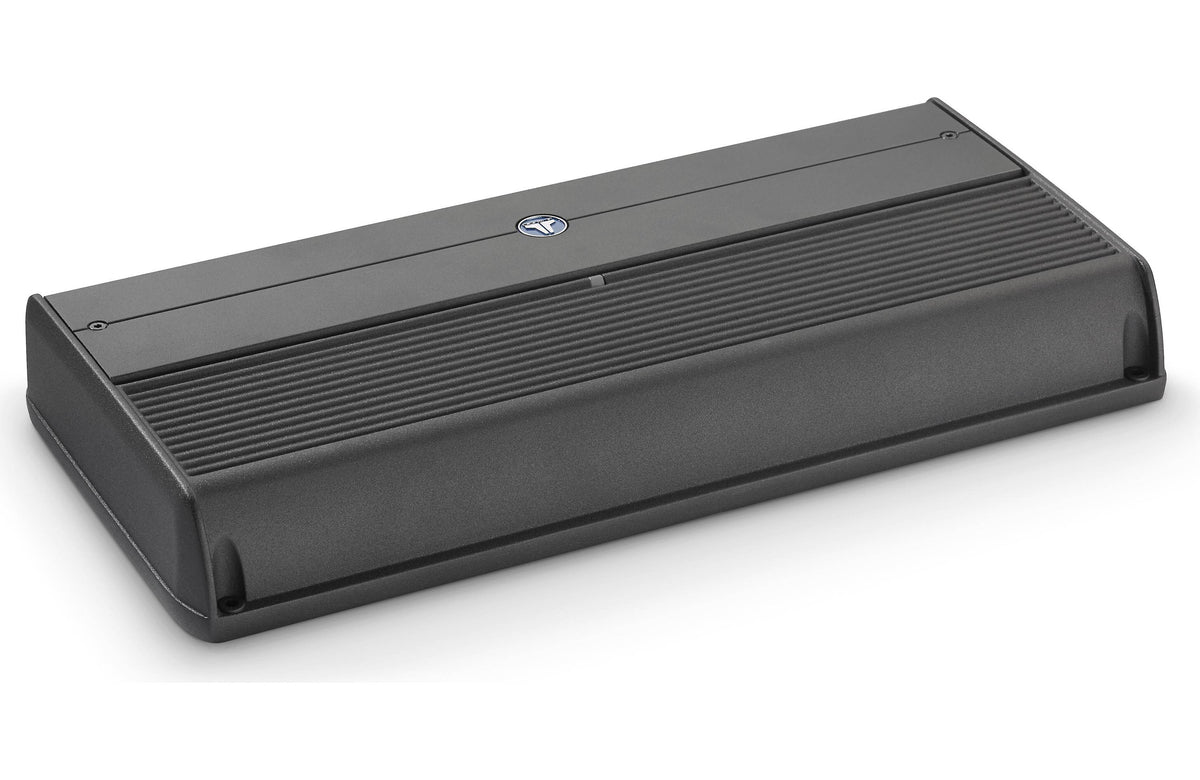

XDM Series 800w 8 Channel 24v Amplifier - XDM800/8-24V
For 24V systems only
100 W x 8 @ 2 Ω / 75 W x 8 @ 4 Ω - 14.4V
The ultra-versatile XDM800/8-24V delivers eight channels of crystal-clear, full-range power and is capable of delivering a whopping 100 watts to each of its channels @ 2 ohms (28.8V, 1% THD). The technology that makes this much power possible in such a compact chassis is our advanced NexD™ high-speed switching design, which permits full bandwidth Class D operation with extremely low distortion and remarkable efficiency.
Suitable for car or boat installations, the XDM800/8-24V is built with marine-grade materials and features an exclusive, dual-mode input filter for noise-free performance in boats or cars. Automatic turn-on capability (via signal sensing or DC-offset sensing) is also onboard for easy factory system upgrades.
The XDM800/8-24V includes a 12 dB / octave filter for each channel bank, which can be configured as a low-pass or high-pass filter, and offers continuously variable cutoff frequency selection from 50-500 Hz. With the addition of an optional HD-RLC or MHD-RLC (water-resistant) remote level controller (each sold separately), you can adjust the level of two, four, or all eight amplifier channels directly from the driver's seat or cockpit.
Here are a few examples of how the XDM800/8-24V can be used:

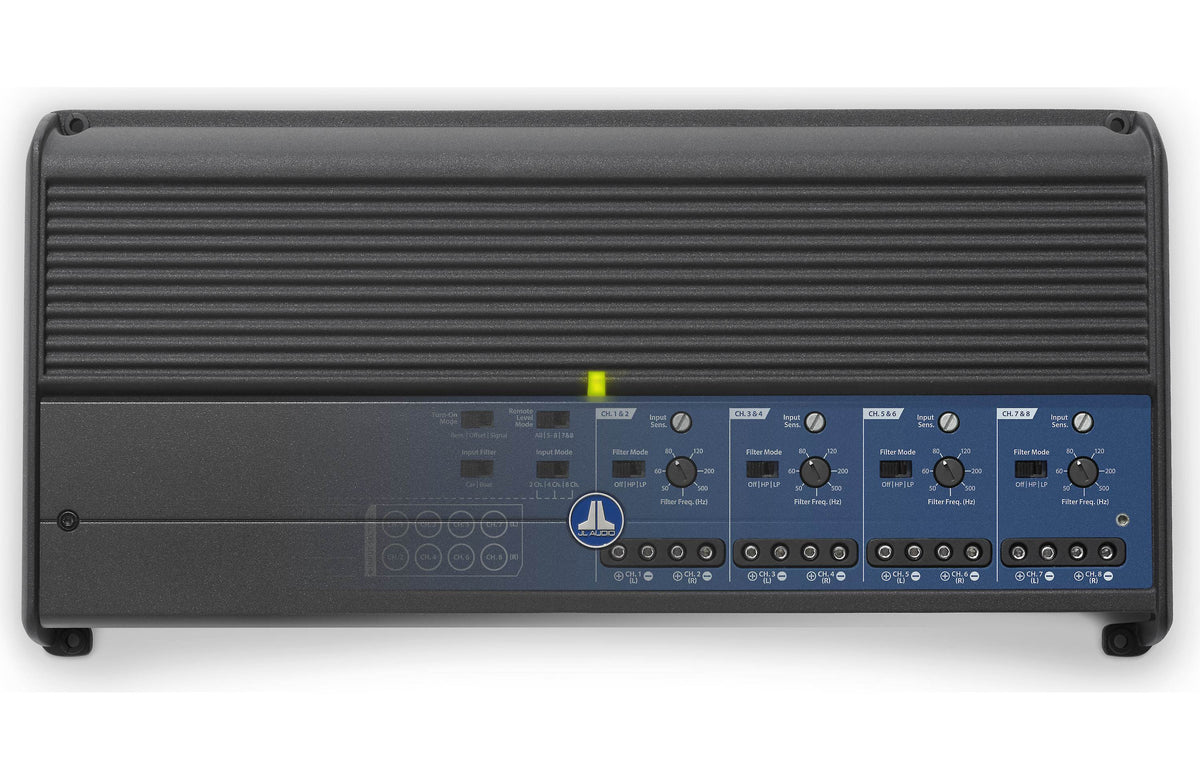

- Finished in a sleek, black powder coat, all controls are protected beneath a gasketed, removable top cover for easy access.
- This amplifier is designed for operation in vessels with 24-volt, negative-ground electrical systems. Use of this product in vessels with positive ground and/or voltages other than 24 volts may result in damage to the product and will void the warranty.
Specifications
Specifications
Identification
| MPN | 010-03344-00 |
|---|---|
| Barcode | 699440986892 |
Dimensions
| Dimensions (H x W x D) | 2.05" x 14.73" x 7.09" (52 x 374 x 180 mm) |
|---|---|
| Weight | - |
Amplifier
| Amplifier Class | Class D |
|---|---|
| Channels | 8 |
Amplifier Power
| Rated Continuous (RMS) Power (28.8 V input @ 4 Ohm < 1% THD) | 90 W x 8/180 W x 4 (Bridged) |
|---|---|
| Rated Continuous (RMS) Power (28.8 V input @ 2 Ohm < 1% THD) | 100 W x 8 |
| Rated Continuous (RMS) Power (25 V input @ 4 Ohm < 1% THD) | 90 W x 8/180 W x 4 (Bridged) |
| Rated Continuous (RMS) Power (25 V input @ 2 Ohm < 1% THD) | 100 W x 8 |
Amplifier Processing
| Signal-to-Noise Ratio, referred to highest rated power (A-weighted, 20 Hz-20 kHz noise bandwidth): Analog inputs | - |
|---|---|
| Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz-20 kHz noise bandwidth): Analog inputs | - |
| Signal-to-Noise Ratio (Manufacturer Rating) | - |
| Damping Factor @ 4 Ω | - |
| Damping Factor @ 2 Ω | - |
| THD+N @ rated power | - |
| Frequency Response (+0, -1dB) | - |
| Input Voltage Range @ RCA Inputs | - |
| Input Impedance | - |
| Remote Level Control | - |
| Remote Level Modes | - |
| Channel Input Mode Switch | - |
| Pass-through Preamp Output | - |
| Source Channel Selection for PreOuts | - |
Amplifier Filters
| Bass Boost EQ | None |
|---|---|
| Output Polarity Switch | - |
| Filter Mode(s): Channels 1 & 2 | - |
| Filter Slope(s): Channels 1 & 2 | - |
| Filter Frequency Range: Channels 1 & 2 | - |
| Filter Mode(s): Channels 3 & 4 | - |
| Filter Slope(s): Channels 3 & 4 | - |
| Filter Frequency Range: Channels 3 & 4 | - |
| Filter Mode(s): Channels 5 & 6 | - |
| Filter Slope(s): Channels 5 & 6 | - |
| Filter Frequency Range: Channels 5 & 6 | - |
| Filter Mode(s): Channels 7 & 8 | - |
| Filter Slope(s): Channels 7 & 8 | - |
| Filter Frequency Range: Channels 7 & 8 | - |
| High-Pass/Low-Pass Full Range Filter | - |
| HP Variable Crossover Frequency Range | - |
| LP Variable Crossover Frequency Range | - |
| Infrasonic Filter | - |
| Detented, Calibrated Filter Potentiometers | Yes |
Electrical
| Operating Voltage | 22-29 VDC (24 V Models) |
|---|---|
| Current Consumption (idle) | - |
| Current Consumption (standby) | - |
| Fuse Rating | 40 A |
| Recommended Fuse Type(s) | AFS, AGU or MaxiFuse™ |
| Minimum Copper Power/Ground Wire Gauge | 4 AWG wire |
General
| Water/Dust Protection Rating | - |
|---|---|
| Operating Temperature Range | - |
| Protection Circuits | - |
Warranty/Certifications
| Certifications | - |
|---|---|
| Warranty | 3 Years |
Reviews (0)
Reviews (0)
In The Box
In The Box
In The Box:
Package Dimensions:
Available Shipping Methods:
