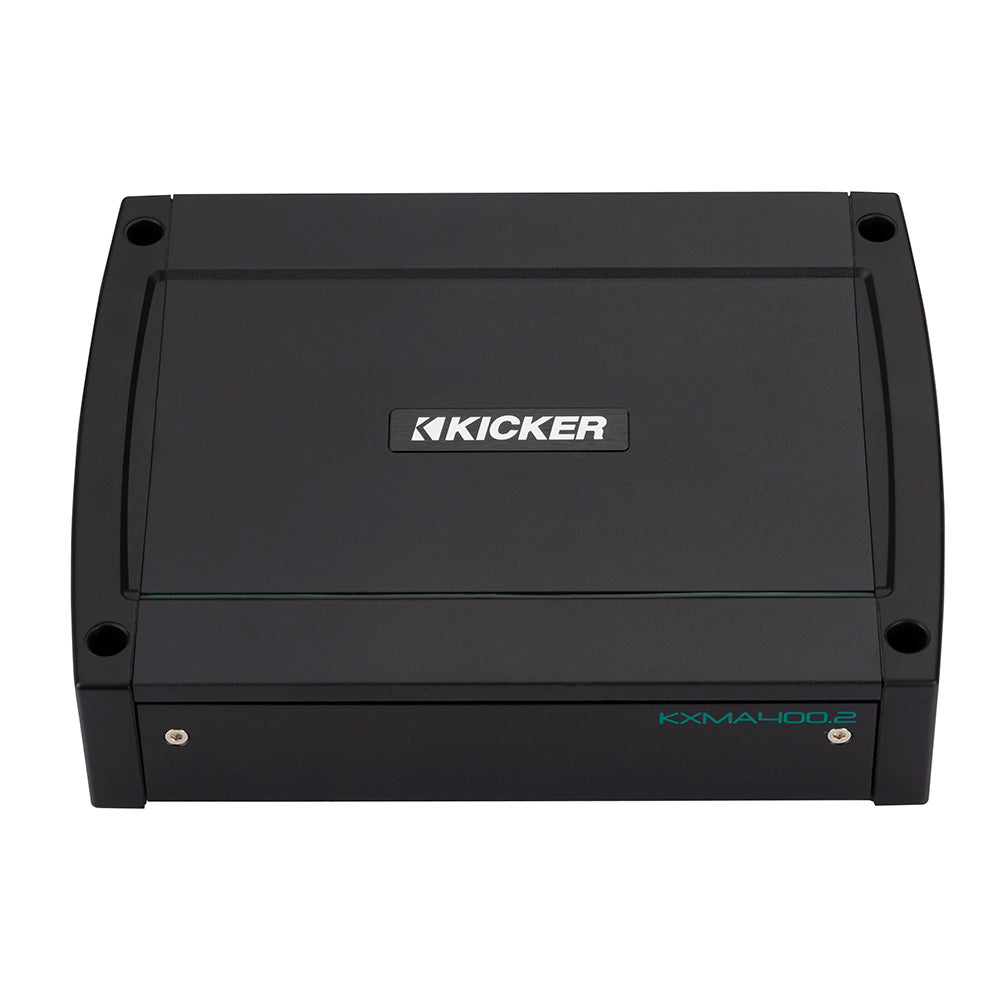

KICKER KXMA400.2 2 x 200W 2-Channel Full-Range Class D Amplifier

Name: KICKER KXMA400.2 2 x 200W 2-Channel Full-Range Class D Amplifier
Brand: KICKER
SKU: KIC/48KXMA4002
Price: 379.99 USD
Availability: OutOfStock

SKU: KIC/48KXMA4002

$379⁹⁹ $409⁹⁹

ETA: Pending

Description

KXMA400.2 2 x 200W 2-Channel Full-Range Class D Amplifier

The KICKER Real Marine standard means your amplifier is purpose-built for your boat. Every KXMA (and KMA)-Series amp comes complete with an anti-corrosive speaker, power and RCA terminals, stainless-steel screws, conformal-coated circuit boards, and ABYC/NMMA-compliant power connections. KICKER products also undergo rigorous testing to ensure they meet or exceed marine industry standards for UV, humidity, and saltwater exposure. This unparalleled commitment to engineering quality and maritime safety is why our products truly are "Real Marine."

KickEQ™ delivers as much as a 6dB of an extra bump with a simple turn of the knob. A powerful 24dB crossover is also included, letting you quickly tune your system to perfection. A full-range RCA output allows you to easily add another amplifier without running a new signal cable to your KICKER KMC Media Center.

Features:

Class D Amplifier
Gain Control With "Gain Match" LED Indicator
FIT2™ (Fail-safe Integration Technology) Circuitry
Variable 24dB Crossover
DSP-Controlled Preamp
KickEQ™ 6dB Variable Bass Boost

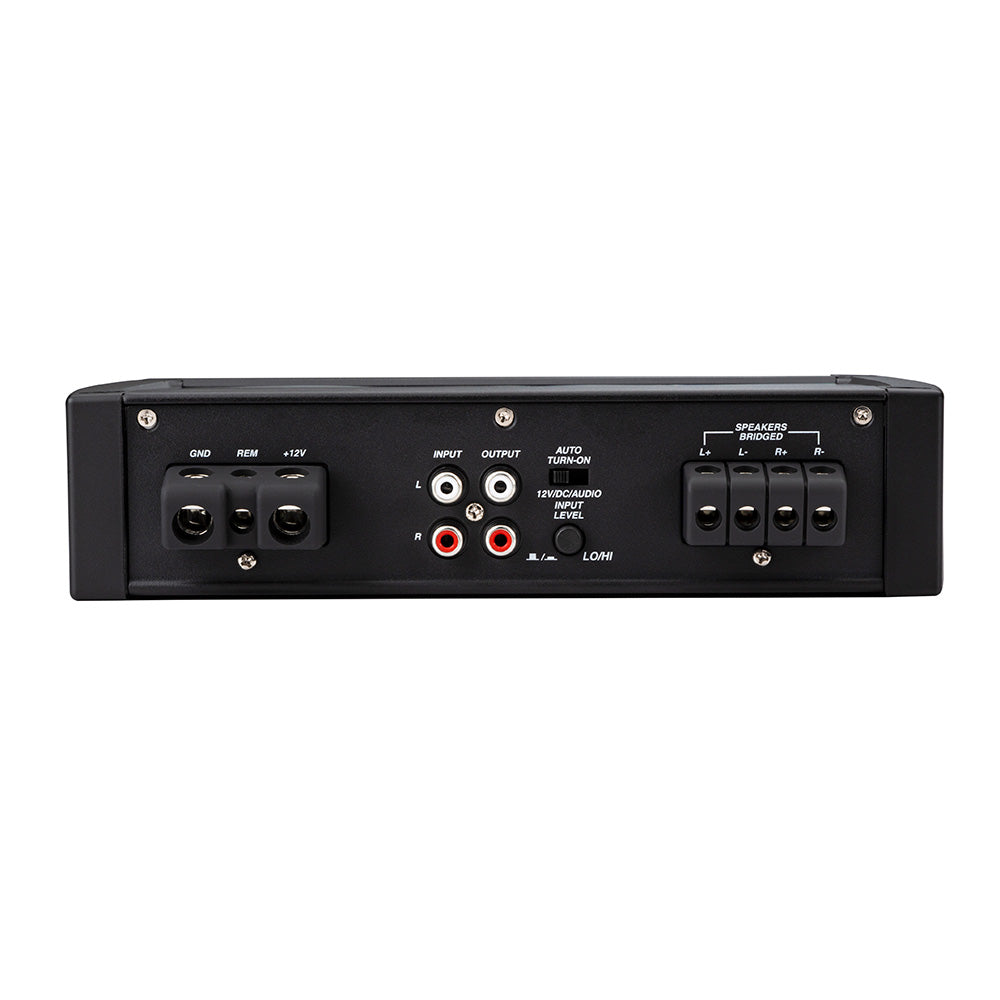

ABYC/NMMA-Compliant Power Terminals
Conformal-Coated Circuit Board to resist moisture

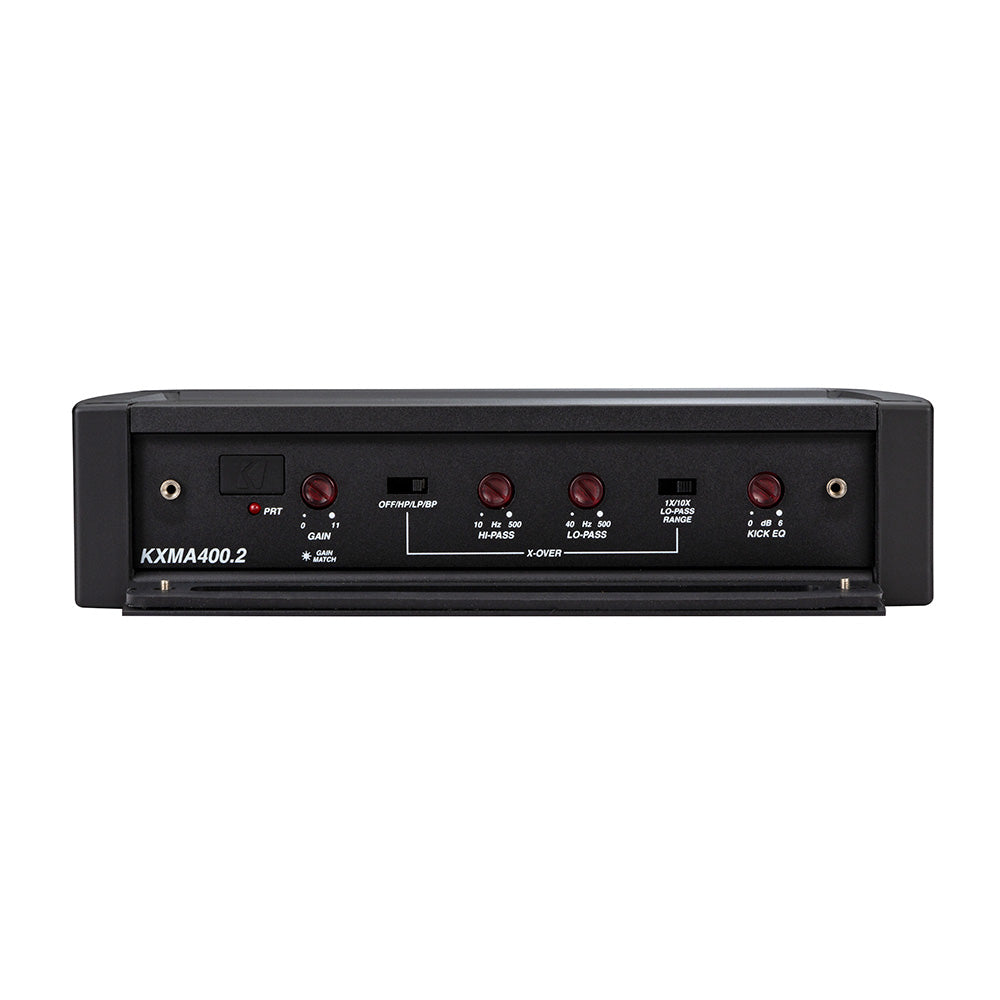

Easy Access to Settings behind Gasket-Sealed Cover Panel
Black Anodized Aluminum Chassis
Top-Mounted, Teal LED Light Pipe
Stainless-Steel Mounting Hardware Included

Specifications

Identification

MPN	48KXMA4002

Dimensions

Dimensions (H x W x D)	2.17" x 9.61" x 8.27" (55 x 244 x 210 mm)
Weight	-

Amplifier

Amplifier Class	Class D
Channels	2

Amplifier Power

Rated Continuous (RMS) Power (14.4 V input @ 4 Ohm < 1% THD)	100 W x 2/400 W x 1 (Bridged)
Rated Continuous (RMS) Power (14.4 V input @ 2 Ohm < 1% THD)	200 W x 2
Rated Continuous (RMS) Power (12.5 V input @ 4 Ohm < 1% THD)	-
Rated Continuous (RMS) Power (12.5 V input @ 2 Ohm < 1% THD)	-

Amplifier Processing

Signal-to-Noise Ratio, referred to highest rated power (A-weighted, 20 Hz-20 kHz noise bandwidth): Analog inputs	95 dB
Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz-20 kHz noise bandwidth): Analog inputs	75 dB
Signal-to-Noise Ratio (Manufacturer Rating)	-
Damping Factor @ 4 Ω	-
Damping Factor @ 2 Ω	-
THD+N @ rated power	-
Frequency Response (+0, -1dB)	10 Hz-20 kHz (+0, -1 dB)
Input Voltage Range @ RCA Inputs	125 mV-5 V (low level); 250 mV-10 V (high level)
Input Impedance	-
Remote Level Control	-
Remote Level Modes	-
Channel Input Mode Switch	-
Pass-through Preamp Output	-
Source Channel Selection for PreOuts	-

Amplifier Filters

Bass Boost EQ	0 to +6 dB @ 40 Hz
Output Polarity Switch	-
Filter Mode(s): Channels 1 & 2	Off, High-Pass, Low-Pass or Band-Pass
Filter Slope(s): Channels 1 & 2	24 dB/octave
Filter Frequency Range: Channels 1 & 2	High-Pass: 10 Hz-500 Hz; Low-Pass: 40 Hz-5 kHz (100 Hz-5 kHz with 10X switch)
High-Pass/Low-Pass Full Range Filter	-
HP Variable Crossover Frequency Range	-
LP Variable Crossover Frequency Range	-
Infrasonic Filter	-
Detented, Calibrated Filter Potentiometers	-

Electrical

Operating Voltage	10-16 VDC
Current Consumption (idle)	-
Current Consumption (standby)	-
Fuse Rating	60 A (external, sold separately)
Recommended Fuse Type(s)	-
Minimum Copper Power/Ground Wire Gauge	8 AWG
