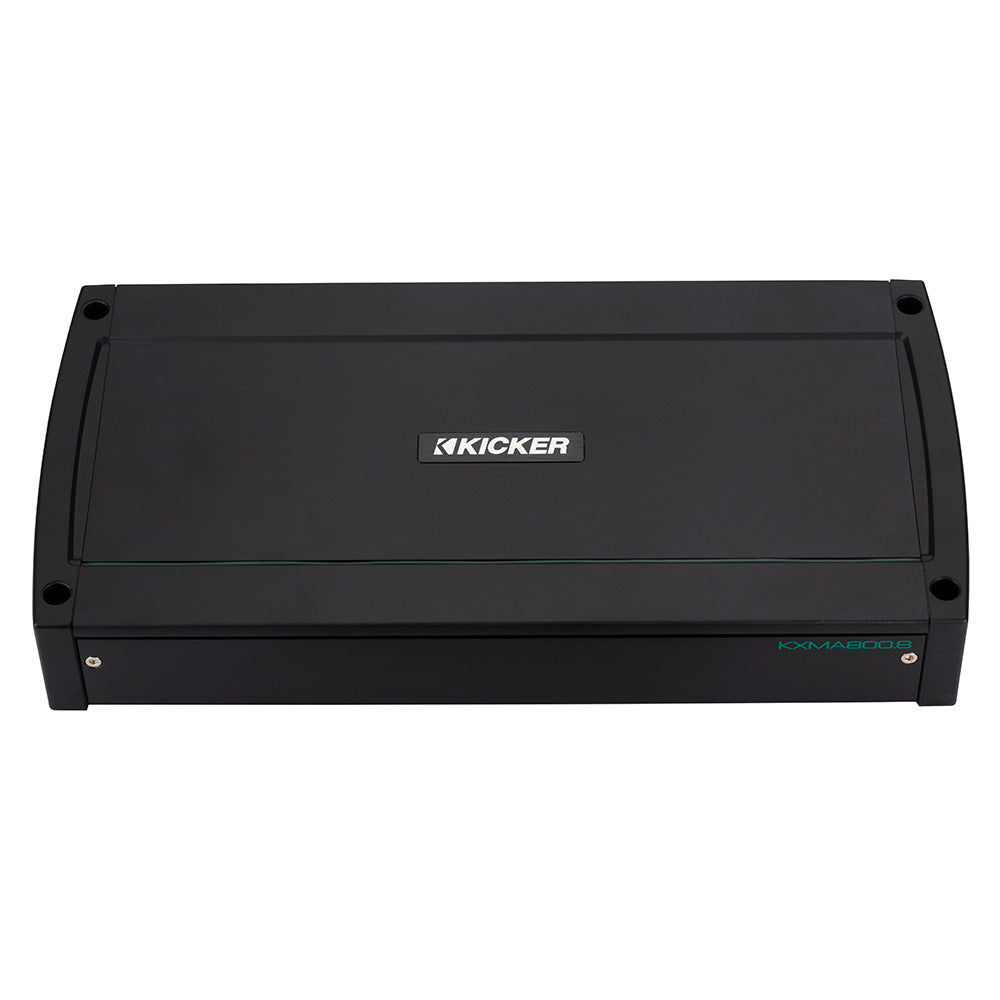

KICKER KXMA800.8 8 x 100W 8-Channel Full-Range Class D Amplifier

Name: KICKER KXMA800.8 8 x 100W 8-Channel Full-Range Class D Amplifier
Brand: KICKER
SKU: KIC/48KXMA8008
Price: 719.99 USD
Availability: InStock

SKU: KIC/48KXMA8008

$719⁹⁹ $819⁹⁹

Same-Day Shipping Checking cutoff…

Description

KXMA800.8 8 x 100W 8-Channel Full-Range Class D Amplifier

The KICKER Real Marine standard means your amplifier is purpose-built for your boat. Every KXMA (and KMA)-Series amp comes complete with an anti-corrosive speaker, power and RCA terminals, stainless-steel screws, conformal-coated circuit boards, and ABYC/NMMA-compliant power connections. KICKER products also undergo rigorous testing to ensure they meet or exceed marine industry standards for UV, humidity, and saltwater exposure. This unparalleled commitment to engineering quality and maritime safety is why our products truly are "Real Marine."

Gain, crossover, and bass-boost controls are protected behind a gasket-sealed panel, as is the control cover hiding the settings, creating a water-resistant barrier to key controls. KickEQ™ delivers as much as a 6dB of extra bump with a simple turn of the knob. A powerful 24dB crossover is also included, letting you quickly tune your system to perfection.

Features:

Class D Amplifier
Gain Control With "Gain Match" LED Indicator
FIT2™ (Fail-safe Integration Technology) Circuitry
Variable 24dB Crossover
DSP-Controlled Preamp
KickEQ™ 6dB Variable Bass Boost

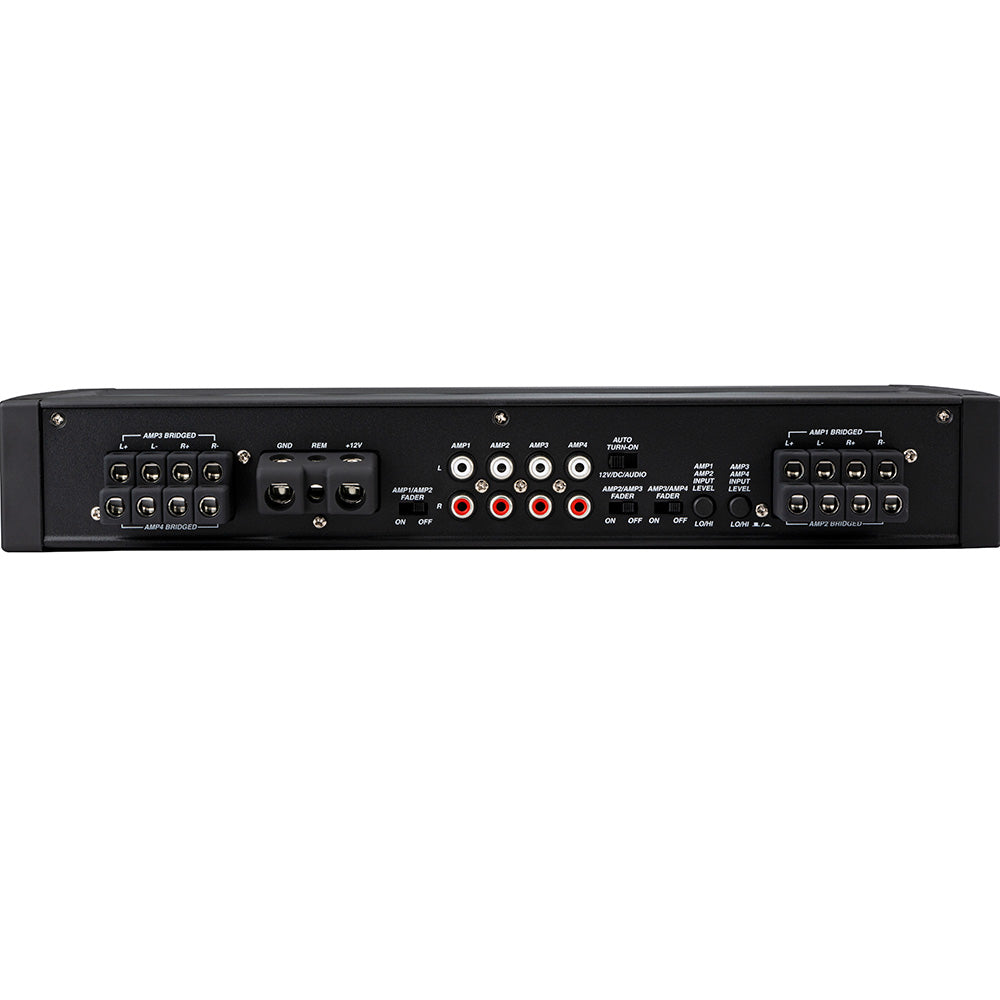

ABYC/NMMA-Compliant Power Terminals
Conformal-Coated Circuit Boards

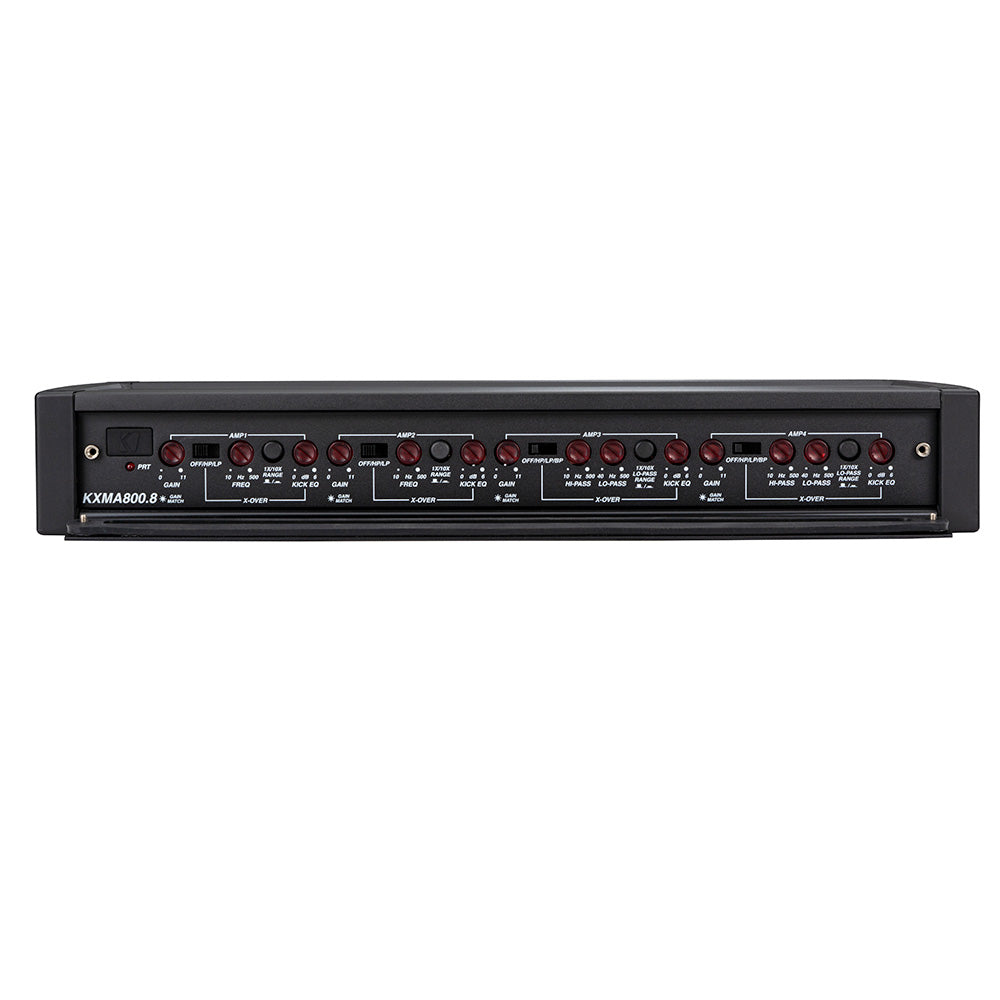

Easy Access to Settings behind Gasket-Sealed Cover Panel
Black Anodized Aluminum Chassis
Top-Mounted, Teal LED Light Pipe
Stainless-Steel Mounting Hardware Included

Specifications

Identification

MPN	48KXMA8008
Barcode	713034020653

Dimensions

Dimensions (H x W x D)	2.17" x 14.72" x 8.27" (55 x 374 x 210 mm)
Weight	-

Amplifier

Amplifier Class	Class D
Channels	8

Amplifier Power

Rated Continuous (RMS) Power (14.4 V input @ 4 Ohm < 1% THD)	50 W x 8/200 W x 4 (Bridged)
Rated Continuous (RMS) Power (14.4 V input @ 2 Ohm < 1% THD)	100 W x 8
Rated Continuous (RMS) Power (12.5 V input @ 4 Ohm < 1% THD)	-
Rated Continuous (RMS) Power (12.5 V input @ 2 Ohm < 1% THD)	-

Amplifier Processing

Signal-to-Noise Ratio, referred to highest rated power (A-weighted, 20 Hz-20 kHz noise bandwidth): Analog inputs	> 95 dB
Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz-20 kHz noise bandwidth): Analog inputs	-
Signal-to-Noise Ratio (Manufacturer Rating)	-
Damping Factor @ 4 Ω	-
Damping Factor @ 2 Ω	-
THD+N @ rated power	-
Frequency Response (+0, -1dB)	10 Hz-20 kHz (+0, -1 dB)
Input Voltage Range @ RCA Inputs	125 mV-5 V (low level); 250 mV-10 V (high level)
Input Impedance	-
Remote Level Control	-
Remote Level Modes	-
Channel Input Mode Switch	-
Pass-through Preamp Output	-
Source Channel Selection for PreOuts	-

Amplifier Filters

Bass Boost EQ	0 to +6 dB @ 40 Hz
Output Polarity Switch	-
Filter Mode(s): Channels 1 & 2	Off, High-Pass or Low-Pass
Filter Slope(s): Channels 1 & 2	24 dB/octave
Filter Frequency Range: Channels 1 & 2	10 Hz-5 kHz (10X switch)
Filter Mode(s): Channels 3 & 4	Off, High-Pass or Low-Pass
Filter Slope(s): Channels 3 & 4	24 dB/octave
Filter Frequency Range: Channels 3 & 4	10 Hz-5 kHz (10X switch)
Filter Mode(s): Channels 5 & 6	Off, High-Pass, Low-Pass or Band-Pass
Filter Slope(s): Channels 5 & 6	24 dB/octave
Filter Frequency Range: Channels 5 & 6	High-Pass: 10 Hz-500 Hz; Low-Pass: 40 Hz-5 kHz (100 Hz-5 kHz with 10X switch)
Filter Mode(s): Channels 7 & 8	Off, High-Pass, Low-Pass or Band-Pass
Filter Slope(s): Channels 7 & 8	24 dB/octave
Filter Frequency Range: Channels 7 & 8	High-Pass: 10 Hz-500 Hz; Low-Pass: 40 Hz-5 kHz (100 Hz-5 kHz with 10X switch)
High-Pass/Low-Pass Full Range Filter	-
HP Variable Crossover Frequency Range	-
LP Variable Crossover Frequency Range	-
Infrasonic Filter	-
Detented, Calibrated Filter Potentiometers	-

Electrical

Operating Voltage	-
Current Consumption (idle)	-
Current Consumption (standby)	-
Fuse Rating	-
Recommended Fuse Type(s)	-
Minimum Copper Power/Ground Wire Gauge	-
