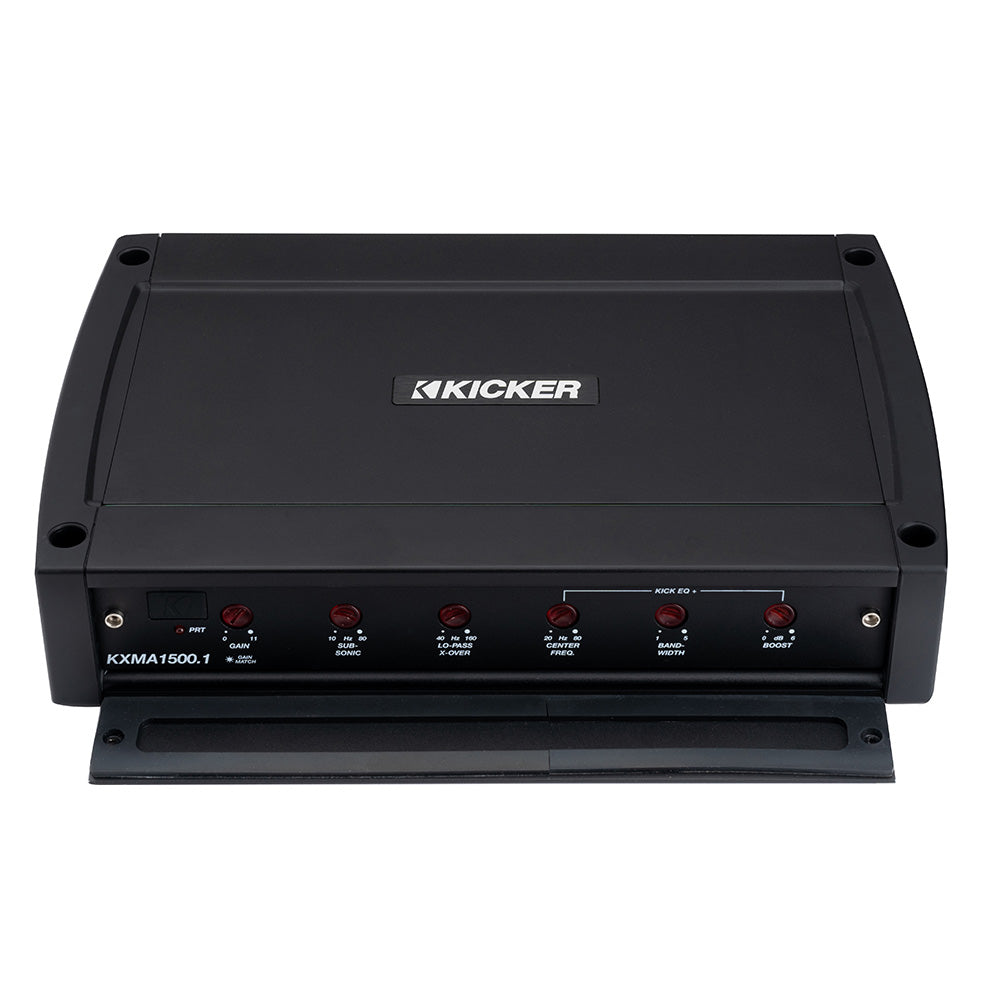

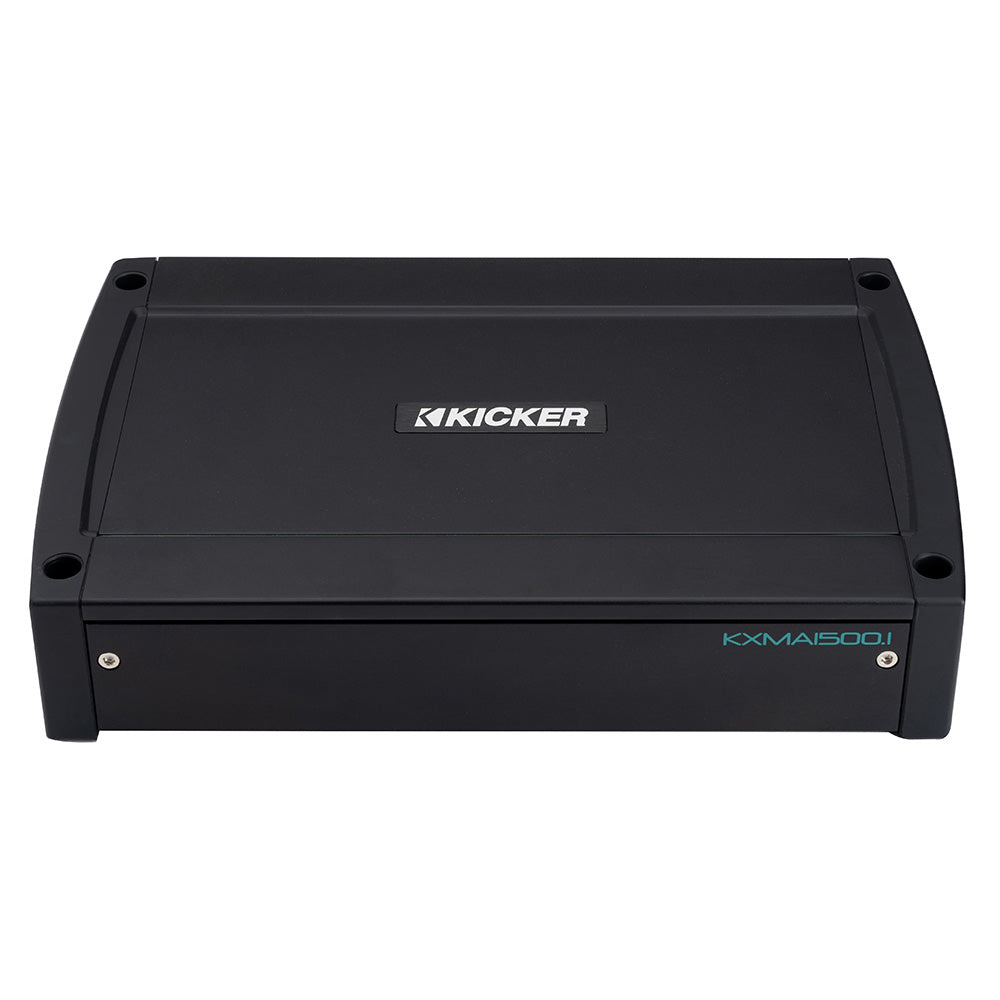

KXMA1500.1 1500W Mono Class D Subwoofer Amplifier
Delivering the same power at 1 or 2 Ohms, the KXMA1500.1 is an efficient Class-D marine mono amplifier, powerful enough to run multiple KICKER Marine subwoofers at high volume.
Experience the perfect way to get really big bass on your boat! A mighty Class-D power plant, 24dB crossover, and a subsonic filter all help you dial in the best sound. Use the remote level control to adjust the bass right from the dash and connect the full-range RCA outputs to expand your system!
Features:
- Ultra-Efficient Class D Design
- 2500 Watts of Dynamic Power
- Mono Amplifier
- Conformal-Coated Circuit Board

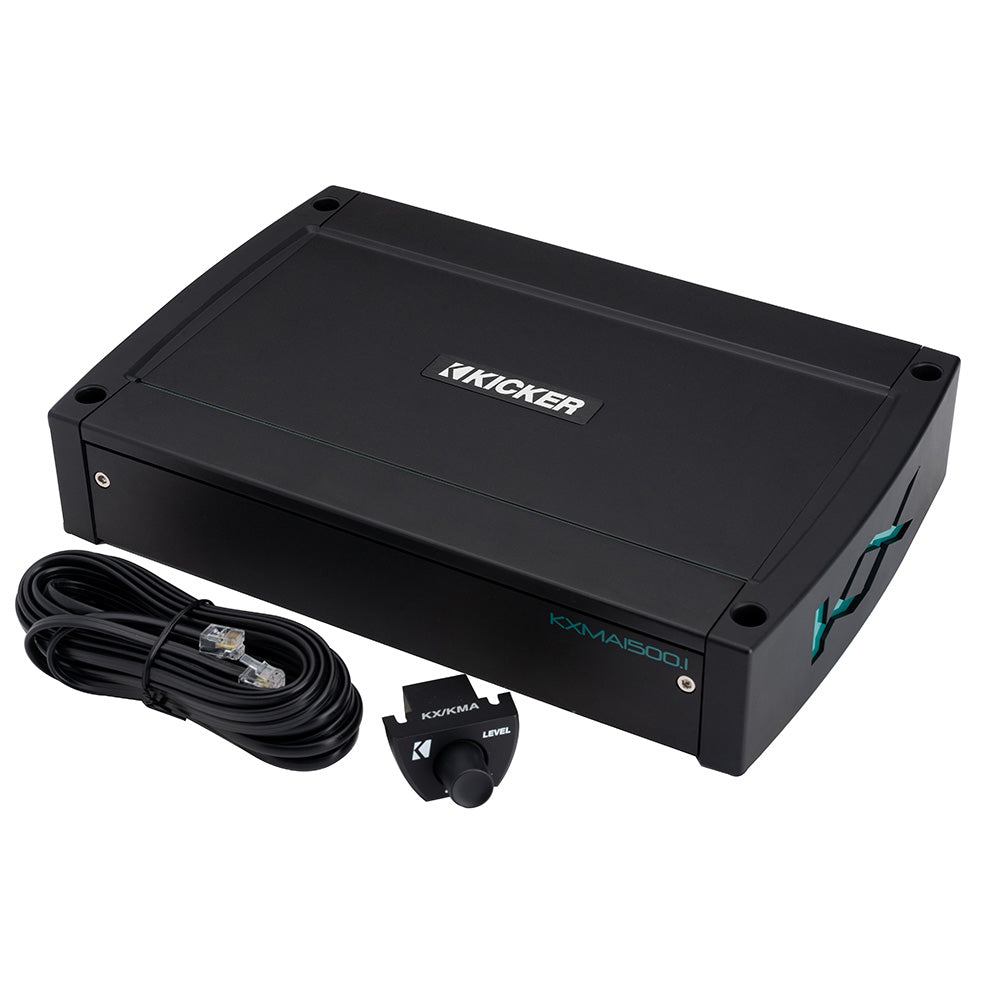

- KMBLC Remote Level Control Included

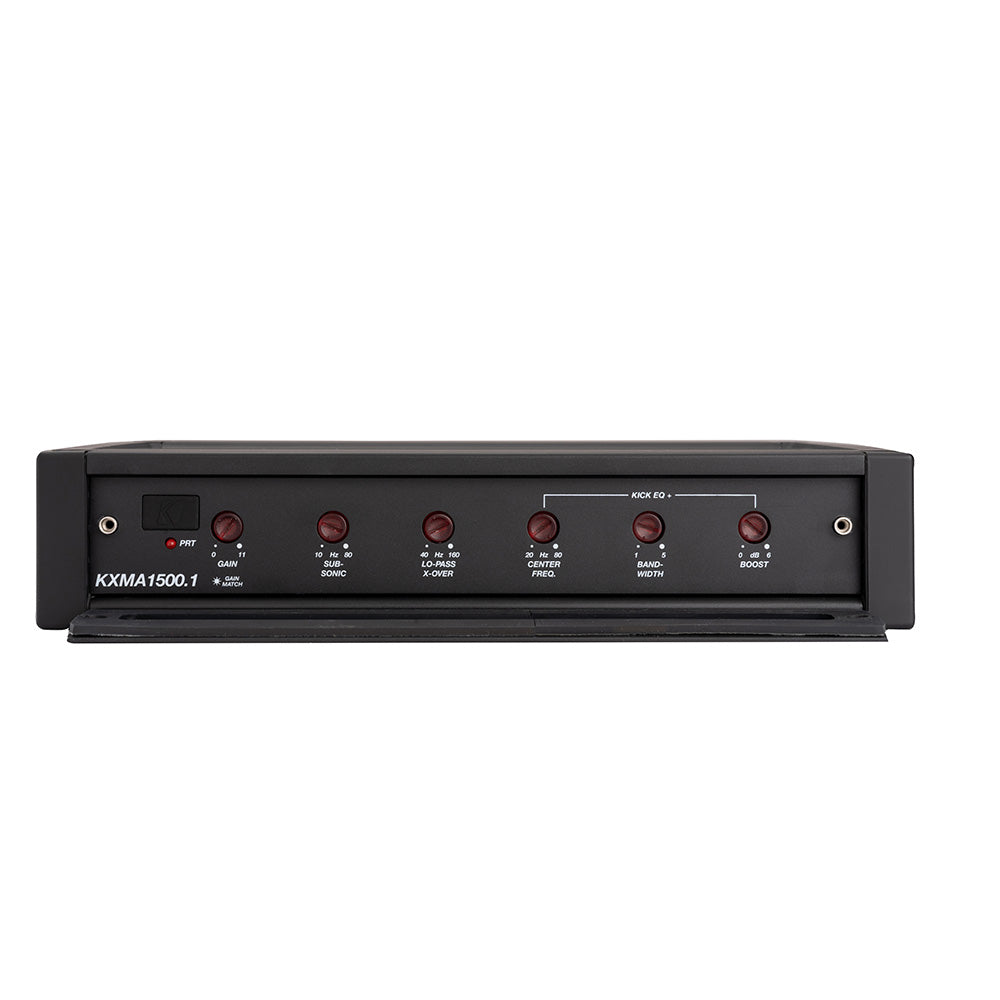

- Variable 24dB Crossover
- KickEQ+™ Variable 0-6dB Bass Boost
- Variable 10-80Hz Subsonic Filter

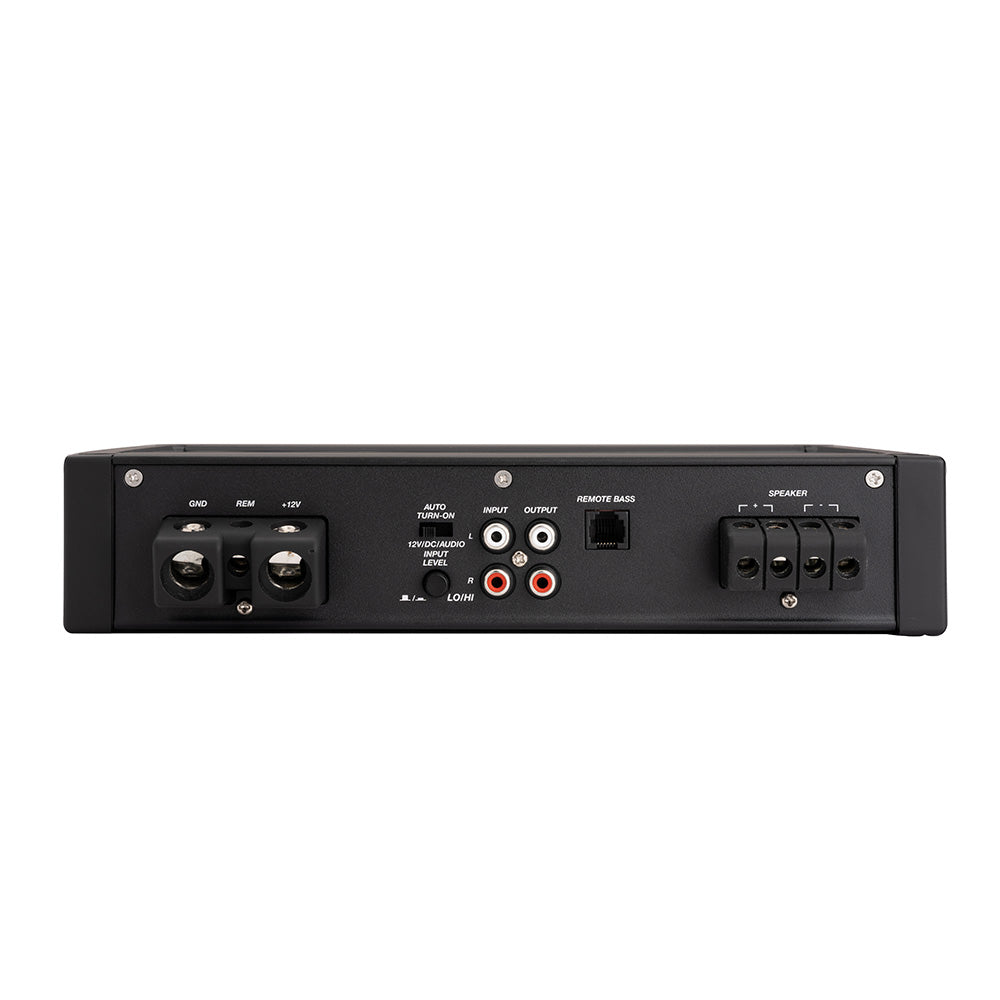

- RCA Pass-Through Output
- Real Marine™ ABYC/NMMA-Compliant Power Connections
- 316L Stainless-Steel Hardware Included
Specifications
Specifications
Identification
| MPN | 51KXMA15001 |
|---|
Dimensions
| Dimensions (H x W x D) | 2.17" x 11.18" x 8.27" (55 x 284 x 210 mm) |
|---|---|
| Weight | - |
Amplifier
| Amplifier Class | Class D |
|---|---|
| Channels | 1 |
Amplifier Power
| Rated Continuous (RMS) Power (14.4 V input @ 4 Ohm < 1% THD) | 750 W x 1 |
|---|---|
| Rated Continuous (RMS) Power (14.4 V input @ 2 Ohm < 1% THD) | 1500 W x 1 |
| Rated Continuous (RMS) Power (14.4 V input @ 1 Ohm < 1% THD) | 1500 W x 1 (±10%) |
| Rated Continuous (RMS) Power (12.5 V input @ 4 Ohm < 1% THD) | - |
| Rated Continuous (RMS) Power (12.5 V input @ 2 Ohm < 1% THD) | - |
Amplifier Processing
| Signal-to-Noise Ratio, referred to highest rated power (A-weighted, 20 Hz-20 kHz noise bandwidth): Analog inputs | 95 dB |
|---|---|
| Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz-20 kHz noise bandwidth): Analog inputs | 75 dB |
| Signal-to-Noise Ratio (Manufacturer Rating) | - |
| Damping Factor @ 4 Ω | - |
| Damping Factor @ 2 Ω | - |
| THD+N @ rated power | - |
| Frequency Response (+0, -1dB) | 10 Hz-160 Hz |
| Input Voltage Range @ RCA Inputs | 125 mV-5 V (low level); 250 mV-10 V (high level) |
| Input Impedance | - |
| Remote Level Control | Included (KMBLC) |
| Remote Level Modes | - |
| Channel Input Mode Switch | - |
| Pass-through Preamp Output | - |
| Source Channel Selection for PreOuts | - |
Amplifier Filters
| Bass Boost EQ | 0 to +6 dB, 20 Hz-80 Hz center frequency (KickEQ+ parametric) |
|---|---|
| Output Polarity Switch | - |
| Filter Mode(s): Subwoofer Channel | Low-Pass |
| Filter Slope(s): Subwoofer Channel | 24 dB/octave |
| Filter Frequency Range: Subwoofer Channel | 40 Hz-160 Hz |
| High-Pass/Low-Pass Full Range Filter | - |
| HP Variable Crossover Frequency Range | - |
| LP Variable Crossover Frequency Range | - |
| Infrasonic Filter | 10 Hz-80 Hz, 24 dB/octave |
| Detented, Calibrated Filter Potentiometers | - |
Electrical
| Operating Voltage | - |
|---|---|
| Current Consumption (idle) | - |
| Current Consumption (standby) | - |
| Fuse Rating | - |
| Recommended Fuse Type(s) | - |
| Minimum Copper Power/Ground Wire Gauge | - |
General
| Water/Dust Protection Rating | - |
|---|---|
| Operating Temperature Range | - |
| Protection Circuits | - |
Warranty/Certifications
| Certifications | - |
|---|---|
| Warranty | - |
