KNOW THE WATER BETTER THAN A LOCAL
When it comes to catching more fish, they say, “Talk to a local.” With the ECHOMAP UHD2 chartplotter, which offers our best-in-class sonar and mapping and premium touchscreen display with keyed-assist, you’ll know the water even better than they do.

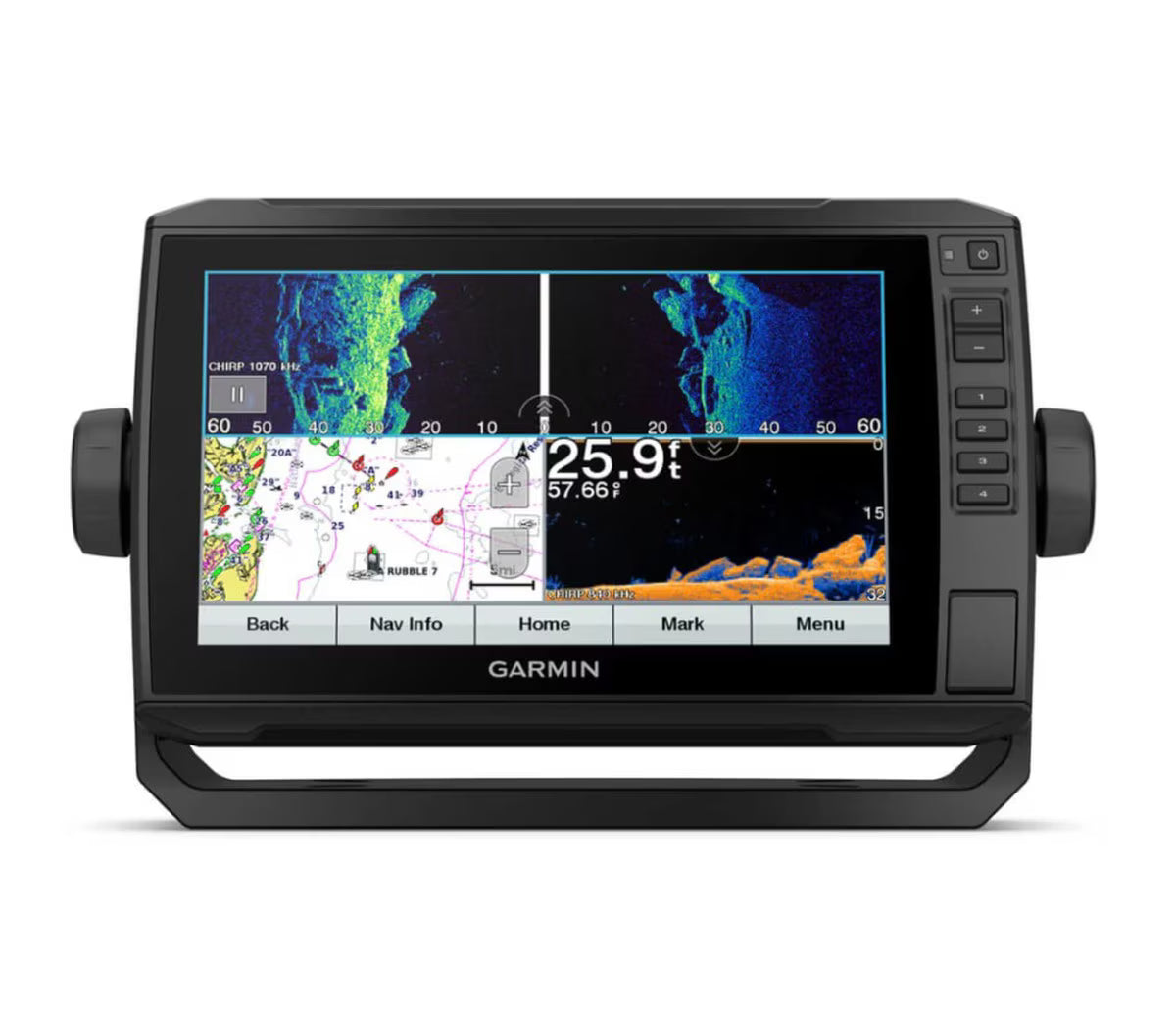

The bright 6”, 7” or 9” touchscreen display with keyed-assist is user-friendly and easy to read.

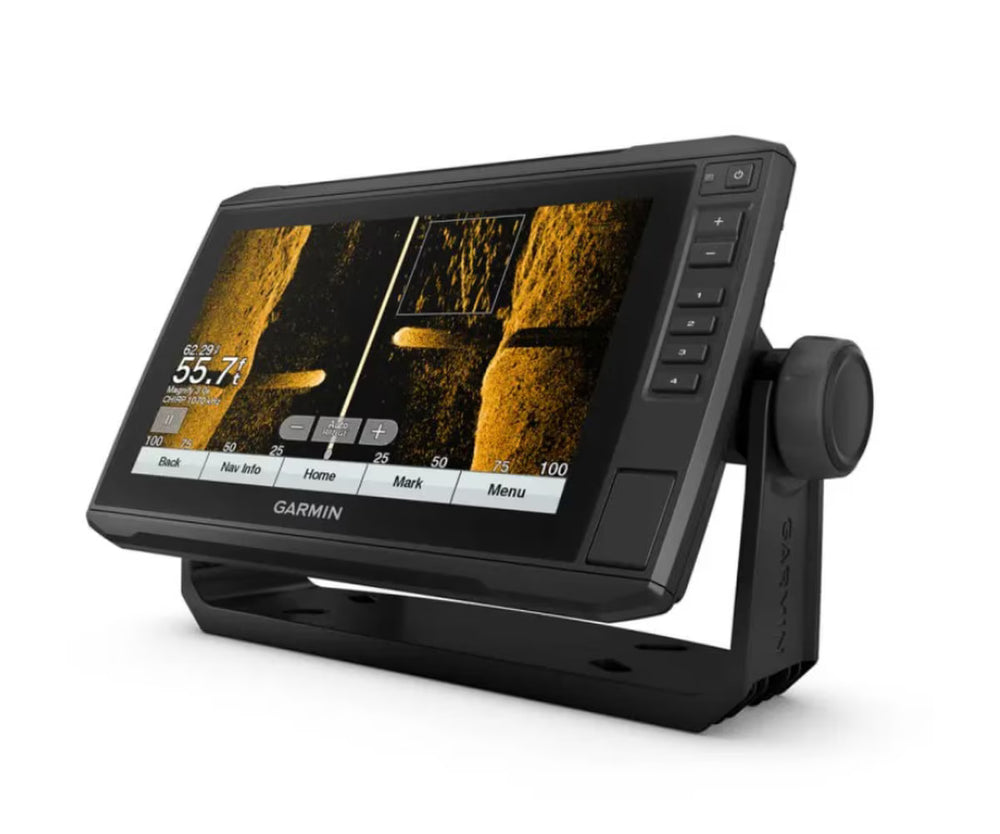

Good things come in threes. Three sonar types, that is: Garmin traditional, ClearVü™ and SideVü™ sonars.
Improved detail? Check. Distinguished targets? Yep. That’s the beauty of high-contrast vivid color palettes.
If you’re running another ECHOMAP UHD2 chartplotter, you can wirelessly share sonar, waypoints and routes.
Specifications
Specifications
Identification
| MPN | 010-02343-01 |
|---|
General
| Unit Type | Chartplotter/Fishfinder Combo |
|---|---|
| Screen Size | 9.0" |
Display
| Display Type | WVGA |
|---|---|
| Resolution | 800 x 480 |
| Brightness | - |
| Input | - |
Navigation
| GPS / GNSS | - |
|---|---|
| Update Rate | - |
| Preloaded Charts | - |
| Chart Compatibility | - |
| Card Slots | 1x microSD (32 GB max) |
| Internal Storage | - |
| Waypoints / Routes / Tracks | 5,000 / 100 / 50 |
Sonar
| Built-In Sonar | Yes |
|---|---|
| Sonar Power | 500 W RMS |
| CHIRP / Traditional | CHIRP, dual-frequency (50/200 kHz), dual-beam (77/200 kHz) |
| Down Imaging | ClearVü |
| Side Imaging | SideVü |
| Transducer Port | - |
| Included Transducer | - |
Connectivity
| NMEA 2000 | Compatible |
|---|---|
| NMEA 0183 | 1 in / 1 out |
| J1939 | - |
| Ethernet / Network | - |
| Wi-Fi | - |
| Bluetooth | - |
| Video In / Out | - |
Dimensions
| Unit Dimensions (W x H x D) | 11.1" x 6.5" x 2.4" (282 x 164 x 60 mm) |
|---|---|
| Dimensions with Bracket | - |
| Flush Mount Cutout | - |
| Mounting Options | Bail or flush |
| Weight | 2.3 lb (1.0 kg) |
Electrical
| Power Input | 9–18 VDC |
|---|---|
| Power Consumption / Current Draw | 1.0 A typical / 1.5 A max @ 12 VDC (18 W max) |
Additional
| Water Rating | IPX7 |
|---|---|
| Compass-Safe Distance | 25.6" (65 cm) |
| Operating Temperature | 5° to 131° F (-15° to 55° C) |
