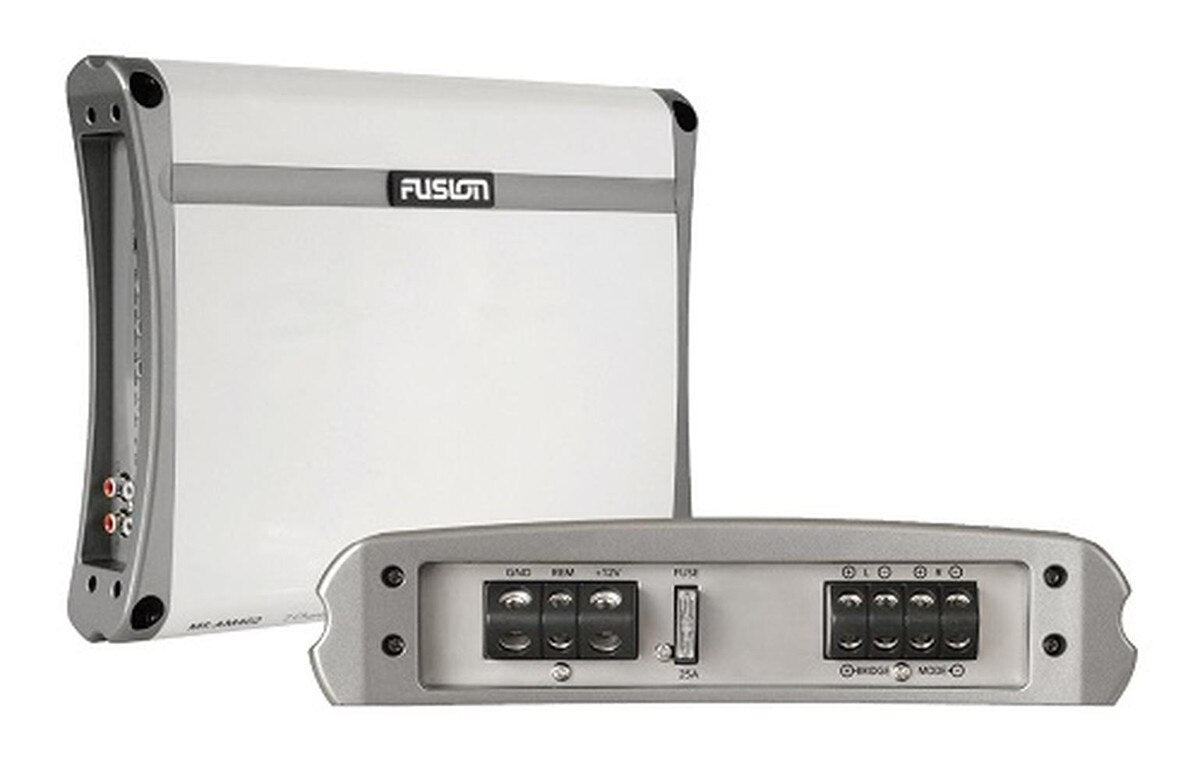

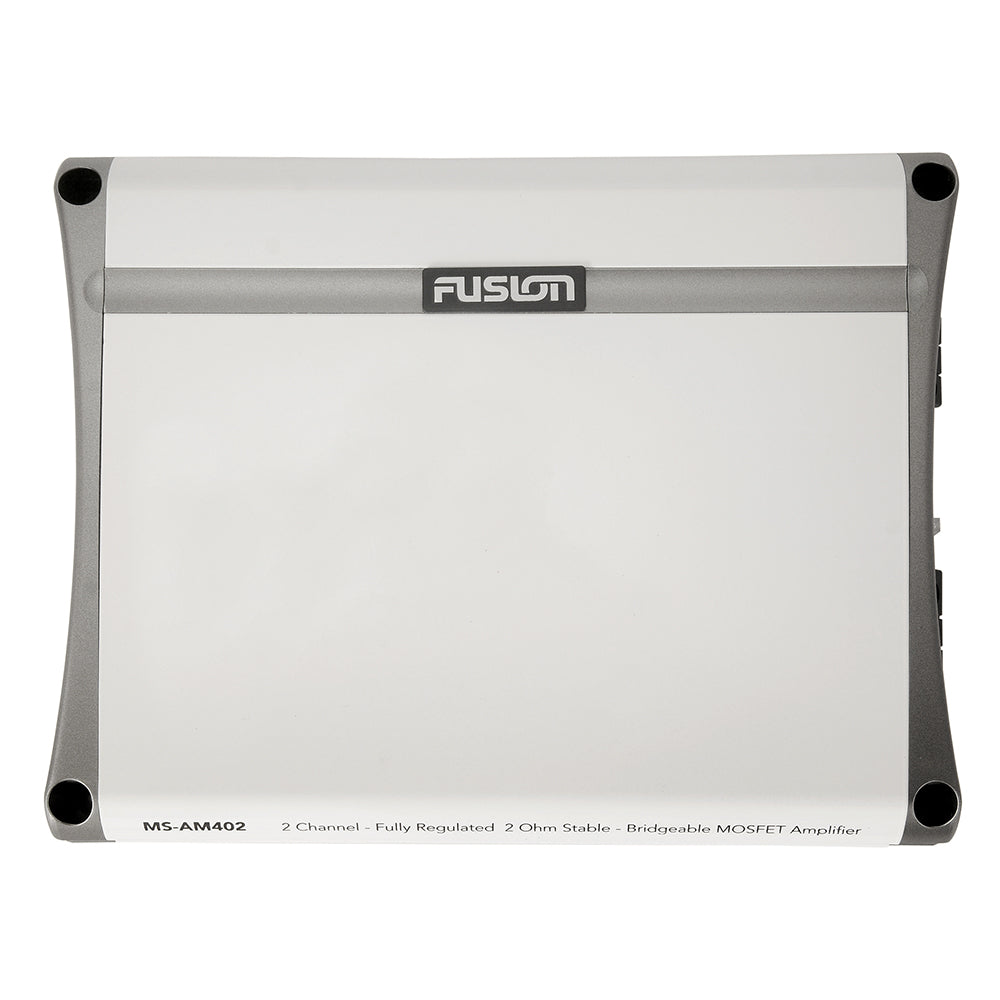

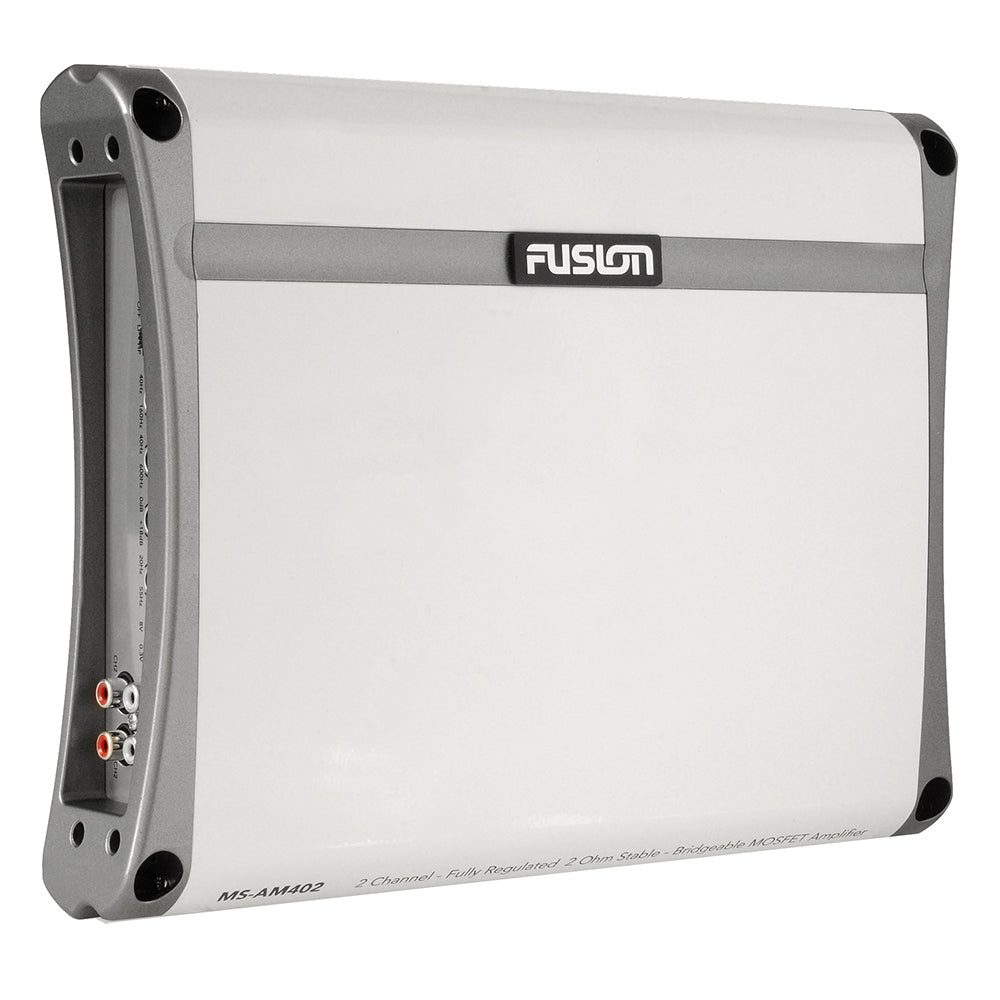

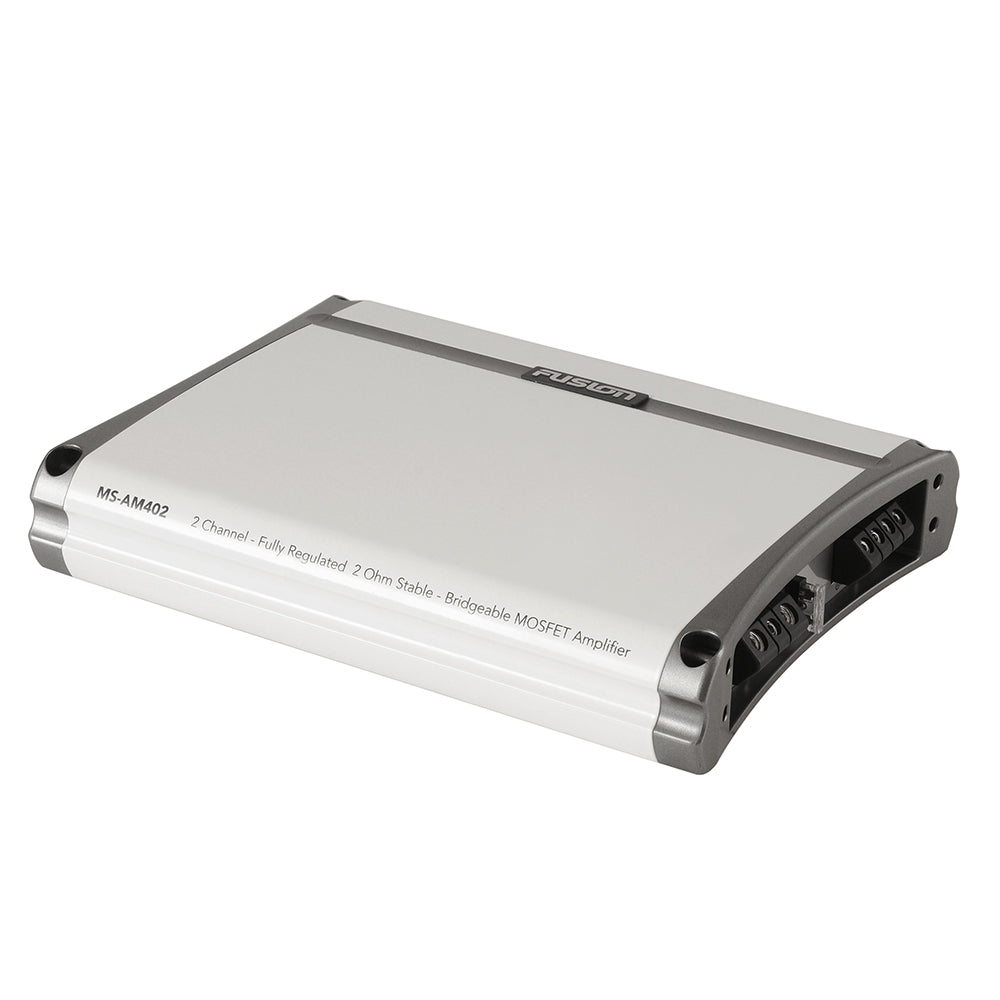

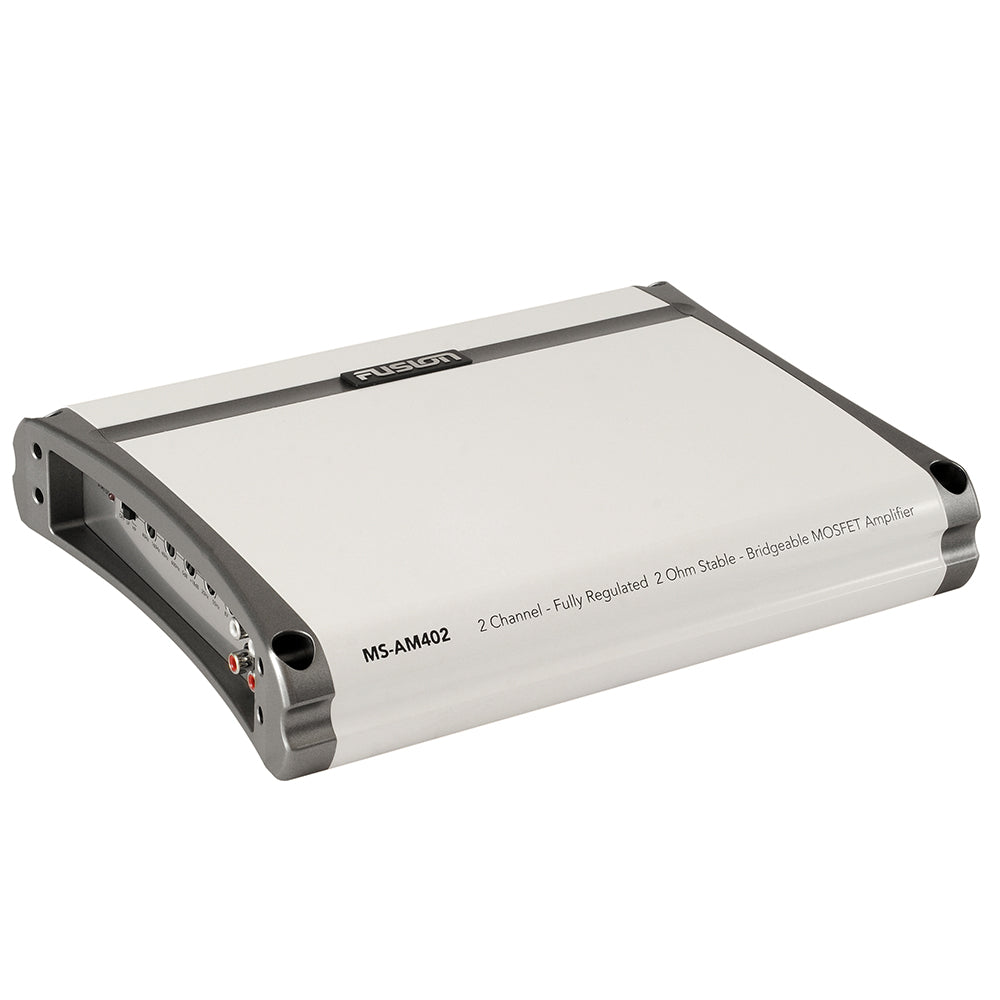

MS-AM402 2 Channel Marine Amplifier - 400W
Features:
- Marine Grade Chassis - Stainless steel end caps and bottom plate provide a stunning finish with added environmental protection.
- Heat Sink Technology - Heat sink technology transfers heat more efficiently and offers more thermal stability for maximum component reliability.
- Class-AB Design - The 400 Watt 2-Ohm stable (per channel) design ensures clean and powerful amplification of the input signal,enough to rock the boat.
- Conformal Coated Circuitry - Provides added protection from salt air and moisture to ensure maximum product life.
- RCA Line Out - A pass through the RCA output enables linking of multiple amplifiers for enhanced system performance.
Specifications
Specifications
Identification
| MPN | 010-01499-00 |
|---|---|
| Barcode | 753759139247 |
Dimensions
| Dimensions (H x W x D) | 2.09" x 11.65" x 9.02" (53 x 296 x 229 mm) |
|---|---|
| Weight | - |
Amplifier
| Amplifier Class | Class D |
|---|---|
| Channels | 2 |
Amplifier Power
| Rated Continuous (RMS) Power (14.4 V input @ 4 Ohm < 1% THD) | 65 W x 2/200 W x 1 (Bridged) |
|---|---|
| Rated Continuous (RMS) Power (14.4 V input @ 2 Ohm < 1% THD) | 100 W x 2 |
Amplifier Processing
| Signal-to-Noise Ratio, referred to highest rated power (A-weighted, 20 Hz-20 kHz noise bandwidth): Analog inputs | - |
|---|---|
| Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz-20 kHz noise bandwidth): Analog inputs | - |
| Signal-to-Noise Ratio (Manufacturer Rating) | > 95 dB |
| Damping Factor @ 4 Ω | > 200 |
| Damping Factor @ 2 Ω | - |
| THD+N @ rated power | 0.05% |
| Frequency Response (+0, -1dB) | - |
| Input Voltage Range @ RCA Inputs | 300 mV-8 V |
| Input Impedance | 20 kΩ |
| Remote Level Control | - |
| Remote Level Modes | - |
| Channel Input Mode Switch | - |
| Pass-through Preamp Output | - |
| Source Channel Selection for PreOuts | - |
Amplifier Filters
| Bass Boost EQ | 0 to +18 dB @ 45 Hz |
|---|---|
| Output Polarity Switch | - |
| Filter Mode(s): Channels 1 & 2 | Low-Pass or High-Pass |
| Filter Slope(s): Channels 1 & 2 | Low-Pass: 18 dB/octave; High-Pass: 12 dB/octave |
| Filter Frequency Range: Channels 1 & 2 | Low-Pass: 40 Hz-160 Hz; High-Pass: 40 Hz-600 Hz |
| High-Pass/Low-Pass Full Range Filter | - |
| HP Variable Crossover Frequency Range | - |
| LP Variable Crossover Frequency Range | - |
| Infrasonic Filter | 20 Hz-55 Hz, 18 dB/octave |
| Detented, Calibrated Filter Potentiometers | - |
Electrical
| Operating Voltage | 10-16 VDC |
|---|---|
| Current Consumption (idle) | - |
| Current Consumption (standby) | - |
| Fuse Rating | 1 x 25 A |
| Recommended Fuse Type(s) | - |
| Minimum Copper Power/Ground Wire Gauge | 4 AWG |
General
| Water/Dust Protection Rating | - |
|---|---|
| Operating Temperature Range | - |
| Protection Circuits | - |
Warranty/Certifications
| Certifications | - |
|---|---|
| Warranty | - |
