B&G Zeus™ 3S 9 - 9" Multi-Function Sailing Display
Description
Description

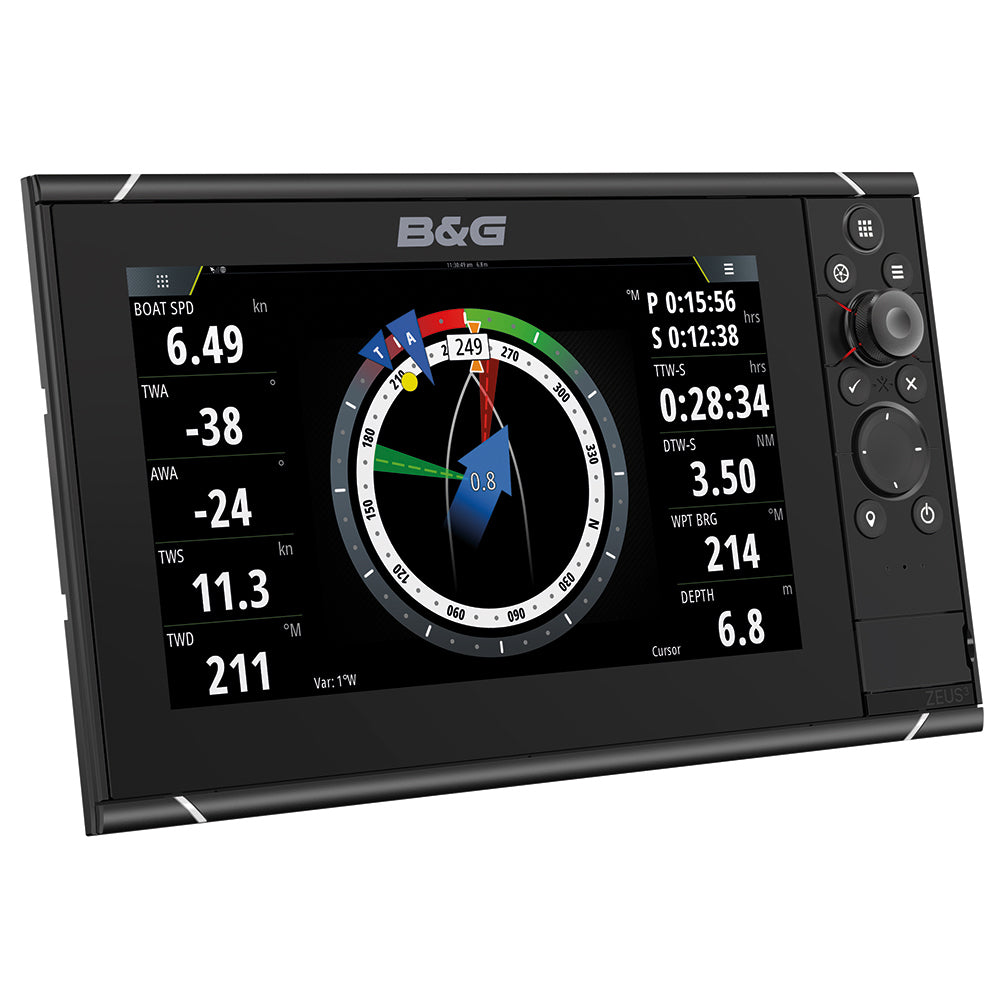

Zeus™ 3S 9 - 9" Multi-Function Sailing Display
Designed just for sailing, the Zeus 3S chartplotters offer super-fast response times, delivering the information you need, when you need it. Easy-to-use, the Zeus 3S comes with B & G’s unique sailing features built-in; making it simple to navigate, plot routes, add waypoints and view key sailing or racing data, at the touch of a button or screen.
The Zeus 3S 9” is the ultimate super-fast sailing chartplotter and navigation system for blue water cruisers and racers. This ultra-bright, wide-angle display combines an all-weather 9-inch touchscreen with a rotary dial and keypad for ultimate control in all conditions. Easily leverage dedicated, race-proven sailing features such as SailSteer, Laylines, and RacePanel. Connect with online services and mobile devices using built-in Wi-Fi, and integrate seamlessly with a wide range of instruments and accessories for greater safety, performance, and enjoyment on the water.
Features:
- Zeus 3S 9The fastest / most responsive sailing chartplotter and navigation display yet
- SolarMAX™ HD IPS Screen - best in class visibility from all angles with and without polarized glasses
- Built in Wi-Fi connects with smartphones, tablets, and internet hotspots
- Touchscreen and keypad controls
Specifications
Specifications
Identification
| MPN | 000-15408-001 |
|---|---|
| Barcode | 9420064113620 |
General
| Unit Type | Chartplotter |
|---|---|
| Screen Size | 9.0" |
Display
| Display Type | SolarMAX IPS |
|---|---|
| Resolution | 1280 x 720 |
| Brightness | 1200 nits |
| Input | Touchscreen |
Navigation
| GPS / GNSS | Internal GNSS |
|---|---|
| Update Rate | 10 Hz |
| Preloaded Charts | - |
| Chart Compatibility | - |
| Card Slots | 2x microSD (32 GB max each; larger if NTFS) |
| Internal Storage | 16 GB |
| Waypoints / Routes / Tracks | - |
Sonar
| Built-In Sonar | Yes |
|---|---|
| Sonar Power | - |
| CHIRP / Traditional | Single-channel CHIRP 50/200 kHz |
| Down Imaging | - |
| Side Imaging | - |
| Transducer Port | 2x 9-pin Xsonic |
| Included Transducer | - |
Connectivity
| NMEA 2000 | 1x Micro-C |
|---|---|
| NMEA 0183 | - |
| J1939 | - |
| Ethernet / Network | 1x 5-pin (10/100) |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Video In / Out | 2x composite (RCA) in |
Dimensions
| Unit Dimensions (W x H x D) | 11.30" x 6.54" x 3.54" (287 x 166 x 90 mm) |
|---|---|
| Dimensions with Bracket | 12.24" x 7.09" x 3.74" (311 x 180 x 95 mm) |
| Flush Mount Cutout | - |
| Mounting Options | - |
| Weight | 3.1 lb (1.41 kg) |
Electrical
| Power Input | 10–31.2 VDC (12/24 V nominal) |
|---|---|
| Power Consumption / Current Draw | 21 W max, 5 A fuse |
Additional
| Water Rating | IPX6 / IPX7 |
|---|---|
| Compass-Safe Distance | 1.7 ft (50 cm) |
| Operating Temperature | 5° to 131° F (-15° to 55° C) |
| Country of Origin | - |
Reviews (0)
Reviews (0)
In The Box
In The Box
In The Box:
Package Dimensions:
Available Shipping Methods:
Support
Support
* ALL WARRANTY IS THROUGH MANUFACTURE *
