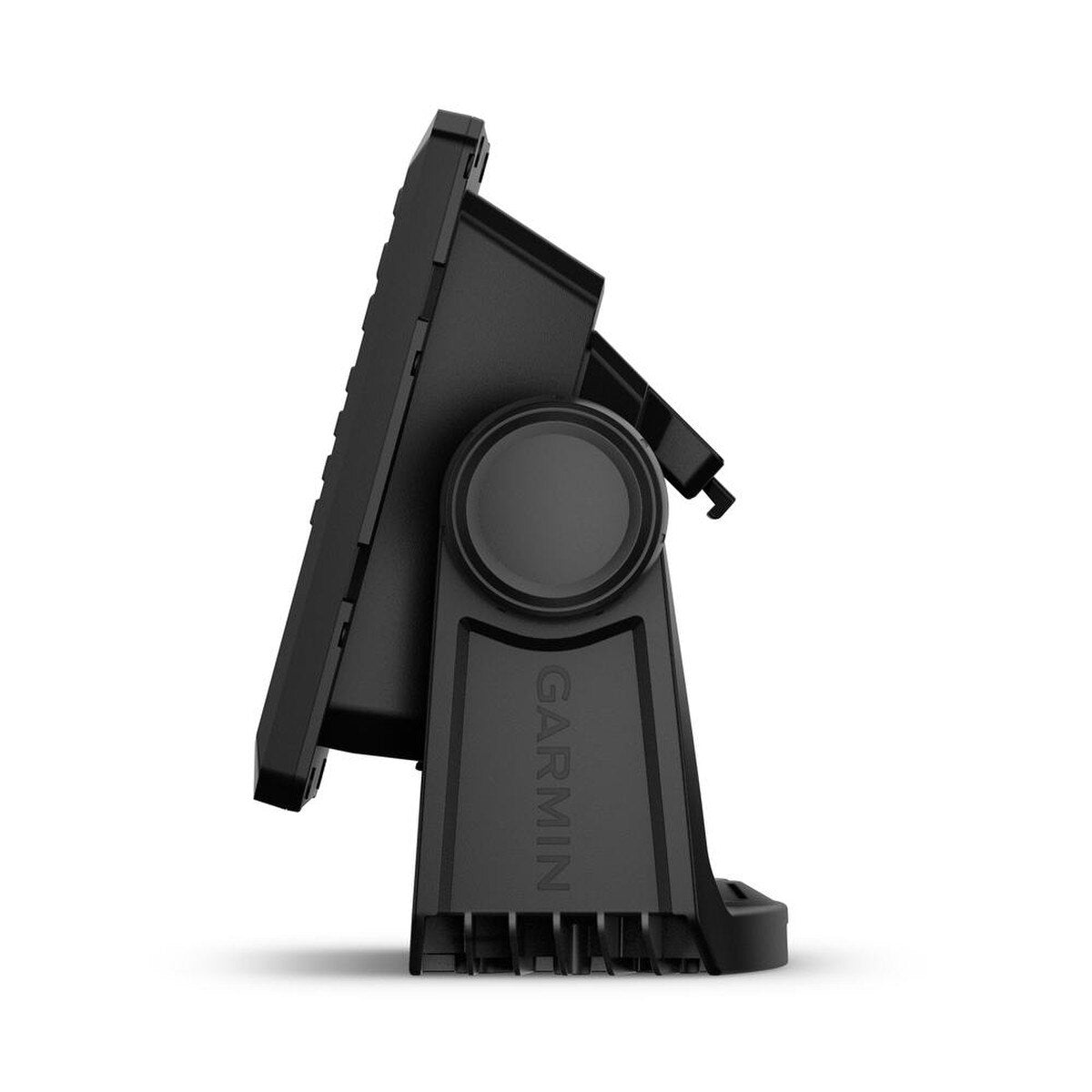

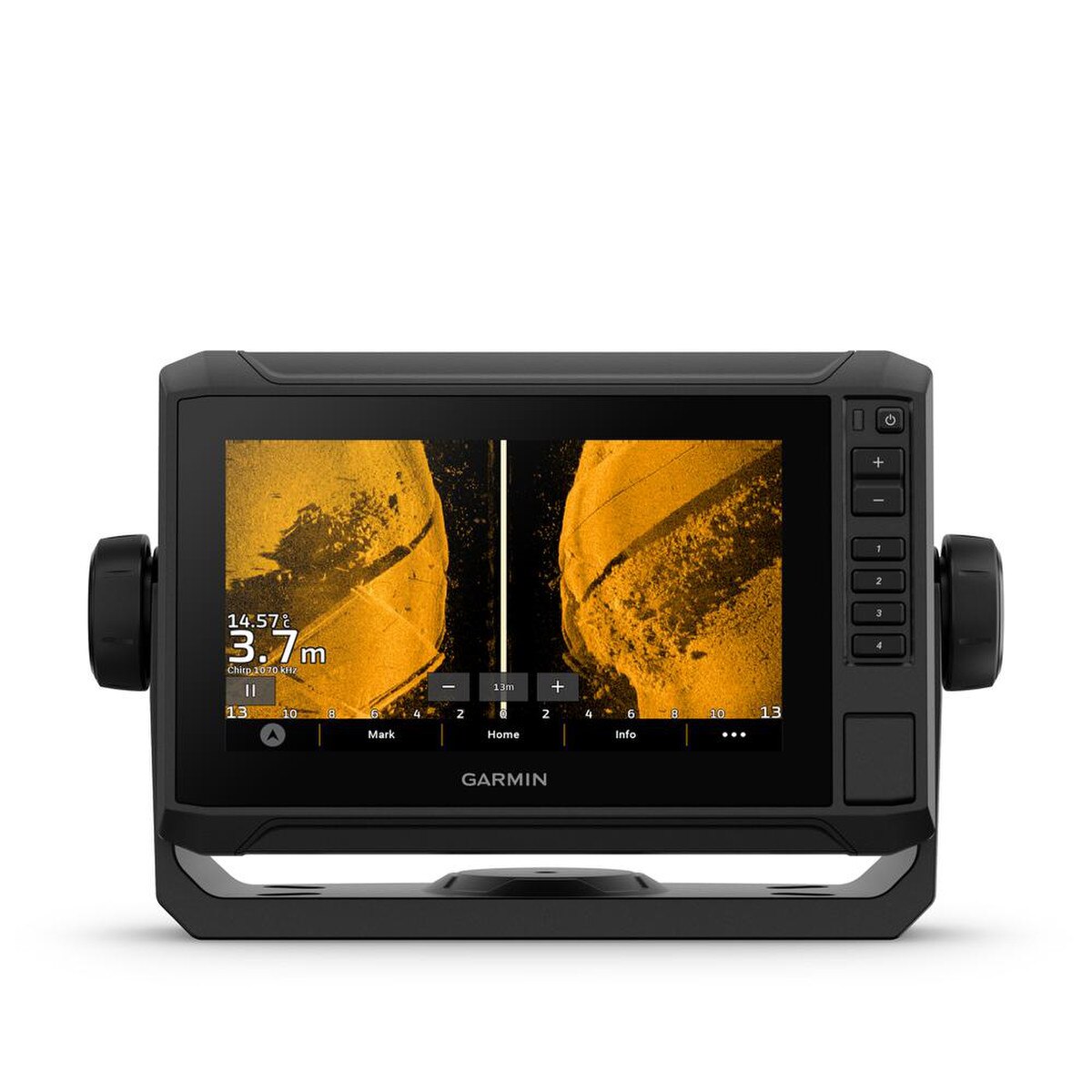

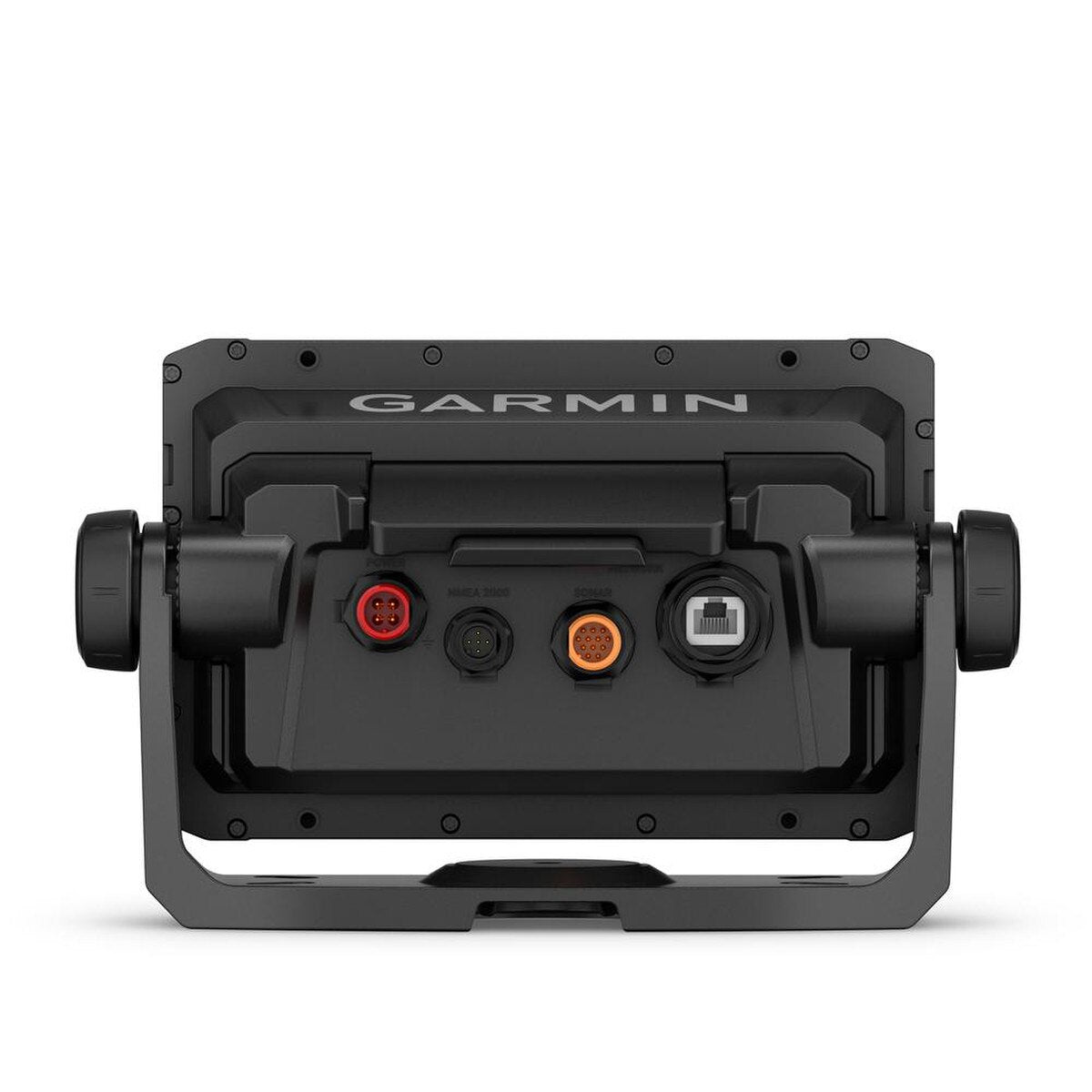

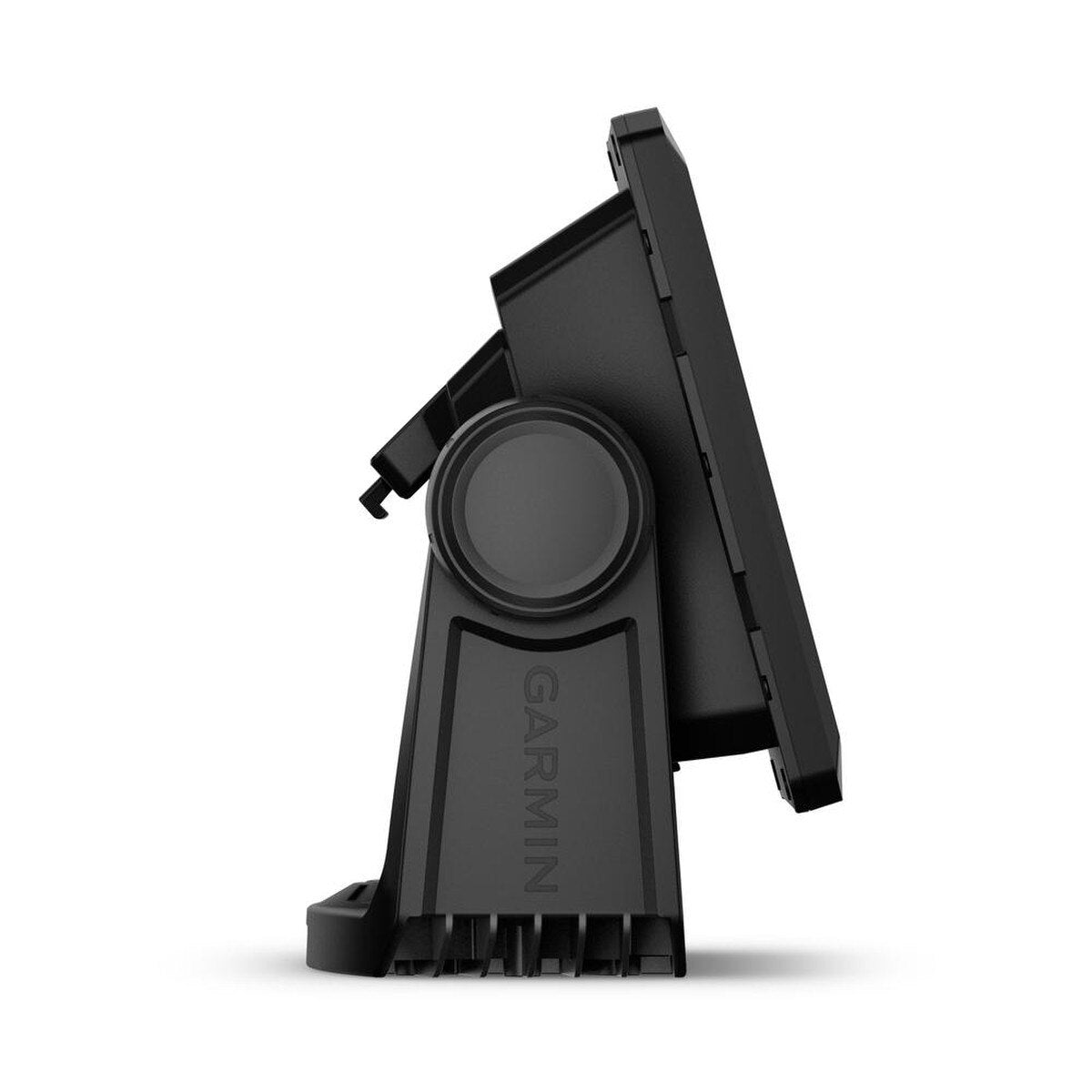

Garmin ECHOMAP UHD2 75sv Canada Inland and Coastal - No Transducer

SKU: GAR/010-02686-01

$949⁹⁹

Options

Garmin Authorized Dealer

Description

Garmin ECHOMAP UHD2 75sv, Canada inland and coastal without transducer

Model: 010-02686-01

Easy-to-use 7 in chartplotter with a bright, sunlight-readable touchscreen display
Wirelessly connects to your Force trolling motor to create and follow routes, navigate to waypoints, control speed, check battery life and more
Built-in Canada Garmin Navionics+ inland and coastal maps with integrated Navionics(R) data cover more than 8

Specifications

Identification

MPN	010-02686-01
Barcode	753759317522

General

Unit Type	Chartplotter/Fishfinder Combo
Screen Size	7.0"

Display

Display Type	WVGA
Resolution	800 x 480
Brightness	-
Input	Touchscreen

Navigation

GPS / GNSS	-
Update Rate	-
Preloaded Charts	Garmin Navionics+ Canada Inland and Coastal
Chart Compatibility	-
Card Slots	1x microSD (up to 1 TB)
Internal Storage	-
Waypoints / Routes / Tracks	-

Sonar

Built-In Sonar	Yes
Sonar Power	500 W RMS
CHIRP / Traditional	CHIRP (50/77/83/200 kHz)
Down Imaging	ClearVü (260/455/800/1000/1200 kHz)
Side Imaging	SideVü (260/455/800/1000/1200 kHz)
Transducer Port	-
Included Transducer	No

Connectivity

NMEA 2000	Compatible
NMEA 0183	-
J1939	-
Ethernet / Network	-
Wi-Fi	Yes
Bluetooth	-
Video In / Out	-

Dimensions

Unit Dimensions (W x H x D)	8.6" x 5.6" x 3.2" (218 x 142 x 81 mm)
Dimensions with Bracket	10.3" x 6.5" x 3.9" (261 x 166 x 99 mm)
Flush Mount Cutout	-
Mounting Options	-
Weight	2.2 lb (1.0 kg)

Electrical

Power Input	9–18 VDC
Power Consumption / Current Draw	1.52 A typical / 3.2 A max @ 12 VDC

Additional

Water Rating	IPX7
Compass-Safe Distance	10" (25.5 cm)
Operating Temperature	-4° to 131° F (-20° to 55° C)
Country of Origin	-

Reviews (0)

In The Box

In The Box:

ECHOMAP UHD2 75sv
12-pin sounder to 8-pin transducer cable
Power cable
Tilt/swivel mount with quick release cradle
Protective cover
Hardware
Documentation

Package Dimensions:

Available Shipping Methods:

Support

Warranty

2yr

* ALL WARRANTY IS THROUGH MANUFACTURE *
