Humminbird HELIX 7 GPS CHIRP SI G4
Description
Description

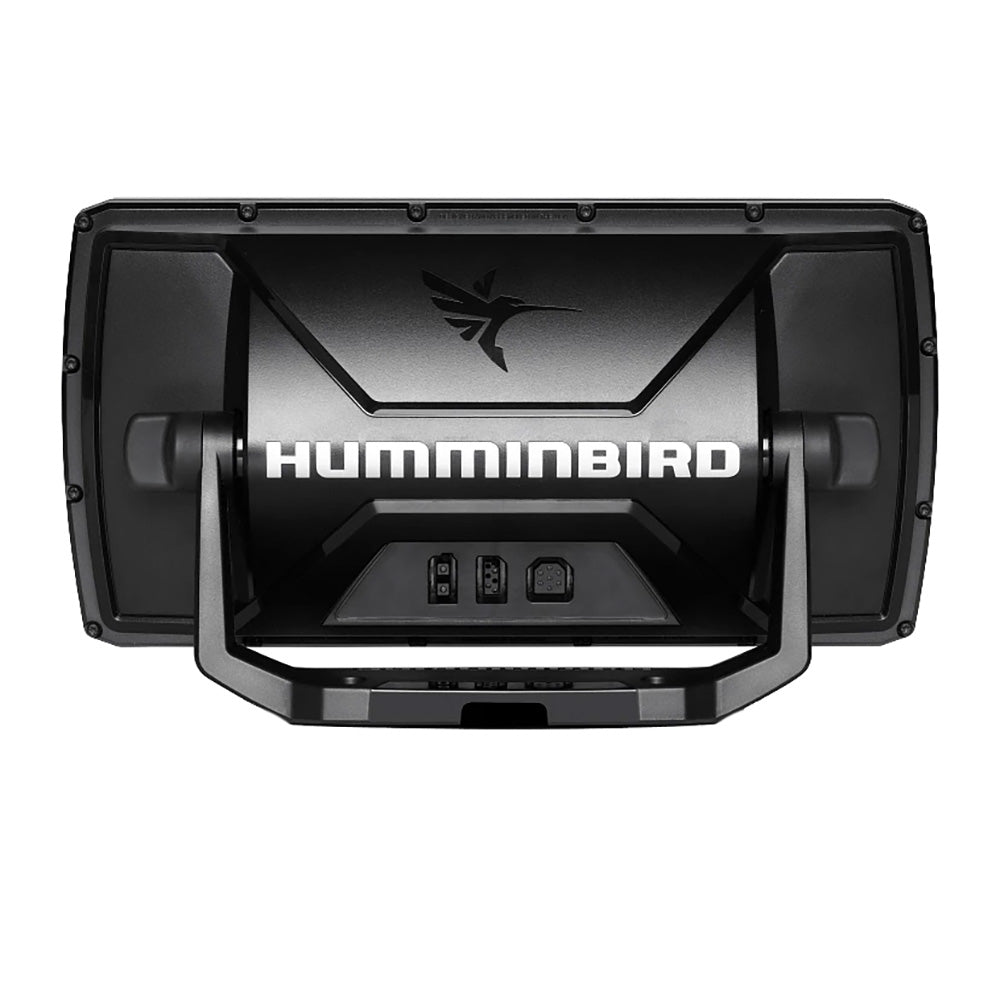

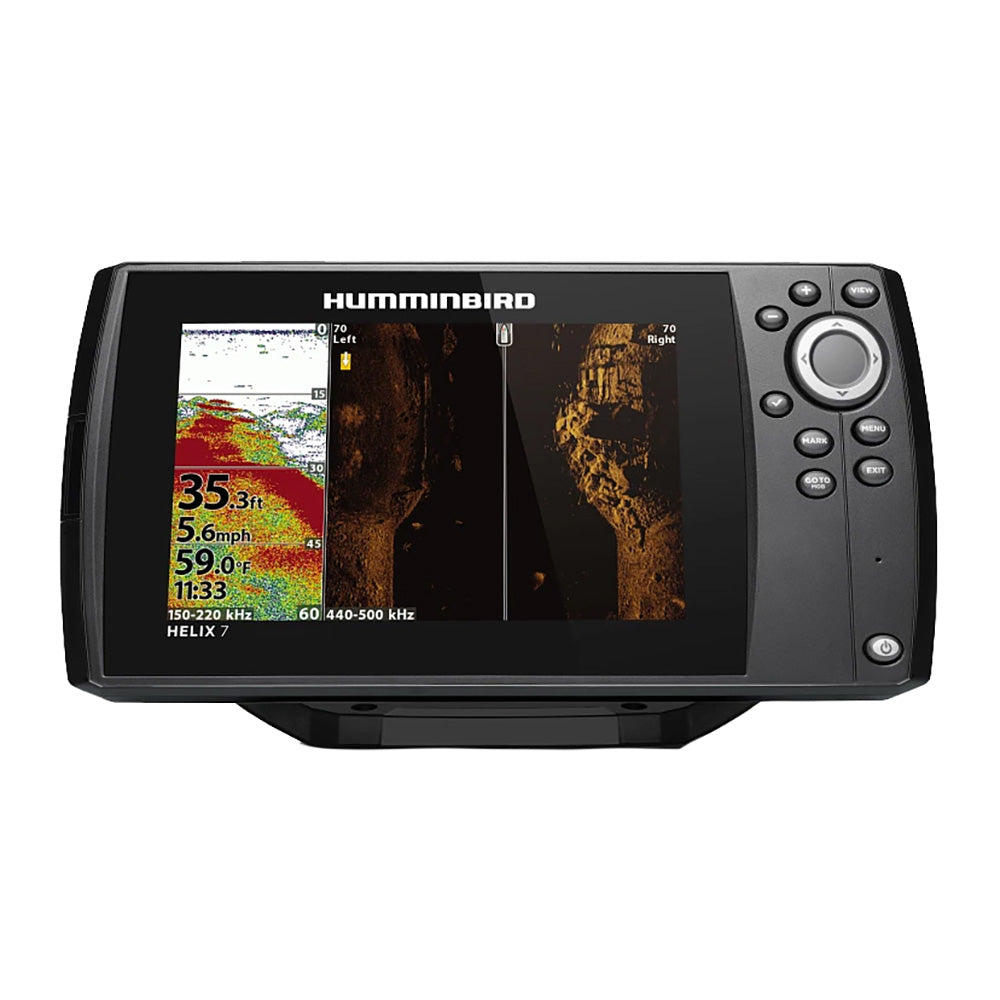

HELIX 7 GPS CHIRP SI G4
The HELIX 7 SI GPS G4 fish finder features CHIRP Side Imaging, CHIRP Down Imaging, Dual Spectrum CHIRP Sonar, AutoChart Live, Internal GPS, and Humminbird Basemap built-in. An upgraded high-definition 7" display will give you the best view of the many pre-loaded split screen view options so that you'll never miss a fish.
Features:
- Keypad control: Master HELIX at the touch of a button. Access the pre-loaded views from the user-friendly menu system, operated by softkey controls that allow you to reliably operate your fish finder in any condition.
- CHIRP Down Imaging: Filter out noise and clutter for a clear view beneath your boat. CHIRP Digital Sonar processing of Down Imaging sonar means that you'll see great detail to make finding the fish simple and easy.
- Dual Spectrum CHIRP sonar: Before you cast, know what's down there thanks to highly-detailed fish arches and a clear view of the fish-holding structure and the bottom. Powered by our proprietary, Low-Q CHIRP transducer, Dual Spectrum CHIRP 2D sonar offers two ways to search; Wide Mode for maximum coverage and Narrow Mode for focusing on the slightest detail.
- Internal GPS and Humminbird Basemap: Our enhanced basemap provides you with a clear view of underwater terrain and surrounding points of interest so you can fish and navigate with total confidence. Identify buoys, day markers, hazards, marinas, contours, depth markers, and much, much more. Includes charts of more than 10,000 lakes, plus coastal coverage for the continental U.S.
- Premium Chart Compatible: Humminbird provides the most complete offering of premium chart options to anglers everywhere. Get a complete view of the world below with optional charts from Humminbird's LakeMaster® and CoastMaster™ products, as well as your choice of compatible Navionics® charts.
- AutoChart Live: Create real-time maps of your fishing spots, with access to patented Humminbird® LakeMaster® features. Map depth contours, bottom hardness, and vegetation as you drive your boat. Comes standard with eight (8) hours of built-in recording time and is compatible with AutoChart Zero Line SD cards for virtually endless AutoChart Live mapping capacity.
- Includes control head, transom-mount transducer, power cable, gimbal mounting bracket, and mounting hardware.
- 1-Year Limited Warranty
Specifications
Specifications
Identification
| MPN | 411920-1 |
|---|---|
| Barcode | 082324058288 |
General
| Unit Type | Chartplotter/Fishfinder Combo |
|---|---|
| Screen Size | 7.0" |
Display
| Display Type | Color TFT |
|---|---|
| Resolution | 1024 x 600 |
| Brightness | - |
| Input | - |
Navigation
| GPS / GNSS | Internal GPS |
|---|---|
| Update Rate | - |
| Preloaded Charts | Humminbird Basemap |
| Chart Compatibility | - |
| Card Slots | 1x microSD |
| Internal Storage | - |
| Waypoints / Routes / Tracks | 2,750 / 47 / 50 (20,000 track points) |
Sonar
| Built-In Sonar | Yes |
|---|---|
| Sonar Power | - |
| CHIRP / Traditional | - |
| Down Imaging | - |
| Side Imaging | - |
| Transducer Port | - |
| Included Transducer | - |
Connectivity
| NMEA 2000 | No |
|---|---|
| NMEA 0183 | - |
| J1939 | - |
| Ethernet / Network | - |
| Wi-Fi | - |
| Bluetooth | - |
| Video In / Out | - |
Dimensions
| Unit Dimensions (W x H x D) | 10.54" x 5.44" x 3.06" (268 x 138 x 78 mm) |
|---|---|
| Dimensions with Bracket | - |
| Flush Mount Cutout | - |
| Mounting Options | - |
| Weight | 2 lb 1.6 oz (0.95254 kg) |
Electrical
| Power Input | 10.8–20 VDC |
|---|---|
| Power Consumption / Current Draw | 800 mA |
Additional
| Water Rating | - |
|---|---|
| Compass-Safe Distance | - |
| Operating Temperature | - |
| Country of Origin | - |
Reviews (0)
Reviews (0)
In The Box
In The Box
In The Box:
Package Dimensions:
Available Shipping Methods:
Support
Support
* ALL WARRANTY IS THROUGH MANUFACTURE *
Humminbird
Humminbird 9 M SIDB Y 9-Pin Side Imaging Dual Beam Splitter Cable
720101-1
Humminbird
Humminbird 9Ah 12V AGM Battery Kit
770030-1
Humminbird
Humminbird AutoChart PRO DVD PC Mapping Software w/Zero Lines Map Card
600032-1
Humminbird
Humminbird AutoChart Zero Lines Map Card
600033-1
Humminbird
Humminbird Autochart DVD PC Mapping Software w/Zero Lines Map Card
600031-1
Humminbird
Humminbird EC M10 Transducer Extension Cable - 10'
720096-1
Humminbird
Humminbird EC M30 Transducer Extension Cable - 30'
720096-2
Humminbird
Humminbird GM H7 Gimbal Mount f/Select HELIX 7 Series
740146-1
Humminbird
Humminbird IDMK H7R2 In-Dash Mounting Kit f/HELIX 7 G4
740200-1
Humminbird
Humminbird LakeMaster Aerial Satellite View - Louisiana Delta
600050-1
Humminbird
Humminbird LakeMaster® VX - Dakotas/Nebraska
601001-1
Humminbird
Humminbird LakeMaster® VX - Great Lakes
601002-1
Humminbird
Humminbird LakeMaster® VX - Great Plains
601003-1
Humminbird
Humminbird LakeMaster® VX - Mid-Atlantic States
601004-1
Humminbird
Humminbird LakeMaster® VX - Mid-South States
601005-1
Humminbird
Humminbird LakeMaster® VX - Minnesota
601006-1
Humminbird
Humminbird LakeMaster® VX - Northeast States
601007-1
Humminbird
Humminbird LakeMaster® VX - Ontario
601020-1
Humminbird
Humminbird LakeMaster® VX - Quebec
601021-1
Humminbird
Humminbird LakeMaster® VX - Southeast States
601008-1
Humminbird
Humminbird LakeMaster® VX - Western States
601009-1
Humminbird
Humminbird LakeMaster® VX - Wisconsin
601010-1
Humminbird
Humminbird LakeMaster® VX Premium - Dakota/Nebraska
602001-1
Humminbird
Humminbird LakeMaster® VX Premium - Great Lakes
602002-1
Humminbird
Humminbird LakeMaster® VX Premium - Great Plains
602003-1
Humminbird
Humminbird LakeMaster® VX Premium - Mid-Atlantic States
602004-1
Humminbird
Humminbird LakeMaster® VX Premium - Mid-South States
602005-1
Humminbird
Humminbird LakeMaster® VX Premium - Minnesota
602006-1
Humminbird
Humminbird LakeMaster® VX Premium - Northeast
602007-1
Humminbird
Humminbird LakeMaster® VX Premium - Ontario
602020-1
Humminbird
Humminbird LakeMaster® VX Premium - Quebec
602021-1
Humminbird
Humminbird LakeMaster® VX Premium - Southeast
602008-1
Humminbird
Humminbird LakeMaster® VX Premium - Western States
602009-1
Humminbird
Humminbird LakeMaster® VX Premium - Wisconsin
602010-1
Humminbird
Humminbird PTC UNB 2 Portable Soft Sided Carry Case - No Battery or Charger
740157-1NB
Humminbird

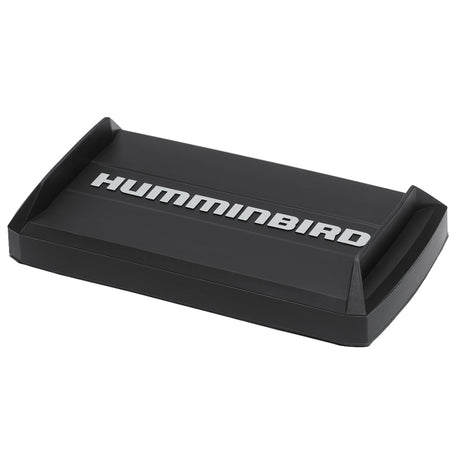

Humminbird UC H7R2 Unit Cover f/HELIX 7 G4 Models
780044-1
Humminbird
Humminbird XNT-9-HW-SI-T - Transom Mount Side Image Transducer
710306-1
Minn Kota

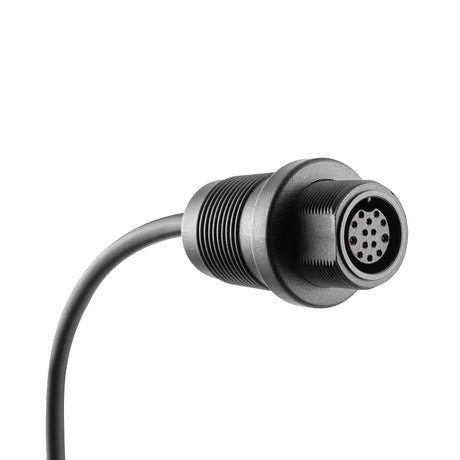

Minn Kota MKR-MDI-2 Humminbird HELIX MDI Sonar Adapter Cable f/Helix 7
1852086
NavPod
NavPod GP1500-04 SystemPod Pre-Cut f/Humminbird HELIX 7 Series
GP1500-04
NavPod
NavPod PP4500-05 PowerPod Pre-Cut f/Humminbird HELIX 7
PP4500-05
RAM Mounting Systems

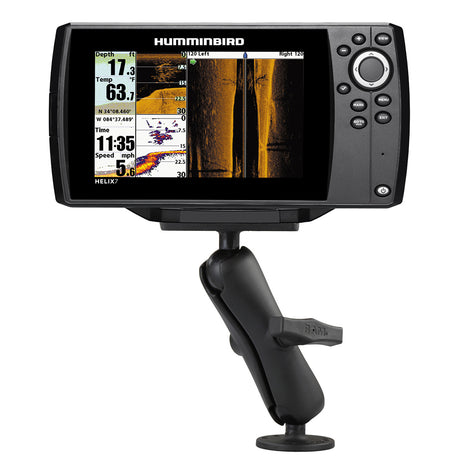

RAM Mount 1.5" Ball Mount w/2.5" Round Base, Short Arm & 2" x 4" Plate f/Humminbird Helix 7 Only
RAM-202-24-B-202U
RAM Mounting Systems

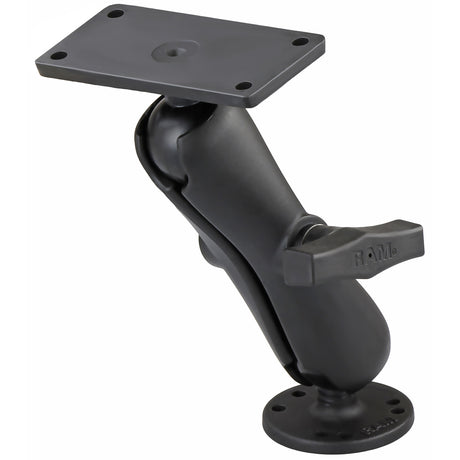

RAM Mount 2" x 4" Rectangle Base w/1.5" Ball
