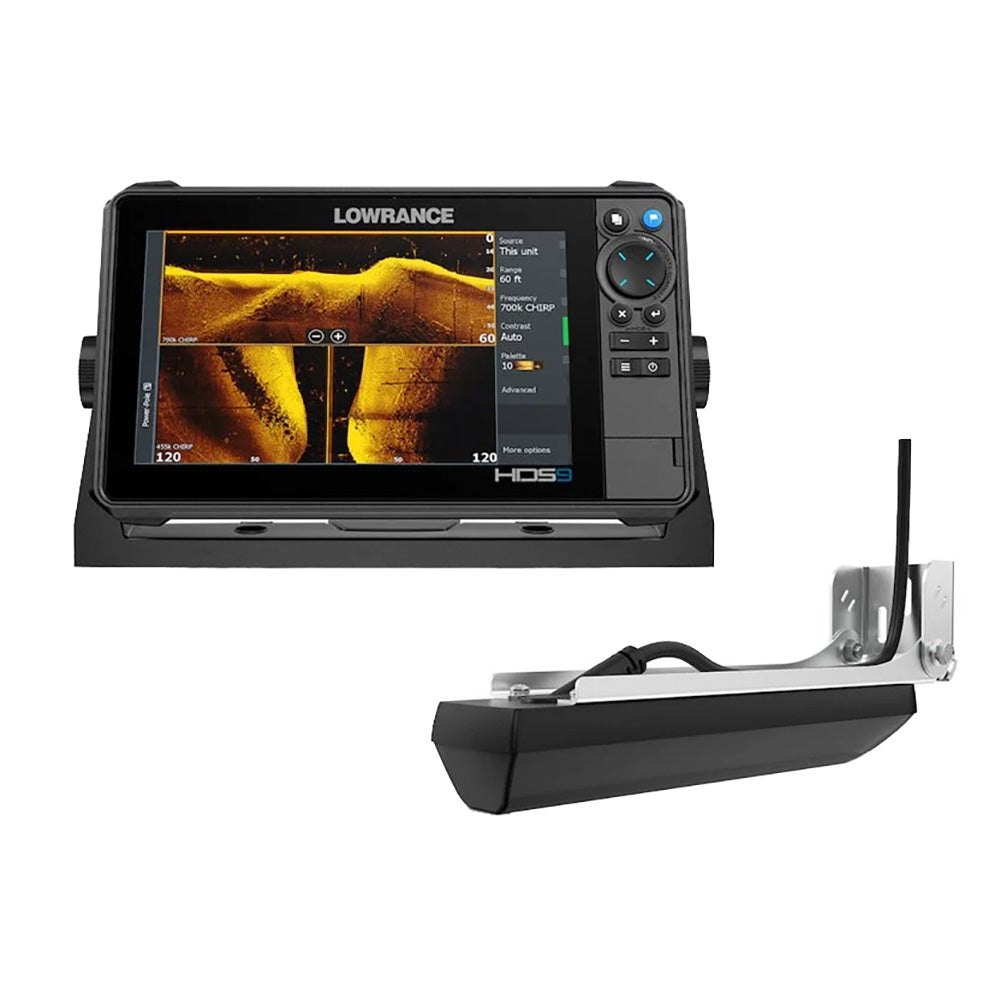

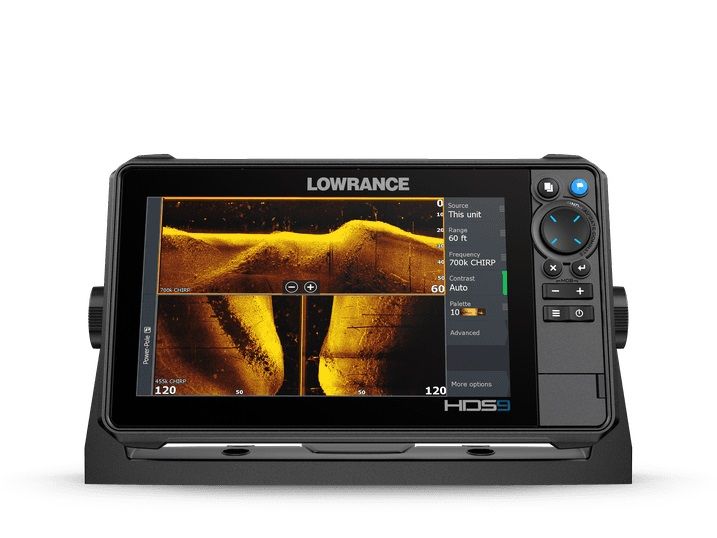

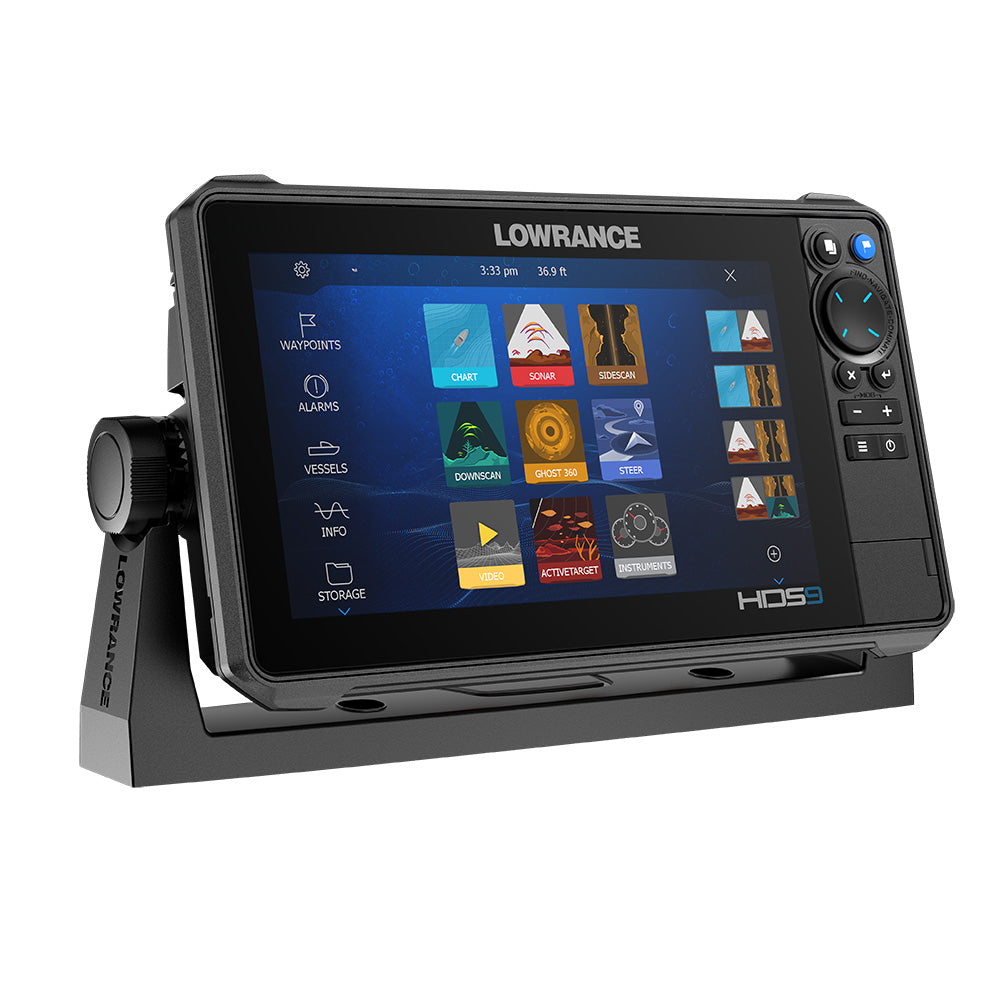

Lowrance HDS PRO 9 - w/ Preloaded C-MAP DISCOVER OnBoard & Active Imaging HD Transducer

Name: Lowrance HDS PRO 9 - w/ Preloaded C-MAP DISCOVER OnBoard & Active Imaging HD Transducer
Brand: Lowrance
SKU: LOW/000-15981-001
Price: 1939.99 USD
Availability: InStock

SKU: LOW/000-15981-001

$1,939⁹⁹

Same-Day Shipping Checking cutoff…

Description

HDS PRO 9 - with Preloaded C-MAP DISCOVER OnBoard & Active Imaging HD Transducer

See more and catch more with the HDS PRO 9 fishfinder/chartplotter. Watch fish react to your lure live with support for high-resolution ActiveTarget® 2 Live Sonar, and find fish and holding structure with ultra-high-definition Active Imaging™ HD Transducer. Quickly locate prime fishing areas with preloaded C-MAP® DISCOVER OnBoard charts and get full fishing system networking with expanded boat control from bow to stern.

Features:

Preloaded C-MAP DISCOVER OnBoard charts with 1-foot contours on 19,000+ US Lakes, 9,400+ Canadian Lakes
SolarMAX™ HD Touchscreen viewable at extreme angles and through polarized lenses
High-definition Active Imaging™ HD ready (Lowrance CHIRP/SideScan/DownScan Imaging™)
High-resolution ActiveTarget 2 Live Sonar ready
FishReveal™ with SideScan view, as well as Downscan (*Requires S3100 and compatible transducer)
Real-time mapping is available with C-MAP Genesis Live.
Support for ActiveTarget Scout and Ghost Trolling Motor 360 chart overlay views
Large programmable keys
Touchscreen control of Power-Pole anchors, Ghost Trolling Motor, Autopilot, and Lowrance Outboard Pilot
NMEA 2000, wireless and bluetooth, connectivity – plus smartphone notifications

Display:

Connectivity:

Electrical:

Environment:

GPS:

MFD (Multi-Function Display):

Cartography included: C-MAP Discover OnBoard (AMER models), C-MAP World Background (ROW models), Navionics basemap (AMER and ROW models)
Waypoints, Routes, Tracks: 3000 Waypoints, 100 Routes, and 100 Trails with up to 10,000 points per trail

Specifications

Identification

MPN	000-15981-001
Barcode	9420064129614

General

Unit Type	Chartplotter/Fishfinder Combo
Screen Size	9"

Display

Display Type	SolarMAX HD IPS
Resolution	1280 x 720
Brightness	>1,200 nits
Input	Multitouch and keys

Navigation

GPS / GNSS	GPS, GLONASS
Update Rate	10 Hz
Preloaded Charts	C-MAP DISCOVER OnBoard
Chart Compatibility	C-MAP DISCOVER OnBoard, C-MAP REVEAL
Card Slots	2x microSD (32 GB max each)
Internal Storage	8 GB
Waypoints / Routes / Tracks	3,000 / - / -

Sonar

Built-In Sonar	Yes
Sonar Power	1 kW (transducer dependent)
CHIRP / Traditional	CHIRP, Broadband
Down Imaging	Active Imaging
Side Imaging	SideScan
Transducer Port	2 sonar ports
Included Transducer	Active Imaging HD

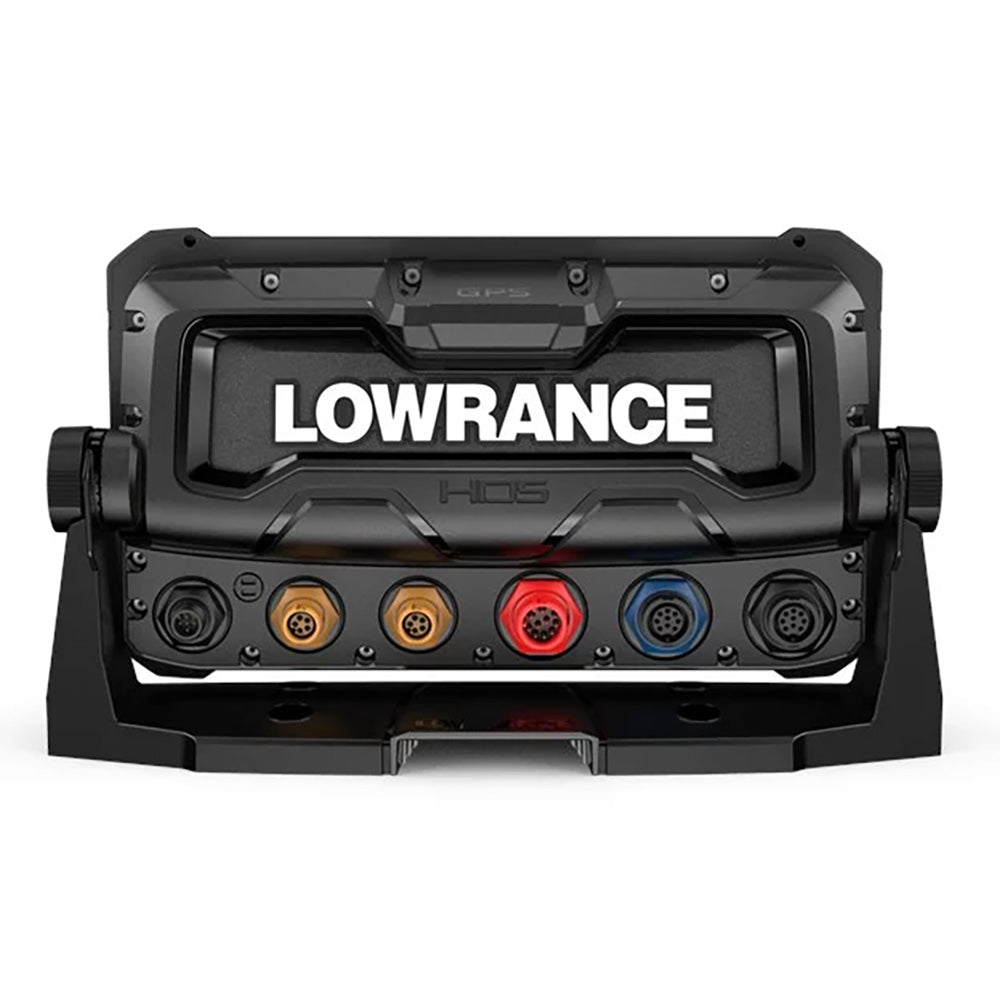

Connectivity

NMEA 2000	1 Micro-C port
NMEA 0183	1 port (via power connector)
J1939	-
Ethernet / Network	2x 100 Mbit (5-pin), up to 6 MFDs
Wi-Fi	Yes (802.11 b/g/n)
Bluetooth	Yes (4.0)
Video In / Out	1 analog in (via power cable)

Dimensions

Unit Dimensions (W x H x D)	-
Dimensions with Bracket	-
Flush Mount Cutout	-

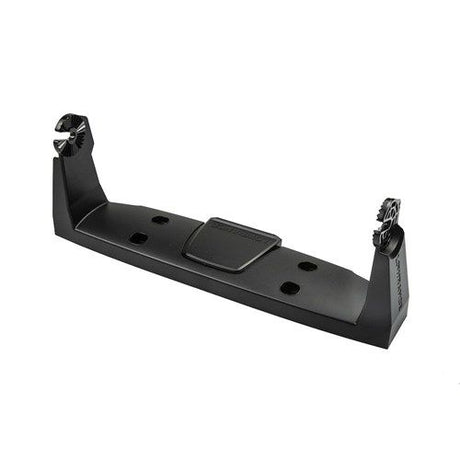

Mounting Options	Panel or bracket
Weight	3.06 lb (1.39 kg)

Electrical

Power Input	10.8–17 VDC
Power Consumption / Current Draw	2.0 A typical / 2.9 A max @ 13 VDC

Additional

Water Rating	IPX7 (card door closed)
Compass-Safe Distance	2.1 ft (65 cm)
Operating Temperature	5° to 131° F (-15° to 55° C)
Country of Origin	-

Reviews (0)

In The Box

In The Box:

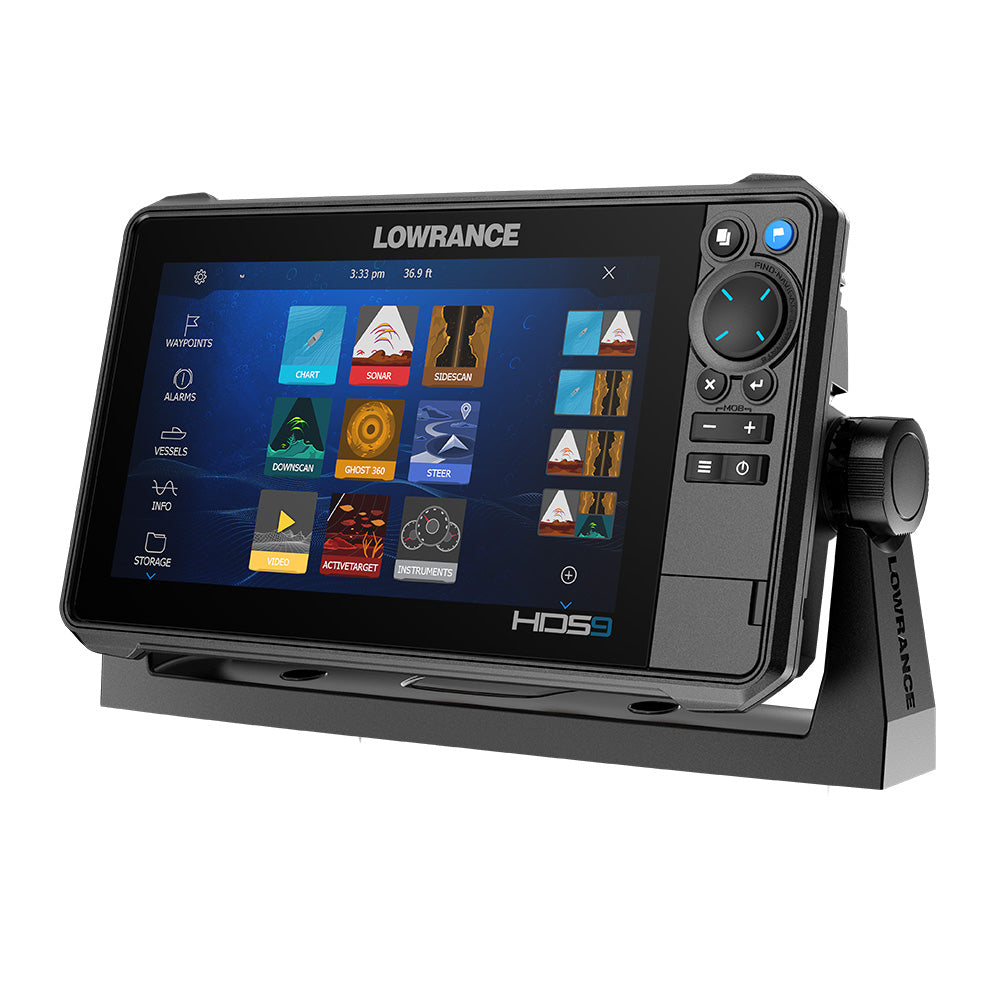

HDS PRO fishfinder/chartplotter (9-inch display screen)
C-MAP DISCOVER OnBoard (Preloaded in HDS PRO fishfinder/chartplotter)
Lowrance Active Imaging HD 3-in-1 Transducer (part number: 000-16062-001)
High definition (up to 1.2MHz) SideScan and DownScan Imaging™ deliver the clearest images of fish and structure
Lowrance® CHIRP with superb clarity and target separation
FishReveal™ DownScan view makes fish identification easy
Supports Medium and High CHIRP (83/200kHz) + 455/800kHz and 455/1.2MHz frequencies
Smart transducer design boosts signal clarity
Compatible directly with Lowrance HDS PRO or with an S3100 module with HDS LIVE, HDS Carbon, and Elite FS

Package Dimensions:

16" x 13" x 6"
