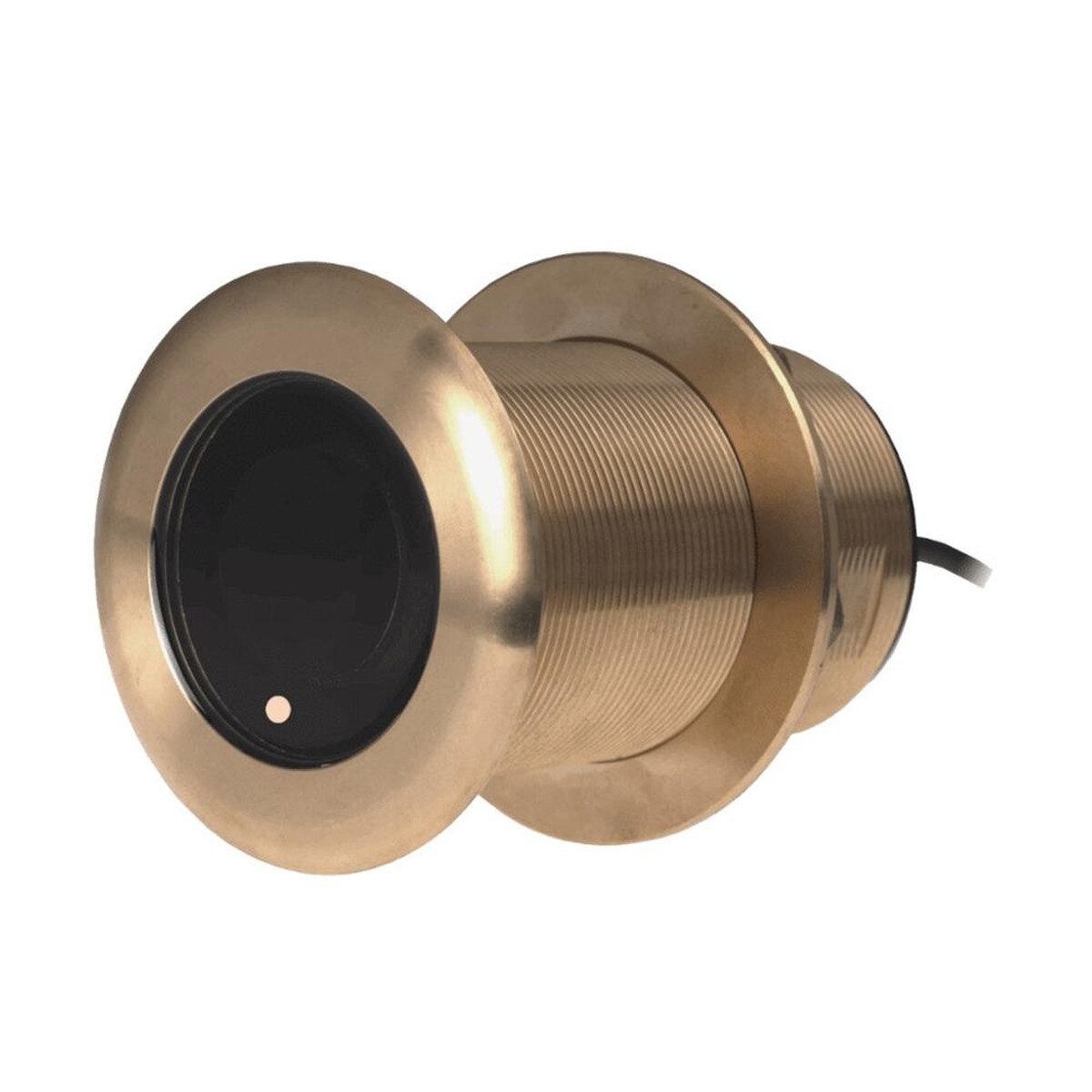

B75C-HW-MM (0º)
Description
Description
Airmar's low profile Chirp-ready transducer models are the perfect addition to smaller boats such as center consoles. The B75HW combines the benefits of the high frequency band for amazing target separation on baitfish and schooling gamefish, with a wide 30 deg beamwidth for maximum coverage under the boat. The B75HW transducer delivers up to 100 kHz of total bandwidth in just one installation and delivers amazing coverage under the boat in depths to 106 m (350 feet).
* REQUIRES AIRMAR CHIRP MIX & MATCH CABLE *
Specifications
Specifications
Identification
| MPN | B75C-0-HW-MM |
|---|
General
| Transducer Type | Thru-Hull |
|---|---|
| Mounting Style | Tilted Element Thru-Hull |
| Housing Material | Bronze |
| Tilt Angle | 0° (0° to 7°) |
| Functions | Depth, Temperature |
| Common Use | Fishing |
Sonar
| Sonar Type | CHIRP (High Wide) |
|---|---|
| Power Rating | 600 W |
| Frequency | 150–250 kHz |
| Beam Angle | 30° (constant) |
| Max Depth | 350' (106 m) |
| Elements | - |
Dimensions
| Weight | 3 lb (1.4 kg) |
|---|---|
| Hole Size | 2-13/16" (70 mm) |
| Usable Shaft Length | - |
| Housing Diameter | - |
| Overall Height | - |
Connectivity
| Connector | Airmar Mix & Match |
|---|---|
| Display Connector | Cable Required |
| Cable Length | - |
| Compatible With | - |
Additional
| Hull Material | Fiberglass or wood |
|---|---|
| Max Vessel Length | Up to 26' (8 m) |
| Retractable | No |
| Country of Origin | - |
Reviews (0)
Reviews (0)
In The Box
In The Box
In The Box:
Package Dimensions:
Available Shipping Methods:
Support
Support
Warranty
2yr
* ALL WARRANTY IS THROUGH MANUFACTURE *
