Simrad NSS 4-10 10" Combo w/U.S. C-MAP
Description
Description
NSS4-10 10" Combo with U.S. C-MAP
Redesigned inside and out, NSS® 4 is SLEEKER, FASTER and SMARTER. The touchscreen, rotary dial, and keypad all work in harmony for superior control. Inside, our most powerful 8-core processor delivers smoother transitions and faster updates. Advanced fishfinding capabilities such as dual channel 1kW CHIRP sonar, Active Imaging™ HD support, and enhanced customization complete the package for our premium, all-in-one sports chartplotter and fishfinder. Perfect for sportfishing enthusiasts and cruisers.
SLEEKER - Next-gen design, inside & out
NSS® 4 looks stunning from the moment you lay eyes on it. A trio of hybrid control options revolutionizes the way you interact with your display, and an updated glass-to-edge design delivers a more premium look to the helm, revolutionizing dashboards instantly.
FASTER - Lightning-quick user experience
At the heart of NSS® 4 lies our most powerful Qualcomm® 8-core processor, delivering smoother page transitions, faster auto-routing, and ultimately, faster boating. Speed is also built into the latest operating system, which is quicker at every touchpoint with a streamlined UI.
SMARTER - Advanced angling

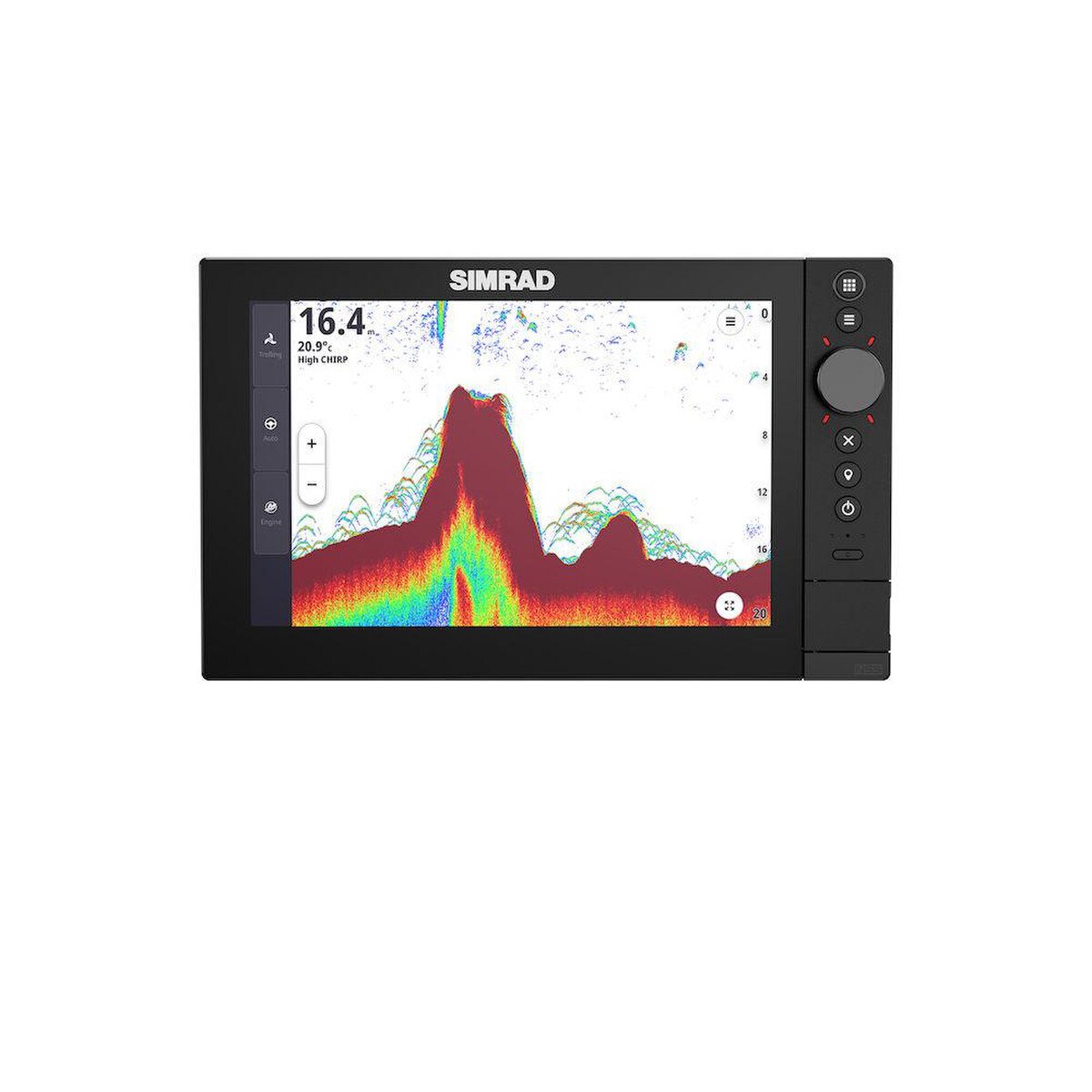

A dual channel 1kW CHIRP echosounder provides enhanced target separation and a clearer and more complete picture of the waters below, and support for the stunning Active Imaging™ HD means images of underwater structure and fish are clearer than ever.
Integrated for the future

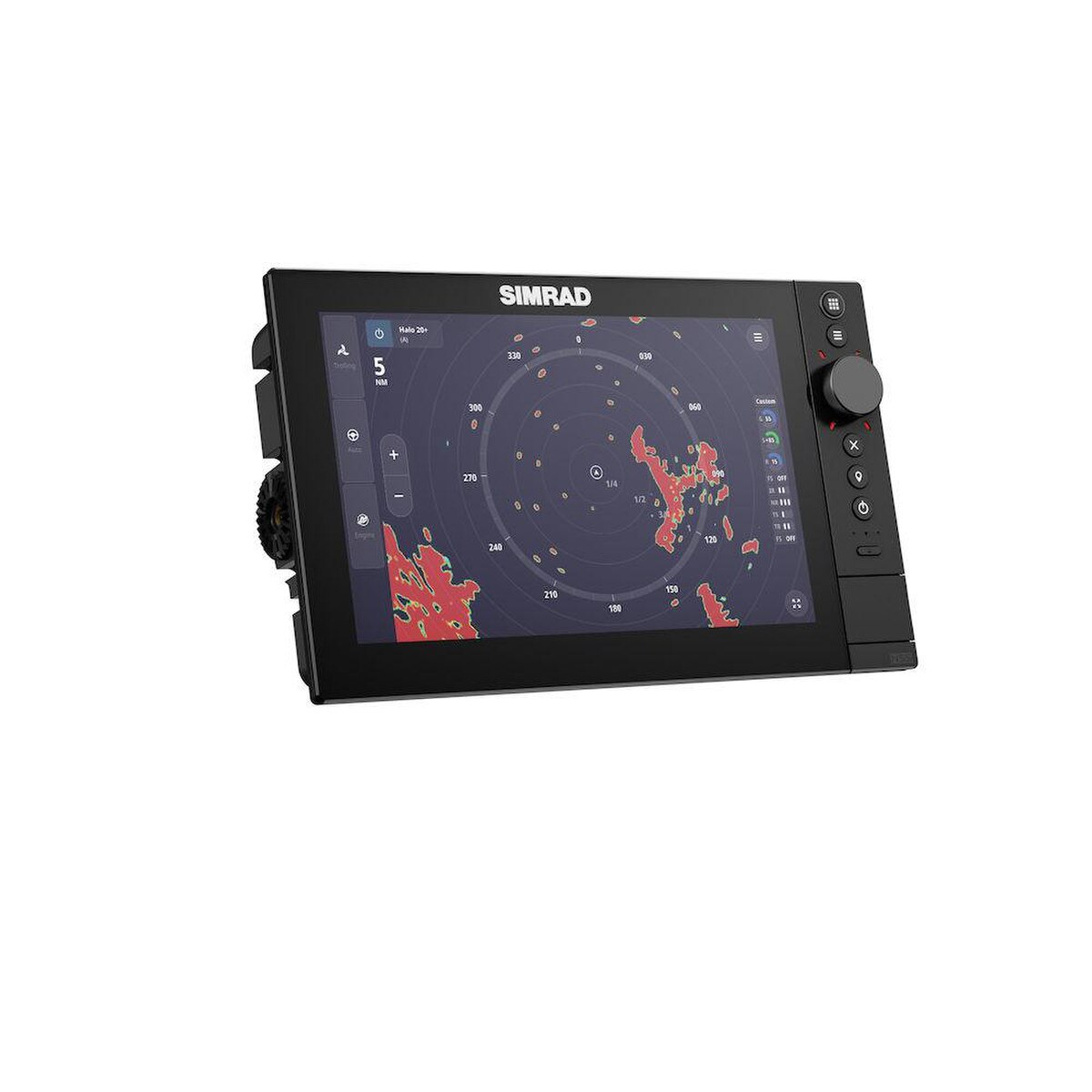

Our latest OS has integration at its core. Connect effortlessly with our most powerful HALO® radars, the RECON™ trolling motor, the incredible Simrad® app, and more...

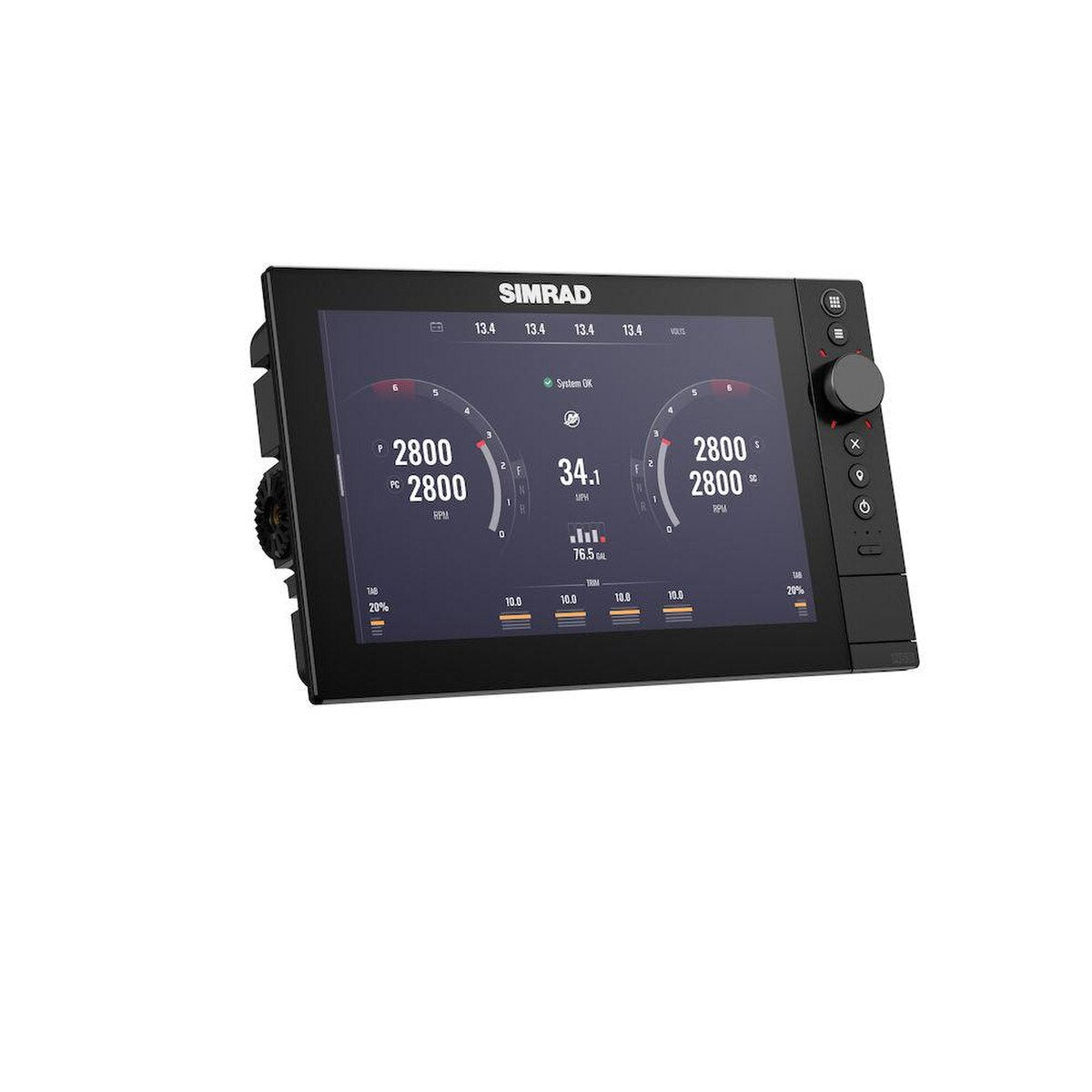

NSS® 4 also boasts extensive (and always expanding) support for third-party techs such as Mercury® SmartCraft Connect, SiriusXM®*, CZone® digital switching, and much more.
Features:
- Premium glass-to-edge design
- Lightning fast Qualcomm® 8-core processor
- Redesigned operating system
- Built-in dual channel 1kW CHIRP echosounder
- Support for Active Imaging™ & Active Imaging™ HD

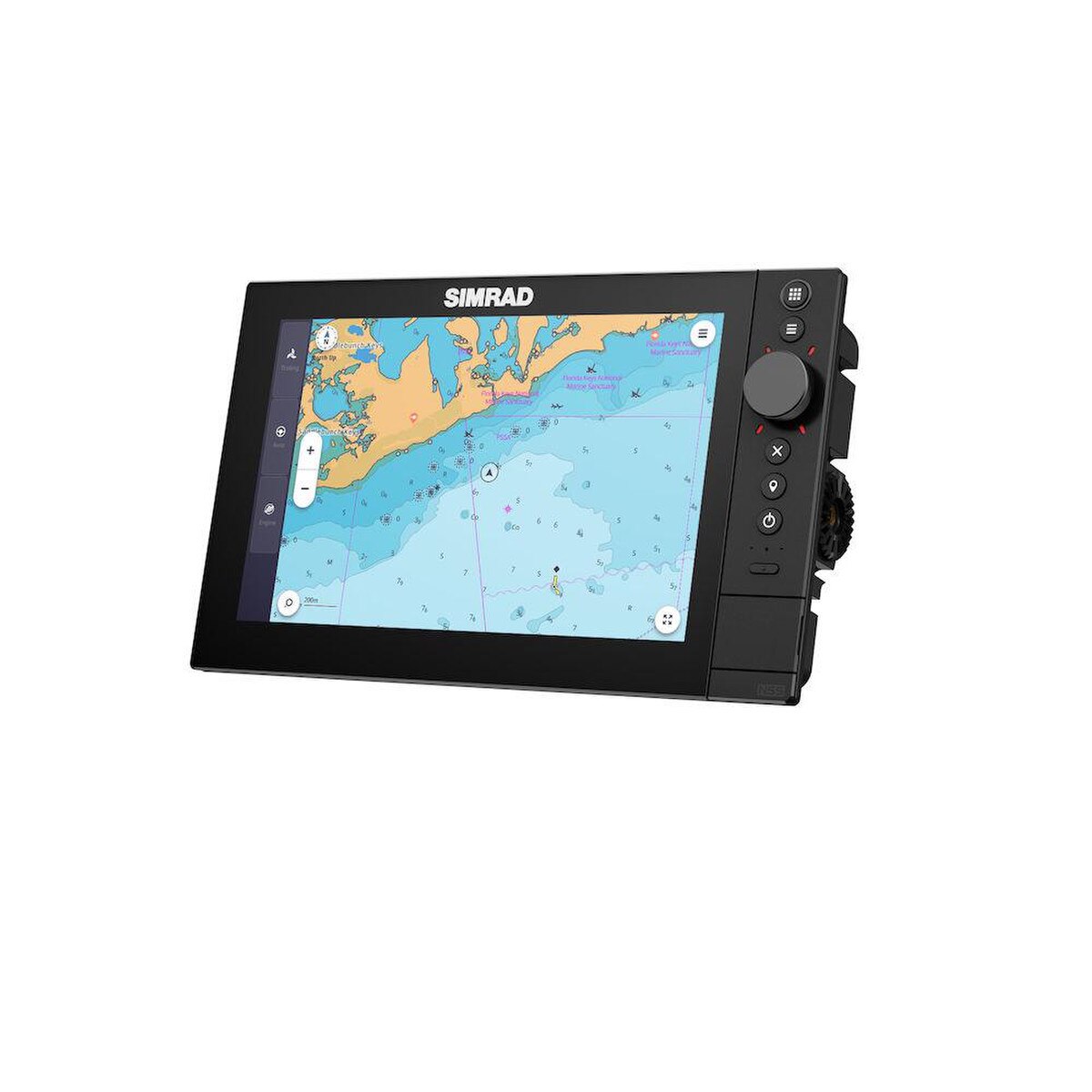

- Support for C-MAP® X-gen charts and others
- Simrad® RECON™, Rhodan® and Motorguide® Trolling Motor Compatible
- Support for Mercury®, CZone®, SiriusXM®, and more...
Specifications
Specifications
Identification
| MPN | 000-16012-001 |
|---|---|
| Barcode | 9420064129928 |
General
| Unit Type | Chartplotter/Fishfinder Combo |
|---|---|
| Screen Size | 10.0" |
Display
| Display Type | - |
|---|---|
| Resolution | 1280 x 800 |
| Brightness | >1200 nits |
| Input | Touchscreen (multi-touch) |
Navigation
| GPS / GNSS | Internal GNSS (GPS, GLONASS; Galileo, BeiDou, QZSS, SBAS) |
|---|---|
| Update Rate | 10 Hz |
| Preloaded Charts | C-MAP (U.S.) |
| Chart Compatibility | - |
| Card Slots | 2x microSD/SDHC |
| Internal Storage | - |
| Waypoints / Routes / Tracks | - |
Sonar
| Built-In Sonar | Yes |
|---|---|
| Sonar Power | - |
| CHIRP / Traditional | CHIRP (Low/Medium/High) |
| Down Imaging | DownScan (455/800 kHz; 700/1200 kHz CHIRP) |
| Side Imaging | SideScan (455/800 kHz; 455/1200 kHz CHIRP) |
| Transducer Port | - |
| Included Transducer | - |
Connectivity
| NMEA 2000 | 1x Micro-C |
|---|---|
| NMEA 0183 | - |
| J1939 | - |
| Ethernet / Network | 1x GbE (M12 X-coded), 1x 5-pin |
| Wi-Fi | Yes (Wi-Fi 5) |
| Bluetooth | - |
| Video In / Out | 1x video port |
Dimensions
| Unit Dimensions (W x H x D) | - |
|---|---|
| Dimensions with Bracket | - |
| Flush Mount Cutout | - |
| Mounting Options | Gimbal bracket or rear mount |
| Weight | 4.0 lb (1.8 kg) |
Electrical
| Power Input | 12/24 VDC (10–31.2 VDC) |
|---|---|
| Power Consumption / Current Draw | 28 W max, 5 A fuse |
Additional
| Water Rating | IPX6 / IPX7 |
|---|---|
| Compass-Safe Distance | 25.6" (65 cm) |
| Operating Temperature | 5° to 131° F (-15° to 55° C) |
| Country of Origin | - |
Reviews (0)
Reviews (0)
In The Box
In The Box
In The Box:
Package Dimensions:
Available Shipping Methods:
Support
Support
Warranty
2yr
Release Date
* ALL WARRANTY IS THROUGH MANUFACTURE *
