SKU:
HTZ/78040261
Regular price
$37999
Total:
Unit price
Description
Description

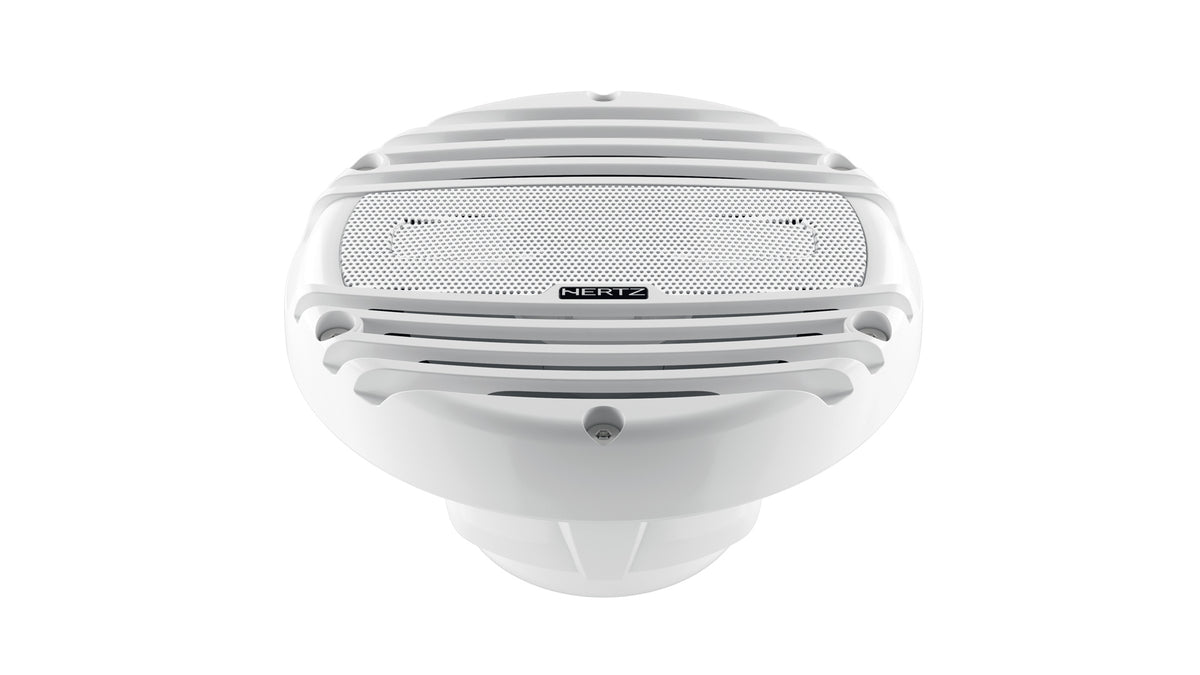

Coaxial speaker is optimized to perform in infinite baffle, with a solid bass and an outstanding output. The tweeter features an acoustic lens optimized for best off-axis dispersion and maximized SPL. The UV resistant polypropylene cone co-molded with Santoprene rubber surround together with the basket and grille injected with a Hi-temperature and UV resistant polymer neutralize water, dust and mud. The aramid fiber spider with silicone-insulated lead wires ensures durability and constant performance over time. The high-excursion mobile equipment is driven by a massive magnetic group, to deliver high undistorted sound pressure.
Specifications
Specifications
Identification
| MPN | 78040261 |
|---|---|
| Barcode | 8018823137485 |
Dimensions
| Size | 6.5" |
|---|---|
| Diameter | 6.78" (172.2 mm) |
| Depth | 3.76" (95.5 mm) |
| Tweeter Size | - |
Mounting Dimensions
| Mounting Depth Clearance | 2.72" (69.1 mm) |
|---|---|
| Frontal Grille Protrusion | 1.05" (26.7 mm) |
| Mounting Hole | 5.04" (128 mm) |
| Bolt Hole Circle | - |
Audio
| Speaker Type | Coaxial |
|---|---|
| Continuous Power Handling (RMS) | 75 W |
| Sensitivity (SPL @ 1 W/1 m) | 89 dB |
| Frequency Response (+/- 3 dB) | 50 Hz-25 kHz |
| Nominal Impedance | 4 Ω |
| Recommended Amplifier Power (RMS) | - |
| Speaker Connections | - |
| LED Lighting | No |
Materials
| Color | - |
|---|---|
| Cone Material | Polypropylene with UV Inhibitors |
| Tweeter Type | PEI |
Warranty/Certifications
| Warranty | - |
|---|
