SKU:
HTZ/78040328
Regular price
$59999
Total:
Unit price
Description
Description

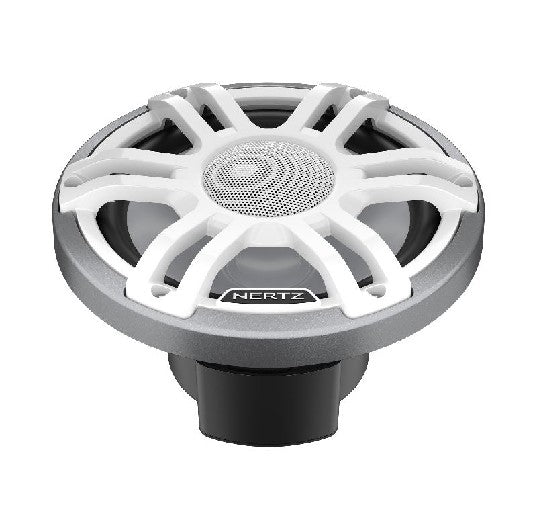

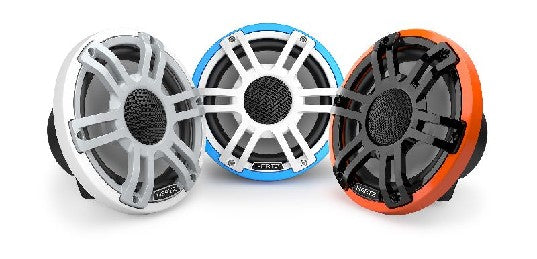

HMX 7.7 S-LD-SW marine coaxial speaker features a sports paintable grille for a perfect match with sporty boats. The coaxial speaker is engineered to operate in open water, pleasing you with the incomparable emotions of music for years on end thanks to the special ASA plastic grilles and polypropylene cone with co-molded Santoprene surround. The Aramid fiber spider with silicone-insulated lead wire ensures durability and constant performance over time. Parts and assembly methods are designed to meet high-humidity marine environments, ensuring the best audio performance season after season.
Specifications
Specifications
Identification
| MPN | 78040328 |
|---|---|
| Barcode | 8018823141666 |
Dimensions
| Size | 7.7" |
|---|---|
| Diameter | 7.72" (196.1 mm) |
| Depth | 4.40" (111.8 mm) |
| Tweeter Size | - |
Mounting Dimensions
| Mounting Depth Clearance | 3.10" (78.7 mm) |
|---|---|
| Frontal Grille Protrusion | 1.30" (33 mm) |
| Mounting Hole | 6.20" (157.5 mm) |
| Bolt Hole Circle | - |
Audio
| Speaker Type | Coaxial |
|---|---|
| Continuous Power Handling (RMS) | 100 W |
| Sensitivity (SPL @ 1 W/1 m) | 91 dB |
| Frequency Response (+/- 3 dB) | 45 Hz-25 kHz |
| Nominal Impedance | 4 Ω |
| Recommended Amplifier Power (RMS) | - |
| Speaker Connections | - |
| LED Lighting | Yes - RGB |
Materials
| Color | White |
|---|---|
| Cone Material | Polypropylene with UV Inhibitors |
| Tweeter Type | PEI |
Warranty/Certifications
| Warranty | - |
|---|
Reviews (0)
Reviews (0)
In The Box
In The Box
In The Box:
Package Dimensions:
Available Shipping Methods:
Support
Support
* ALL WARRANTY IS THROUGH MANUFACTURE *
