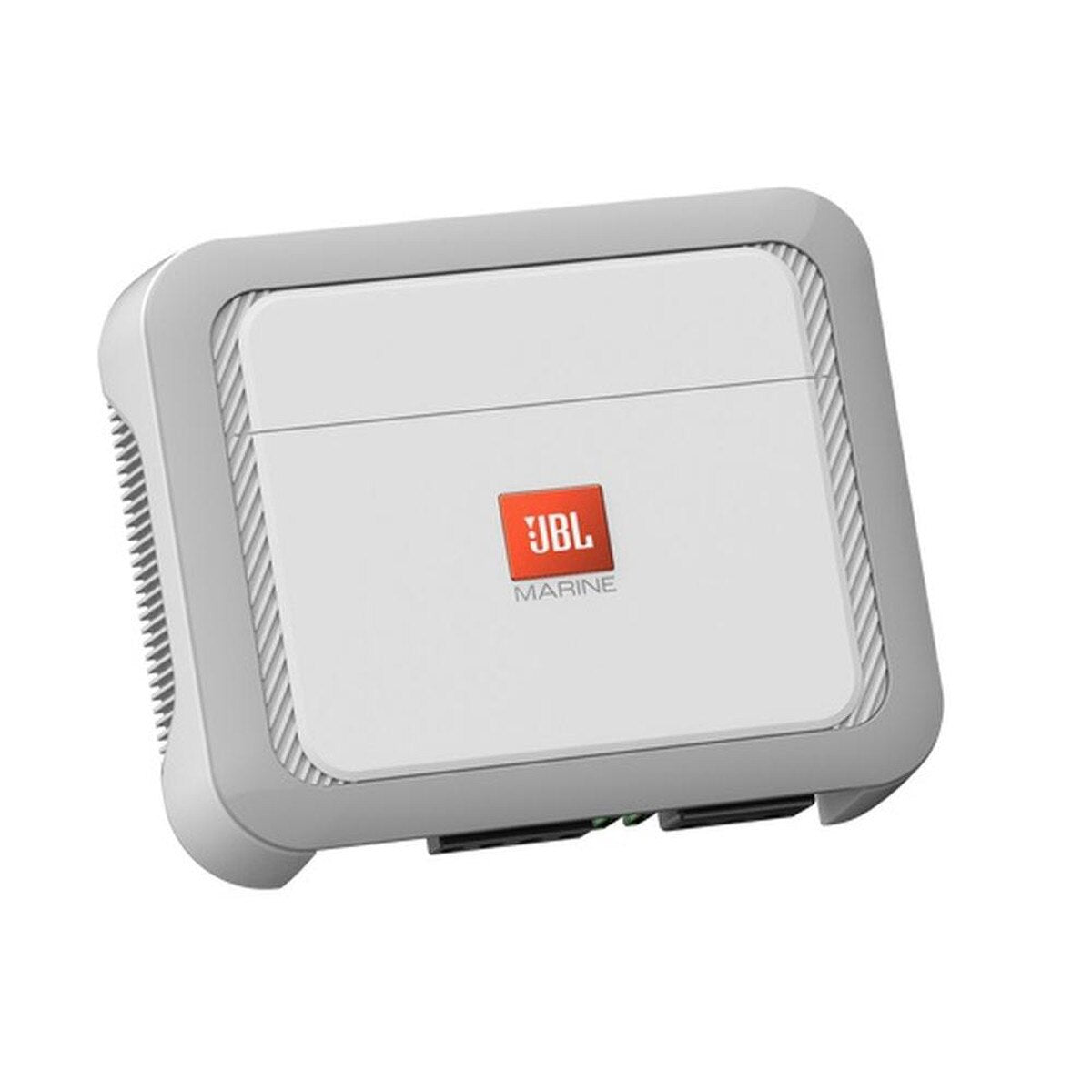

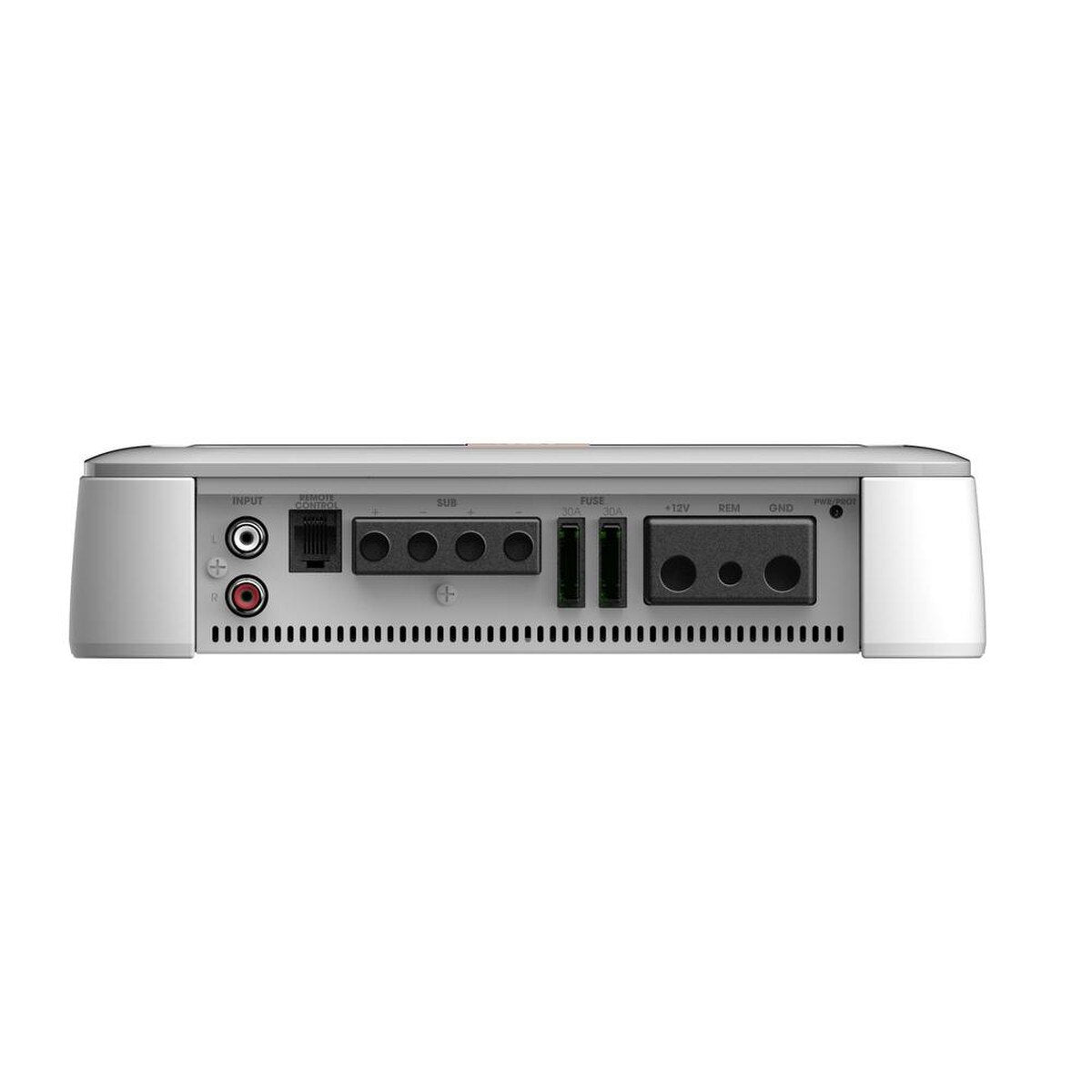

Amplificador de subwoofer monobloque serie JBL MA - MA600AM
Descripción
Descripción
El amplificador de subwoofer mono marino JBL A600 ofrece 600 vatios RMS utilizando un diseño de amplificador Clase D para garantizar una alta potencia de salida y un consumo de corriente mínimo. Las entradas de nivel de altavoz permiten que este amplificador se integre en casi cualquier sistema, incluso uno que utilice la radio de fábrica de su embarcación. Puede utilizar el filtro de paso bajo y el refuerzo de graves variable para maximizar el rendimiento de su subwoofer y caja acústica, mientras que un interruptor de fase asegura que los graves se mezclen bien con sus altavoces de rango completo.
- Tamaño compacto
- Entrada de nivel alto y bajo
- Crossover y refuerzo de graves variables
- Bajo ruido y distorsión
- Control de nivel de entrada
- Protección completa integrada
- Interruptor de fase
- Control remoto con cable RBC
- Tecnología de amplificador Clase D
- Modo de encendido
Specifications
Specifications
Identification
| MPN | JBLMA600AM |
|---|
Dimensions
| Dimensions (H x W x D) | 2.02" x 8.66" x 7.09" (51 x 220 x 180 mm) |
|---|---|
| Weight | - |
Amplifier
| Amplifier Class | Class D |
|---|---|
| Channels | 1 |
Amplifier Power
| Rated Continuous (RMS) Power (14.4 V input @ 4 Ohm < 1% THD) | 350 W x 1 |
|---|---|
| Rated Continuous (RMS) Power (14.4 V input @ 2 Ohm < 1% THD) | 600 W x 1 |
Amplifier Processing
| Signal-to-Noise Ratio, referred to highest rated power (A-weighted, 20 Hz-20 kHz noise bandwidth): Analog inputs | - |
|---|---|
| Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz-20 kHz noise bandwidth): Analog inputs | - |
| Signal-to-Noise Ratio (Manufacturer Rating) | - |
| Damping Factor @ 4 Ω | - |
| Damping Factor @ 2 Ω | - |
| THD+N @ rated power | - |
| Frequency Response (+0, -1dB) | - |
| Input Voltage Range @ RCA Inputs | 200 mV-4 V (line level); 1 V-22 V (high level) |
| Input Impedance | - |
| Remote Level Control | Included (RBC wired remote) |
| Remote Level Modes | - |
| Channel Input Mode Switch | - |
| Pass-through Preamp Output | - |
| Source Channel Selection for PreOuts | - |
Amplifier Filters
| Bass Boost EQ | 0 to +12 dB @ 45 Hz |
|---|---|
| Output Polarity Switch | Yes (0°/180°) |
| Filter Mode(s): Subwoofer Channel | Low-Pass |
| Filter Slope(s): Subwoofer Channel | 12 dB/octave |
| Filter Frequency Range: Subwoofer Channel | 32 Hz-320 Hz |
| High-Pass/Low-Pass Full Range Filter | - |
| HP Variable Crossover Frequency Range | - |
| LP Variable Crossover Frequency Range | - |
| Infrasonic Filter | - |
| Detented, Calibrated Filter Potentiometers | - |
Electrical
| Operating Voltage | - |
|---|---|
| Current Consumption (idle) | - |
| Current Consumption (standby) | - |
| Fuse Rating | 2 x 30 A |
| Recommended Fuse Type(s) | - |
| Minimum Copper Power/Ground Wire Gauge | 8 AWG |
General
| Water/Dust Protection Rating | - |
|---|---|
| Operating Temperature Range | Up to 45 °C (maximum) |
| Protection Circuits | Short circuit, over-temperature, overvoltage, undervoltage |
Warranty/Certifications
| Certifications | - |
|---|---|
| Warranty | - |
