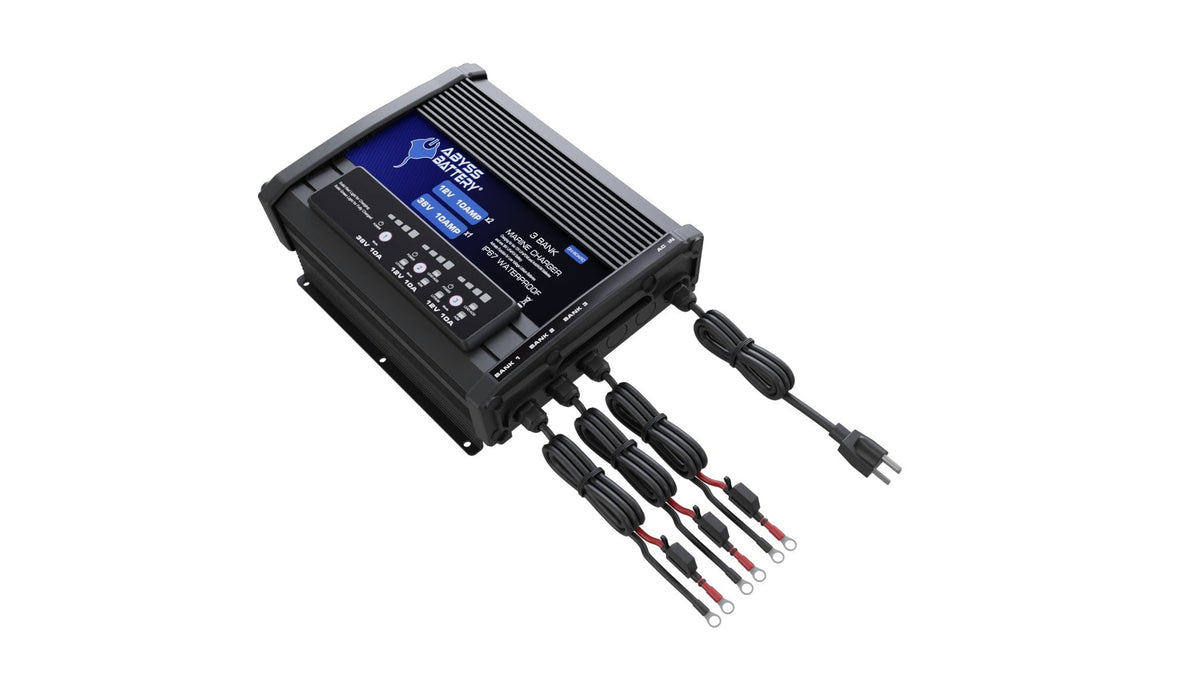

Batería Abyss AB-CRG-12V24V
Descripción
Descripción
Presentamos nuestro nuevo cargador de baterías de litio a bordo de 3 bancos, la solución definitiva para todas sus necesidades de carga de baterías. Diseñado para adaptarse a una amplia gama de tipos de baterías y voltajes, ofrece un nivel de adaptabilidad inigualable, asegurando que su viaje marítimo sea ininterrumpido y sin preocupaciones.Este cargador de 3 bancos de vanguardia ha sido diseñado meticulosamente para suministrar 10 A de potencia a dos baterías LiFePO4, de plomo-ácido o AGM de 12 V, y a una batería LiFePO4 de 24 V con la sencilla selección de un modo.
Specifications
Specifications
Identification
| MPN | AB-CRG-12V24V |
|---|---|
| Barcode | 785034601934 |
ON-BOARD Battery Chargers
| Model | AB-CRG-12V24V-3B |
|---|---|
| Voltage | 12V/24V |
| Output | 2x12V/10A +24V/10A |
| Product Size | 11.9" x 9.6" x 3.8" 304 x 245 x 99mm |
| Weight | 16.5 lbs (7.5 kg) |
| Lead Length | 6' (72 in.) (183 cm) |
| Charging Battery Type | Two banks have MODE buttons to choose charging battery type: 12V LiFePO4, 12V Wet, 12V AGM; The 3rd bank could charge 24V LiFePO4 Lithium Batteries |
FOR ALL CHARGERS (if applicable)
| LED Indicators | Power & Battery Type & Charging Status LED Indicators |
|---|---|
| Activate Function | Wake Up Function for Low Voltage of Lithium Battery (Press the mode button on the bank panel for 3-5 seconds to start this function) |
| Full Cut-off Voltage | 14.1V-14.4V for 12V Lead Acid Battery & 14.4V-14.7V for 12V AGM / LiFePO4 Lithium Battery & 28.8V-29.4V for 24V Lithium Battery & 43.3V-44.2V for 36V Lithium Battery |
| Cooling Type | Aluminium stretched plate and waterproof cooling fan at the bottom of product for better heat dissipation |
| Ingress Protection | Filled with pure epoxy resin for high waterproof level IP67 |
| Circuit Protection | Short-circuit Protection & Reverse Connection Protection & Overcharge Protection & Overtemp Protection |
| Working Temperature Range | -10°C~40°C |
| Nominal Working Temperature | 25°C |
| Relative Humidity | 5%~95% |
Reseñas (0)
Reseñas (0)
In The Box
In The Box
In The Box:
Package Dimensions:
Available Shipping Methods:
Support
Support
Warranty
5 años (2 años de reemplazo gratuito, seguidos de un 35 % de descuento)
