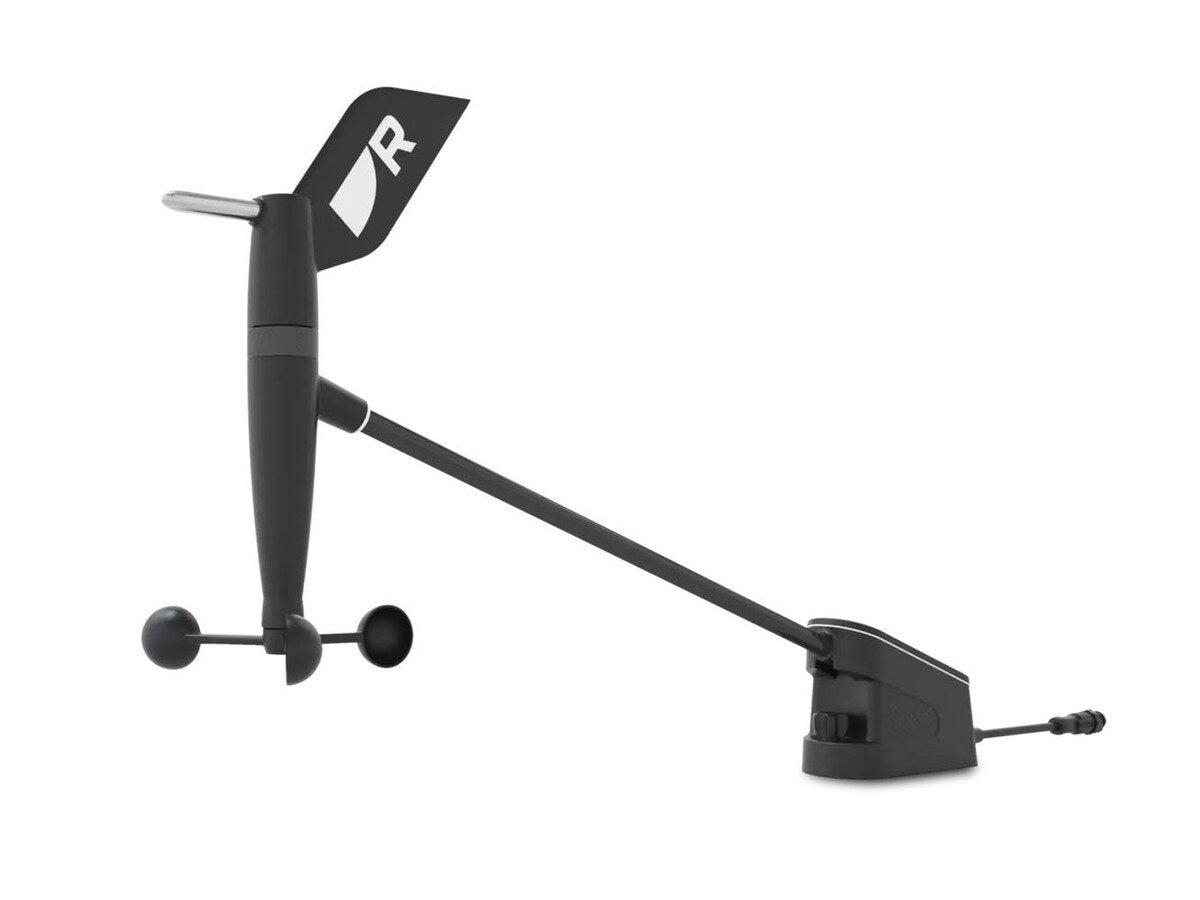

RSW Wired - Transductor de viento de rendimiento inteligente - Brazo corto con cable de 30 m
El transductor de viento inteligente RSW Wired es un sensor de viento de nivel profesional diseñado para proporcionar datos de velocidad y dirección del viento calibrados de alta precisión. Se suministra de serie con un cable de mástil Smart Wind de 30 metros.
¡Instalar y listo!
La tecnología Smart Wind de Raymarine ofrece una precisión de nivel experto sin necesidad de procesadores adicionales costosos ni de una configuración y calibración exhaustivas.
Ajuste preciso
Mediante rigurosas pruebas en túnel de viento, hemos ajustado y equilibrado el instrumento para garantizar que los datos del tope del mástil sean precisos y coherentes.
Navegue de forma más inteligente
Los datos de viento real de alta precisión y fiabilidad, combinados con las pantallas de rendimiento Alpha y los trazadores de gráficos Axiom, le permiten navegar de forma más inteligente.
Specifications
Specifications
Identification
| MPN | E70670 |
|---|---|
| Barcode | 723193846629 |
Length
| Wind transducer (including cable) | 657.762 mm (25.90 in) |
|---|---|
| Wind transducer (excluding cable) | 540.712 mm (21.29 in) |
| Wired gateway | 155.61 mm (6.13 in) |
Width
| Wind transducer | 46.96 mm (1.85 in) |
|---|---|
| Wired gateway | 47.38 mm (1.88 in) |
Height
| Wind transducer | 305.86 mm (12.04 in) |
|---|---|
| Wired gateway | 30.61 mm (1.21 in) |
Power
| Nominal supply voltage | 12 V dc (via SeaTalk NG) |
|---|---|
| Operating voltage range | 9 V to 16 V dc |
| Power Consumption | < 100 mW |
| Fuse rating | Ensure that the SeaTalk NG backbone is protected by a 5 A fuse |
| NMEA 2000 LEN (Load Equivalency Number) - based on nominal 9 V rating | 1 |
Environmental
| Operating temperature range | -25°C to +55°C (-13°F to +131°F) |
|---|---|
| Storage temperature range | -30°C to +70°C (-22°F to +158°F) |
| Relative humidity | Masthead: 100%/Below deck: up to 93% @ 40°C |
| Waterproof rating | Wind transducer: IPx6/IPx7/Wired gateway: IPx3 |
| Wind | 115 mph (185 kph) |
| Vibration | EN 60945:2002 (exposed) |
What's In The Box?
| Note 1 | No.10 x 3/4" self tapping screws x 4 (for mounting the wind transducer) |
|---|---|
| Note 2 | No.7 x 3/4" self tapping screws x 2 (for mounting the gateway) |
| Note 3 | 40 mm (1.57 in) heat shrink tube (required to insulate ground wire when shortening the mast cable) |
| Note 4 | Ring crimp terminal (required for additional ground connection when the gateway is not mounted on a metal surface) |
| Note 5 | Mast cable, 30 m (98.43 ft) reel |
| Note 6 | Documentation |
| Note 7 | Wind transducer |
| Note 8 | Smart wind-wired gateway |
| Note 9 | SeaTalk NG to DeviceNet adaptor cable, 120 mm (4.72 in) |
