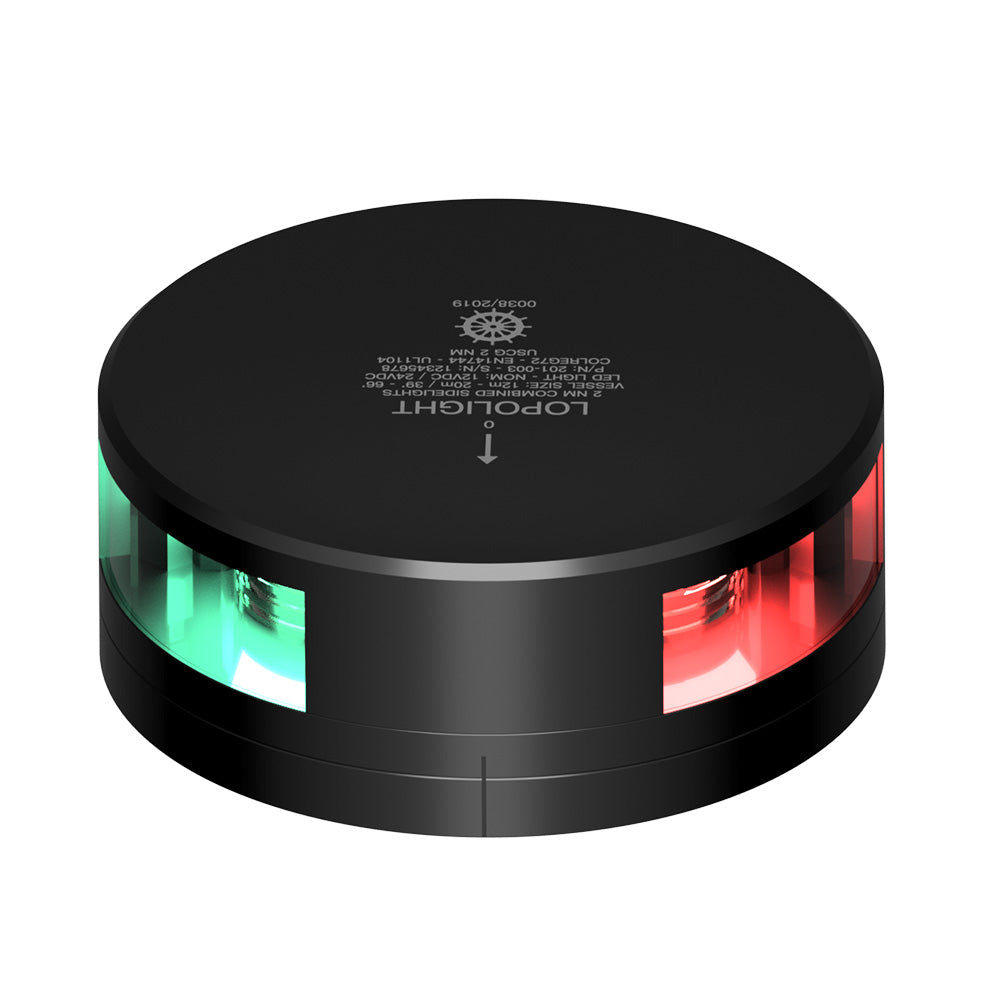

Luz lateral combinada Lopolight - 2 MN - Carcasa negra con base FB
Precio normal
$58756
Total:
Precio unitario
SKU:
LOP/201-003-FB-B
Precio normal
$58756
Total:
Precio unitario
Descripción
Descripción
Luz lateral combinada - 2 MN - Carcasa negra con base FB
Esta luz lateral negra se monta horizontalmente y tiene un alcance de dos millas náuticas. La base FB centra el cableado para los montajes de poste tipo antena. La base ofrece una solución de atornillado a la cubierta, así como un montaje desde abajo. En esencia, la base proporciona un perfil más elegante y reducido.
Características:
- Carcasa de aluminio anodizado negro
- Se incluye un cable de 0,75 m
Specifications
Specifications
Identification
| MPN | 201-003-FB-B |
|---|---|
| Barcode | 879343043421 |
Control & Connectivity
| Approved To | COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR |
|---|
Physical
| Mounting | Horizontal |
|---|---|
| Light Color | Red and green |
| Materials | Black anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane |
| Dimensions Metric | Ø92.5mm x 36mm |
| Dimensions Imperial | Ø3.6" x 1.4" |
| Vessel Size | Under 12 meters |
General
| EAN | 5704438043299 |
|---|---|
| Min. Feed Wire Gauge | 0.5mm2 AWG22 |
| Visibility | 2NM |
| Included In the Package | 1 Navigation light, pre-cabled with 2.5 meters shielded marine grade cable and installation guide |
| Connection | 2.5m cable |
Certifications & Protection
| IP rating | IP68 |
|---|
Electrical
| Current Consumption (mA @ 24VDC) | 90 |
|---|---|
| Current Consumption (mA @ 12VDC) | 163 |
| Operating Voltage | 10-32VDC |
| Power Draw (W) | 2.2 |
Performance
| Operating Temperature | -25 degrees C to 55 degrees C |
|---|
