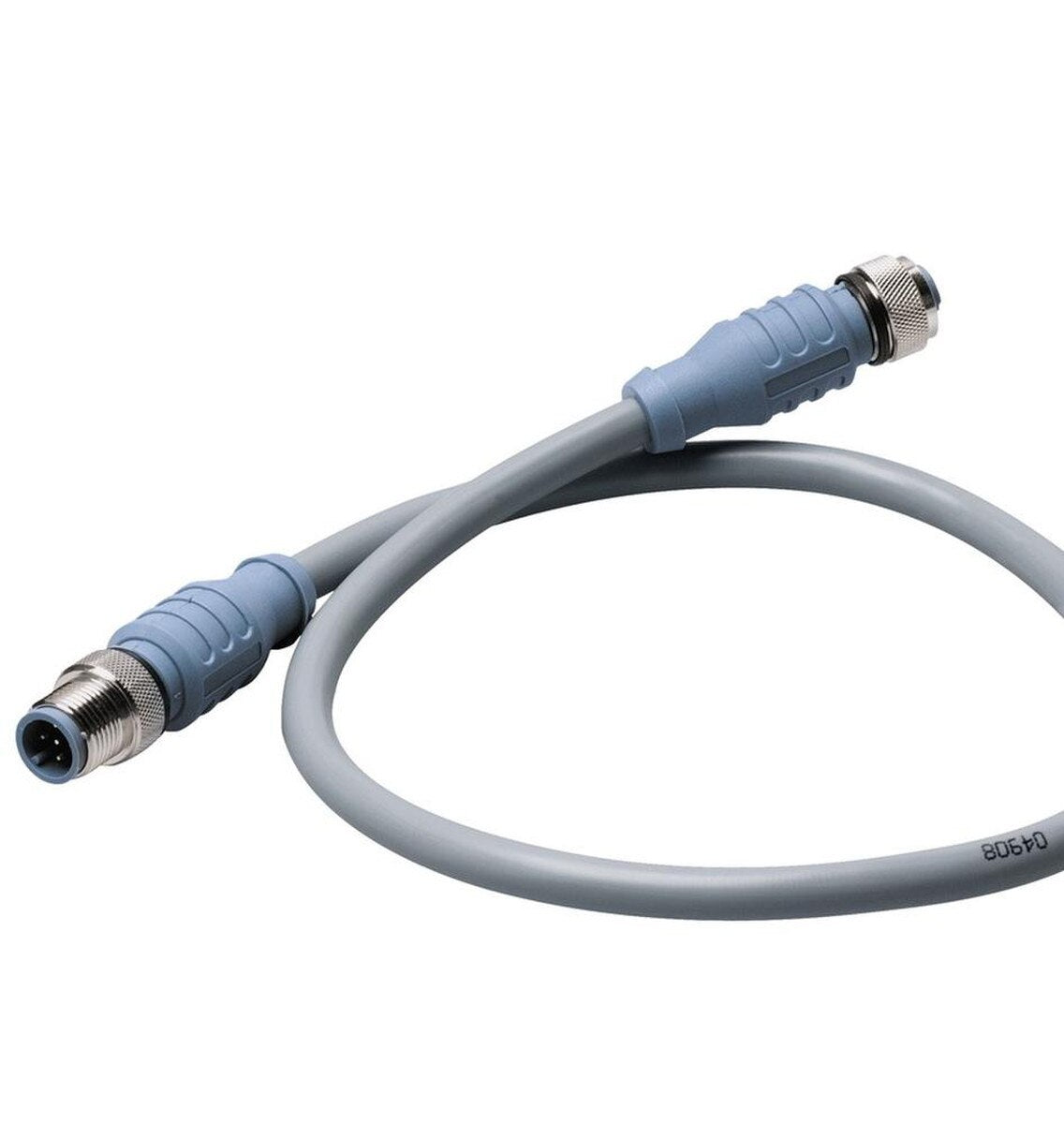

Maretron Micro, cable de doble terminación - 2 metros
Precio normal
$5000
Total:
Precio unitario
SKU:
MAR/CM-CG1-CF-02.0
Precio normal
$5000
Total:
Precio unitario
Descripción
Descripción
Juego de cables micro de doble extremo - 2 metros
Mecánica:
- Rango de temperatura: -40 °C a 80 °C (-40 °F a 176 °F)
Aprobaciones - (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 °C, AWM I/II A/B 80 °C 300 V FT4
Specifications
Specifications
Identification
| MPN | CM-CG1-CF-02.0 |
|---|---|
| Barcode | 873804001524 |
Physical
| Contact Carrier Mat/Color | Thermoplastic PUR/Blue-Gray |
|---|---|
| Molded Body Mat/Color | Thermoplastic PUR/Blue-Gray |
| Connector Outside Diameter | 0.59 Electrical |
| Outer Jacket Mat/Color | PVC/Gray |
| Conductor Insulation Material | HDPE (data pair), SRPVC (power pair) |
General
| Contact Mat/Plating | Brass/Gold |
|---|---|
| Coupling Nut Mat/Plating | Brass/Nickel |
| Number of Conductors | 4X22 AWG, 22 AWG Drain Wire |
| Shielding (3-Levels) | FOIL (Overall), FOIL (Power Pair), FOIL (Data Pair)Environmental |
| Protection Class | IEC IP68, NEMA 1,3,4,6P |
Electrical
| Current Rating | 4.0 Amps |
|---|---|
| Voltage Rating | 250 VCable |
Certifications & Protection
| (Cable) UL | PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V |
|---|
Control & Connectivity
| NMEA | NMEA 2000 Approved |
|---|
Reseñas (0)
Reseñas (0)
In The Box
In The Box
In The Box:
Package Dimensions:
Available Shipping Methods:
Support
Support
* ALL WARRANTY IS THROUGH MANUFACTURE *
