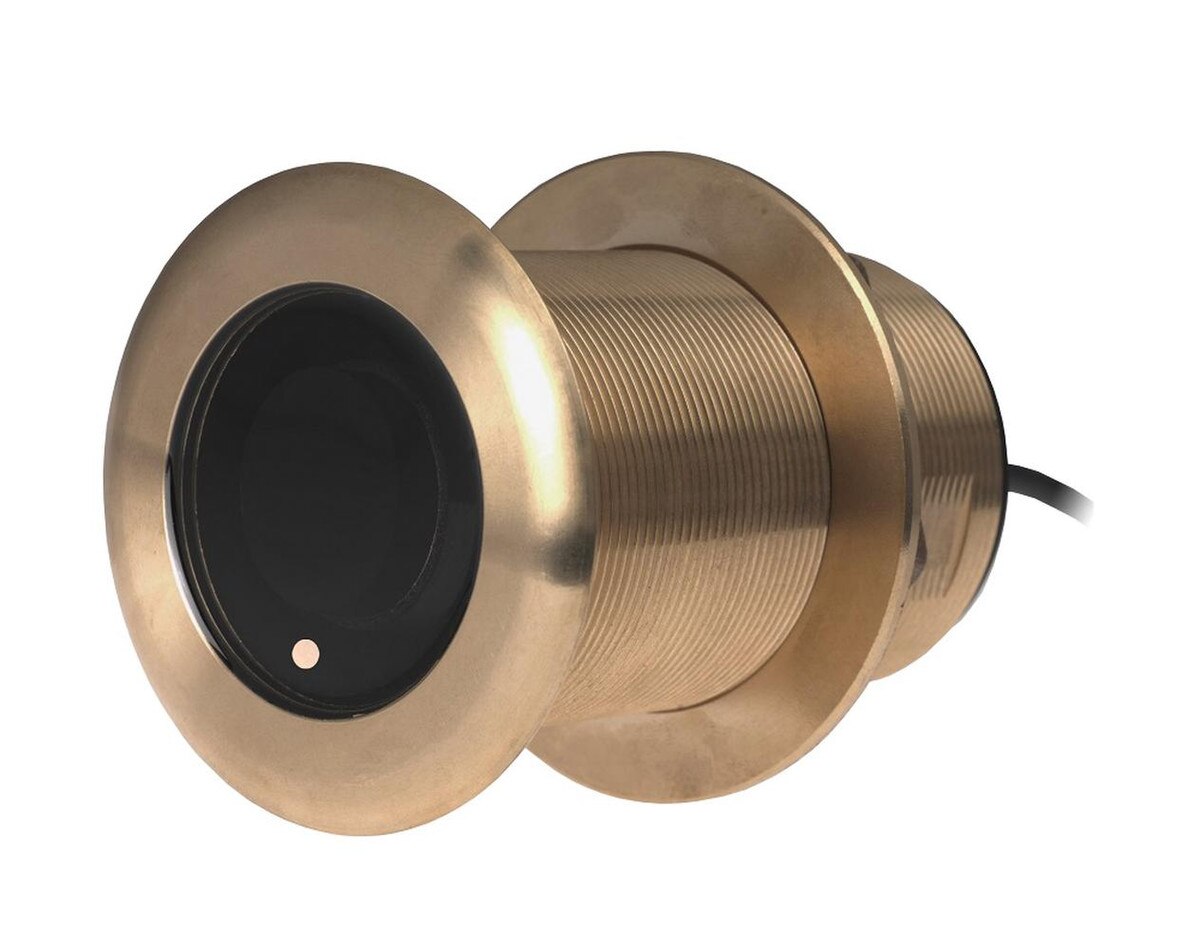

B75H Bronze Chirp Thru Hull 12° 600W
Requires Mix & Match Cable
Rely on Airmar’s broadband transducers for your ultimate fishing mission. Whether you’re a commercial fisherman, charter captain, or tournament angler, there’s a new game in town!
Chirp transducers enable bottom detection down to 3,000m (10,000’) with 5 to 10 times greater detail and resolution so precise it’s possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 80 kHz of total bandwidth in just one installation, saving customers time and money.
Features:
- 12°
- 600W
- Needs Mix & Match Cable
Specifications
Specifications
Identification
| MPN | B75C-12-H-MM |
|---|---|
| Barcode | 801769001815 |
General
| Transducer Type | Thru-Hull |
|---|---|
| Mounting Style | Tilted Element Thru-Hull |
| Housing Material | Bronze |
| Tilt Angle | 12° (8° to 15°) |
| Functions | Depth, Temperature |
| Common Use | Fishing |
Sonar
| Sonar Type | CHIRP (High) |
|---|---|
| Power Rating | 600 W |
| Frequency | 130–210 kHz |
| Beam Angle | 15° to 9° |
| Max Depth | 700' (214 m) |
| Elements | - |
Dimensions
| Weight | 3 lb (1.4 kg) |
|---|---|
| Hole Size | 2-13/16" (70 mm) |
| Usable Shaft Length | - |
| Housing Diameter | - |
| Overall Height | - |
Connectivity
| Connector | Airmar Mix & Match |
|---|---|
| Display Connector | Cable Required |
| Cable Length | - |
| Compatible With | - |
Additional
| Hull Material | Fiberglass or wood |
|---|---|
| Max Vessel Length | Up to 26' (8 m) |
| Retractable | No |
| Country of Origin | - |
Reviews (0)
Reviews (0)
In The Box
In The Box
In The Box:
Package Dimensions:
Available Shipping Methods:
Support
Support
Warranty
2yr
* ALL WARRANTY IS THROUGH MANUFACTURE *
