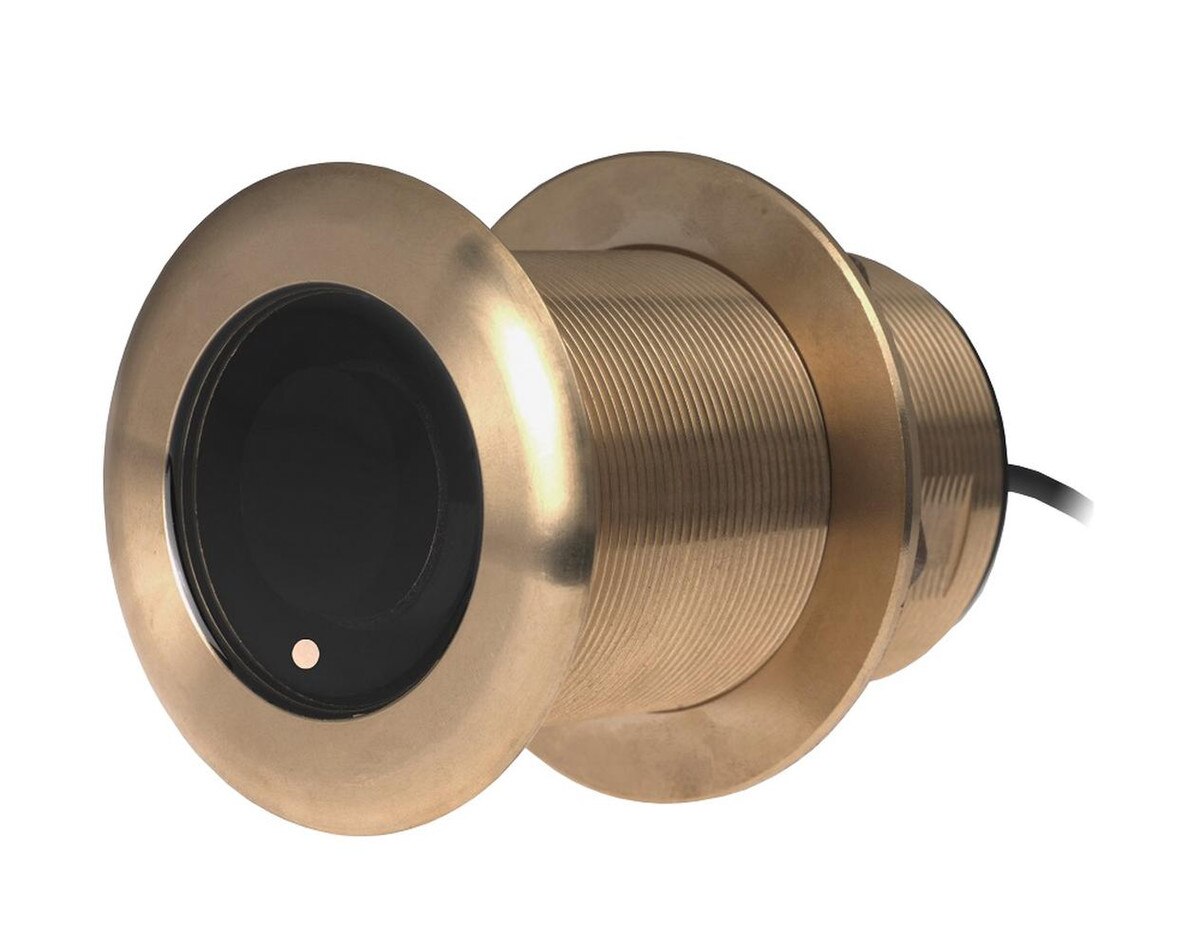

B75C-H-MM (20º)
Description
Description
Airmar’s low-profile, Chirp-ready, transducer models are the perfect addition to smaller boats such as center consoles. Operating at a frequency range of 130 to 210 kHz, the B75H delivers up to 80 kHz of total bandwidth in just one installation.
* REQUIRES AIRMAR CHIRP MIX & MATCH CABLE *
Specifications
Specifications
Identification
| MPN | B75C-20-H-MM |
|---|
General
| Transducer Type | Thru-Hull |
|---|---|
| Mounting Style | Tilted Element Thru-Hull |
| Housing Material | Bronze |
| Tilt Angle | 20° (16° to 24°) |
| Functions | Depth, Temperature |
| Common Use | Fishing |
Sonar
| Sonar Type | CHIRP (High) |
|---|---|
| Power Rating | 600 W |
| Frequency | 130–210 kHz |
| Beam Angle | 15° to 9° |
| Max Depth | 700' (214 m) |
| Elements | - |
Dimensions
| Weight | 3 lb (1.4 kg) |
|---|---|
| Hole Size | 2-13/16" (70 mm) |
| Usable Shaft Length | - |
| Housing Diameter | - |
| Overall Height | - |
Connectivity
| Connector | Airmar Mix & Match |
|---|---|
| Display Connector | Cable Required |
| Cable Length | - |
| Compatible With | - |
Additional
| Hull Material | Fiberglass or wood |
|---|---|
| Max Vessel Length | Up to 26' (8 m) |
| Retractable | No |
| Country of Origin | - |
Reviews (0)
Reviews (0)
In The Box
In The Box
In The Box:
Package Dimensions:
Available Shipping Methods:
Support
Support
Warranty
2yr
* ALL WARRANTY IS THROUGH MANUFACTURE *
