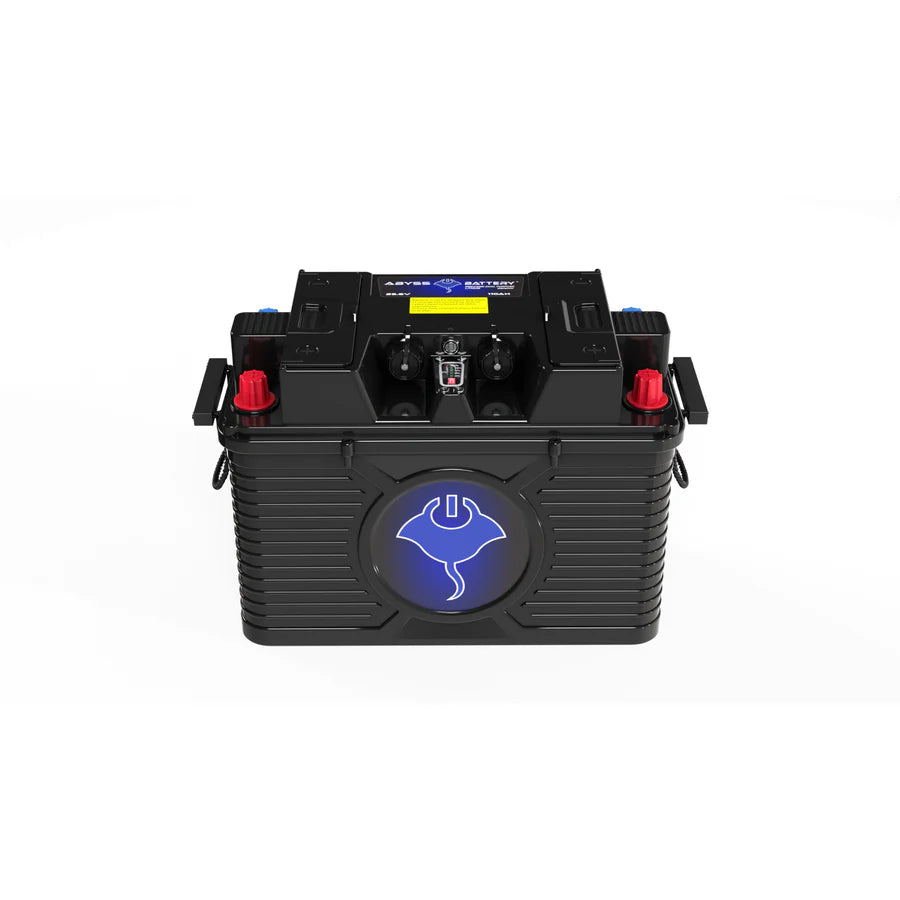

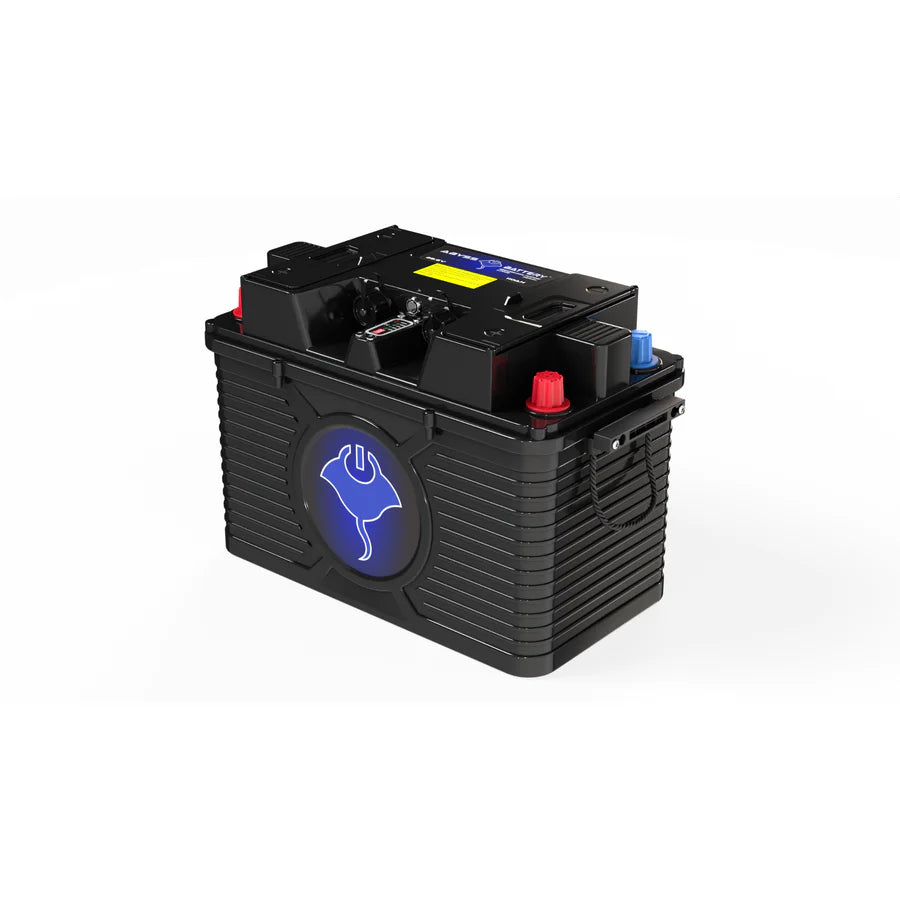

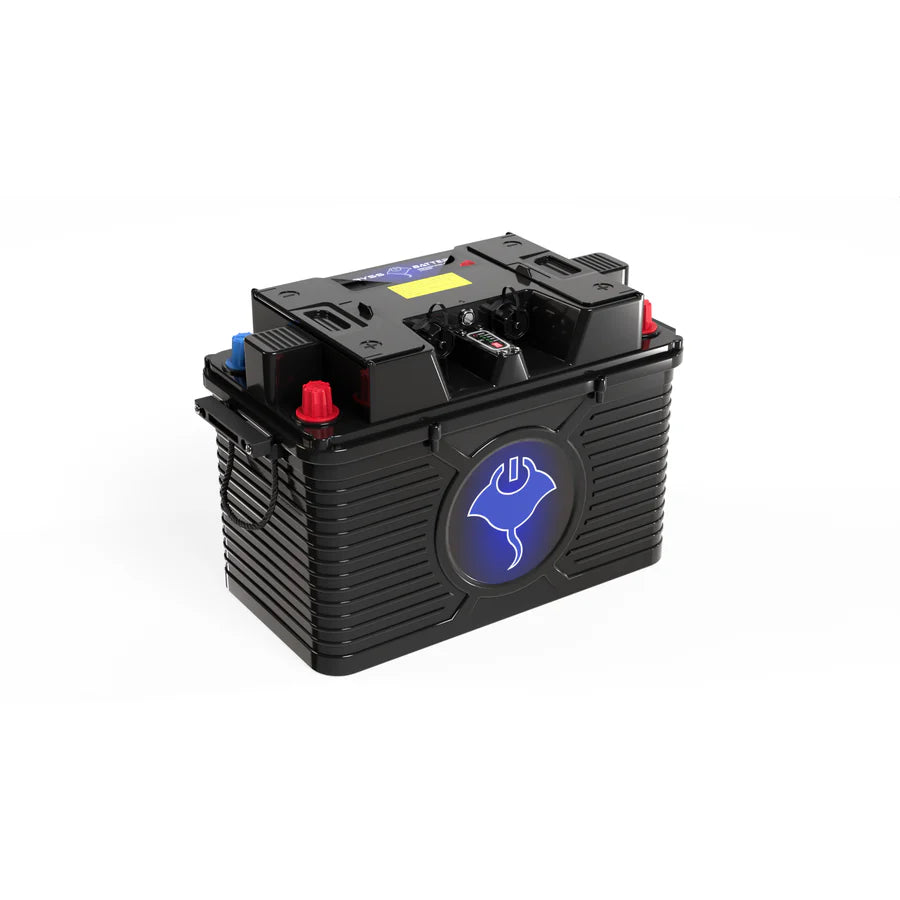

Batería de litio LiFePO4 de doble propósito Abyss Battery 24V 110Ah
Descripción
Descripción
Arranque motores diésel grandes de 24V. Alimente las cargas de su hogar. Visualícelo todo en su MFD.
Construida para embarcaciones serias y motores serios, la batería de litio ABYSS BATTERY® 24V 100Ah es una verdadera batería de doble propósito que combina potencia de arranque de 24 voltios para grandes motores diésel con la resistencia de ciclo profundo necesaria para los dispositivos electrónicos de alto consumo actuales. Con cumplimiento NMEA 2000®, sellado marino IP67 y una carcasa única de 4 terminales que simplifica la instalación, convierte su sistema eléctrico en una mejora limpia, conectada y que inspira confianza.
Specifications
Specifications
Identification
| MPN | AB-24V110 |
|---|
24V 110Ah Dual-Purpose LiFePO4 Spec Sheet
| Stored energy | 2816 Wh |
|---|---|
| Rated capacity | 110 Ah |
| Nominal voltage | 25.6 V |
| Volt range | 20–28.8 V |
| Charge time | Standard: 5.5 h Rapid: 1.5 h |
| Charge method (CC-CV) | Standard: 22 A @ 28 V Rapid: 110 A @ 28 V |
| Max discharge current | Crank: 1000 A Surge (60 s): 400 A Continuous: 100 A |
| Cycle life (0.5C, 23 °C / 73 °F) | 10% DoD: > 6000 cycles 100% DoD: > 2000 cycles |
| Operating temperature range | Charge: 0°–55 °C (32°–131 °F) Discharge: −20°–60 °C (−4°–140 °F) Storage (1 mo): −20°–45 °C (−4°–113 °F) Storage (6 mo): −10°–35 °C (14°–95 °F) |
| Waterproof | IP67 |
| Flammability rating | UL94-V0 |
| Approx. weight | 21.3 kg (46.9 lb) |
| Series & parallel connection | Series not supported. Up to 7 in parallel. Equalize voltages before connection. Contact manufacturer to parallel more units. |
BMS Protection
| Balance | Current: 40 mA Activate voltage: 3.55 V/cell |
|---|---|
| High-temperature protection (MOSFET) | Protection: 115 °C / 239 °F Release: 90 °C / 194 °F |
| High-temperature protection (cell) | Protection: 65 °C / 149 °F (charge); 70 °C / 158 °F (discharge) Release: 55 °C / 131 °F (charge); 60 °C / 140 °F (discharge) |
| Low-temperature protection (cell) | Protection: −5 °C / 23 °F (charge); −20 °C / −4 °F (discharge) Release: 0 °C / 32 °F (charge); −15 °C / 5 °F (discharge) |
| Over-charge | Protection: 30.8 V (3.85 V/cell) Release: 29.2 V (3.65 V/cell) |
| Over-discharge | Protection: 18.4 V (2.3 V/cell) Release: 20 V (2.5 V/cell) |
| Short-circuit | Protection: 3800 A Release: Remove load to reset short-circuit protection |
Physical Specifications
| Dimensions | 14.9" x 8.1" x 10.1" in (330×173×216mm, Group 31) |
|---|---|
| Approximate Weight | 46.9 lbs (21.3 Kg) |
| Case Color/Material | Black Plastic case (ABS) |
| Cell Type | Prismatic LiFePO4 cell |
| Cell Holder | Yes |
