Discontinued
Fusion | SKU:
FUS/010-02161-00

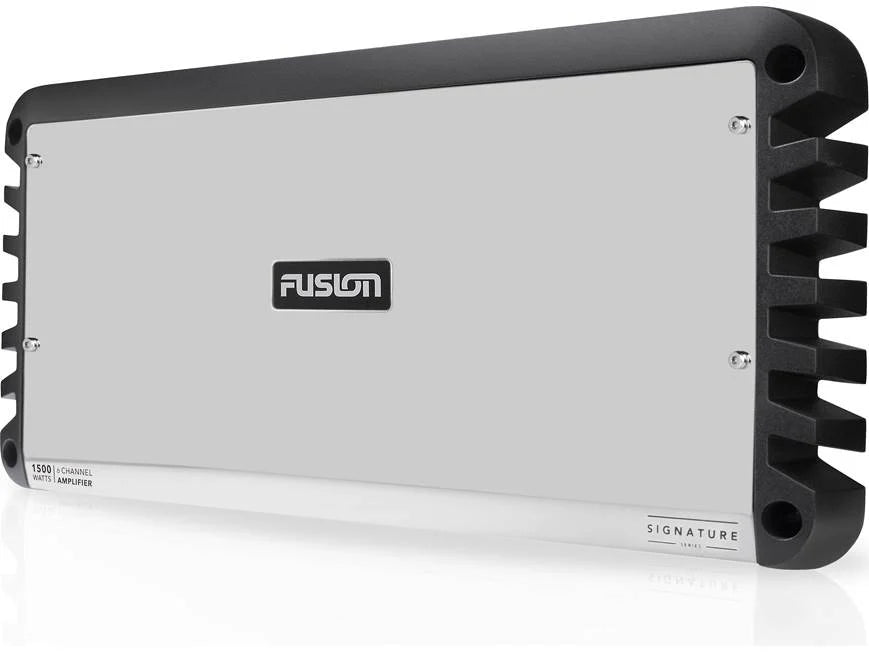

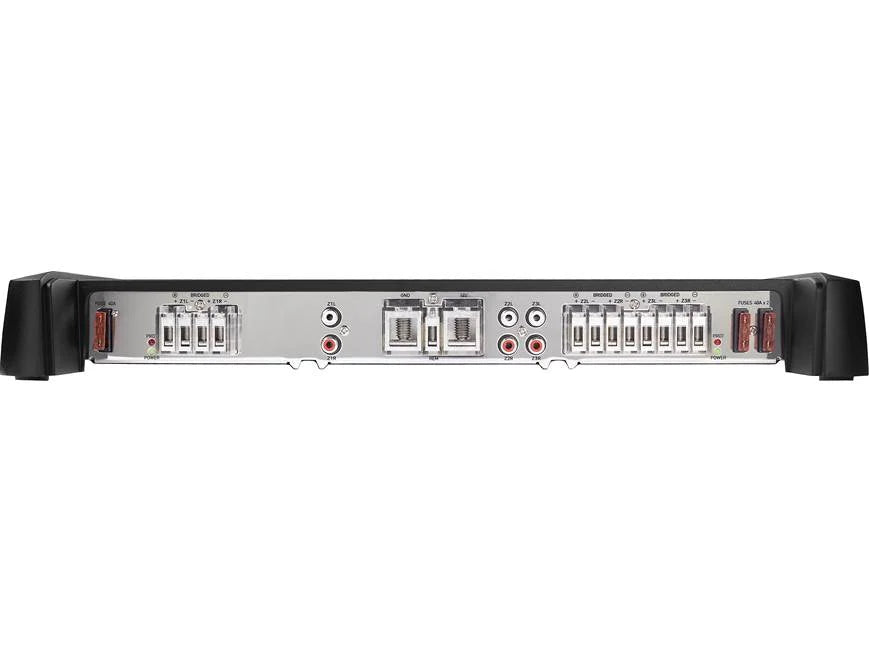

Amplificador de 6 canales Fusion Signature Series - SG-DA61500
Precio normal
$64999
Total:
Precio unitario
Los gastos de envío se calcularán al momento de pagar.
Fusion | SKU:
FUS/010-02161-00
Precio normal
$64999
Total:
Precio unitario
Los gastos de envío se calcularán al momento de pagar.
Descripción
Descripción
EXPERIMENTA EL PODER DE LA MÚSICA
Diseñados específicamente para el entorno marino, los amplificadores marinos de la serie Signature cuentan con una de las protecciones ambientales más impresionantes disponibles, brindando un rendimiento exclusivo en el agua.
Specifications
Specifications
Identification
| MPN | 010-02161-00 |
|---|---|
| Barcode | 753759218805 |
Dimensions
| Dimensions (H x W x D) | 2.24" x 16.54" x 8.27" (57 x 420 x 210 mm) |
|---|---|
| Weight | 11.35 lbs (5.15 kg) |
Amplifier
| Amplifier Class | Class D |
|---|---|
| Channels | 6 |
Amplifier Power
| Rated Continuous (RMS) Power (Manufacturer Rating @ 4 Ohm) | 100 W x 6/280 W x 3 (Bridged) |
|---|---|
| Rated Continuous (RMS) Power (Manufacturer Rating @ 2 Ohm) | 140 W x 6 |
Amplifier Processing
| Signal-to-Noise Ratio, referred to highest rated power (A-weighted, 20 Hz-20 kHz noise bandwidth): Analog inputs | - |
|---|---|
| Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz-20 kHz noise bandwidth): Analog inputs | - |
| Signal-to-Noise Ratio (Manufacturer Rating) | - |
| Damping Factor @ 4 Ω | - |
| Damping Factor @ 2 Ω | - |
| THD+N @ rated power | - |
| Frequency Response (+0, -1dB) | 10 Hz-40 kHz (-3 dB) |
| Input Voltage Range @ RCA Inputs | 0.3-8 V RMS |
| Input Impedance | 7 kΩ |
| Remote Level Control | - |
| Remote Level Modes | - |
| Channel Input Mode Switch | - |
| Pass-through Preamp Output | - |
| Source Channel Selection for PreOuts | - |
Amplifier Filters
| Bass Boost EQ | 0 to +9 dB (Zone 3 only) |
|---|---|
| Output Polarity Switch | - |
| Filter Mode(s): Channels 1 & 2 | Low-Pass, High-Pass or Full Range |
| Filter Slope(s): Channels 1 & 2 | - |
| Filter Frequency Range: Channels 1 & 2 | 32 Hz-320 Hz |
| Filter Mode(s): Channels 3 & 4 | Low-Pass, High-Pass or Full Range |
| Filter Slope(s): Channels 3 & 4 | - |
| Filter Frequency Range: Channels 3 & 4 | 32 Hz-320 Hz |
| Filter Mode(s): Channels 5 & 6 | Low-Pass, High-Pass or Full Range |
| Filter Slope(s): Channels 5 & 6 | - |
| Filter Frequency Range: Channels 5 & 6 | 32 Hz-320 Hz |
| High-Pass/Low-Pass Full Range Filter | - |
| HP Variable Crossover Frequency Range | - |
| LP Variable Crossover Frequency Range | - |
| Infrasonic Filter | - |
| Detented, Calibrated Filter Potentiometers | - |
Electrical
| Operating Voltage | 10.8-16 VDC |
|---|---|
| Current Consumption (idle) | - |
| Current Consumption (standby) | - |
| Fuse Rating | 3 x 40 A ATC blade-type (SAE J1171) |
| Recommended Fuse Type(s) | - |
| Minimum Copper Power/Ground Wire Gauge | - |
General
| Water/Dust Protection Rating | - |
|---|---|
| Operating Temperature Range | 32° to 122° F (0° to 50° C) |
| Protection Circuits | - |
Warranty/Certifications
| Certifications | - |
|---|---|
| Warranty | 3 Years |
Reseñas (0)
Reseñas (0)
In The Box
In The Box
In The Box:
Package Dimensions:
Support
Support
Warranty
3 años
* ALL WARRANTY IS THROUGH MANUFACTURE *
