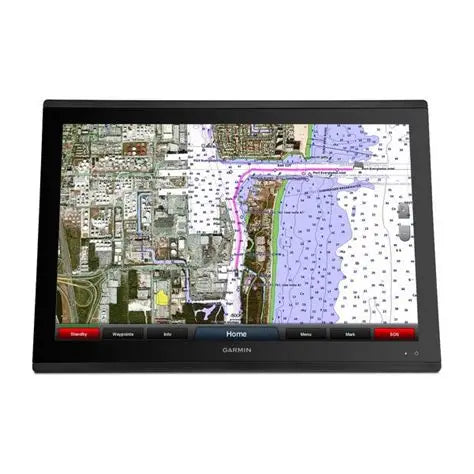

GPSMAP® 8624 de Garmin con BlueChart G3
Descripción
Descripción
Specifications
Specifications
Identification
| MPN | 010-01512-01 |
|---|---|
| Barcode | 753759143176 |
General
| Unit Type | Chartplotter |
|---|---|
| Screen Size | 24.1" |
Display
| Display Type | WUXGA IPS, anti-glare |
|---|---|
| Resolution | 1920 x 1200 |
| Brightness | - |
| Input | Touchscreen |
Navigation
| GPS / GNSS | External antenna only |
|---|---|
| Update Rate | 10 Hz |
| Preloaded Charts | BlueChart g3 |
| Chart Compatibility | - |
| Card Slots | 2x SD (card reader accessory required) |
| Internal Storage | - |
| Waypoints / Routes / Tracks | 5,000 / 100 / 50 |
Sonar
| Built-In Sonar | No (GCV black box, sold separately) |
|---|---|
| Sonar Power | - |
| CHIRP / Traditional | - |
| Down Imaging | - |
| Side Imaging | - |
| Transducer Port | - |
| Included Transducer | No |
Connectivity
| NMEA 2000 | 1 port |
|---|---|
| NMEA 0183 | 4 in / 2 out |
| J1939 | 1 port |
| Ethernet / Network | 4 Garmin Marine Network ports |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Video In / Out | 1 BNC composite in, 1 HDMI in / 1 HDMI out |
Dimensions
| Unit Dimensions (W x H x D) | 22.8" x 16.1" x 2.8" (600 x 410 x 71 mm) |
|---|---|
| Dimensions with Bracket | - |
| Flush Mount Cutout | - |
| Mounting Options | Flush or flat |
| Weight | 18.95 lb (8.60 kg) |
Electrical
| Power Input | 10–35 VDC |
|---|---|
| Power Consumption / Current Draw | 6.1 A typical / 7.6 A max @ 12 VDC (2.8 A typical @ 24 VDC), 87 W max |
Additional
| Water Rating | IPX7 |
|---|---|
| Compass-Safe Distance | 29" (74 cm) |
| Operating Temperature | 14° to 131° F (-10° to 55° C) |
| Country of Origin | - |
Reseñas (0)
Reseñas (0)
In The Box
In The Box
In The Box:
Package Dimensions:
Support
Support
Warranty
2 años
* ALL WARRANTY IS THROUGH MANUFACTURE *
