SKU:
HTZ/78049016
Precio normal
$49999
Total:
Precio unitario$49999
cada artículo
Descripción
Descripción

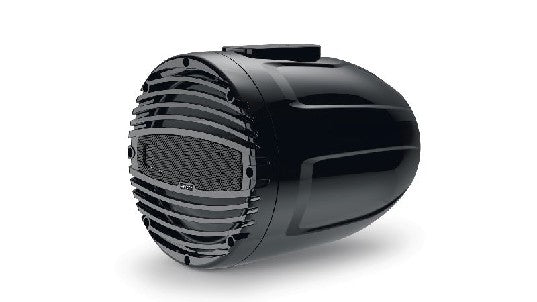

Los HTX 8 M-FL-TC cuentan con una rejilla frontal tono sobre tono a juego con el color de la rejilla principal.
La opción de iluminación LED RGB hará que sus salidas deportivas y de ocio sean inolvidables, gracias a un impresionante rendimiento de audio y a una atractiva iluminación de colores.
Se monta en superficies planas.
Esto es posible gracias a la tecnología con patente pendiente Q-OS² (Quick Orientation & Release for Sound & Safety).
El "logotipo ajustable" permite varias posiciones de montaje sin afectar a la correcta orientación del logotipo de Hertz. El logotipo delantero y trasero puede orientarse en 64 pasos.
Specifications
Specifications
Identification
| MPN | 78049016 |
|---|---|
| Barcode | 8018823137478 |
Dimensions
| Size | 8" |
|---|---|
| Diameter | 8 in. |
| Depth | 9.09 in. |
| Height | 8.86 in. |
| Width | 11.34 in. |
| Mounting Bracket Thickness | 0.24 in. |
| Weight | 11.9 lb |
Audio
| Power Handling (Continuous) | 100 W |
|---|---|
| Power Handling (Peak) | 200 W |
| Sensitivity (SPL) | 91 dB |
| Nominal Impedance | 4 Ω |
| Frequency Response | 45 Hz – 25 kHz |
| Woofer Voice Coil Diameter | 1.26" |
| Tweeter Voice Coil Diameter | 0.8" |
Lighting
| LED Lighting | Yes - Integrated RGB |
|---|
Certifications & Protection
| Protection Rating | IP65 |
|---|---|
| UV Resistance | ASTM-D4329 Compliant |
| Salt Fog Resistance | ASTM-B117 Compliant |
Parameters
| Free Air Resonance (Fs) | 51 Hz |
|---|---|
| Electrical Q (Qes) | 0.82 |
| Mechanical Q (Qms) | 14.7 |
| Total Q (Qts) | 0.78 |
| Equivalent Compliance (Vas) | 0.922 cu ft |
| Mechanical Excursion Limit (Xmech) | ±0.33" |
| DC Resistance (Re) | 3.4 Ω |
| Voice Coil Inductance (Le) | 0.46 mH |
| Mechanical Compliance (Cms) | 0.33 mm/N |
| Moving Mass (Mms) | 30 g |
| Force Factor (BL) | 6.33 T·m |
Materials
| Woofer Magnet | High Density Flux Ferrite |
|---|---|
| Woofer Magnet Size | 3.54 x 1.57 x 0.79" |
| Tweeter Magnet | Neodymium |
| Tweeter Magnet Size | 0.78 x 0.12" |
| Cone Material | Polypropylene with UV Inhibitors |
| Dome Material | PEI |
