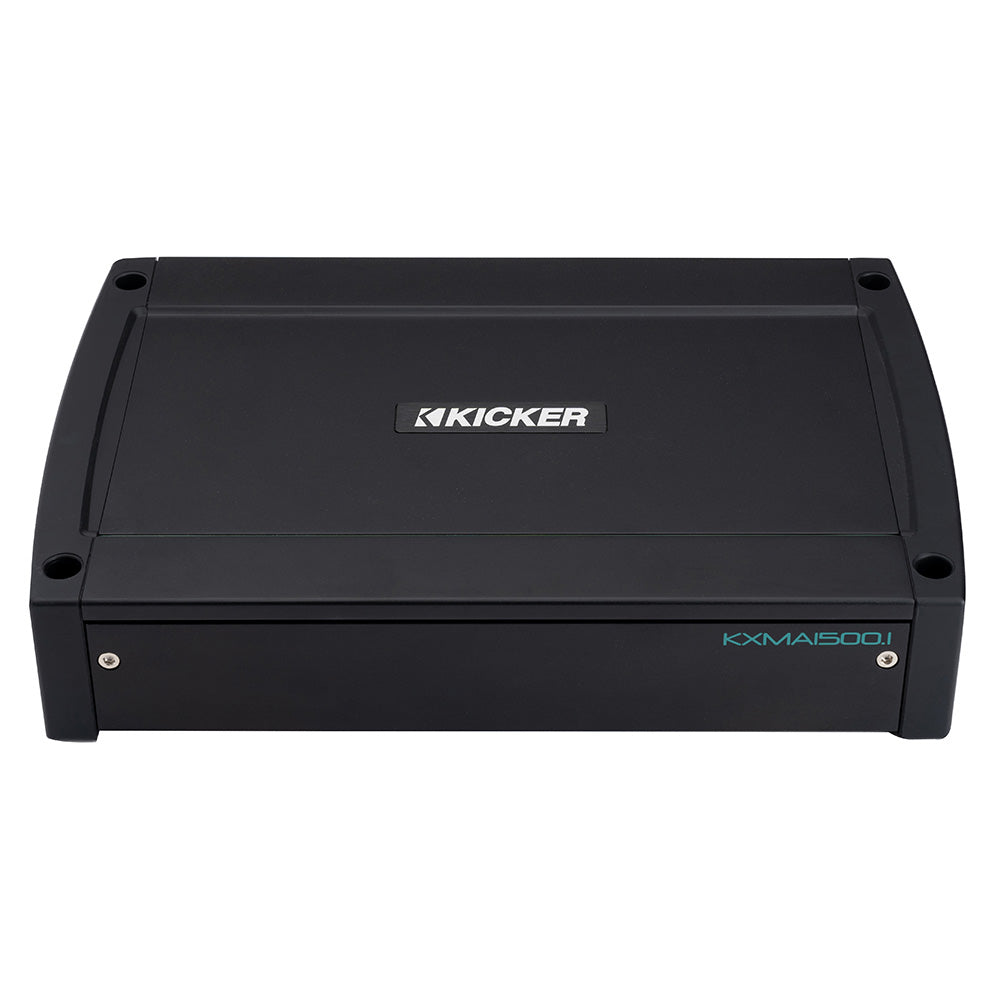

Amplificador monobloque para subwoofer Clase D de 1500W KXMA1500.1
Con la misma potencia a 1 o 2 Ohmios, el KXMA1500.1 es un eficiente amplificador monobloque marino Clase D, lo suficientemente potente para manejar múltiples subwoofers marinos KICKER a un volumen alto.
¡Experimente la manera perfecta de obtener graves realmente potentes en su embarcación! Una poderosa central eléctrica Clase D, un crossover de 24dB y un filtro subsónico le ayudan a ajustar el mejor sonido. ¡Utilice el control de nivel remoto para ajustar los graves directamente desde el tablero y conecte las salidas RCA de rango completo para expandir su sistema!
Características:
- Diseño Clase D ultraeficiente
- 2500 vatios de potencia dinámica
- Amplificador monobloque
- Placa de circuito con recubrimiento conformado

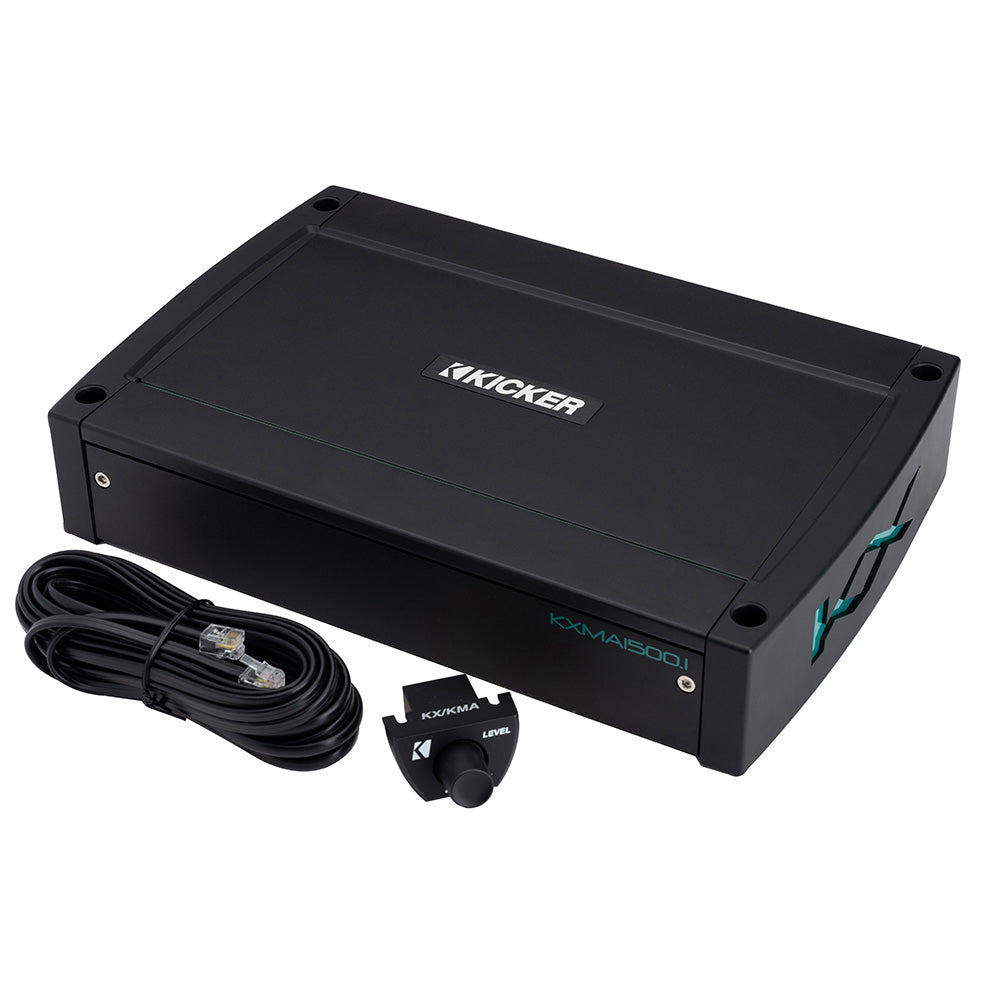

- Control de nivel remoto KMBLC incluido
- Crossover variable de 24dB
- Refuerzo de graves variable KickEQ+™ de 0-6dB
- Filtro subsónico variable de 10-80Hz
- Salida de paso RCA
- Conexiones de alimentación Real Marine™ compatibles con ABYC/NMMA
- Hardware de acero inoxidable 316L incluido
Specifications
Specifications
Identification
| MPN | 51KXMA15001 |
|---|
Dimensions
| Dimensions (H x W x D) | 2.17" x 11.18" x 8.27" (55 x 284 x 210 mm) |
|---|---|
| Weight | - |
Amplifier
| Amplifier Class | Class D |
|---|---|
| Channels | 1 |
Amplifier Power
| Rated Continuous (RMS) Power (14.4 V input @ 4 Ohm < 1% THD) | 750 W x 1 |
|---|---|
| Rated Continuous (RMS) Power (14.4 V input @ 2 Ohm < 1% THD) | 1500 W x 1 |
| Rated Continuous (RMS) Power (14.4 V input @ 1 Ohm < 1% THD) | 1500 W x 1 (±10%) |
| Rated Continuous (RMS) Power (12.5 V input @ 4 Ohm < 1% THD) | - |
| Rated Continuous (RMS) Power (12.5 V input @ 2 Ohm < 1% THD) | - |
Amplifier Processing
| Signal-to-Noise Ratio, referred to highest rated power (A-weighted, 20 Hz-20 kHz noise bandwidth): Analog inputs | 95 dB |
|---|---|
| Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz-20 kHz noise bandwidth): Analog inputs | 75 dB |
| Signal-to-Noise Ratio (Manufacturer Rating) | - |
| Damping Factor @ 4 Ω | - |
| Damping Factor @ 2 Ω | - |
| THD+N @ rated power | - |
| Frequency Response (+0, -1dB) | 10 Hz-160 Hz |
| Input Voltage Range @ RCA Inputs | 125 mV-5 V (low level); 250 mV-10 V (high level) |
| Input Impedance | - |
| Remote Level Control | Included (KMBLC) |
| Remote Level Modes | - |
| Channel Input Mode Switch | - |
| Pass-through Preamp Output | - |
| Source Channel Selection for PreOuts | - |
Amplifier Filters
| Bass Boost EQ | 0 to +6 dB, 20 Hz-80 Hz center frequency (KickEQ+ parametric) |
|---|---|
| Output Polarity Switch | - |
| Filter Mode(s): Subwoofer Channel | Low-Pass |
| Filter Slope(s): Subwoofer Channel | 24 dB/octave |
| Filter Frequency Range: Subwoofer Channel | 40 Hz-160 Hz |
| High-Pass/Low-Pass Full Range Filter | - |
| HP Variable Crossover Frequency Range | - |
| LP Variable Crossover Frequency Range | - |
| Infrasonic Filter | 10 Hz-80 Hz, 24 dB/octave |
| Detented, Calibrated Filter Potentiometers | - |
Electrical
| Operating Voltage | - |
|---|---|
| Current Consumption (idle) | - |
| Current Consumption (standby) | - |
| Fuse Rating | - |
| Recommended Fuse Type(s) | - |
| Minimum Copper Power/Ground Wire Gauge | - |
General
| Water/Dust Protection Rating | - |
|---|---|
| Operating Temperature Range | - |
| Protection Circuits | - |
Warranty/Certifications
| Certifications | - |
|---|---|
| Warranty | - |
