Luz Lopolight 3nm 360° roja, clase hielo, anodizada negra
Precio normal
$1,80093
Total:
Precio unitario
SKU:
LOP/300-114G2-PRO-I
Precio normal
$1,80093
Total:
Precio unitario
Descripción
Descripción

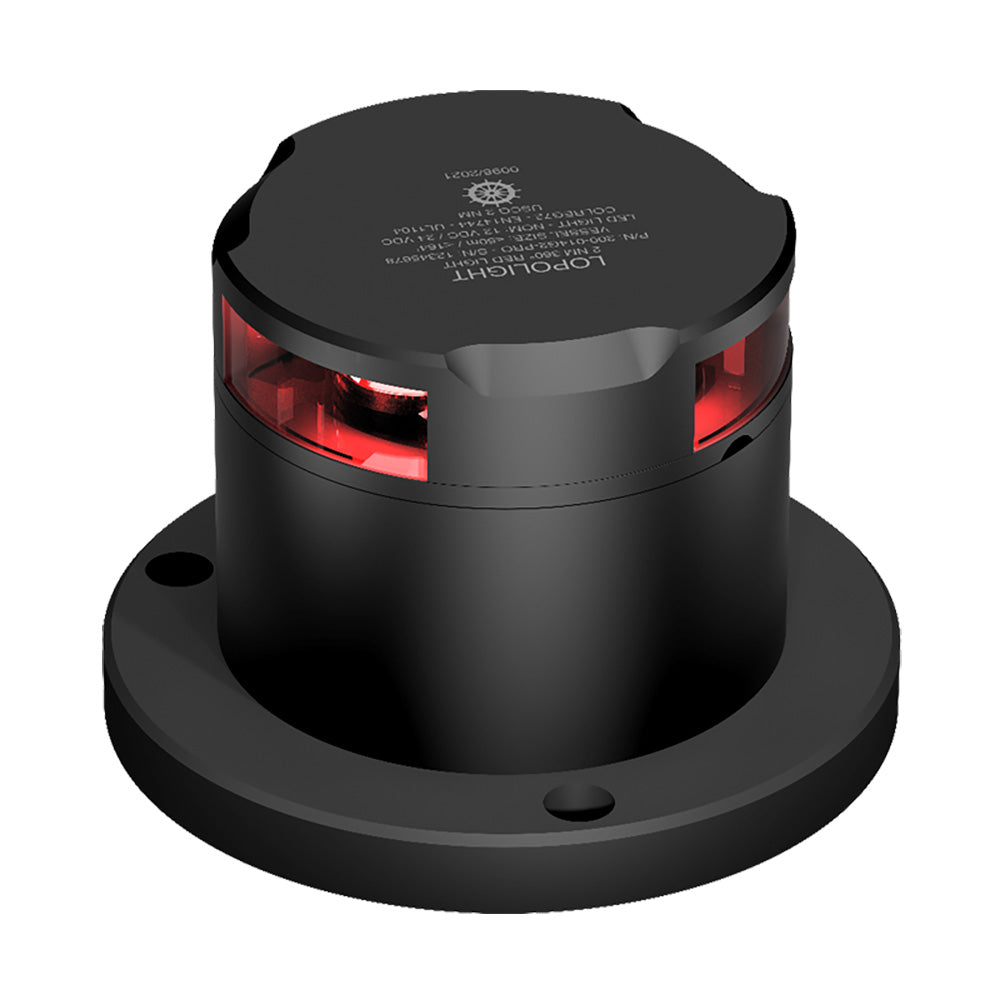

Luz de 3mn 360° Red Ice-Class anodizada en negro
Características:
- Función de deshielo integrada
- Montaje horizontal sobre base de aluminio 400-037 (IP68)
- Dirección del cable lateral
- Incluye placa base de HDPE
- Prensaestopas de calidad - 3 tamaños incluidos:
- Diámetro de cable de 9-17 mm (3/8"-11/16")
- Diámetro de cable de 7-13 mm (1/4"-1/2")
- Diámetro de cable de 4,5-10 mm (5/32"-3/8")
Specifications
Specifications
Identification
| MPN | 300-114G2-PRO-I |
|---|---|
| Barcode | 879343012441 |
Certifications & Protection
| Certification | This Navigation Light is certified by DNV, the Declaration of Conformity, and the certificates can be found on www.lopolight.com under Support. This Navigation Light conforms to USCG Commandant instructions M16672.2. |
|---|---|
| IP rating | IP68 |
General
| Compliant with relevant sections of | MIL-STD-461G, - MIL-STD-901E, - MIL-STD-167-1A, - MIL-STD-1399/300-1 |
|---|---|
| Intensity | >15cd |
| Visibility | 3nm |
| EAN | 5704438012448 |
| Connection | Plug connector |
| Min. feed wire gauge | 1.5mm2 AWG18 |
Physical
| Dimensions imperial | Ø3.6" x 3.5" |
|---|---|
| Mounting | Horizontal |
| Materials | Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane |
| Vessel size | Over 50M |
| Weight (Kg) | 1.14 Kg |
| Weight (Oz) | 40.21 Oz |
Control & Connectivity
| Approved to | COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR |
|---|
Performance
| Operating temperature | -60°C to 55°C |
|---|
Electrical
| Operating Voltage | 20-32VDC |
|---|---|
| Power draw (W) | 2,9 |
| Current consumption (mA @ 12VDC) | 210 |
| Current consumption (mA @ 24VDC) | 120 |
