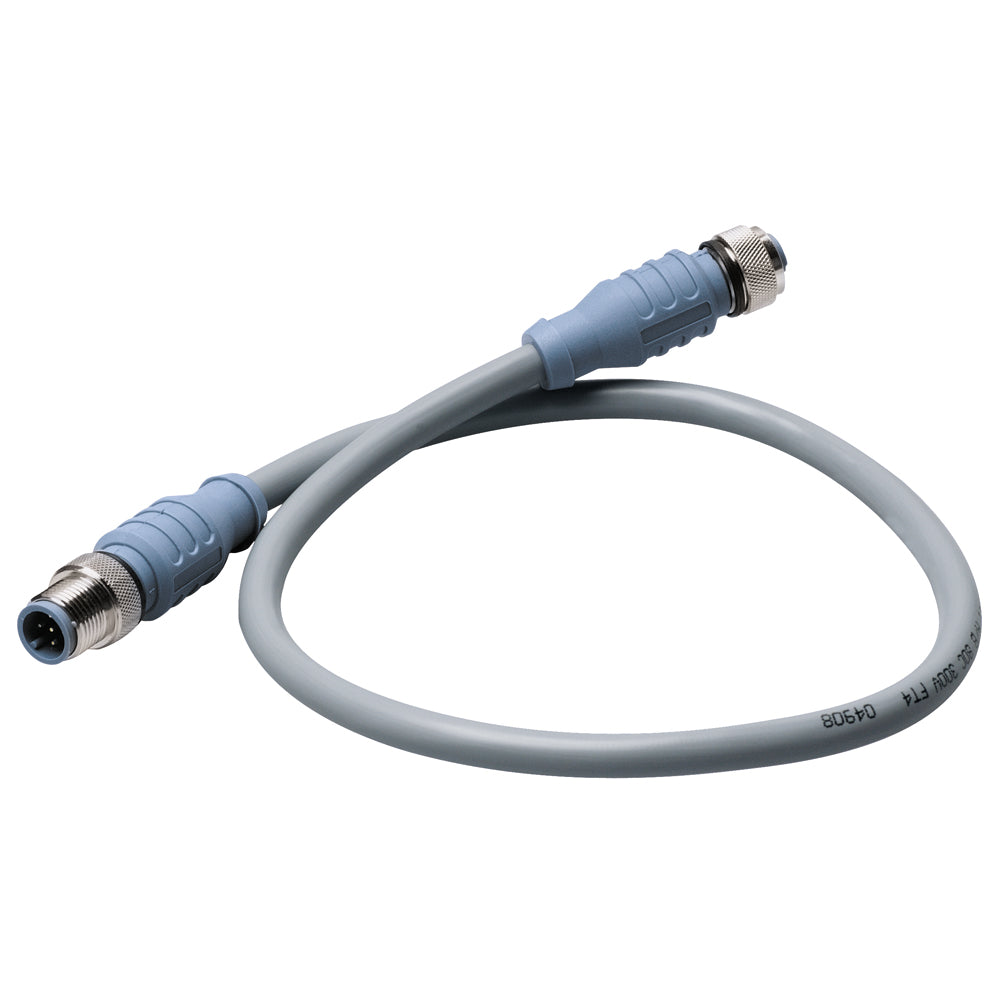

Maretron Cable de conexión doble de 3 metros - Gris
Precio normal
$6000
Total:
Precio unitario
SKU:
MAR/DM-DG1-DF-03.0
Precio normal
$6000
Total:
Precio unitario
Descripción
Descripción
Cable de extensión de extremo doble Maretron Mid - 3 M Gris
Mecánico:
- Número de conductores: 2x16 (1.29mm) AWG, datos 2x20 (0.81mm) AWG, cable de drenaje 20 (0.81mm) AWG
- Rango de temperatura: -40 °C a 80 °C (-40 °F a 176 °F)
APROBACIONES - (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 °C, AWM I/II A/B 80 °C 300V FT4
Specifications
Specifications
Identification
| MPN | DM-DG1-DF-03.0 |
|---|---|
| Barcode | 873804001791 |
Physical
| Contact Carrier Mat/Color | Thermoplastic PUR/Blue-Gray |
|---|---|
| Molded Body Mat/Color | Thermoplastic PUR/Blue-Gray |
| Connector Outside Diameter | 0.59"Electrical |
| Outer Jacket Mat/Color | PVC/Gray |
| Conductor Insulation Material | PE (data pair), PVC (power pair) |
General
| Contact Mat/Plating | Brass/Gold |
|---|---|
| Coupling Nut Mat/Plating | Brass/Nickel |
| Shielding (3 Levels) | Alum/Polyester Foil (Overall), Foil (Power Pair), Foil (Data Pair)ENVIRONMENTAL |
| Protection Class | IEC IP68, NEMA 1,3,4,6P |
| IEC | IEC 61162-3 |
Electrical
| Current Rating | 4.0 Amps |
|---|---|
| Voltage Rating | 250 VCable |
Certifications & Protection
| (Cable) UL | PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V |
|---|
Control & Connectivity
| NMEA | NMEA 2000 Approved |
|---|
