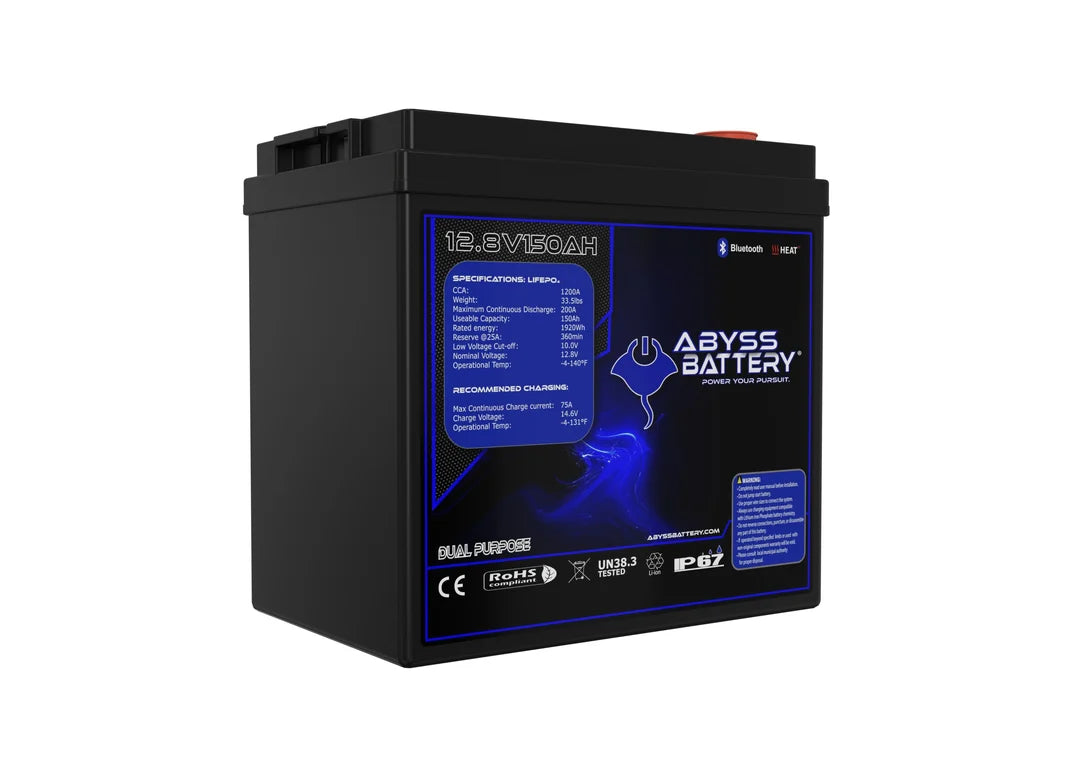

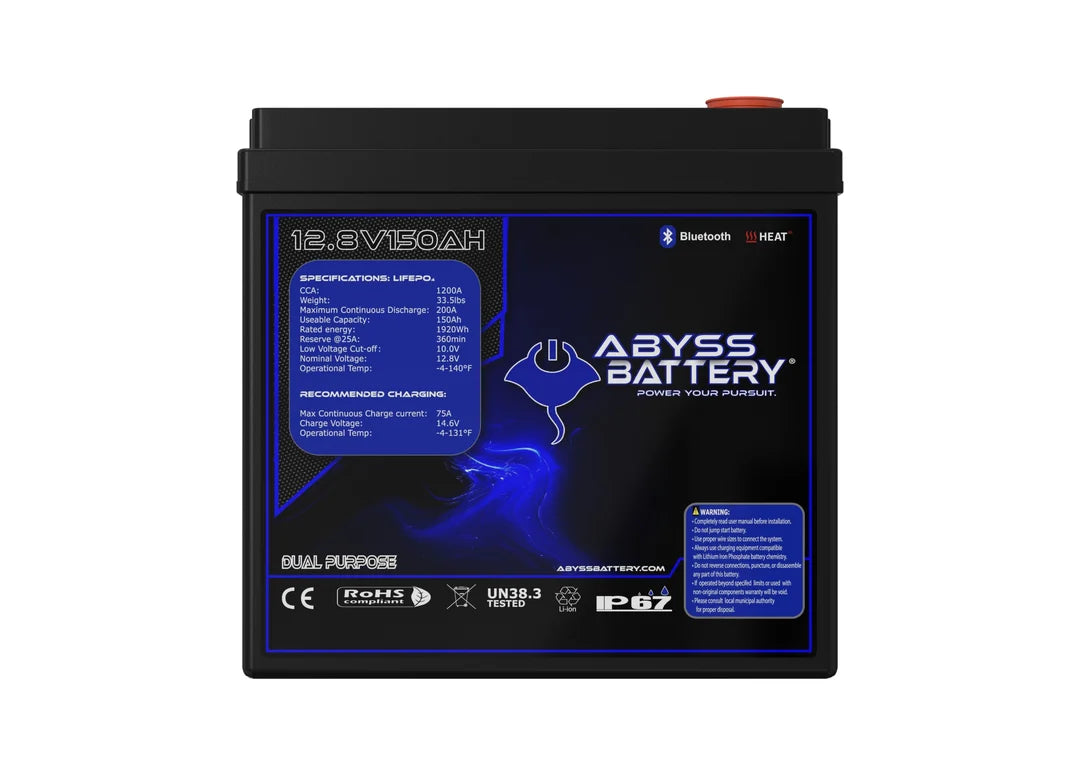

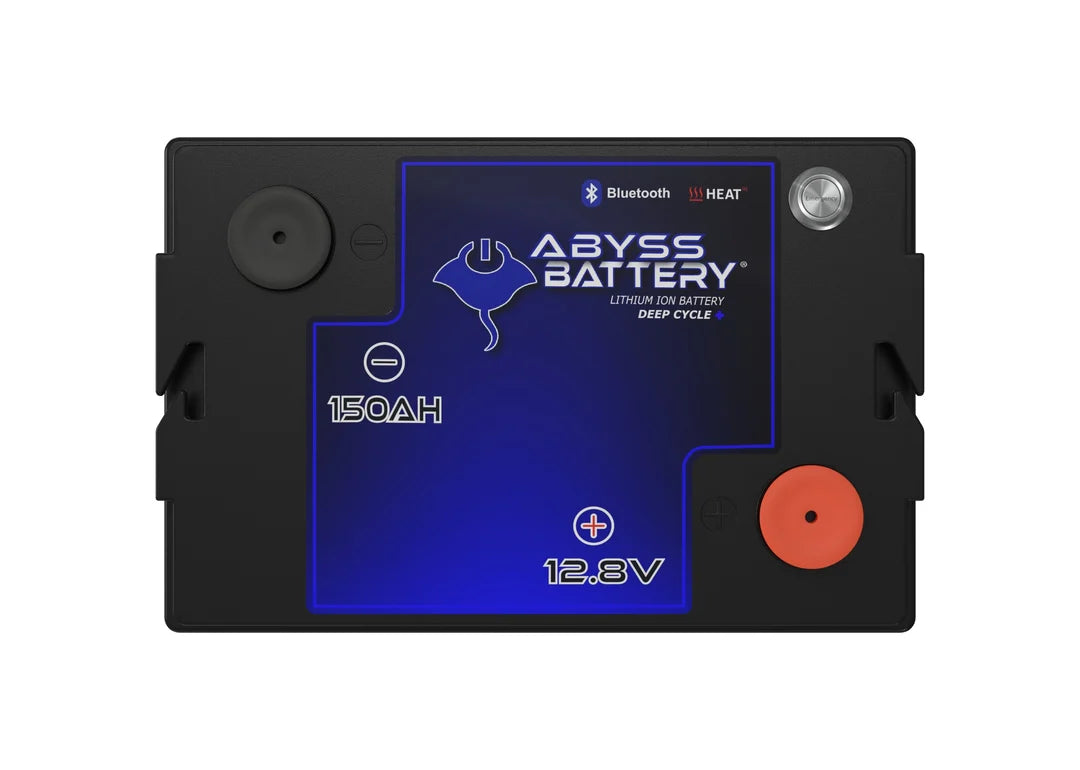

Abyss Battery 12v 150ah LifePO4 Battery
Description
Description
When you're out on the open water, the last thing you want to worry about is whether or not your battery will hold up. With the ABYSS® 12V 150Ah Dual-Purpose Lithium Marine Battery, you can rest easy knowing you have a powerful and reliable battery on board. This LiFePO4 battery is designed to be an upgrade replacement for standard BCI group 31 AGM batteries and is compatible with existing 12V AGM battery chargers.
With a peak CCA of 1500A, it delivers plenty of power to start outboard motors, generators, and other high-load devices. Plus, it can be used in series or parallel sequence to ensure long and steady power draw for fish finders, GPS systems, audio systems, chill plates, Seakeepers, electric downriggers, and more. Compact and light-weight, the ABYSS® 12V 150Ah is a powerhouse you can depend on each and every outing.
Specifications
Specifications
Identification
| MPN | AB-12V150-BT |
|---|---|
| Barcode | 785034601606 |
12V 150Ah Battery Datasheet
| Nominal Voltage | 12.8V |
|---|---|
| Nominal Capacity | 150Ah |
| Parallel Connection | Maximum 4 units |
| Serial Connection | Maximum 4 units |
| Bluetooth Management System (BMS) | 4S 200A (Available on Android/iOS) |
| Charge Voltage | 14.4±0.2V |
| Standard Charge Current | 40A |
| Fast Charge Current | 100A |
| Max. Continuous Discharge Current | 200A |
| Peak Discharge Current | 1200A (CCA) 300ms |
| Discharge Cut-off Voltage | 12V (Emergency Start Power Reserve) |
| Cycle Life | 4000 cycles @ 95% Depth of Discharge (DOD) and 6000 cycles @ 80% DOD |
| Self Discharge Rate | Less than 3% per month |
| Operating Charge Temperature Range | -20°C to 55°C (-4°F to 131°F) |
| Operating Discharge Temperature Range | -20°C to 60°C (-4°F to 140°F) |
| Storage Temperature Range | 0°C to 45°C (32°F to 113°F) |
Physical Specifications
| Dimensions | 10.24" x 6.77" x 9.65" in (260×172×245mm, GC2) |
|---|---|
| Approximate Weight | 34.35 lbs (15.58 Kg) |
| Terminal Type | M8 |
| Case Color/Material | Black Plastic case (ABS) |
| IP Rating | IP67 |
| Cell Type | Prismatic LiFePO4 cell (EVE 150Ah) UL Cell |
| Cell Holder | Yes |
Additional Information
| Features | Bluetooth connectivity for monitoring via Android and iOS devices; Internal heating for cold weather performance; Emergency Start Power Reserve |
|---|---|
| Certifications | UL 1642, IEC62133, IEC62619, CE, UN38.3, ROHS |
