Abyss Battery 12v 350ah LifePO4 Lithium Battery
Description
Description

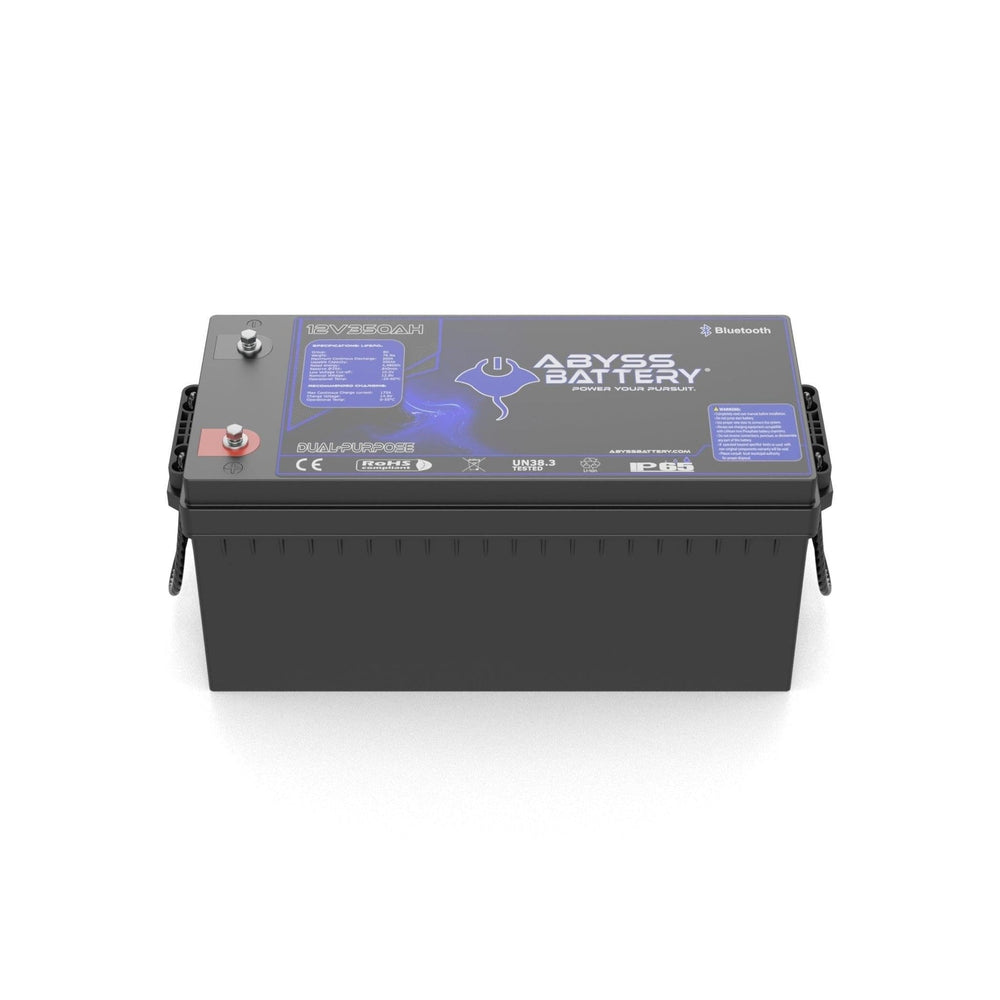

The ABYSS® 12V 350Ah Dual-Purpose 8D Marine Lithium Battery is a high capacity performance Lithium-ion battery engineered with the strongest 200A BMS rating of its class. This battery is equipped with built in Bluetooth® connection and ideal for off-grid living, energy storage applications, starting generators, and large outboard or diesel motors. Designed for powering Seakeeper systems, chill plates, microwaves, and A/C. This battery is a power house you can depend on.
The module's inherent safety, extended cell life, and zero maintenance offers end users a more reliable battery alternative by performing with more than twice the run-time and <70% of the weight of similarly sized AGM batteries. Our integrated Battery Management System is designed to operate seamlessly with any application and manages all of the modules system parameters in real-time.
Specifications
Specifications
Identification
| MPN | AB-12V350-BT |
|---|---|
| Barcode | 785034601620 |
12V 350AH GROUP 8D
| Nominal Voltage | 12.8V |
|---|---|
| Nominal Capacity | 350Ah |
| Parallel Connection | Max. 4units |
| Serial Connection | Max. 4units |
| BMS | 4S200A |
| Bluetooth | Android/iOS |
| Heat | Yes |
| Circuit Protection | Over charge, Over discharge, Over current, Over temp, Short, Balance, Low temp |
| Cycle Life | 3000times Cycles @100%DOD and 6000times @80% DOD |
| Self Discharge | Less than 3% per month |
| Charge Efficiency | 100% @0.2C |
| Discharge Efficiency | 98-100% @1C |
CHARGE SPECIFICATIONS
| Charge Voltage | 14.4±0.2V |
|---|---|
| Standard Current | 70A |
| Fast Current | 175A |
DISCHARGE SPECIFICATIONS
| Standard Current | 70A |
|---|---|
| Max. Con. Current | 200A |
| Peak Current | 800A(300ms) |
| Cut-off Voltage | 10V |
TEMPERATURE SPECIFICATIONS
| Charge Temp | 0°C to 55°C (32°F to 131°F) |
|---|---|
| Discharge Temp | -20°C to 60°C (-4°F to 140°F) |
| Storage Temp | -5°C to 45°C (23°F to 113°F) |
MECHANICAL SPECIFICATIONS
| Dimensions | 20.47 x 10.59 x 8.66 in (521×267×220mm) (Group 8D) |
|---|---|
| Approx Weight | 34 kg |
| Terminal Type | M8 |
| Case Color/material | Black Plastic case (ABS) |
| IP Rating | IP65 |
| Cell Type | Cylindrical LiFePO4 cell |
| Cell holder | Yes |
CERTIFICATIONS
| UL 1642 | Cell |
|---|---|
| IEC62133 | Cell |
| IEC62619 | Cell |
| CE | Pack |
| UN38.3 | Cell/ Pack |
| ROHS | Cell |
