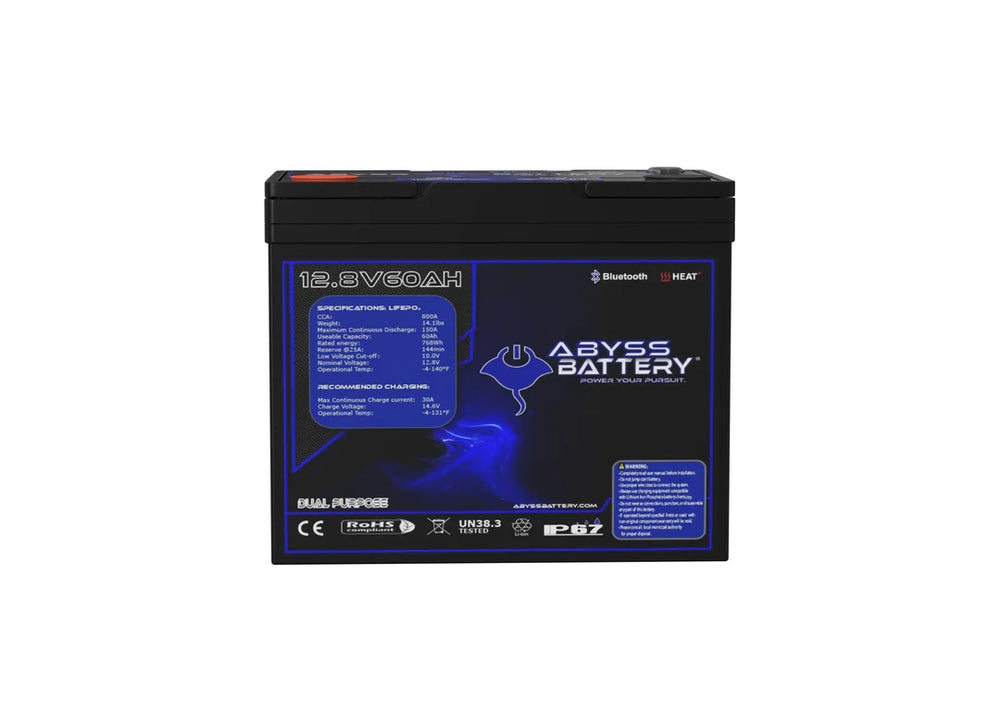

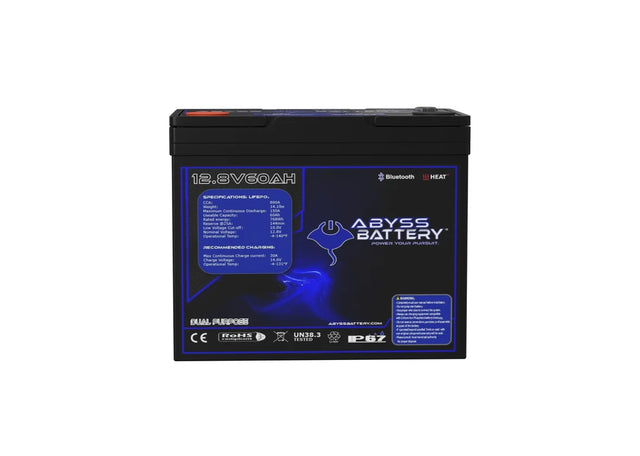

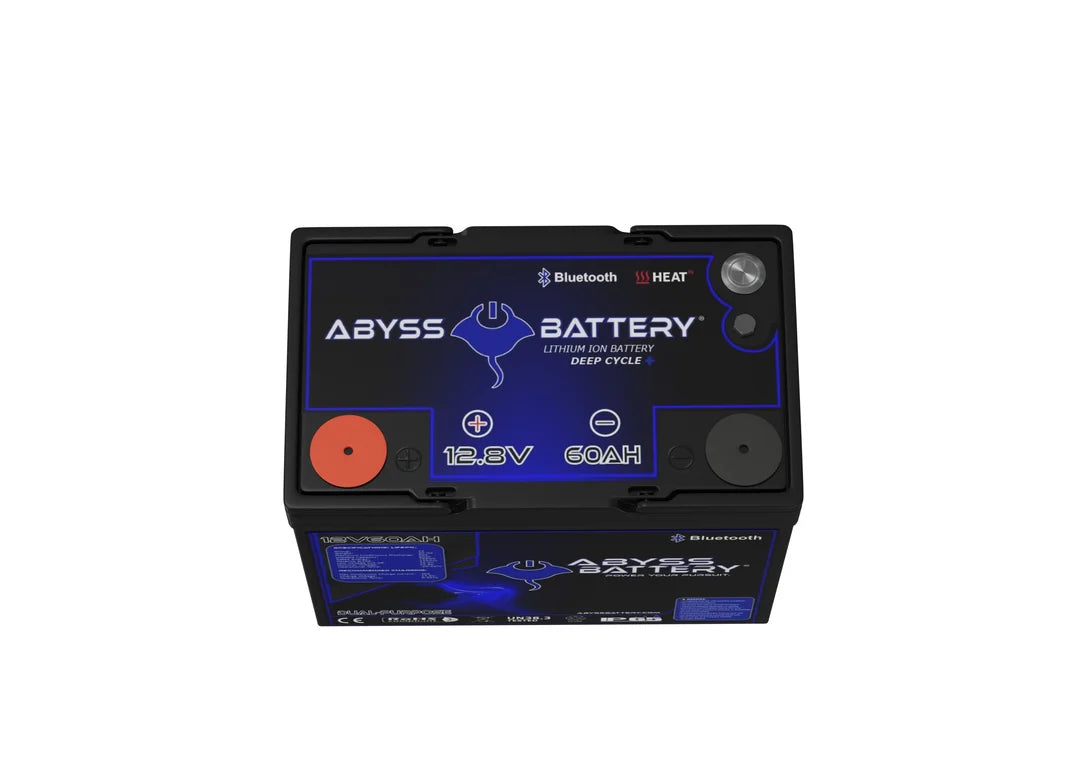

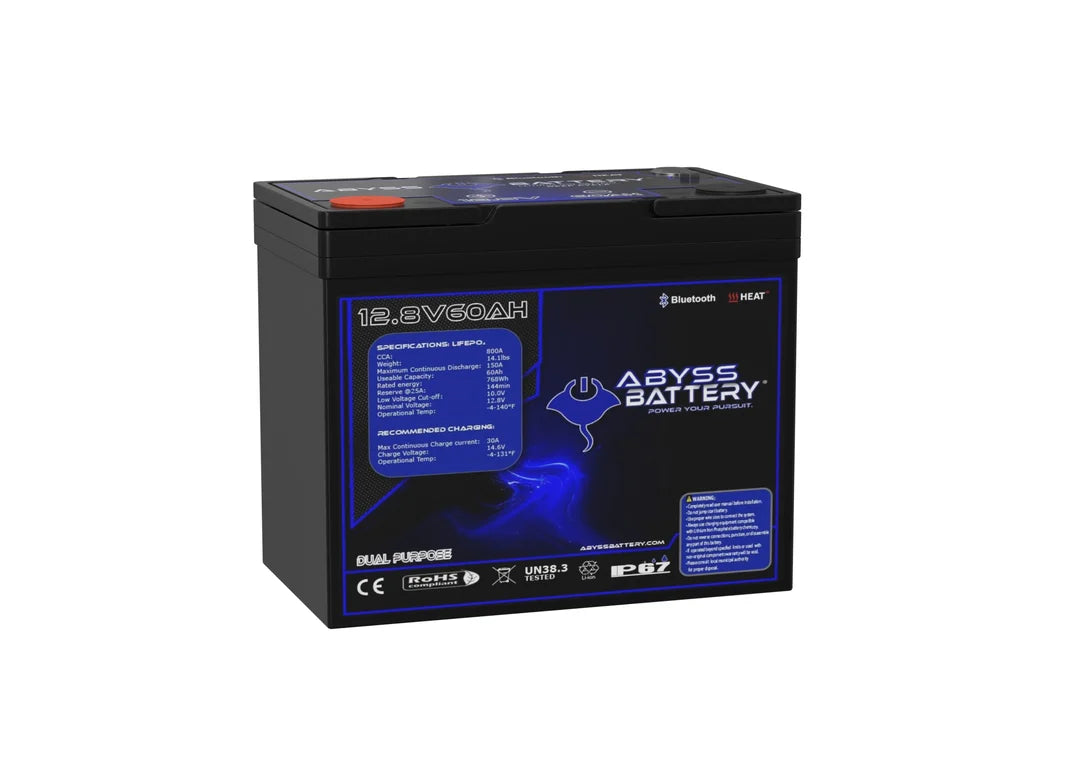

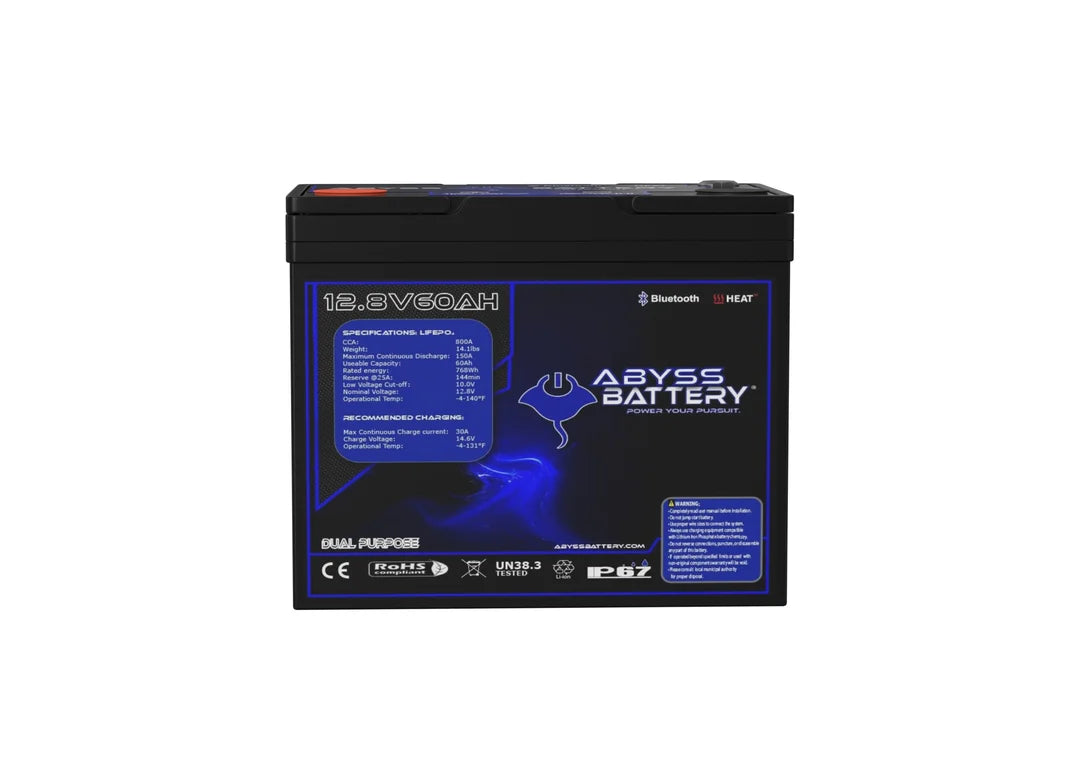

Abyss Battery 12v 60ah LiFePO4 Lithium Battery
Description
Description
Compact Power. Unmatched Reliability. Smarter Design.
The new ABYSS® 12V 60Ah Dual Purpose Lithium Marine Battery is engineered for those who demand maximum performance in every pursuit. Now redesigned with more amp hours packed into a smaller 22NF case, this next-generation model sets a new standard for efficiency, reliability, and safety on the water.
Delivering a peak 1200A CCA, this powerhouse effortlessly cranks Mercury outboard motors up to 500hp, generators, and other high-load marine devices — while maintaining enough deep-cycle capacity to run your fish finders, GPS, Seakeeper, chill plates, and audio systems without breaking a sweat.
Weighing less and lasting longer than traditional AGM or lead-acid batteries, the ABYSS® 12V 60Ah is the ultimate crank-and-cruise solution for boats, watercraft, RVs, trucks, and off-grid vehicles.
Whether you’re deep-dropping offshore, cruising at sunset, or exploring the backcountry, this battery delivers the confidence, endurance, and performance that define ABYSS®.
Specifications
Specifications
Identification
| MPN | AB-12V60-BT |
|---|---|
| Barcode | 785034602009 |
12V 60Ah Battery Datasheet
| Nominal Voltage | 12.8V |
|---|---|
| Nominal Capacity | 60Ah |
| Parallel Connection | Maximum 4 units |
| Serial Connection | Maximum 4 units |
| Bluetooth Management System (BMS) | 4S150A (Available on Android/iOS) |
| Charge Voltage | 14.4±0.2V |
| Standard Charge Current | 30A |
| Fast Charge Current | 60A |
| Max. Continuous Discharge Current | 150A |
| Peak Discharge Cranking Current | 800A (CCA) 300ms |
| Discharge Cut-off Voltage | 12V (Emergency Power Reserve) |
| Cycle Life | 4000 cycles @ 95% Depth of Discharge (DOD) and 6000 cycles @ 80% DOD |
| Self Discharge Rate | Less than 3% per month |
| Operating Charge Temperature Range | -20°C to 55°C (-4°F to 131°F) |
| Operating Discharge Temperature Range | -20°C to 60°C (-4°F to 140°F) |
| Storage Temperature Range | 0°C to 45°C (32°F to 113°F) |
Physical Specifications
| Dimensions | 9.02" x 5.43" x 8.19" in (Group 22NF) |
|---|---|
| Approximate Weight | 14.64 lbs (6.64 Kg) |
| Terminal Type | M8 |
| Case Color/Material | Black Plastic case (ABS) |
| IP Rating | IP67 |
| Cell Type | Cylindrical LiFePO4 cell EVE 20Ah |
| Cell Holder | Yes |
Additional Information
| Features | Bluetooth connectivity for monitoring via Android and iOS devices |
|---|---|
| Certifications | UL 1642, IEC62133, IEC62619, CE, UN38.3, ROHS |
