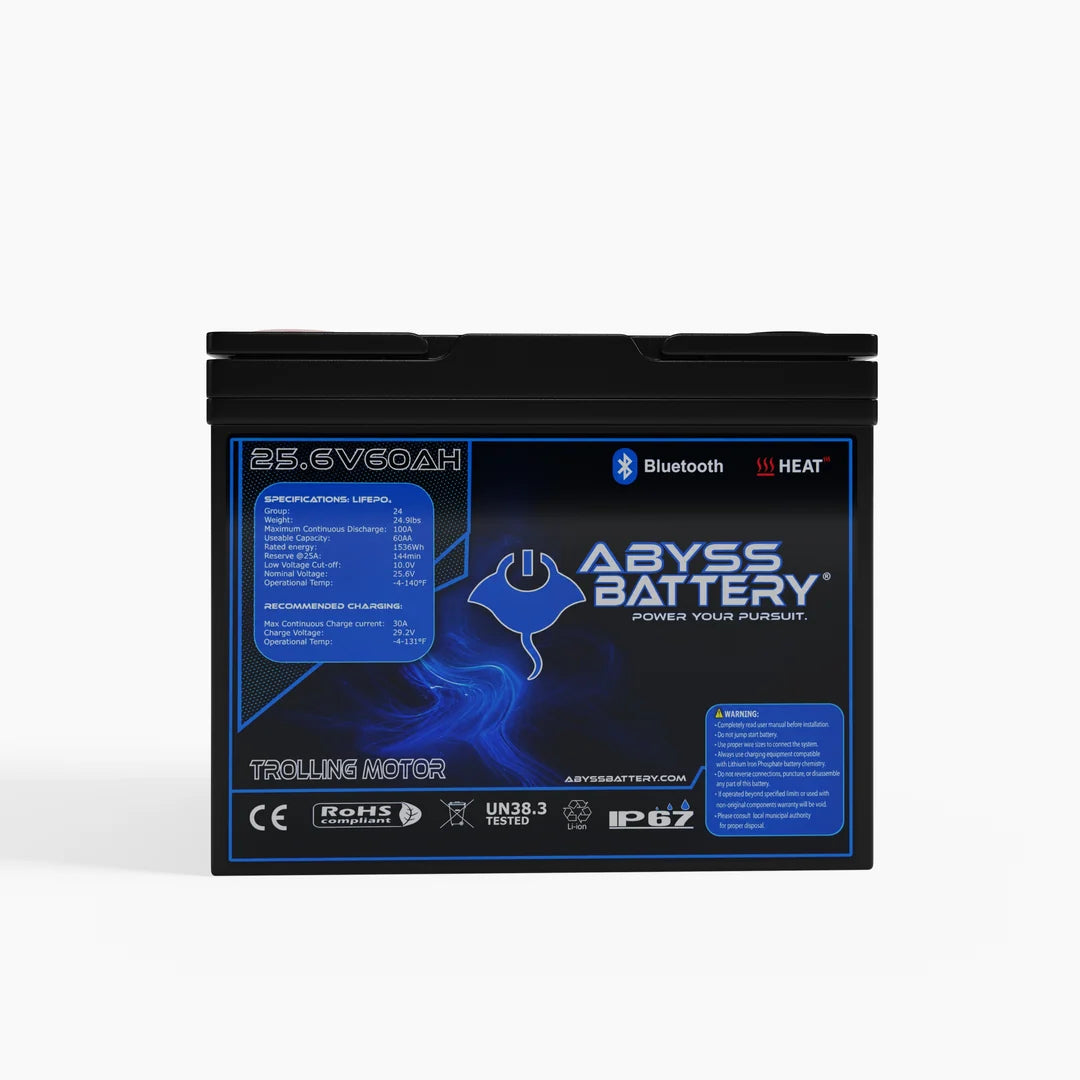

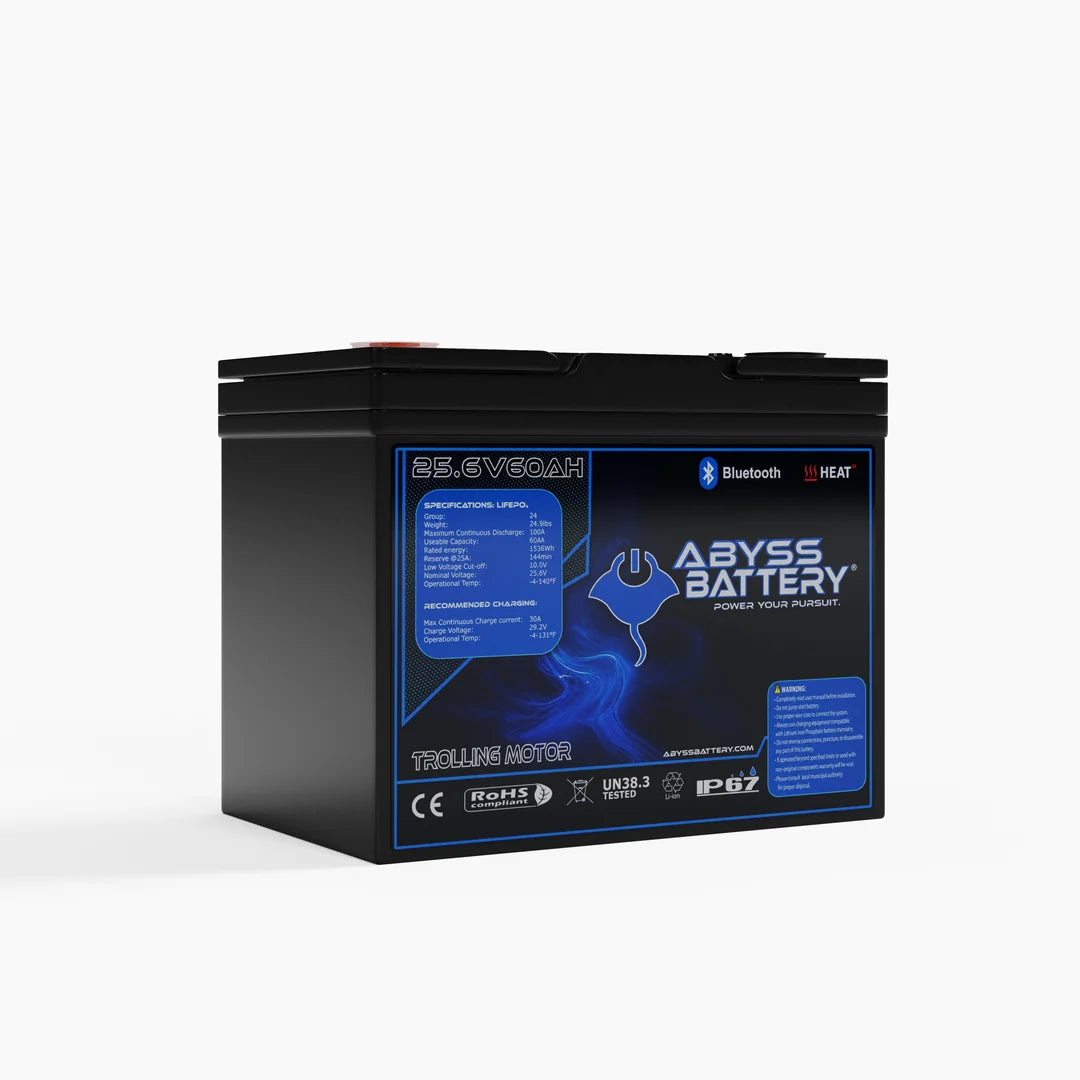

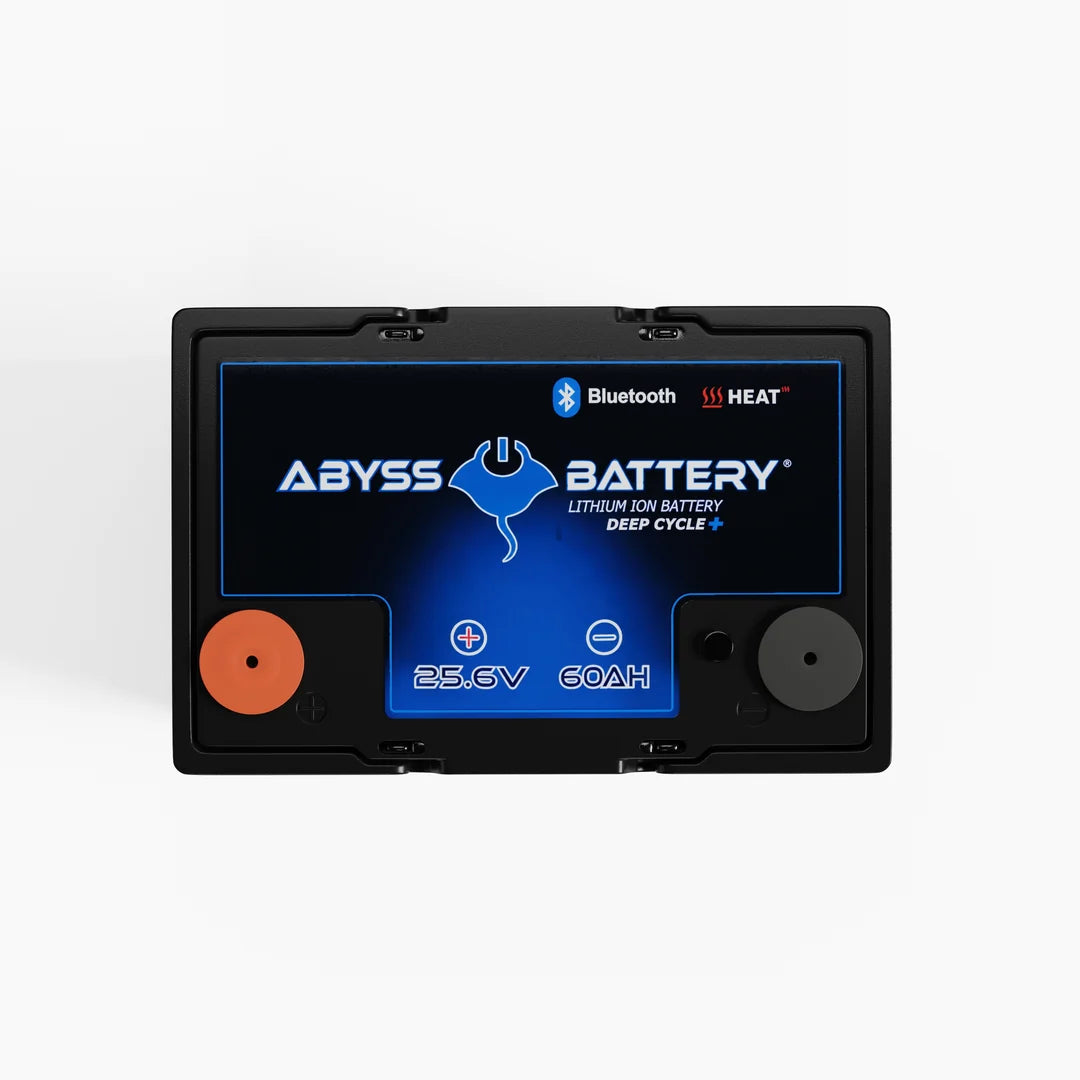

Abyss Battery 24v 60ah LifePO4 Lithium Battery
Description
Description
Power your time on the water with confidence.
The ABYSS® 24V 60Ah Lithium Trolling Motor Battery is engineered for anglers who demand reliable, long-lasting performance without the limitations of traditional batteries. Designed as a high-performance replacement for two 12V lead-acid or AGM batteries wired in series, this compact Group 24 solution reduces weight, maximizes space, and simplifies your system.
Whether you're fishing in calm conditions or pushing through heavy wind and current, this battery delivers consistent power output with no voltage drop-off. Built for deep cycle marine applications, it provides extended runtime for full days—and even multi-day trips—on the water.
With faster charging, zero maintenance, and superior cycle life, the ABYSS 24V 60Ah gives you the freedom to focus on fishing—not your battery.
Specifications
Specifications
Identification
| MPN | AB-24V60-BT |
|---|
24V 60Ah Battery Datasheet
| Nominal Voltage | 25.6V |
|---|---|
| Nominal Capacity | 60Ah |
| Parallel Connection | Maximum 4 units |
| Series Connection | No |
| Bluetooth Management System (BMS) | 8S 100A (Available on Android/iOS) |
| Charge Voltage | 28.8±0.4V |
| Standard Charge Current | 30A |
| Fast Charge Current | 60A |
| Max. Continuous Discharge Current | 100A |
| Peak Discharge Current | 200A (10s) |
| Discharge Cut-off Voltage | 20V |
| Cycle Life | 4000 cycles @ 95% Depth of Discharge (DOD) and 6000 cycles @ 80% DOD |
| Self Discharge Rate | Less than 3% per month |
| Charge Efficiency | 100% @0.2C |
| Discharge Efficiency | 98-100% @1C |
| Operating Charge Temperature Range | -20°C to 55°C (-4°F to 131°F) |
| Operating Discharge Temperature Range | -20°C to 60°C (-4°F to 140°F) |
| Storage Temperature Range | 0°C to 45°C (32°F to 113°F) |
Physical Specifications
| Dimensions | 10.24" x 6.62" x 8.23" in (260×168×209mm, Group 24) |
|---|---|
| Approximate Weight | 24.89 lbs (11.29 Kg) |
| Terminal Type | M8 |
| Case Color/Material | Black Plastic case (ABS) |
| IP Rating | IP67 |
| Cell Type | Cylindrical LiFePO4 EVE 15Ah (UL Cell) |
| Cell Holder | Yes |
Additional Information
| Features | Bluetooth connectivity for monitoring via Android and iOS devices; Built-in internal heating for cold weather performance |
|---|---|
| Certifications | UL 1642, IEC62133, IEC62619, CE, UN38.3, ROHS |
