B117 Traditional/CW Thru-Hull 50/200kHz, 600W, Transducer, 9-Pin, DT for Simrad, Lowrance & B & G

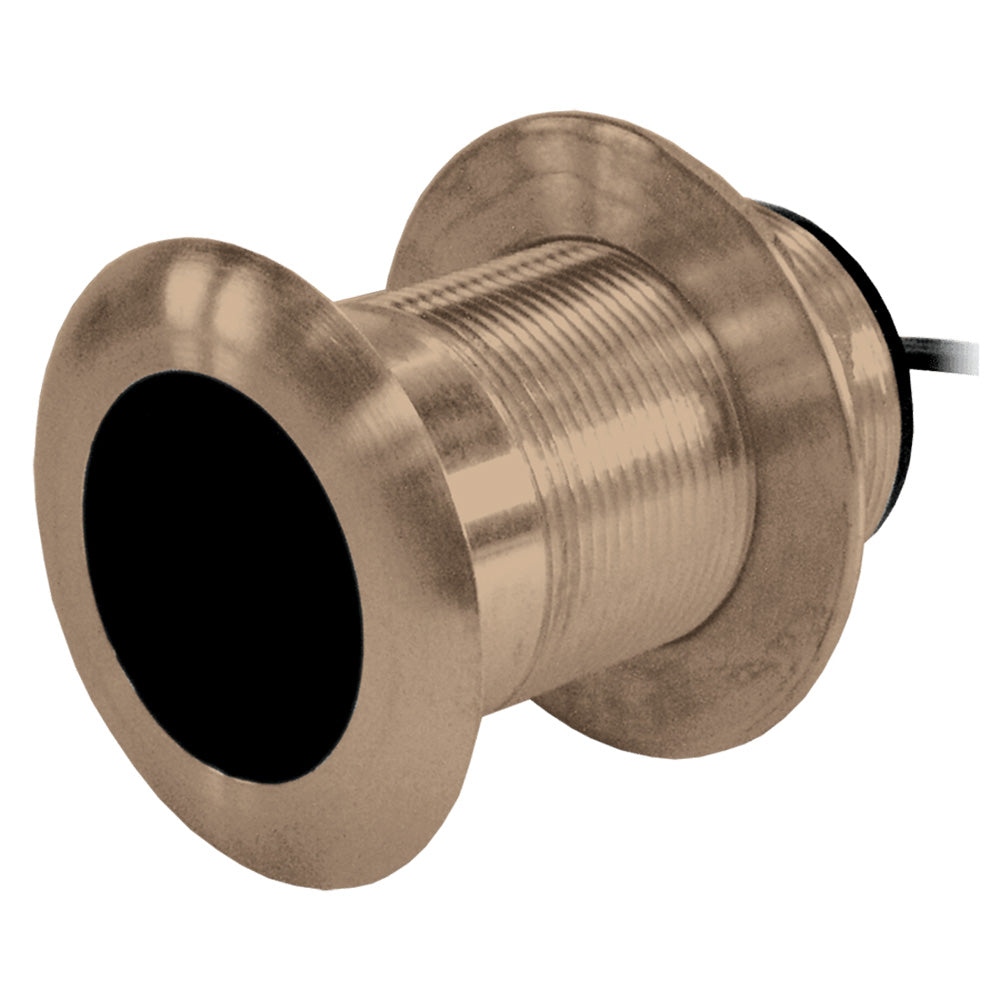

The B117 features a 50/200 kHz, dual-frequency, single, ceramic element in a low-profile bronze housing. The nearly-flush design minimizes drag with only 5 mm (3/16") extending outside of the hull.
Features:
- Depth only or depth and temperature
- 600 W
- Right-angle cable exit saves space and protects the transducer if stepped on
- Included rubber washer allows tightening of the hull nut to irregular hull surfaces
- Low-profile, bronze housing has minimal drag
- Plastic P319 and stainless steel SS60 models are also available to accommodate all hull materials and deadrise angles
Specifications
Specifications
Identification
| MPN | B117-DT-9N |
|---|
General
| Transducer Type | Thru-Hull |
|---|---|
| Mounting Style | Low Profile Thru-Hull |
| Housing Material | Bronze |
| Tilt Angle | 0° (up to 12°) |
| Functions | Depth, Temperature |
| Common Use | Leisure/Yachting, Fishing |
Sonar
| Sonar Type | Conventional Dual Frequency |
|---|---|
| Power Rating | 600 W |
| Frequency | 50/200 kHz |
| Beam Angle | 50 kHz: 45° / 200 kHz: 12° |
| Max Depth | 50 kHz: 1,200' (366 m) / 200 kHz: 700' (206 m) |
| Elements | - |
Dimensions
| Weight | 2 lb (0.9 kg) |
|---|---|
| Hole Size | 2" (51 mm) |
| Usable Shaft Length | 2.62" (66.5 mm) |
| Housing Diameter | - |
| Overall Height | - |
Connectivity
| Connector | Navico 9-Pin |
|---|---|
| Display Connector | Direct Connect |
| Cable Length | - |
| Compatible With | Simrad, Lowrance, B&G |
Additional
| Hull Material | Fiberglass or wood |
|---|---|
| Max Vessel Length | Up to 26' (8 m) |
| Retractable | No |
| Country of Origin | - |
