Airmar B117 Bronze Thru-Hull Transducer w/Humminbird #9 Plug - 7-Pin

Name: Airmar B117 Bronze Thru-Hull Transducer w/Humminbird #9 Plug - 7-Pin
Brand: Airmar
SKU: AIR/B117-DT-HB
Price: 319.99 USD
Availability: OutOfStock

SKU: AIR/B117-DT-HB

$319⁹⁹ $359⁹⁹

ETA: Pending

Description

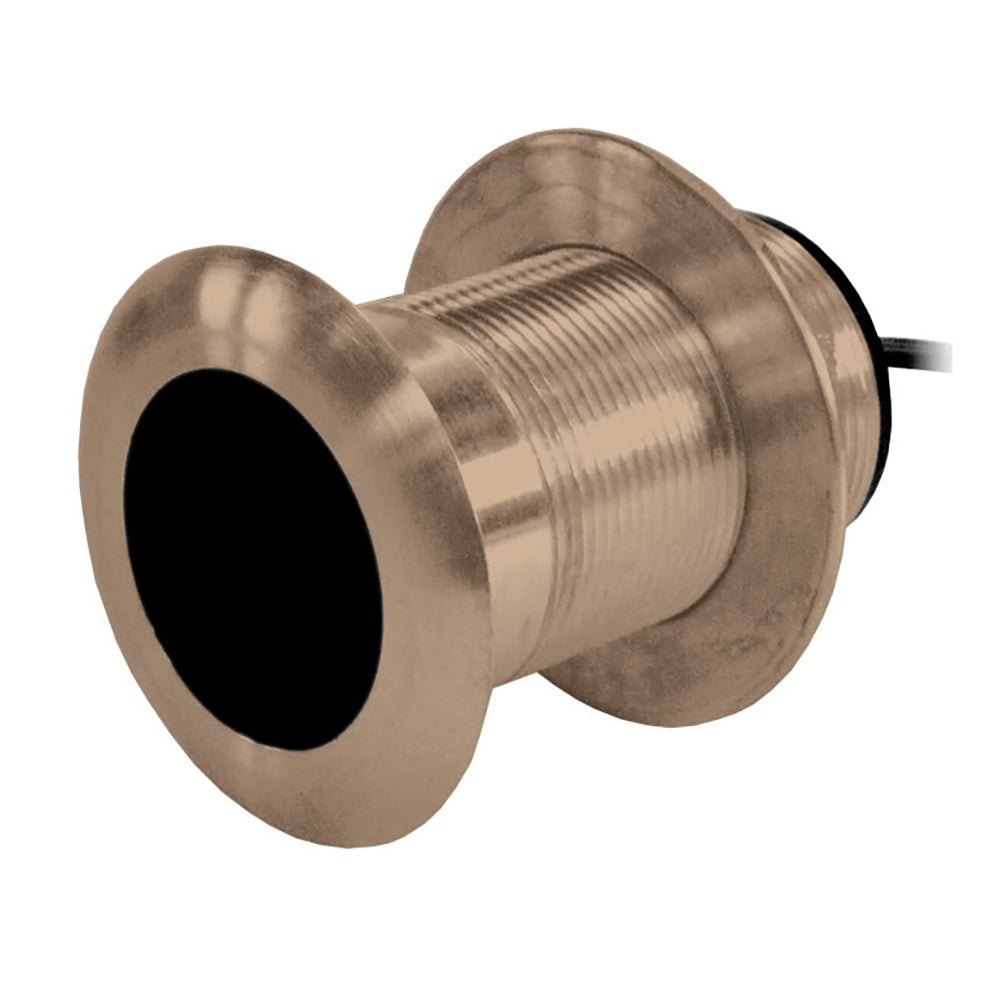

B117 Bronze Thru-Hull Transducer w/Humminbird #9 Plug - 7-Pin

The B117 features our 50/200 kHz, dual-frequency, single ceramic element in a low-profile housing. The nearly-flush design minimizes drag with only 5mm (3/16") extending outside of the hull. The plastic P319 and stainless steel SS60 models are also available to accommodate all hull materials.

Features

Industry standard for low-profile transducers
Depth and temperature
Good target detail in shallow-water at 200 kHz and good deep-water bottom tracking at 50 kHz
Right angle cable exit offers low headroom and protection when transducer is stepped on
Included rubber washer allows tightening of the hull nut to irregular hull surfaces
Housings are ABYC H-27 compliant
Optional temperature sensor
Bronze transducer housing

Specifications:

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications

Identification

MPN	B117-DT-HB

General

Transducer Type	Thru-Hull
Mounting Style	Low Profile Thru-Hull
Housing Material	Bronze
Tilt Angle	0° (up to 12°)
Functions	Depth, Temperature
Common Use	Leisure/Yachting, Fishing

Sonar

Sonar Type	Conventional Dual Frequency
Power Rating	600 W
Frequency	50/200 kHz
Beam Angle	50 kHz: 45° / 200 kHz: 12°
Max Depth	50 kHz: 1,200' (366 m) / 200 kHz: 700' (206 m)
Elements	-
