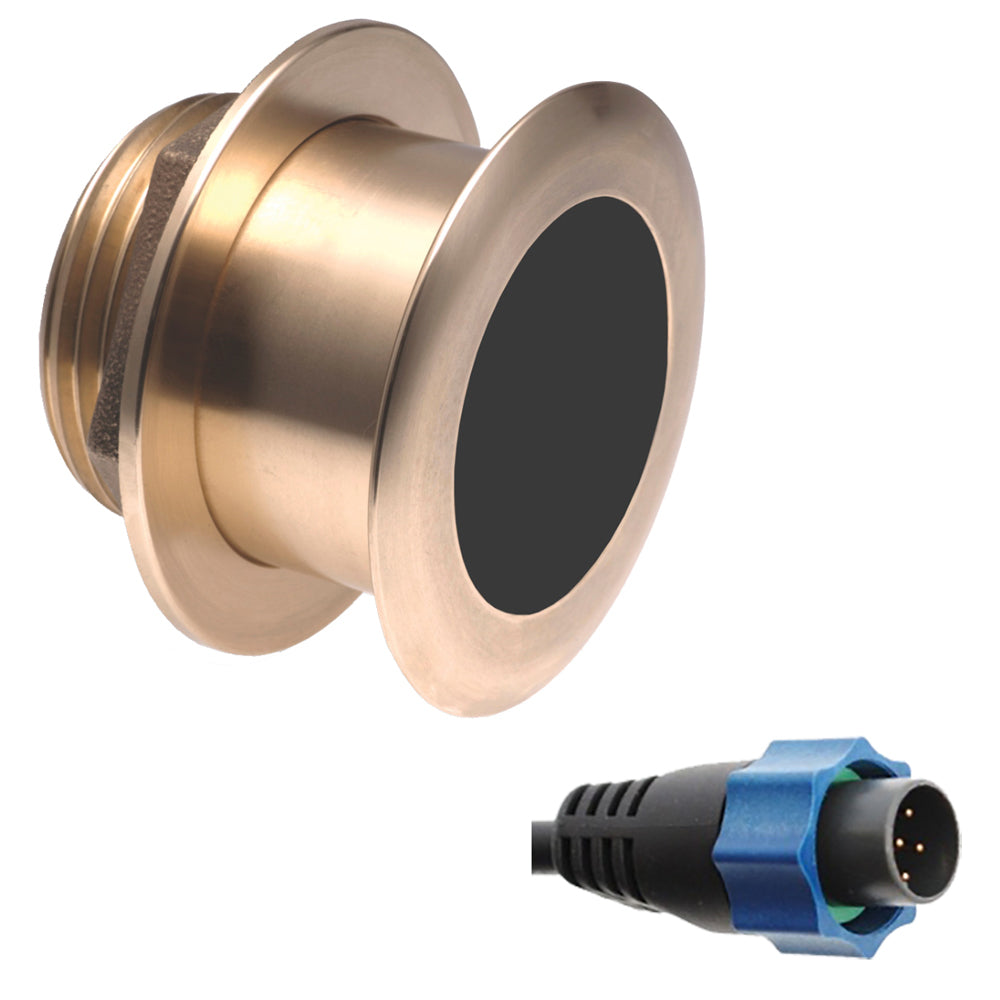

Airmar B164 1kW 20° Thru-Hull Transducer w/Blue Connector

Name: Airmar B164 1kW 20° Thru-Hull Transducer w/Blue Connector
Brand: Airmar
SKU: AIR/B164-20-BL
Price: 1399.00 USD
Availability: InStock

SKU: AIR/B164-20-BL

$1,399⁰⁰ $1,539⁹⁹

Description

B164 1kW 20° Thru-Hull Transducer with Blue Connector

Step up to a 1kW - Without a Fairing!Airmar has taken our innovative Tilted Element technology to a higher power. The 1kW, flush-mount, Tilted Element transducer is perfect for fast, trailered, tournament sportfishing vessels that cannot have a High-Performance Fairing. The flush-mounted, bronze housing protrudes less than 6.35mm (0.25") outside your hull and can sit on trailer rollers and bunks with no damage at all.

Low-profile protrusion below the hull - no affect on your boats running performance

The ceramic arrays are tilted inside the housing giving you the perfect vertical beam with maximum energy on what is directly below your boat. Take your fishfinder to the next power with this 1kW, Tilted Element transducer.

Features:

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications

Identification

MPN	B164-20-BL

General

Transducer Type	Thru-Hull
Mounting Style	Tilted Element Thru-Hull
Housing Material	Bronze
Tilt Angle	20° (16° to 24°)
Functions	Depth, Temperature
Common Use	Leisure/Yachting, Fishing

Sonar

Sonar Type	Conventional Dual Frequency
Power Rating	1 kW
Frequency	50/200 kHz
Beam Angle	50 kHz: 22° x 20° / 200 kHz: 6°
Max Depth	50 kHz: 1,800' (549 m) / 200 kHz: 800' (244 m)
Elements	-
