Airmar B265LM Bronze Thru-Hull - Chirp-Ready - No Connector - Depth...
Description
Description

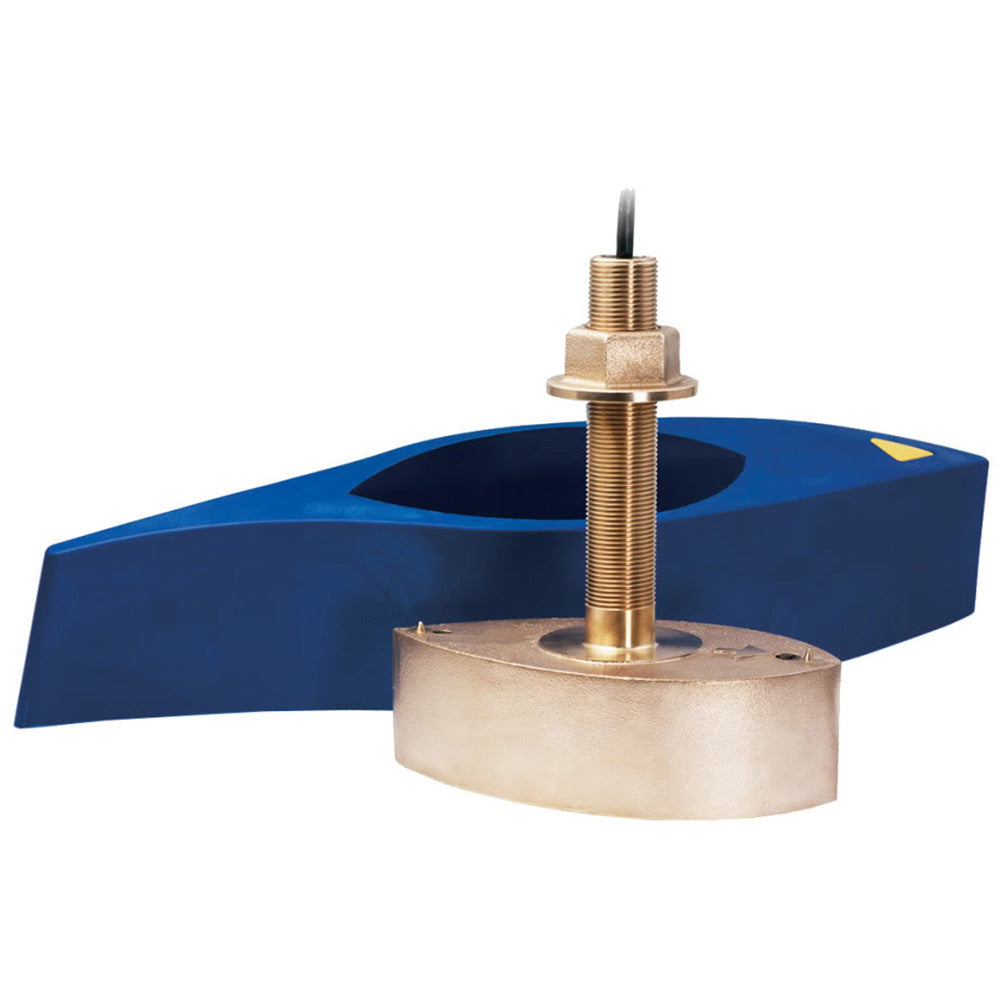

B265LM Bronze Thru-Hull - Chirp-Ready - No Connector - Depth & Temp
The B265LM, Chirp-ready thru-hull is a perfect, mid to deep-depth transducer. The huge bandwidth includes many of the most popular frequencies for targeting top gamefish. This 1 kW powerhouse delivers clear target details, bottom discrimination, as well as bait and game-fish separation at all depths.
The low-frequency band, operating between 42 and 65 kHz, provides deep-water performance down to 914 m (3000'). It is a good choice when scouting an area or fishing in deeper depths. The medium-frequency band from 85 to 135 kHz is excellent for identifying targets suspended close to the bottom, on structure, and within the water column.
The included high-performance Fairing improves broadband performance at speeds over 30 knots (34 MPH).
Features:
- Depth and fast-response water-temperature sensing
- 1 kW of power for great deep to mid-depth performance
- 25° to 16° beamwidth
- Maximum depth of 914 m (3000')
- 16° to 11° beamwidth
- Maximum depth of 457 m (1500')
- 73 kHz of total bandwidth from one transducer
- Covers popular fishing frequencies of 50, 88, and 107 kHz, plus everything else in the bandwidths
- Bronze housing with High-performance Fairing for optimal high-speed performance
- Also available as transom (TM265LM), pocket (PM265LM), cavity/welded-tank (CM265LM), and in-hull (M265LM) mounts
- Patented Xducer ID® technology
Specifications
Specifications
Identification
| MPN | B265C-LM-0 |
|---|
General
| Transducer Type | Thru-Hull |
|---|---|
| Mounting Style | Thru-Hull with Fairing |
| Housing Material | Bronze |
| Tilt Angle | 0° (up to 20° with fairing) |
| Functions | Depth, Temperature |
| Common Use | Fishing, Commercial Fishing |
Sonar
| Sonar Type | CHIRP (Low/Medium) |
|---|---|
| Power Rating | 1 kW |
| Frequency | Low: 42–65 kHz / Medium: 85–135 kHz |
| Beam Angle | Low: 25° to 16° / Medium: 16° to 11° |
| Max Depth | Low: 3,000' (914 m) / Medium: 1,500' (457 m) |
| Elements | - |
Dimensions
| Weight | 16 lb (7.3 kg) |
|---|---|
| Hole Size | 1-3/16" (30 mm) |
| Usable Shaft Length | 4.75" (121 mm) |
| Housing Diameter | - |
| Overall Height | - |
Connectivity
| Connector | None (bare wire) |
|---|---|
| Display Connector | Connector Required |
| Cable Length | - |
| Compatible With | - |
Additional
| Hull Material | Fiberglass or wood |
|---|---|
| Max Vessel Length | 25' (8 m) and above |
| Retractable | No |
| Country of Origin | - |
