Airmar B275LH-W Bronze Chirp Thru-Hull f/Garmin w/12-Pin Connector
Description
Description

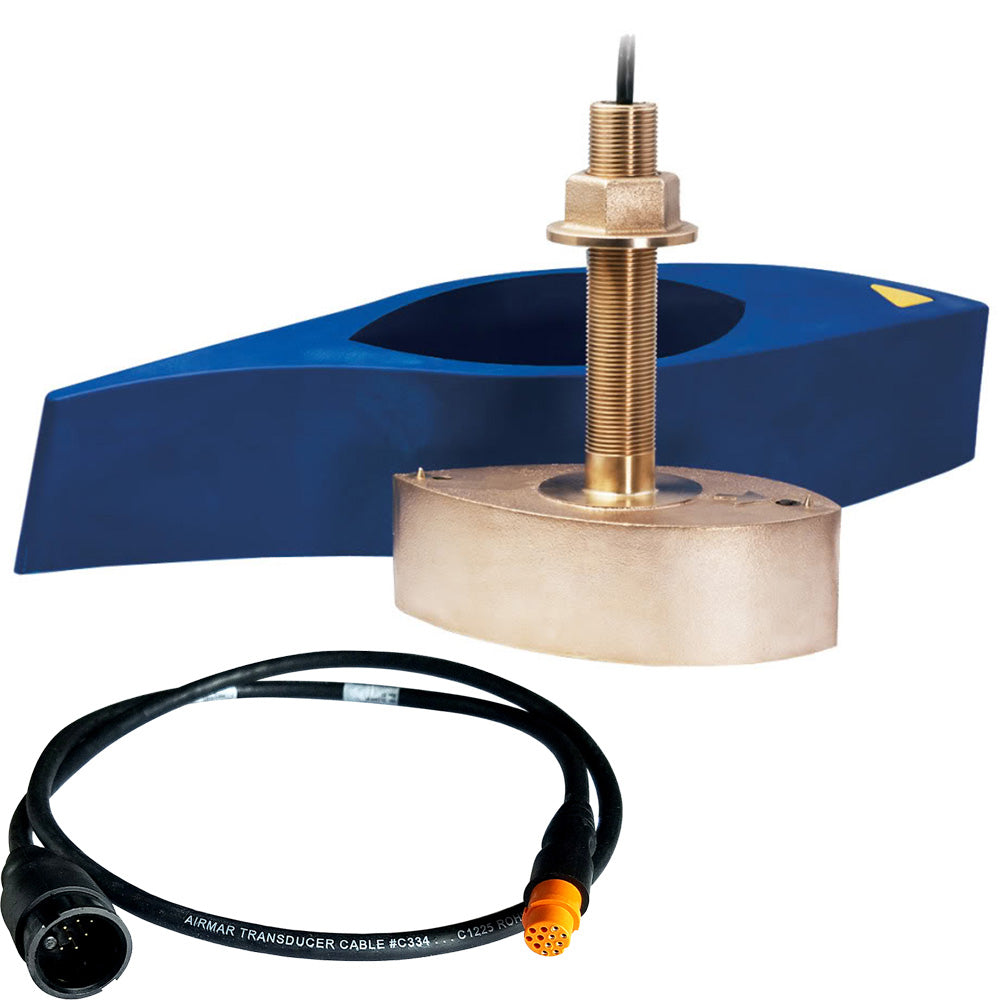

B275LH-W Bronze Thru-Hull for Garmin with 12-Pin Connector
Get more coverage under your boat with Airmar’s unique wide-beam, low and high-frequency, Chirp-ready B275LHW. The high band operates across a frequency range of 150 to 250 kHz and has a fixed 25° beam for all frequencies, which results in superior resolution. The constantly wide beam provides twice the coverage and clear fish arches on the display compared to most high-frequency, narrow-beam transducers.
The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage under the boat are essential down to 152 m (500'). The low-frequency band and 1 kW of power also support great deep-water performance. Get the best of both worlds with Airmar’s Chirp-ready transducers with wide-beam coverage.
The included High-performance Fairing improves broadband results at speeds over 30 knots (34 MPH).
Features:
- Garmin 12-Pin Mix & Match Cable for Chirp Transducers
- Depth and fast-response water-temperature sensing
- 1KW of power for great deep-water performance from the low frequency
- 25° to 16° beamwidth
- Maximum depth of 914 m (3000')
- 25° constant beamwidth
- Maximum depth of 152 m (500')
- 123 kHz of total bandwidth from one transducer
- Covers popular fishing frequencies of 50 and 200 kHz, plus everything else in the bandwidth
- High frequency delivers superior shallow-water performance, bottom detail, and fish-target separation
- High wide beamwidth yields more coverage for detecting fish in the upper water column
- Bronze housing with High-performance Fairing for optimal performance at higher speeds
- Also available as transom (TM275LHW) and pocket (PM275LHW) mounts
- Patented Xducer ID® technology
Specifications
Specifications
Identification
| MPN | B275C-LHW-12G |
|---|
General
| Transducer Type | Thru-Hull |
|---|---|
| Mounting Style | Thru-Hull with Fairing |
| Housing Material | Bronze |
| Tilt Angle | 0° (up to 20° with fairing) |
| Functions | Depth, Temperature |
| Common Use | Fishing, Commercial Fishing |
Sonar
| Sonar Type | CHIRP (Low/High Wide) |
|---|---|
| Power Rating | 1 kW |
| Frequency | Low: 42–65 kHz / High Wide: 150–250 kHz |
| Beam Angle | Low: 25° to 16° / High Wide: 25° (constant) |
| Max Depth | Low: 3,000' (914 m) / High Wide: 500' (152 m) |
| Elements | - |
Dimensions
| Weight | 16 lb (7.3 kg) |
|---|---|
| Hole Size | 1-3/16" (30 mm) |
| Usable Shaft Length | 4.75" (121 mm) |
| Housing Diameter | - |
| Overall Height | - |
Connectivity
| Connector | Garmin 12-Pin |
|---|---|
| Display Connector | Direct Connect |
| Cable Length | - |
| Compatible With | Garmin 12-pin sonar displays |
Additional
| Hull Material | Fiberglass or wood |
|---|---|
| Max Vessel Length | 25' (8 m) and above |
| Retractable | No |
| Country of Origin | - |
