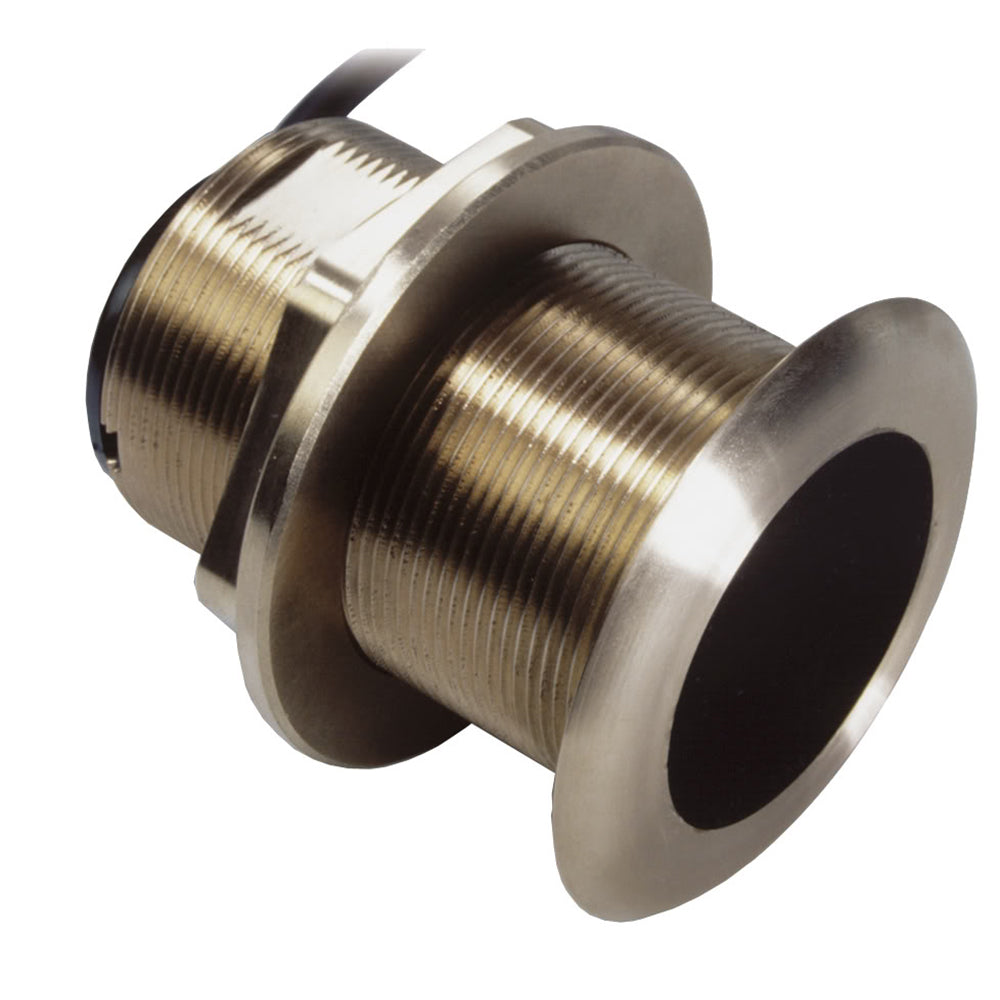

B60 Bronze Thru-Hull Transducer w/Humminbird #9 Plug - 7-Pin - 12º
The bronze B60-12º provides a vertical beam without a fairing. Inside the housing, the ceramic element is tilted for built-in, deadrise compensation. The resulting vertical beam gives excellent echo returns for more-accurate depth readings. The nearly-flush housing minimizes drag with only 5mm (3/16") extending outside of the hull.
Features:
- Engineered for center-console and trailered boats
- Low-profile protrusion below the hull
- No affect on your boats running performance
- Arrow on cap points toward keel when installed
- Built-in temperature sensor
- Bronze transducer housing
Specifications:
Specifications
Specifications
Identification
| MPN | B60-12-HB |
|---|
General
| Transducer Type | Thru-Hull |
|---|---|
| Mounting Style | Tilted Element Thru-Hull |
| Housing Material | Bronze |
| Tilt Angle | 12° (8° to 15°) |
| Functions | Depth, Temperature |
| Common Use | Leisure/Yachting, Fishing |
Sonar
| Sonar Type | Conventional Dual Frequency |
|---|---|
| Power Rating | 600 W |
| Frequency | 50/200 kHz |
| Beam Angle | 50 kHz: 45° / 200 kHz: 12° |
| Max Depth | 50 kHz: 1,200' (366 m) / 200 kHz: 700' (206 m) |
| Elements | - |
Dimensions
| Weight | 3 lb (1.4 kg) |
|---|---|
| Hole Size | 2-3/8" (60 mm) |
| Usable Shaft Length | 2.70" (68.5 mm) |
| Housing Diameter | - |
| Overall Height | - |
Connectivity
| Connector | Humminbird #9 (7-Pin) |
|---|---|
| Display Connector | Direct Connect |
| Cable Length | - |
| Compatible With | Humminbird #9 connector units |
Additional
| Hull Material | Fiberglass or wood |
|---|---|
| Max Vessel Length | Up to 26' (8 m) |
| Retractable | No |
| Country of Origin | - |
