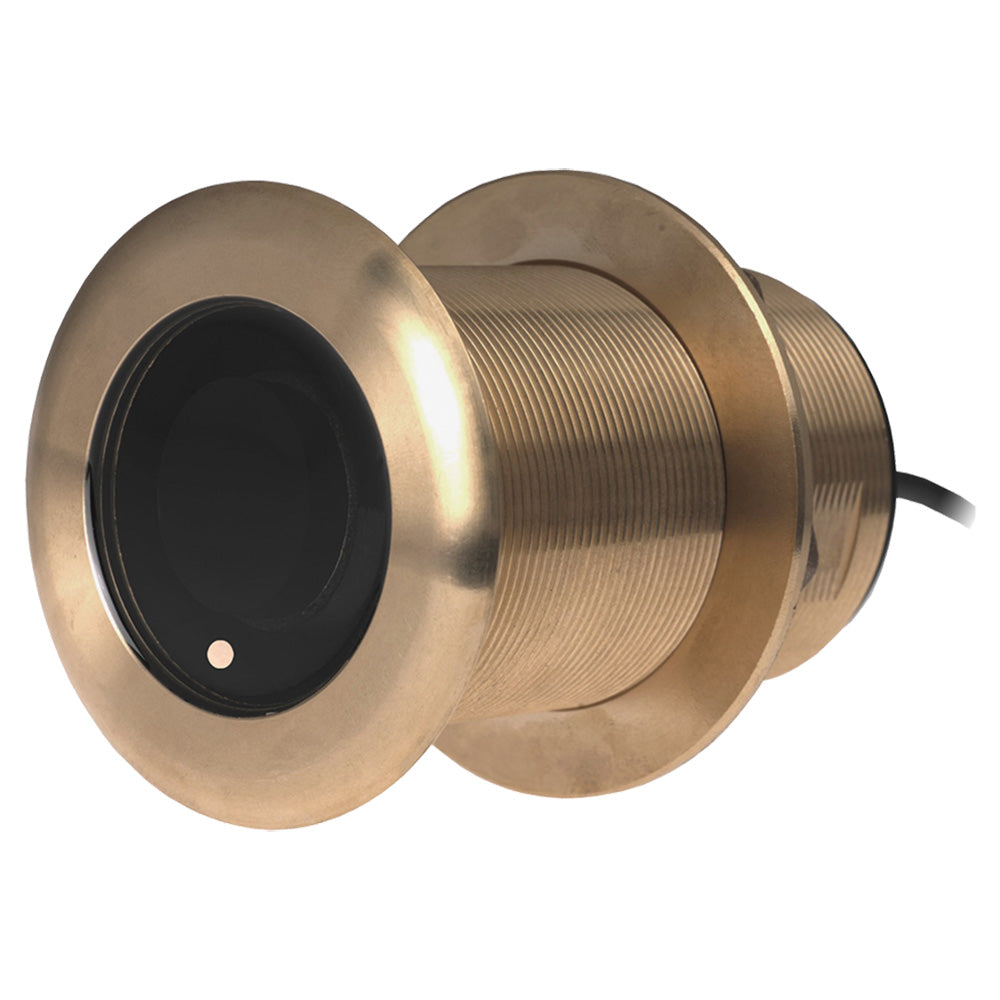

B60 Thru-Hull Transducer 20° Tilt 9-Pin for Navico xSonic
The B60 is a 600W, 50/200 kHz transducer that integrates Airmar’s popular, Tilted Element™ feature. This Tilted Element transducer has the ceramic element fixed at a 20° angle within the housing. When the transducer is installed almost flush with the hull, the tilt of the element corrects for the hull deadrise angle. Orienting the beam directly down ensures maximum echo returns to the transducer for more accurate depth readings.
Features:
- Depth and fast-response water temperature sensing
- 600 W of power
- 200 kHz with a 12° beamwidth for depth performance to 206 m (700')
Specifications
Specifications
Identification
| MPN | B60-20-9N |
|---|
General
| Transducer Type | Thru-Hull |
|---|---|
| Mounting Style | Tilted Element Thru-Hull |
| Housing Material | Bronze |
| Tilt Angle | 20° (16° to 24°) |
| Functions | Depth, Temperature |
| Common Use | Leisure/Yachting, Fishing |
Sonar
| Sonar Type | Conventional Dual Frequency |
|---|---|
| Power Rating | 600 W |
| Frequency | 50/200 kHz |
| Beam Angle | 50 kHz: 45° / 200 kHz: 12° |
| Max Depth | 50 kHz: 1,200' (366 m) / 200 kHz: 700' (206 m) |
| Elements | - |
Dimensions
| Weight | 3 lb (1.4 kg) |
|---|---|
| Hole Size | 2-3/8" (60 mm) |
| Usable Shaft Length | 2.70" (68.5 mm) |
| Housing Diameter | - |
| Overall Height | - |
Connectivity
| Connector | Navico 9-Pin |
|---|---|
| Display Connector | Direct Connect |
| Cable Length | - |
| Compatible With | Simrad, Lowrance, B&G |
Additional
| Hull Material | Fiberglass or wood |
|---|---|
| Max Vessel Length | Up to 26' (8 m) |
| Retractable | No |
| Country of Origin | - |
