Aquatic AV AD300.2 Micro 2-Channel Amplifier
Regular price
$26999
Total:
Unit price
SKU:
AQT/AD300
Regular price
$26999
Total:
Unit price
Description
Description

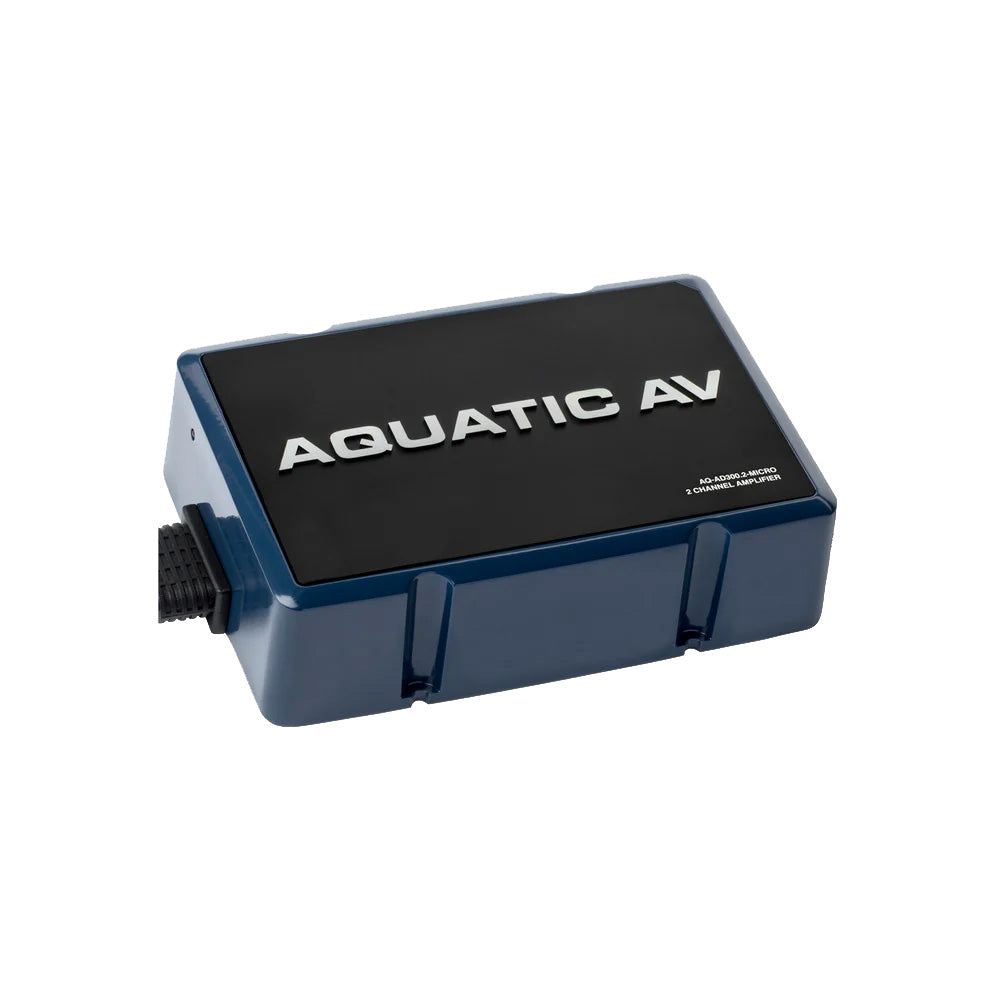

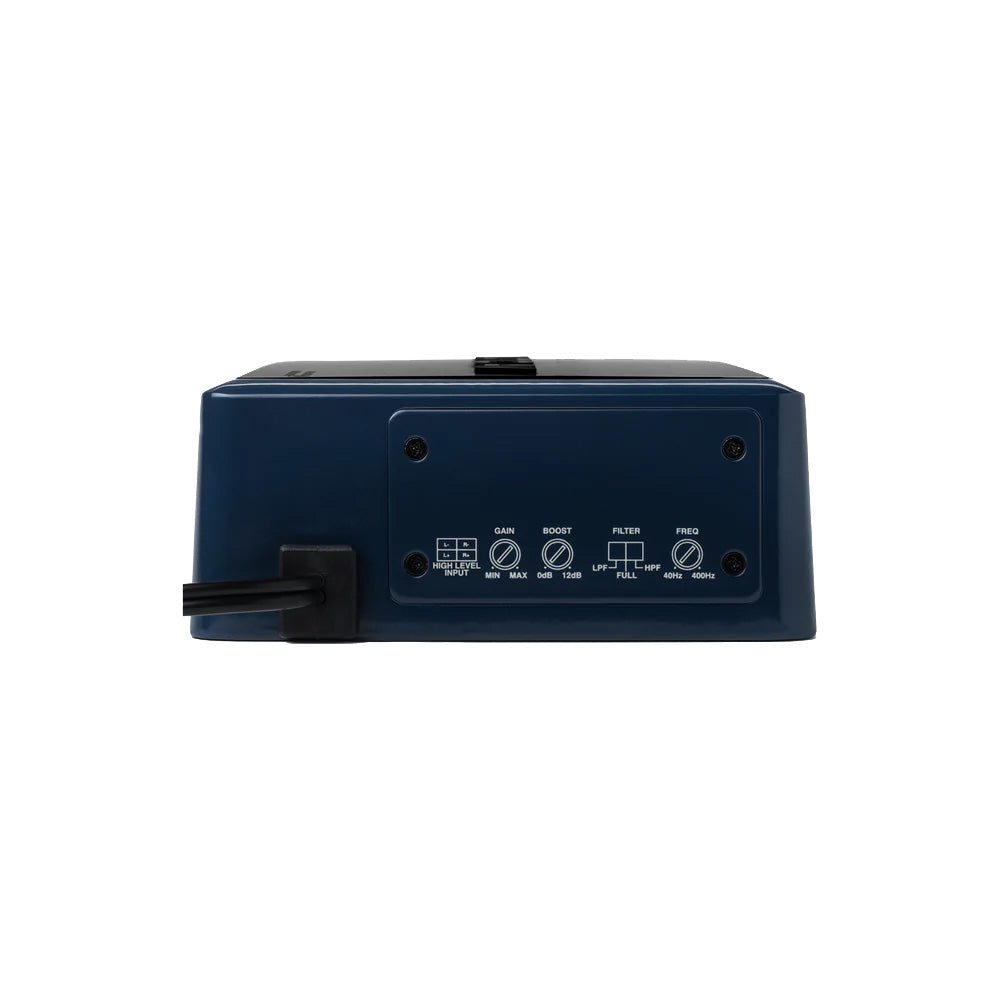

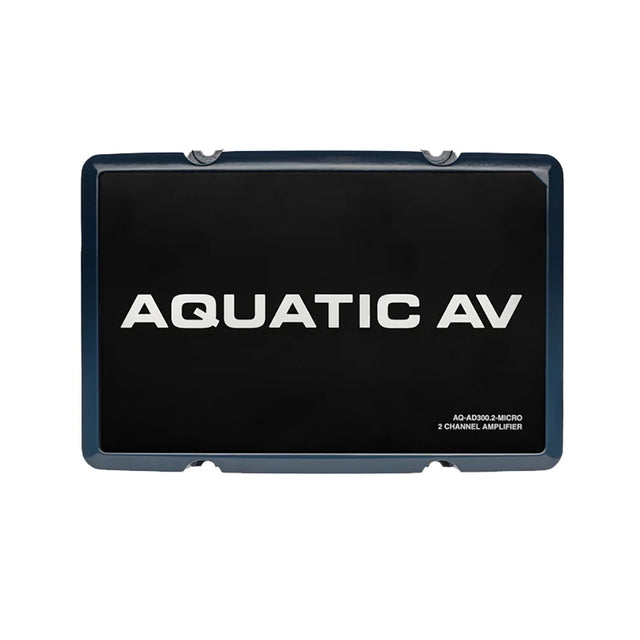

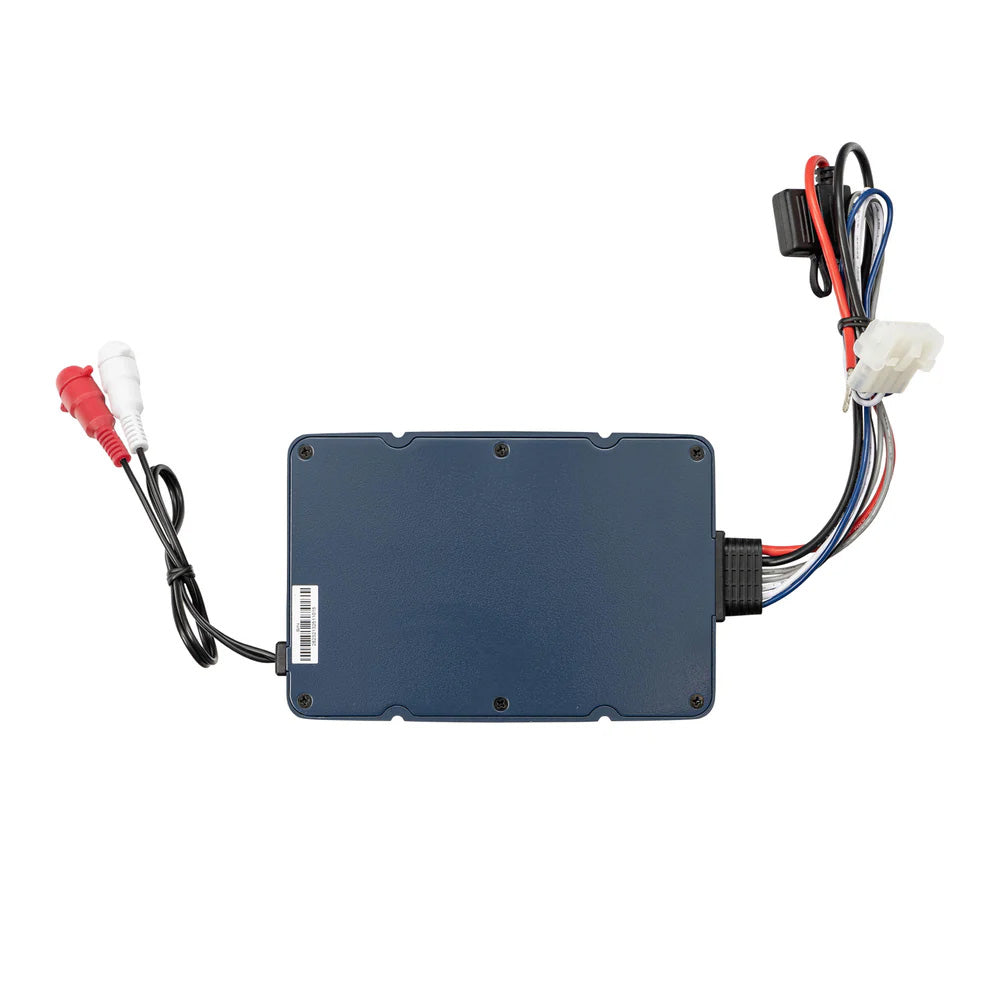

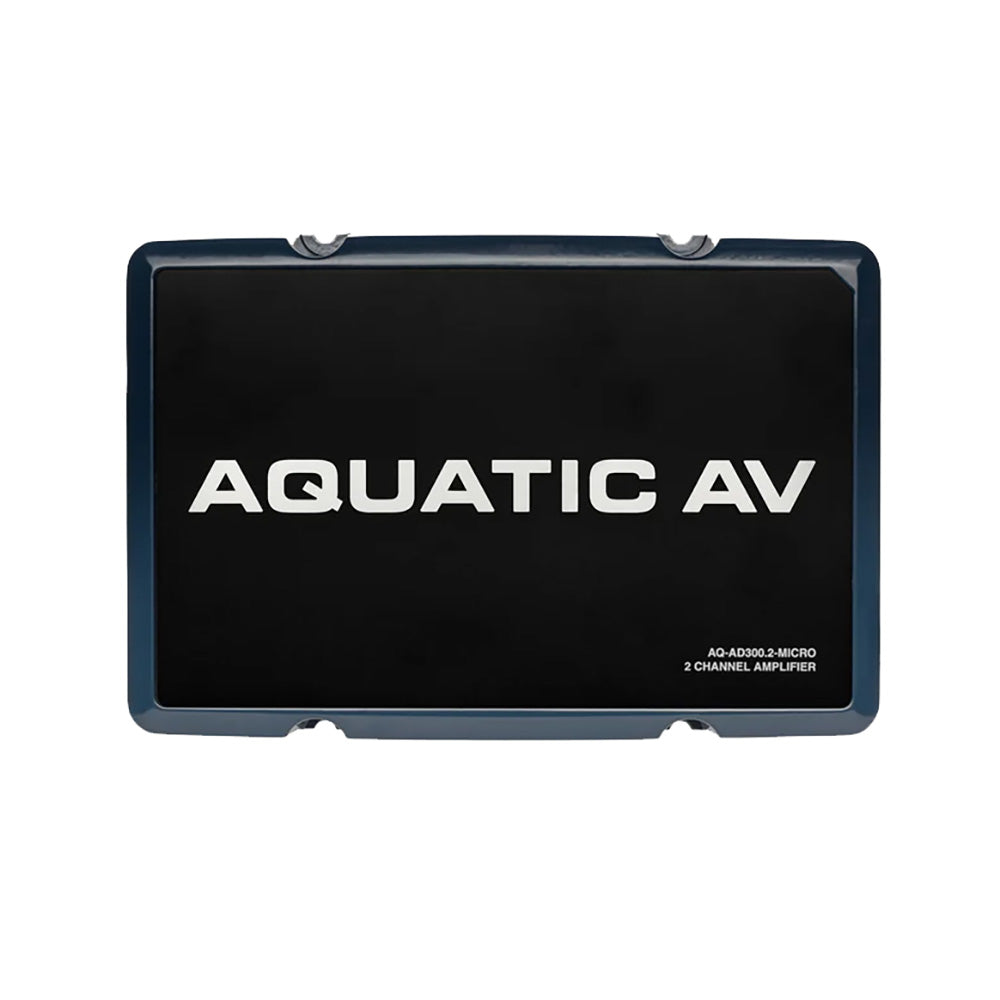

AD300.2 Micro 2-Channel Amplifier
This compact amplifier packs a serious punch with 300 watts of power. Digital technology makes this amplifier an efficient use of power, lowering battery strain without compromising sound. Waterproof and dust-proof, the AD300.2 Micro amplifier is built for durability and is great at staying out of sight.
Features:
- Digital (Class D) Bridgeable Amplifier
- IP65 Rating
Specifications
Specifications
Identification
| MPN | AD300 |
|---|
Dimensions
| Dimensions (H x W x D) | 1.81" x 6.54" x 4.45" (46 x 166 x 113 mm) |
|---|---|
| Weight | - |
Amplifier
| Amplifier Class | Class D |
|---|---|
| Channels | 2 |
Amplifier Power
| Rated Continuous (RMS) Power (Manufacturer Rating @ 4 Ohm) | 100 W x 2 |
|---|---|
| Rated Continuous (RMS) Power (Manufacturer Rating @ 2 Ohm) | 150 W x 2/300 W x 1 (Bridged) |
Amplifier Processing
| Signal-to-Noise Ratio, referred to highest rated power (A-weighted, 20 Hz-20 kHz noise bandwidth): Analog inputs | - |
|---|---|
| Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz-20 kHz noise bandwidth): Analog inputs | - |
| Signal-to-Noise Ratio (Manufacturer Rating) | - |
| Damping Factor @ 4 Ω | - |
| Damping Factor @ 2 Ω | - |
| THD+N @ rated power | < 1% |
| Frequency Response (+0, -1dB) | 10 Hz-45 kHz |
| Input Voltage Range @ RCA Inputs | - |
| Input Impedance | - |
| Remote Level Control | - |
| Remote Level Modes | - |
| Channel Input Mode Switch | - |
| Pass-through Preamp Output | - |
| Source Channel Selection for PreOuts | - |
Amplifier Filters
| Bass Boost EQ | 0 to +12 dB @ 85 Hz |
|---|---|
| Output Polarity Switch | - |
| Filter Mode(s): Channels 1 & 2 | High-Pass or Low-Pass |
| Filter Slope(s): Channels 1 & 2 | - |
| Filter Frequency Range: Channels 1 & 2 | 40 Hz-400 Hz |
| High-Pass/Low-Pass Full Range Filter | - |
| HP Variable Crossover Frequency Range | - |
| LP Variable Crossover Frequency Range | - |
| Infrasonic Filter | - |
| Detented, Calibrated Filter Potentiometers | - |
Electrical
| Operating Voltage | - |
|---|---|
| Current Consumption (idle) | - |
| Current Consumption (standby) | - |
| Fuse Rating | - |
| Recommended Fuse Type(s) | - |
| Minimum Copper Power/Ground Wire Gauge | - |
General
| Water/Dust Protection Rating | IP65 |
|---|---|
| Operating Temperature Range | - |
| Protection Circuits | Overload |
Warranty/Certifications
| Certifications | - |
|---|---|
| Warranty | 2 Years |
