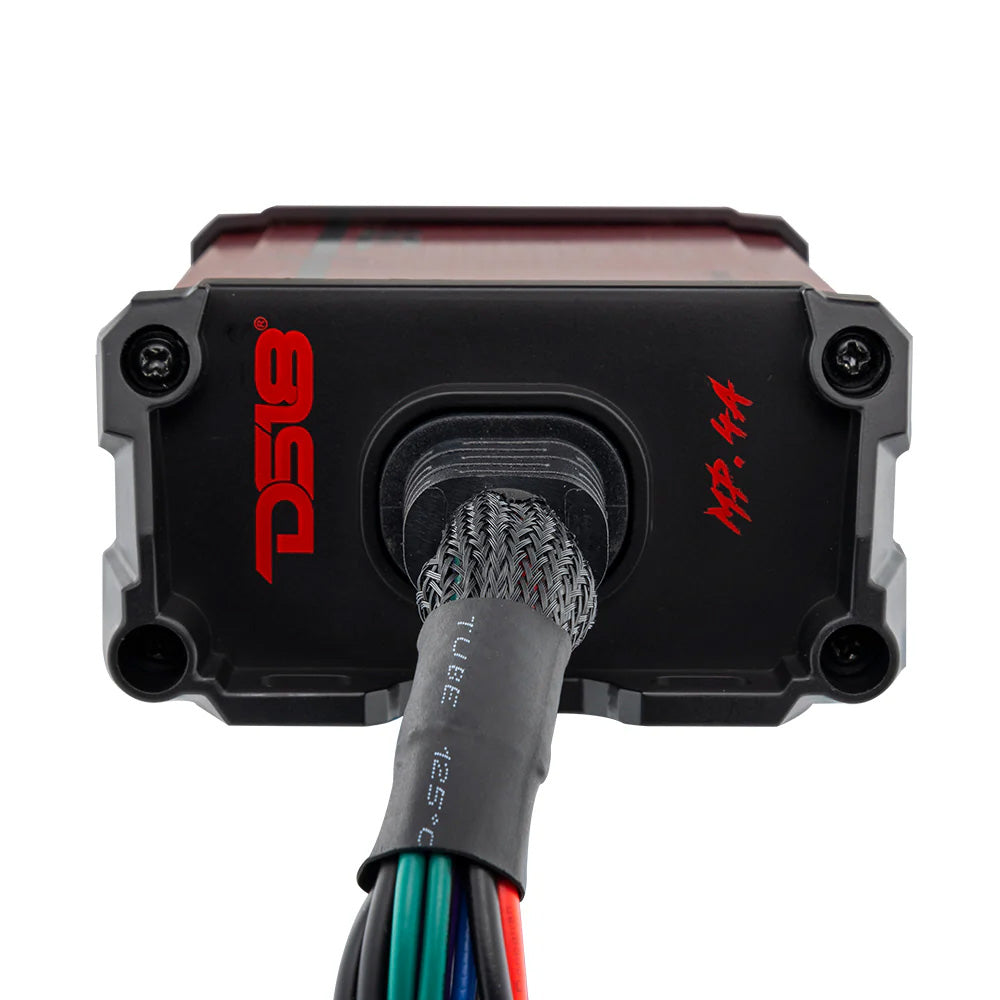

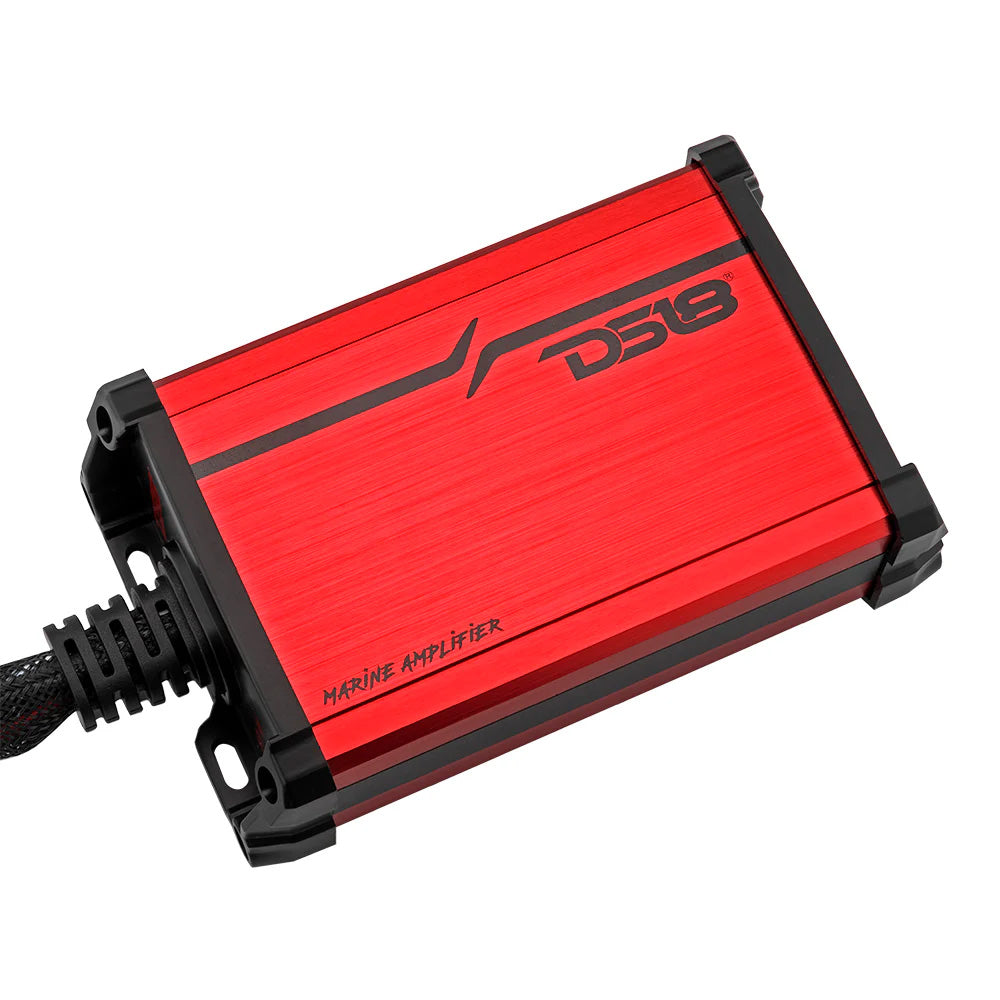

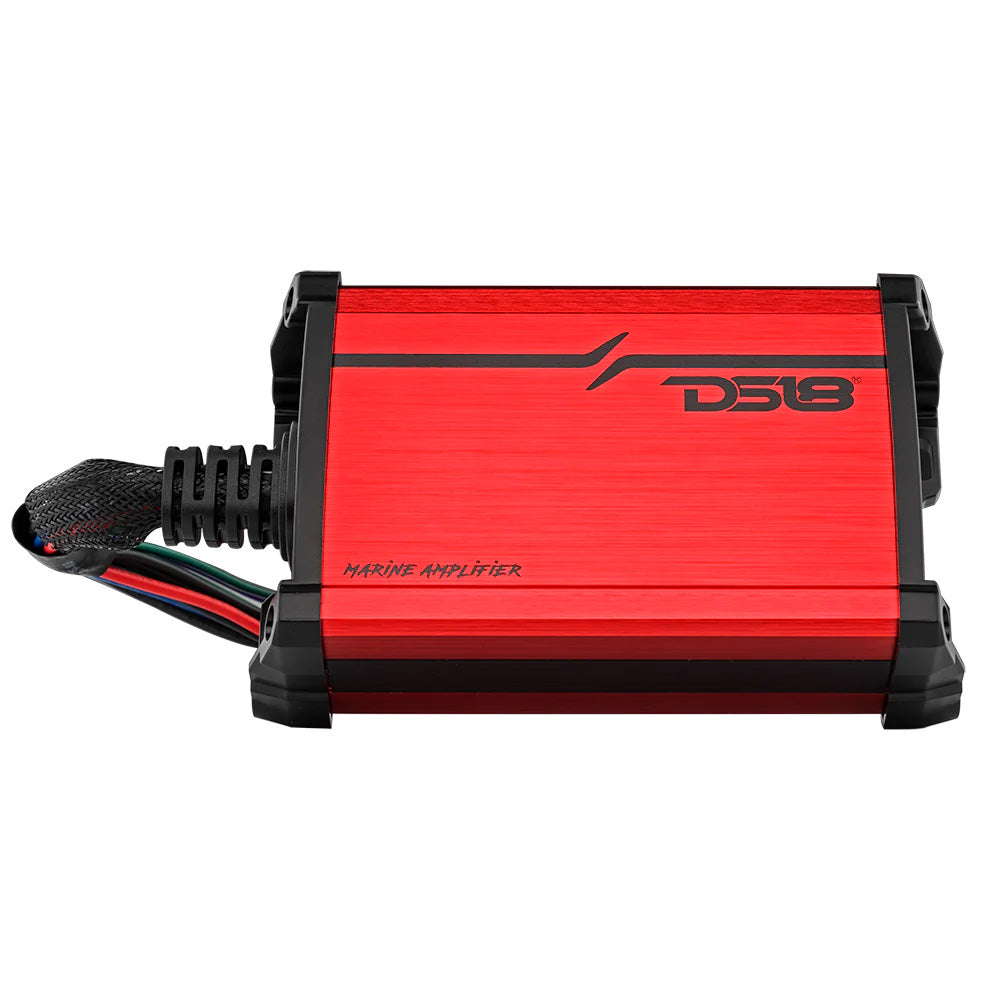

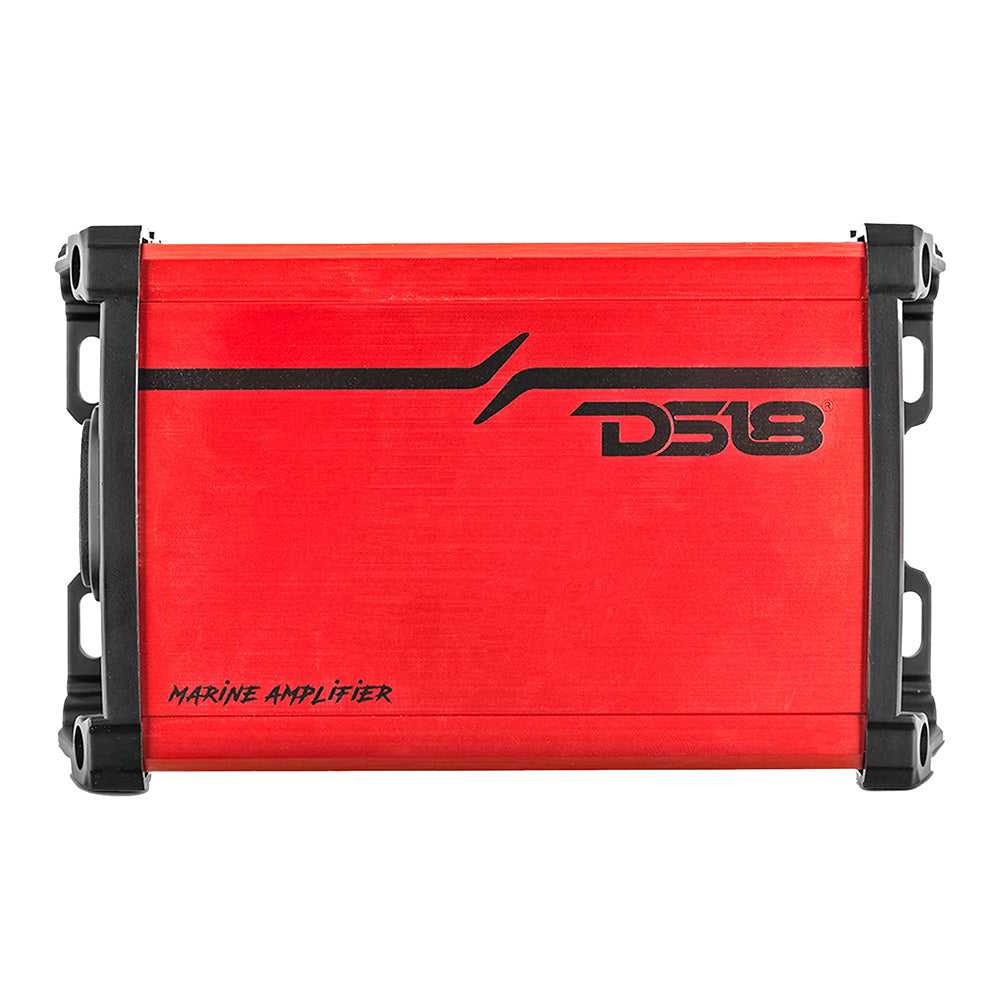

MP.4A Full-Range 4 Channel Class D Amplifier - 4 x 40W RMS @ 4-Ohm
In the rugged world of motorsports, where water, dust, and vibrations relentlessly test audio gear, the MP.4A stands strong. Encased in a striking brushed red aluminum body, it's not only stylish but also exceptionally durable. The MP.4A is designed to brave the elements with its IPX5 waterproofing, ensuring the music never falters, whether users are embarking on a dusty off-road adventure or a serene seaside drive. For added protection, DS18 fortified the MP.4A with salt and fog protection.
Connecting the audio source is a breeze, thanks to the 3.5mm jack input audio connector and RCA left and right audio outputs. These features allow users to seamlessly link other amps to it or integrate it into the current system. Every note and beat is faithfully reproduced, thanks to a raw MAX power of 480W, delivering an exhilarating sensory experience that will send shivers down a user's spine. The continuous power output of 4 x 40W RMS ensures unmatched clarity and precision in sound, with a frequency response spanning from 20 Hz to 20 kHz and a signal-to-noise ratio of 82 dB, making every note crisp and every beat pronounced.
Features:
- Marine full-range
- 4 channel
- 4 x 40 Watts @ 4 Ohm
- Class D
- Water-resistant IPX5
- Compact design
Specifications
Specifications
Identification
| MPN | MP.4A |
|---|---|
| Barcode | 810097262966 |
Dimensions
| Dimensions (H x W x D) | 1.97" x 5.98" x 3.66" (50 x 152 x 93 mm) |
|---|---|
| Weight | - |
Amplifier
| Amplifier Class | Class D |
|---|---|
| Channels | 4 |
Amplifier Power
| Rated Continuous (RMS) Power (Manufacturer Rating @ 4 Ohm) | 40 W x 4 |
|---|
Amplifier Processing
| Signal-to-Noise Ratio, referred to highest rated power (A-weighted, 20 Hz-20 kHz noise bandwidth): Analog inputs | - |
|---|---|
| Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz-20 kHz noise bandwidth): Analog inputs | - |
| Signal-to-Noise Ratio (Manufacturer Rating) | 82 dB |
| Damping Factor @ 4 Ω | - |
| Damping Factor @ 2 Ω | - |
| THD+N @ rated power | - |
| Frequency Response (+0, -1dB) | 20 Hz-20 kHz |
| Input Voltage Range @ RCA Inputs | - |
| Input Impedance | - |
| Remote Level Control | - |
| Remote Level Modes | - |
| Channel Input Mode Switch | - |
| Pass-through Preamp Output | Yes (RCA) |
| Source Channel Selection for PreOuts | - |
Amplifier Filters
| Bass Boost EQ | None |
|---|---|
| Output Polarity Switch | - |
| Filter Mode(s): Channels 1 & 2 | - |
| Filter Slope(s): Channels 1 & 2 | - |
| Filter Frequency Range: Channels 1 & 2 | - |
| Filter Mode(s): Channels 3 & 4 | - |
| Filter Slope(s): Channels 3 & 4 | - |
| Filter Frequency Range: Channels 3 & 4 | - |
| High-Pass/Low-Pass Full Range Filter | - |
| HP Variable Crossover Frequency Range | - |
| LP Variable Crossover Frequency Range | - |
| Infrasonic Filter | - |
| Detented, Calibrated Filter Potentiometers | - |
Electrical
| Operating Voltage | - |
|---|---|
| Current Consumption (idle) | - |
| Current Consumption (standby) | - |
| Fuse Rating | - |
| Recommended Fuse Type(s) | - |
| Minimum Copper Power/Ground Wire Gauge | - |
General
| Water/Dust Protection Rating | IPX5 (splashproof) |
|---|---|
| Operating Temperature Range | - |
| Protection Circuits | - |
Warranty/Certifications
| Certifications | - |
|---|---|
| Warranty | - |
Reviews (0)
Reviews (0)
In The Box
In The Box

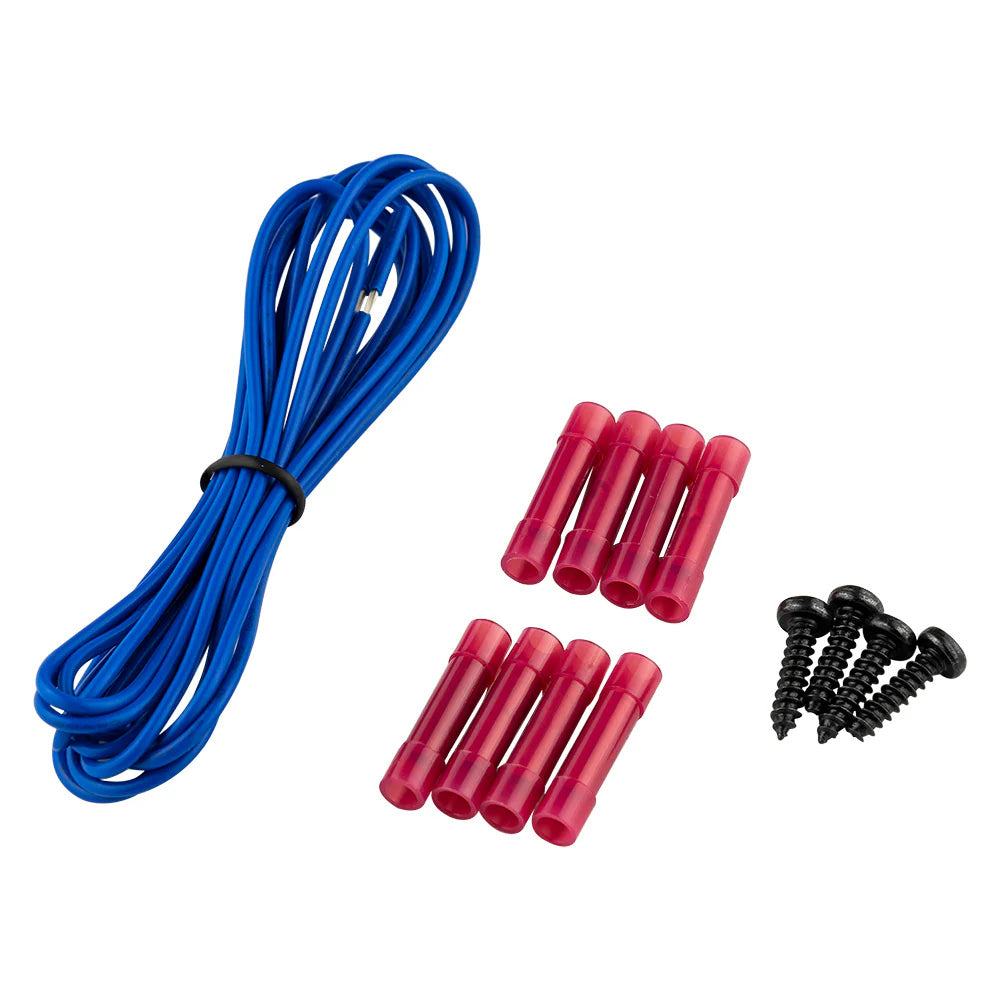

In The Box:
