Garmin | SKU: GAR/010-01510-50

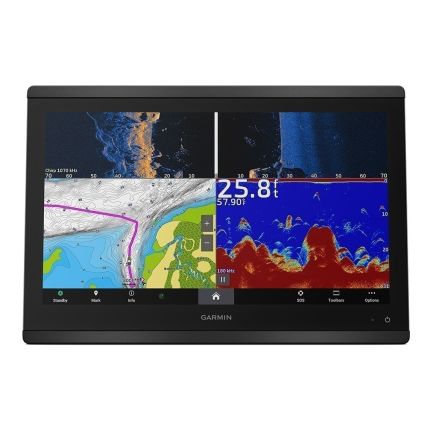

Garmin GPSMAP® 8617 Chartplotter w/ Navionics+

Name: Garmin GPSMAP® 8617 Chartplotter w/ Navionics+
Brand: Garmin
SKU: GAR/010-01510-50
Price: 7799.99 USD
Availability: OutOfStock

$7,799⁹⁹

Shipping calculated at checkout.

Description

SERIOUS ANGLERS, CRUISERS, SAILORS AND SAIL RACERS DEMAND SERIOUS EQUIPMENT

PRELOADED MAPPING

Experience unparalleled coverage and detail with built-in Garmin Navionics+^™integrated coastal and inland mapping that includes Auto Guidance+^™technology and a 1-year subscription for downloadable daily updates and more on select chartplotters.

HD IPS TOUCHSCREEN

this display offers wider viewing angles, superior clarity and sunlight readability, even with polarized sunglasses.

SMARTMODE STATION CONTROLS

Get quick, one-touch access to the information you need to ease high-stress situations such as docking. You can incorporate networked sonar, radar, cameras, media and more.

SAILING POLARS

Use the polar table to see key data, including how fast you should go at a certain wind angle and speed — so you know whether you need to adjust sail trim.

Specifications

Identification

MPN	010-01510-50
Barcode	753759285470

General

Unit Type	Chartplotter
Screen Size	17.0"

Display

Display Type	WUXGA IPS
Resolution	1920 x 1200
Brightness	-
Input	Touchscreen

Navigation

GPS / GNSS	-
Update Rate	-
Preloaded Charts	Garmin Navionics+
Chart Compatibility	-
Card Slots	-
Internal Storage	-
Waypoints / Routes / Tracks	5,000 / 100 / 50

Sonar

Built-In Sonar	No (GCV black box, sold separately)
Sonar Power	-
CHIRP / Traditional	-
Down Imaging	-
Side Imaging	-
Transducer Port	-
Included Transducer	No

Connectivity

NMEA 2000	-
NMEA 0183	-
J1939	-
Ethernet / Network	-
Wi-Fi	Yes
Bluetooth	Yes
Video In / Out	-

Dimensions

Unit Dimensions (W x H x D)	16.5" x 12.1" x 2.8" (419 x 307 x 71 mm)
Dimensions with Bracket	-
Flush Mount Cutout	-
Mounting Options	-
Weight	11.48 lb (5.2 kg)

Electrical

Power Input	10–35 VDC
Power Consumption / Current Draw	2.8 A typical / 3.5 A max @ 12 VDC

Additional

Water Rating	IPX7
Compass-Safe Distance	21" (53 cm)
Operating Temperature	5° to 131° F (-15° to 55° C)
Country of Origin	-

Reviews (1)

In The Box

In The Box:

GPSmap 8617
Trim piece snap covers
GPS 24xd NMEA 2000 (with pole mount, flush mount and under deck mount adapters)
Protective cover
Flush mount hardware
Power cable
NMEA 2000 2 m backbonedrop cable
NMEA 2000 6 m backbone cable
NMEA 2000 power cable
NMEA 2

Package Dimensions:
